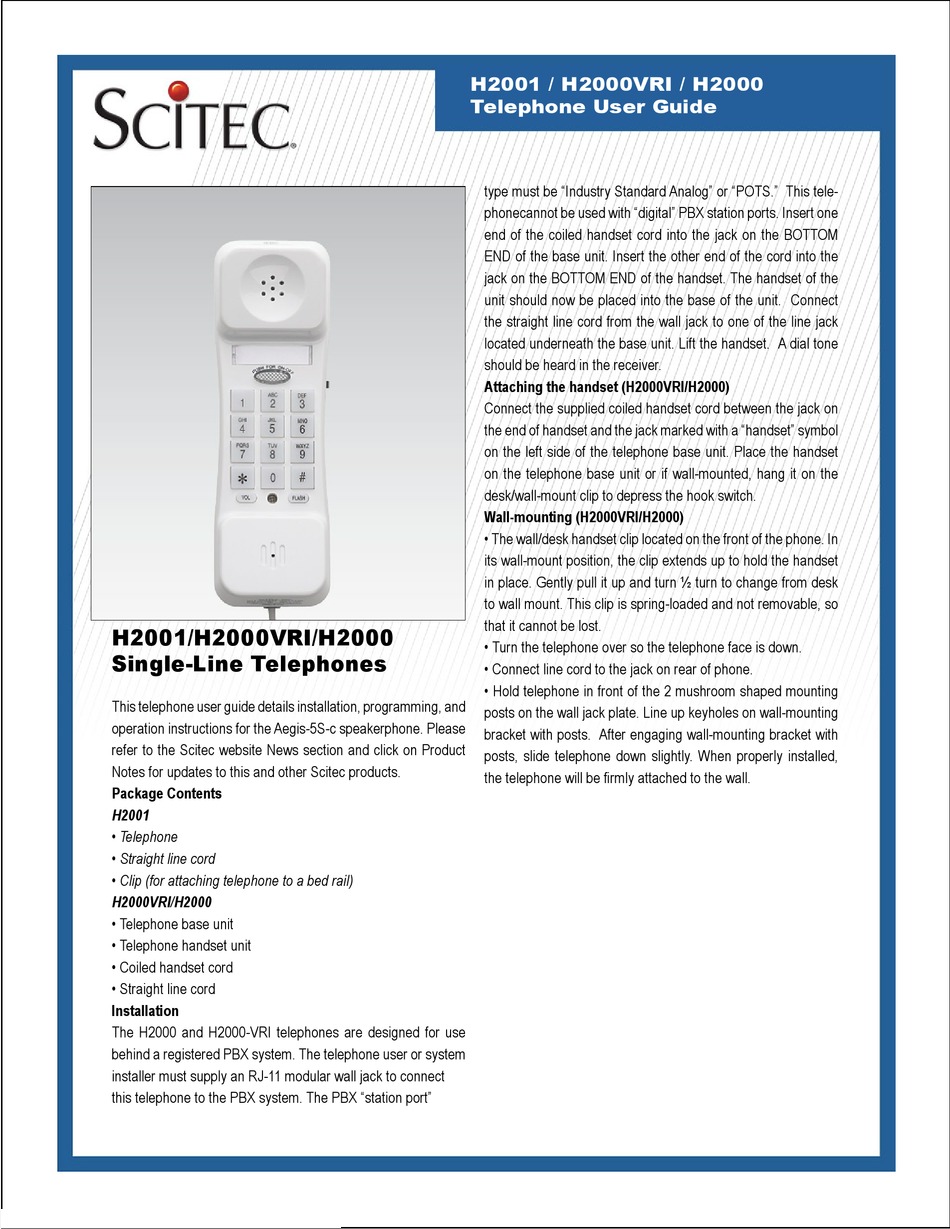

Scitec H2001 User Manual

H2001/H2000VRI/H2000
Single-Line Telephones
This telephone user guide details installation, programming, and
operation instructions for the Aegis-5S-c speakerphone. Please
refer to the Scitec website News section and click on Product
Notes for updates to this and other Scitec products.
Package Contents

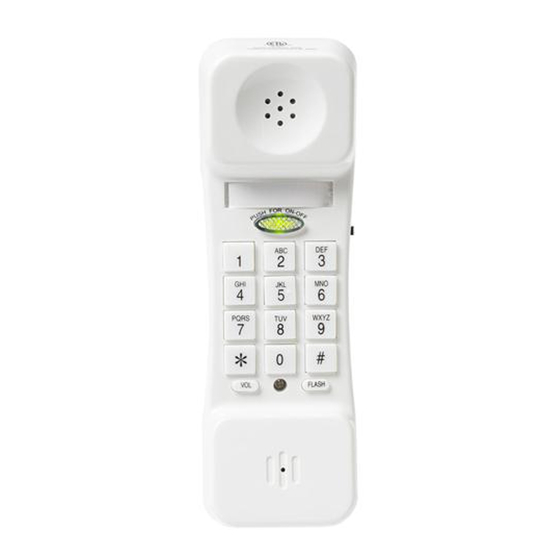

H2001
• Telephone
• Straight line cord
• Clip (for attaching telephone to a bed rail)
H2000VRI/H2000
• Telephone base unit
• Telephone handset unit
• Coiled handset cord
• Straight line cord
Installation
The H2000 and H2000-VRI telephones are designed for use
behind a registered PBX system. The telephone user or system
installer must supply an RJ-11 modular wall jack to connect
this telephone to the PBX system. The PBX "station port"
H2001 / H2000VRI / H2000
Telephone User Guide
type must be "Industry Standard Analog" or "POTS." This tele-
phonecannot be used with "digital" PBX station ports. Insert one
end of the coiled handset cord into the jack on the BOTTOM
END of the base unit. Insert the other end of the cord into the
jack on the BOTTOM END of the handset. The handset of the
unit should now be placed into the base of the unit. Connect
the straight line cord from the wall jack to one of the line jack
located underneath the base unit. Lift the handset. A dial tone
should be heard in the receiver.
Attaching the handset (H2000VRI/H2000)
Connect the supplied coiled handset cord between the jack on
the end of handset and the jack marked with a "handset" symbol
on the left side of the telephone base unit. Place the handset
on the telephone base unit or if wall-mounted, hang it on the
desk/wall-mount clip to depress the hook switch.
Wall-mounting (H2000VRI/H2000)
• The wall/desk handset clip located on the front of the phone. In
its wall-mount position, the clip extends up to hold the handset
in place. Gently pull it up and turn 1⁄2 turn to change from desk
to wall mount. This clip is spring-loaded and not removable, so
that it cannot be lost.
• Turn the telephone over so the telephone face is down.
• Connect line cord to the jack on rear of phone.
• Hold telephone in front of the 2 mushroom shaped mounting
posts on the wall jack plate. Line up keyholes on wall-mounting
bracket with posts. After engaging wall-mounting bracket with
posts, slide telephone down slightly. When properly installed,
the telephone will be rmly attached to the wall.
