QuickSpecs

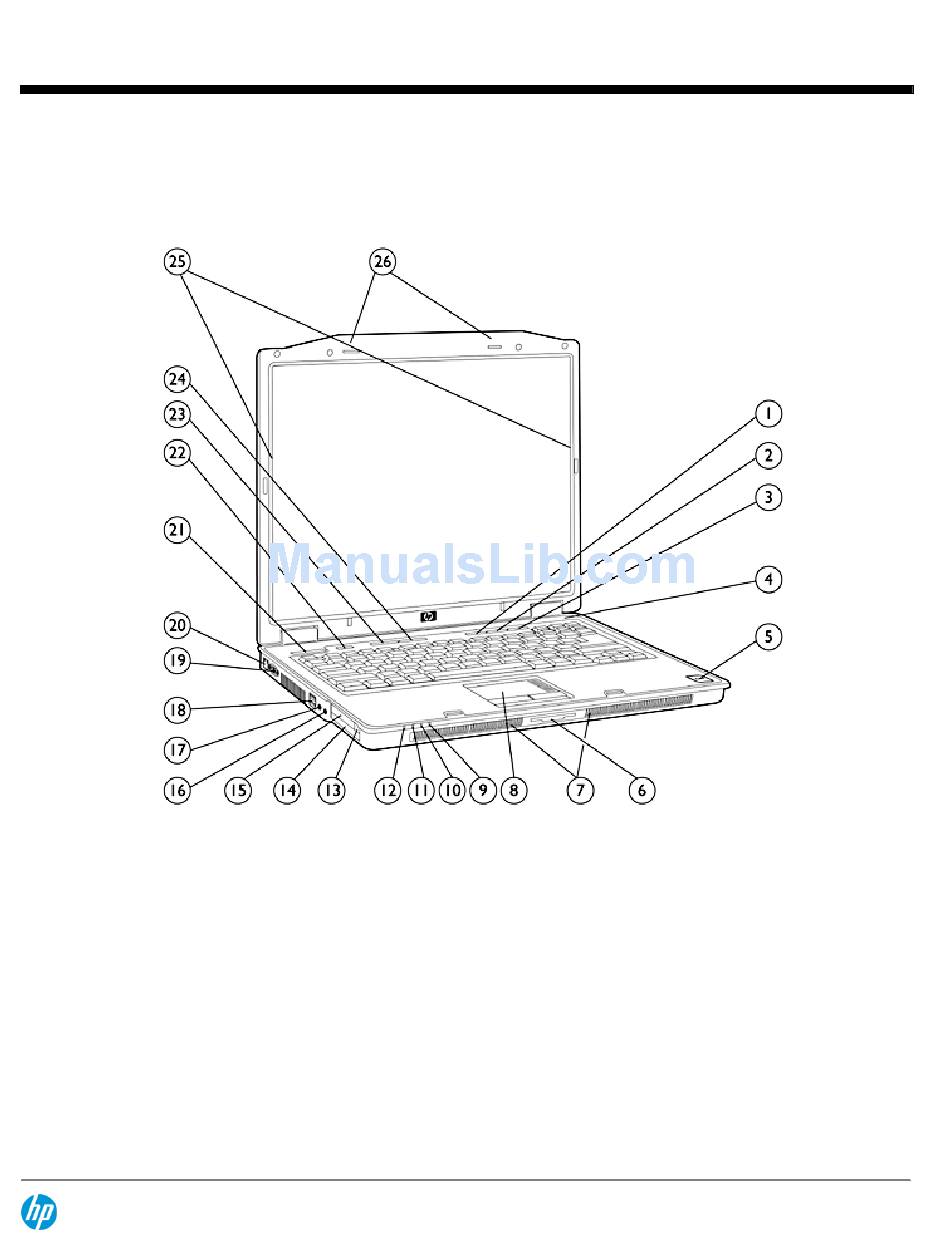

Overview

1.
Volume Mute Button with LED
2.
Volume Down Button
3.
Volume Up Button
4.
Integrated Microphone
5.
HP Biometric Fingerprint Sensor
6.
7-in-1 Media Reader
7.
Stereo Speakers
8.
Touchpad with Scroll Zone
9.
Hard Drive Activity LED
10. Battery Charging LED
11. Power/Standby LED
12. Wireless On/Off LED
13. PC Card Eject Button
DA - 12428 North America — Version 22 — August 31, 2007
HP Compaq nx6320/nc6320 Notebook PCs
HP recommends
Windows Vista
14. ExpressCard Slot
15. PC Card Slot (or optional Smart Card Reader)
16. Microphone Jack
17. Headphone Jack
18. 2 USB 2.0 Ports
19. VGA/External Monitor Connector
20. RJ-45 Port (NIC)
21. Power Button with LED
22. HP Info Center Button
23. Wireless On/Off Button with LED
24. Presentation Mode Button
25. Dual-band Wireless LAN Antennas
26. WWAN Antennas (with WWAN option)
®
Business
Page 1

Advertisement

Table of Contents
loading

Related Manuals for HP Compaq nx6320

Summary of Contents for HP Compaq nx6320

  • Page 1 QuickSpecs HP Compaq nx6320/nc6320 Notebook PCs Overview HP recommends ® Windows Vista Business Volume Mute Button with LED 14. ExpressCard Slot Volume Down Button 15. PC Card Slot (or optional Smart Card Reader) Volume Up Button 16. Microphone Jack Integrated Microphone 17.
  • Page 2 Up to 120-GB SATA 5400 rpm, user-removable hard drive Intel Graphics Media Accelerator 950 with up to 128MB shared system memory Optional integrated HP ev2200 1xEV-DO Broadband Wireless module Optional integrated 802.11 a/b/g or 802.11 b/g wireless LAN module and Bluetooth®...

  • Page 3: Standard Features

    QuickSpecs HP Compaq nx6320/nc6320 Notebook PCs Standard Features Processors Intel Core 2 Duo Processor T7600* (2.33-GHz, 667-FSB, 4-MB L2 cache) Intel Core 2 Duo Processor T7400* (2.16-GHz, 667-FSB, 4-MB L2 cache) Intel Core 2 Duo Processor T7200* (2.0-GHz, 667-FSB, 4-MB L2 cache) Intel Core 2 Duo Processor T5600* (1.83-GHz, 667-FSB, 2-MB L2 cache)
  • Page 4 Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots. NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
  • Page 5 19-mm x 19-mm key pitch (center-to-center spacing), 2.5-mm stroke, comfort-dished keycaps, and bright key legends for improved visibility in low light conditions. One-Touch Productivity Provide one-touch access to the following features: HP Info Center, Wireless On/Off, Presentation Mode, Volume Up, Volume Down, and Volume Mute Buttons...
  • Page 6 QuickSpecs HP Compaq nx6320/nc6320 Notebook PCs Standard Features Storage Hard Drives Serial ATA 60-, 80-, 100-, 120-GB 5400 rpm SMART NOTE: These hard drives are customer removable and will withstand multiple insertion/removal cycles. Up to 8 GB is reserved for the system recovery software.
  • Page 7 Software Setup utility. HP Backup and Recovery Each unit is shipped with HP Backup and Recovery Manager. HP Backup and Recovery Manager can provide data and system file protection for HP business PCs to enable fast recovery if the system becomes Manager corrupted or if important information is accidentally deleted.
  • Page 8 HP Compaq nx6320/nc6320 Notebook PCs Standard Features HP ProtectTools Security HP ProtectTools Security Manager is the security platform for business notebooks and desktops. The HP ProtectTools Security Manager is an extensible client security console that delivers enhanced security Manager capabilities through add-on software modules. Modules currently available are:...
  • Page 9 ** HP Advanced Docking Station only Service and Support HP Services includes a three-year standard parts and labor warranty, pick-up or carry-in, and toll-free 7 x 24 hardware technical phone support. On-site service and warranty upgrades are also available. NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
  • Page 10 QuickSpecs HP Compaq nx6320/nc6320 Notebook PCs Standard Features nc6320 Processor Intel Core 2 Duo Processor T5600* (1.83-GHz, 667-FSB, 2-MB L2 cache) RN442AW#ABA Operating System Genuine Windows XP Professional Edition System Memory 512-MB 667-MHz DDR2 SDRAM (1 DIMM) Hard Drive 60-GB 5400 rpm SATA...
  • Page 11 PH357A or HP External MultiBay II Other Storage 80-GB 5400 rpm Primary SATA Hard Drive ET354AA HP USB Digital Drive + 256-MB Secure Digital Card DL702AA HP USB Diskette Drive DC361B HP 12.7mm DVD+/-RW LightScribe Drive (Available July 2006) ET353AA Communications Intel PRO/Wireless 3945ABG 802.11 a/b/g WLAN option kit...
  • Page 12 QuickSpecs HP Compaq nx6320/nc6320 Notebook PCs Options Power HP 2-bay Battery Charging Station DT533A#ABA HP 10-bay Battery Charging Station DT534A#ABA Battery Adapter kit #1 PK402A 65W Smart AC Adapter ED494AA#ABA 90W Smart AC Adapter ED495AA#ABA 90W Smart Auto Adapter ED493AA...
  • Page 13 NOTE: This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
  • Page 14 QuickSpecs HP Compaq nx6320/nc6320 Notebook PCs Storage Removable Media Drive Support Quantity Supported Drive Bay LightScribe DVD+/-RW Drive with Fixed optical drive bay Double Layer Drive DVD+/-RW SuperMulti Drive with Fixed optical drive bay Double Layer DVD/CD-RW Combo Drive Fixed optical drive bay...

  • Page 15: Technical Specifications

    QuickSpecs HP Compaq nx6320/nc6320 Notebook PCs Technical Specifications System Unit Dimensions (HxWxD) nc6320 without WWAN 1.2 in(at front) x 12.9 in x 10.5 in (30.3 (at front) x 328.6 x 266.7 mm) nc6320 with WWAN 1.2 in (at front) x 12.9 in x 10.8 in 30.3 mm (at front) x 328.6 mm x 274.3 mm)
  • Page 16 QuickSpecs HP Compaq nx6320/nc6320 Notebook PCs Technical Specifications SABS UKRSERTCOMPUTER HP 65W Smart AC Adapter Dimensions 4.17 x 1.85 x 1.1 in (10.6 x 4.7 x 2.8 cm) Weight 0.62 lb (280 g) Input 100 to 240 VAC Input Efficiency...
  • Page 17 System ON 3 to 5 hours (depending on system power consumption) HP Fast Charge Technology Charges the battery up to 90% within 90 minutes when system is OFF Fuel Gauge When pressed, LEDs light indicating level of charge remaining on battery...
  • Page 18 QuickSpecs HP Compaq nx6320/nc6320 Notebook PCs Technical Specifications 15.0-Inch Color TFT Active Area (W x H) 12.0 x 9.0 in (30.4 x 22.8 cm) SXGA+ Wide Viewing Diagonal Size 15.0 in (38.0 cm) Angle Display Surface Treatment Anti-glare Contrast Ratio...
  • Page 19 QuickSpecs HP Compaq nx6320/nc6320 Notebook PCs Technical Specifications 120-GB 5400 rpm SATA Drive Weight 0.22 lb (101 g) Capacity 120 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-7 / SATA 1.0a Transfer Rate Synchronous (maximum)
  • Page 20 QuickSpecs HP Compaq nx6320/nc6320 Notebook PCs Technical Specifications 80-GB 5400 rpm SATA Drive Weight 0.22 lb (101 g) Capacity 80 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-7 / SATA 1.0a Transfer Rate Synchronous (maximum)
  • Page 21 QuickSpecs HP Compaq nx6320/nc6320 Notebook PCs Technical Specifications 40-GB 5400 rpm SATA Drive Weight 0.22 lb (101 g) Capacity 40 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-7 / SATA 1.0a Transfer Rate Synchronous (maximum)
  • Page 22 QuickSpecs HP Compaq nx6320/nc6320 Notebook PCs Technical Specifications DVD/CD-RW Combo Drive Access Times Random <110 ms CD <130 ms DVD Max Data Transfer Rate 24X CD-ROM 3,600 KB/s 8X DVD 10,800 KB/s 24X CD-R 3,600 KB/s 24X CD-RW 3,600 KB/s...
  • Page 23 QuickSpecs HP Compaq nx6320/nc6320 Notebook PCs Technical Specifications DVD+/-RW SuperMulti Access Times Random <175 ms CD Drive with Double Layer <230 ms DVD Max Data Transfer Rate 24X CD-ROM 3,600 KB/s 8X DVD 10,800 KB/s 24X CD-R 3,600 KB/s 16X CD-RW...
  • Page 24 QuickSpecs HP Compaq nx6320/nc6320 Notebook PCs Technical Specifications Hardware Implementation ADI1981HD High Definition CODEC Volume Controls Up, down, and mute buttons Full Duplex Sound Blaster Pro compatible Microphone Jack Stereo or mono Headphone/Line Out Jack Stereo Audio Output Quality Frequency Response 20 Hz –...
  • Page 25 QuickSpecs HP Compaq nx6320/nc6320 Notebook PCs Technical Specifications NIC Device Driver Name Broadcom NetLink Gigabit Ethernet Drivers Available Microsoft Windows XP Microsoft Windows 2000 V.92 56K Data/Fax Modem Form Factor MDC 1.5 Daughtercard Power Management APM Revision 1.2, ACPI Support...
  • Page 26 QuickSpecs HP Compaq nx6320/nc6320 Notebook PCs Technical Specifications HP ev2200 1xEV-DO Band and Power Class 0 (North American Cellular) – Class III; 1 (North American PCS) – Class II Broadband Wireless Module Wireless Protocol CDMA 1x Release 0/A; IS-95A, IS-95B, IS-2000...
  • Page 27 QuickSpecs HP Compaq nx6320/nc6320 Notebook PCs Technical Specifications 802.11b/g WiFi Adapter Interoperability Wi-Fi certified Cisco Compatible Extensions Program compliant (details at www.hp.com/go/notebooks/WLAN) Frequency Band 2.4 GHz Data Rates 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps...
  • Page 28 QuickSpecs HP Compaq nx6320/nc6320 Notebook PCs Technical Specifications Altitude Operating 0 to 10,000 ft (3,048 m) Non-operating 0 to 50,000 ft (15,240 m) Configuration Utility Choice of Configuration Utility: Microsoft Windows XP Wireless Network Connection Manager Broadcom Wireless Configuration Utility (required for Cisco Compatible...
  • Page 29 QuickSpecs HP Compaq nx6320/nc6320 Notebook PCs Technical Specifications Power Consumption Transmit: 2.0 W (max) Receive: 1.5 W (max) Idle mode : 390 mW (nominal) Sleep mode: 20 mW (max) Power Management ACPI compliant power management 802.11 compliant power saving mode...
  • Page 30 QuickSpecs HP Compaq nx6320/nc6320 Notebook PCs Technical Specifications Frequency Band 2.4 GHz and 5 GHz Data Rates 802.11b: 1, 2, 5.5, 11 Mbps 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps Modulation Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM...
  • Page 31 QuickSpecs HP Compaq nx6320/nc6320 Notebook PCs Technical Specifications Altitude Operating 0 to 10,000 ft (3,048 m) Non-operating 0 to 50,000 ft (15,240 m) Configuration Utility Choice of Configuration Utility: Microsoft Windows XP Wireless Network Connection Manager Intel PROSet (required for Cisco Compatible Extensions support) LED Activity LED Off –...
  • Page 32 QuickSpecs HP Compaq nx6320/nc6320 Notebook PCs Technical Specifications Certifications All necessary regulatory approvals for supported countries, including: FCC (47 CFR) Part 15C, Section 15.247 & 15.249 ETS 300 328, ETS 300 826 Low Voltage Directive IEC950 UL, CSA, and CE Mark...
  • Page 33 This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive – 2002/95/EC. This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC. Keyboard complies with ISO standard: ISO 9995, EN 29241-4, and ISO/IEC 15412 DA - 12428 North America —...
  • Page 34 Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards. Material Usage This product does not contain any of the following substances in excess of regulatory limits (for reference of these limits please refer to the HP General Specification of the Environment (http://www.hp.com/hpinfo/globalcitizenship/environment/ supplychain/gen_specifications.html):...
  • Page 35 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
