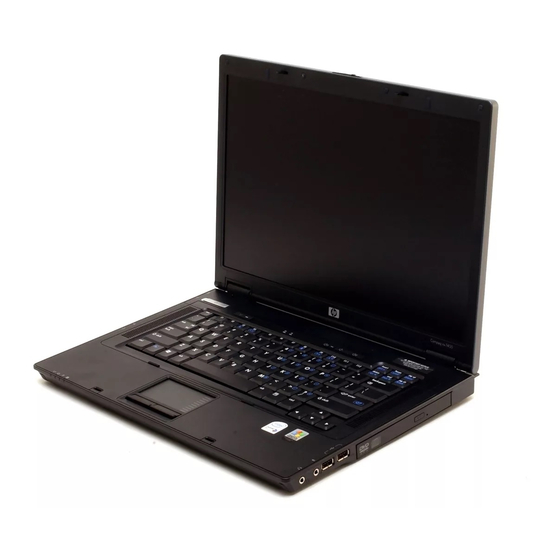

HP Compaq nx7300 Quickspecs

Notebook pc
Hide thumbs Also See for Compaq nx7300:

Advertisement

Quick Links

Download this manual See also: Maintenance and Service Manual, Quickspecs
QuickSpecs
Overview
1.
Volume Mute Button with LED
2.
Volume Down Button
3.
Volume Up Button
4.
Stereo Speakers (2)
5.
Integrated Optical Drive
6.
2 USB 2.0 Ports
7.
Microphone Jack
8.
Headphone Jack
9.
Right Touchpad Button
DA - 12614
North America — Version 5 — June 27, 2007
HP Compaq nx7300 Notebook PC
HP Compaq nx7300 Notebook PC
HP Compaq nx7300 Notebook PC
HP Compaq nx7300 Notebook PC
HP recommends
HP recommends
HP recommends
HP recommends
Windows Vista™ Business
Windows Vista™ Business
Windows Vista™ Business
Windows Vista™ Business
10. Left Touchpad Button
11. Hard Drive Activity LED
12. Battery Charging LED
13. Power/Standby LED
14. Wireless On/Off LED
15. Touchpad with scroll zone
16. Power Button with LED
17. Wireless On/Off Button with LED
Page 1

Advertisement

loading

Related Manuals for HP Compaq nx7300

Summary of Contents for HP Compaq nx7300

  • Page 1 QuickSpecs HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC Overview HP recommends HP recommends HP recommends HP recommends Windows Vista™ Business Windows Vista™ Business Windows Vista™ Business Windows Vista™ Business Volume Mute Button with LED 10.
  • Page 2 QuickSpecs HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC Overview Kensington Lock Slot PC Card Slot RJ-45 Port (NIC) PC Card Eject Button RJ-11 Port (Modem) VGA/External Monitor Port...

  • Page 3: Standard Features

    QuickSpecs HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC Standard Features Processors Processors Processors Processors Intel Core 2 Duo Processor T5600 (1.83-GHz, 667-FSB, 2-MB L2 cache)* Intel Core 2 Duo Processor T5500 (1.66-GHz, 667-FSB, 2-MB L2 cache)* Intel Celeron M Processor 430* (1.73-GHz, 533-MHz FSB, 1-MB L2 cache)
  • Page 4 NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Above 3-GB, all memory may not be available due to system resource requirements.
  • Page 5 QuickSpecs HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC Standard Features One-Touch Productivity One-Touch Productivity One-Touch Productivity One-Touch Productivity Provide one-touch access to the following features: Wireless On/Off, Volume down, Volume up, and...
  • Page 6 Manager can perform scheduled or manual backups of the entire drive or individual files and folders. Up to 8 GB is reserved for the system recovery software. HP Backup and Recovery Manager can also create software recovery CDs or DVDs (requires optional hardware).
  • Page 7 Power-On Password DriveLock HP Disk Sanitizer Kensington Lock Slot Support for Computrace / LoJack for Laptops (must be purchased separately) For more information on HP security solutions refer to http://www.hp.com/go/security. Power Supply Power Supply Power Supply Power Supply External 65-watt AC adapter, 6-foot (1.8-meter) power cord included.
  • Page 8 Service and Support Service and Support Service and Support HP Services includes a one-year standard parts and labor warranty, pick-up or carry-in, and toll-free 7 x 24 hardware technical phone support (depending on model). On-site service and warranty upgrades are also available.
  • Page 9 QuickSpecs HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC Standard Features nx7300 nx7300 nx7300 nx7300 Processor Processor Processor Processor Intel Core 2 Duo Processor T5500 (1.66-GHz, 667-FSB, 2-MB L2 cache)*...
  • Page 10 Other Storage Other Storage Other Storage 120-GB 5400 rpm Primary SATA Hard Drive RT080AA DVD+/-RW Double Layer Drive with LightScribe Upgrade ET353AA HP USB Digital Drive + 256-MB Secure Digital Card DL702AA HP USB Diskette Drive DC361B Communications Communications Communications Communications Intel PRO/Wireless 3945ABG 802.11 a/b/g WLAN option kit...
  • Page 11 QuickSpecs HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC Options Input/Output Devices Input/Output Devices Input/Output Devices Input/Output Devices USB/PS2 Keyboard DC852A#ABA USB/PS2 Optical Mouse DC369A HP USB Optical Travel Mouse...
  • Page 12 NOTE: This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
  • Page 13 QuickSpecs HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC Storage Removable Media Drive Support Removable Media Drive Support Removable Media Drive Support Removable Media Drive Support Quantity Supported...

  • Page 14: Technical Specifications

    QuickSpecs HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC Technical Specifications System Unit System Unit System Unit System Unit Dimensions Dimensions Dimensions Dimensions (HxWxD) 1.2 in (at front) x 14.1 in x 10.2 in...
  • Page 15 QuickSpecs HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC Technical Specifications HP 65W Smart AC HP 65W Smart AC HP 65W Smart AC HP 65W Smart AC Dimensions...
  • Page 16 QuickSpecs HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC Technical Specifications Optional HP 8-Cell Optional HP 8-Cell Optional HP 8-Cell Optional HP 8-Cell Dimensions Dimensions Dimensions Dimensions (H x W x L) 1.0 x 3.9 x 8.7 in (2.5 x 10.0 x 22.0 cm)
  • Page 17 QuickSpecs HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC Technical Specifications 15.4-inch Color TFT 15.4-inch Color TFT 15.4-inch Color TFT 15.4-inch Color TFT Active Area Active Area Active Area Active Area (W x H) 13.0 x 8.1 in (33.1 x 20.7 cm)
  • Page 18 QuickSpecs HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC Technical Specifications 80-GB 5400 rpm SATA 80-GB 5400 rpm SATA 80-GB 5400 rpm SATA 80-GB 5400 rpm SATA Drive Weight...
  • Page 19 QuickSpecs HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC Technical Specifications DVD+/-RW SuperMulti DVD+/-RW SuperMulti DVD+/-RW SuperMulti DVD+/-RW SuperMulti Access Times Access Times Access Times Access Times Random <175 ms CD...
  • Page 20 QuickSpecs HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC Technical Specifications Audio Output Quality Audio Output Quality Audio Output Quality Audio Output Quality Frequency Response Frequency Response Frequency Response Frequency Response 20 Hz –...
  • Page 21 QuickSpecs HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC Technical Specifications V.92 56K Data/Fax V.92 56K Data/Fax V.92 56K Data/Fax V.92 56K Data/Fax Form Factor Form Factor Form Factor Form Factor MDC 1.5 Daughtercard...
  • Page 22 QuickSpecs HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC Technical Specifications Modulation Modulation Direct Sequence Spread Spectrum Modulation Modulation DBPSK, DQPSK, CCK, OFDM 1 1 1 1 Security...
  • Page 23 QuickSpecs HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC Technical Specifications 5 5 5 5 Configuration Utility Configuration Utility Configuration Utility Configuration Utility Choice of Configuration Utility: Microsoft Windows XP Wireless Network Connection Manager...
  • Page 24 QuickSpecs HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC Technical Specifications Antenna type Antenna type High efficiency dual band antenna with spatial diversity, mounted in the Antenna type...
  • Page 25 QuickSpecs HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC Technical Specifications 1 1 1 1 Security Security Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES, Security Security 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-...
  • Page 26 QuickSpecs HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC Technical Specifications 5 5 5 5 Configuration Utility Configuration Utility Configuration Utility Configuration Utility Choice of Configuration Utility: Microsoft Windows XP Wireless Network Connection Manager...
  • Page 27 QuickSpecs HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC Technical Specifications Temperature Temperature Operating -4° to 158° F (-20° to 70° C) Temperature Temperature Non-operating -40° to 176° F (-40° to 80° C)
  • Page 28 QuickSpecs HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC HP Compaq nx7300 Notebook PC Technical Specifications Energy Consumption Energy Consumption Energy Consumption Energy Consumption 115 VAC 115 VAC 115 VAC 115 VAC 230 VAC...
  • Page 29 This product is in compliance with the Restrictions of Hazardous Substances Additional Information Additional Information (RoHS) directive – 2002/95/EC. This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC. Keyboard complies with ISO standard: ISO 9995, EN 29241-4, and ISO/IEC 15412 Input devices of this product comply with ISO 9241, part 9.
  • Page 30 Please go to: http://www.hp.com/recycle or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner. Hewlett-Packard Hewlett-Packard Hewlett-Packard...
  • Page 31 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
