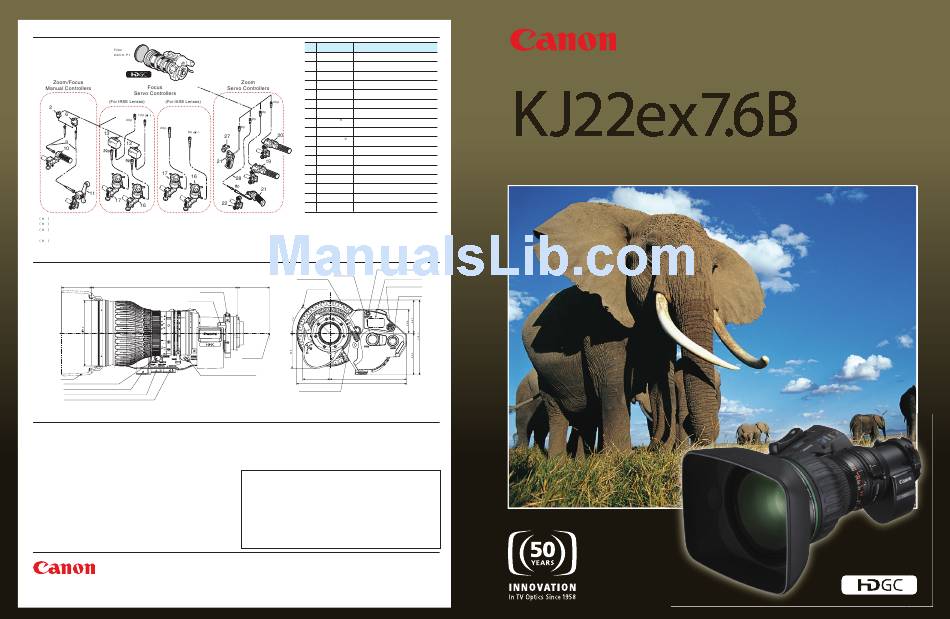

Canon KJ22ex7.6B Quick Features Manual

ACCESSORIES

1
2
1 CC-2012 conversion cable is necessary to connect between IRSE Digital Drive Lens and FPM-420.
2 CC-2006 conversion cable is necessary to connect between IASE Digital Drive Lens and FPD-400.
3 For the optical accessories, the 94mm P1 fi lters are applicable. The fi lters are to be attached to the lens barrel. (UV/ Sky Light/ Cross/ Snow Cross/ Sunny Cross/ Polarized Light/ Softon/ ND).
Also, the 105mm P1 fi lters are applicable to be attached to the Hood Unit.
4 FPD-400 and ZSD-300M are not available from Canon stock.

DIMENSIONS

45.3 218.6
MACRO BUTTON
EXTENDER LEVER
ZOOM OPERATION CHANGE-OVER KNOB
HOOD
FOCUS OPERATION CHANGE-OVER KNOB
CONNECTOR FOR REMOTE ZOOM CONTROL(8PIN)
CONNECTOR FOR ZOOM REMOTE & FOCUS REMOTE & VIRTUAL UNIT(20PIN)
CONNECTOR FOR ZOOM REMOTE & FOCUS REMOTE UNIT(20PIN)
North & South America Dallas
Canon U.S.A., Inc. 3200 Regent Blvd. lrving, TX 75063
Broadcast & Communications Div.(Headquarters)
Tel:(972)409-8871 Fax:(972)409-8869
65 Challenger Road, Ridgefi eld Park, NJ 07660
Latin America
Tel:(201)807-3300/(800)321-4388
Tel:(954)349-6975 Fax:(201)807-3333
Fax:(201)807-3333
Email:bctv@cusa.canon.com Canada
Canon Canada, Inc.
http://www.canonbroadcast.com/
Broadcast and Communications Div.
Chicago
6390 Dixie Road
100 Park Blvd. Itasca, IL 60143
Mississauga, Ontario, L5T 1P7, Canada
Tel:(630)250-6236 Fax:(630)250-0399
Tel:(905)795-2012 Fax:(905)795-2140
Atlanta
Europe/Africa/Middle East
5625 Oakbrook Pkwy. Norcross, GA 30093
Canon Europa N.V.
Tel:(770)849-7890 Fax:(770)849-7888
Broadcast and Communications Div.
Los Angeles Bovenkerkerweg 59-61
15955 Alton Parkway lrvine, CA 92618 1185 XB Amstelveen
Tel:(949)753-4330 Fax:(949)753-4337 Tel:+31(0)20-5458905 Fax:+31(0)20-5458203
Email:tvprod@canon-europe.com
http://www.canon-europe.com/tv-products
http://www.canon.com/bctv
PUB.0136W924
# Unit Description
2 FFM-100 Flex Focus Module
6 FFM-200 Flex Dual Module
8 FC-40 Flex Cable
10 FFC-200 Flex Focus Controller
11 FZC-100 Flex Zoom Controller
12 FPM-420 Focus Positional Servo Module
13 FPM-420D Focus Positional Servo Module
4
16 FPD-400 Focus Positional Demand
17 FPD-400D Focus Positional Demand
4
19 ZSD-300M Zoom Servo Demand
20 ZSD-300D Zoom Servo Demand
21 ZSG-200M Zoom Servo Grip
22 CR-10 Clamper
27 ZGA-500 Grip Adapter
28 EC-80 Zoom Extension Cable (8P)
32 CC-2006 Conv. Cable (20pM-6pF)
33 CC-2012 Conv. Cable (20pM-12pF)
INFOMATION DISPLAY On/Off SWITCH
VTR SWITCH
INFOMATION DISPLAY
ZOOM SPEED VOLUME
DIGITAL FUNCTION SELECTOR
48±0.03
INDEX MARK
(in air)
AUX1 SWITCH
IMAGE PLANE
40.6 115
164.7
F.B. ADJUSTING LOCK SCREW
(KJ22ex7.6B IASE)
Australia Asia/Japan
Canon Australia Pty. Ltd. Canon Inc.
Optical Products Division (Broadcast Equipment Group)
1 Thomas Holt Drive, North Ryde, NSW 2113, 23-10, Kiyohara-Kogyo-Danchi, Utsunomiya-shi,
Australia Tochigi-ken, 321-3298, Japan
Tel:+61(0)2-9805-2000 Fax:+61(0)2-9805-2444 Tel:+81(0)28-667-8669 Fax:+81(0)28-667-8672
http://www.canon.com/bctv
Distributed by
Specifications subject to change without notice.
0908AB5 PRINTED IN JAPAN

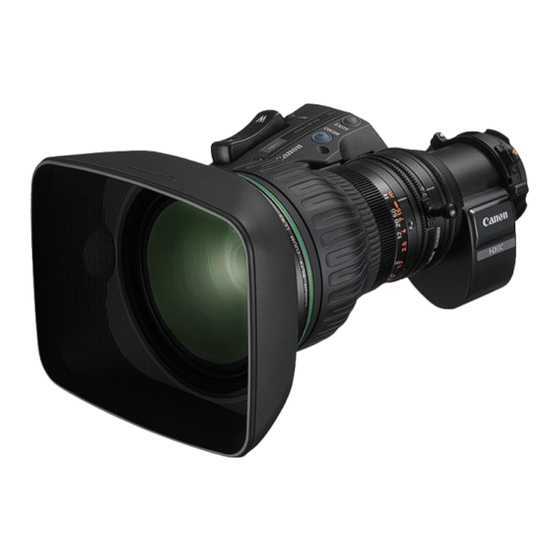

KJ22ex7.6B
Second Generation HDgc Telephoto Lens
