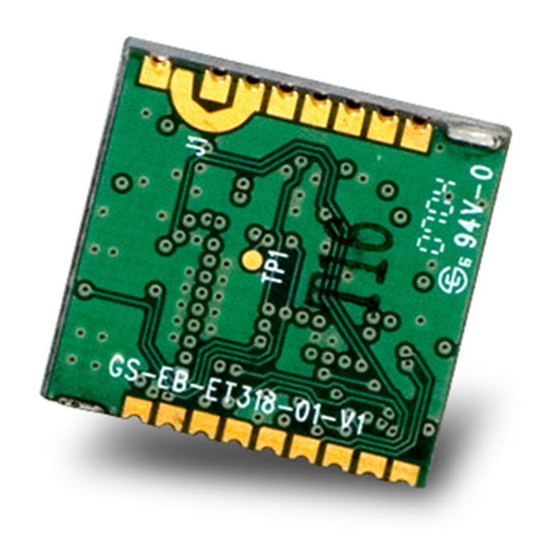

GLOBALSAT GPS Engine Board
Hardware Data Sheet
Product No : EB-5318RF
Version 0.1
Globalsat Technology Corporation
16F., No. 186, Jian-Yi Road, Chung-Ho City, Taipei
Hsien 235, Taiwan
Tel: 886-2-8226-3799 Fax: 886-2-8226-3899
E-mail :
service@globalsat.com.tw
Website:
www.globalsat.com.tw
Issue Date
APPR
CHECK
PREPARE
Ray
Luwalk
2011/10/4
2012/8/31
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EB-5318RF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Globalsat EB-5318RF

Summary of Contents for Globalsat EB-5318RF

  • Page 1 GLOBALSAT GPS Engine Board Hardware Data Sheet Product No : EB-5318RF Version 0.1 Globalsat Technology Corporation 16F., No. 186, Jian-Yi Road, Chung-Ho City, Taipei Hsien 235, Taiwan Tel: 886-2-8226-3799 Fax: 886-2-8226-3899 E-mail : service@globalsat.com.tw Website: www.globalsat.com.tw Issue Date APPR CHECK...

  • Page 2: Product Description

    Product Description Product Description EB-5318RF GPS module features high sensitivity, low power and ultra small form factor. This GPS module is powered by SiRF Star IV, it can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment. With SiRF CGEE (Client Generated Extended Ephemeris) technology, it predicts satellite positions for up to 3 days and delivers CGEE-start time of less than 15 seconds under most conditions, without any network assistance.
  • Page 3 DR_I2C_DIO Host I2C Interface. DR_I2C_CLK Support MEMS Sensor , 1.8V Level TIMEPULSE One pulse per second output.(1PPS) ON_OFF pin is used to command the ON_OFF EB-5318RF to turn on or off WAKE_UP System power on, 1.8V output . <Note> 2012/8/31...

  • Page 4: Electrical Specification

    OFF command is a software feature based on interrupts related to rising and/or falling edges and/or sensing of pin levels. 3. The WAKE_UP pin is an output from the EB-5318RF used to enable an external PMIC. A low on this output indicates that the EB-5318RF is in one of its low-power states (KA-only, Hibernate, or Standby mode) and requires no more than 60µA of current on the VIO_18 input.

  • Page 5: Receiver Performance

    Receiver Performance -163dBm Tracking : Sensitivity Autonomous acquisition : -160 dBm < 35s Cold Start – Autonomous <15s (with CGEE) Time-To-First-Fix < 35s Warm Start – Autonomous < 15s(with CGEE) Hot Start – Autonomous < 1s Horizontal Position Accuracy Autonomous <...

  • Page 6: Physical Characteristic

    Physical Characteristic Type 19-pin stamp holes Dimensions 15.2mm * 14 mm * 2.4mm 2012/8/31...

  • Page 7: Application Circuit

    External Interrupts. If don’t use this, just NC. 5. WAKE_UP: EB-5318RF power on, WAKE_UP will output 1.8V. 6. ON_OFF: This pin is controlled EB-5318RF power on. If EB-5318RF want to EB-365 pin to pin compactable, please ON_OFF connect to WAKE_UP. If don’t use this, just NC.

  • Page 8: Operating Description

    Power ON, this pin will output 1.8V board. (3.1Vdc to 3.5Vdc) RESET This is the main transmits channel for Low Active, when EB-5318RF is accepted this outputting navigation and measurement data single, EB-5318RF going to Hibernate mode. If to user’s navigation software or user written want EB-5318RF up, need input ON_OFF software.
  • Page 9 Operation up to 400kbps accelerometers, compasses or other sensors Individual transmit and receive FIFO lengths of that can operate with an I2C bus. DRI2C interface supports: ■ The default I2C address values are: Typical data lengths (command + in/data out) Rx: 0x60 of several bytes Tx: 0x62...
  • Page 10 SOFTWARE COMMAND NMEA Output Command GGA - Global Positioning System Fixed Data Note – Fields marked in italic apply only to NMEA version 2.3 (and later) in this NMEA message description Table B-2 contains the values for the following example: $GPGGA,161229.487,3723.2475,N,12158.3416,W,1,07,1.0,9.0,M,-34.2,M,,0000*18 Table B-2 GGA Data Format Name...

  • Page 11: Gll - Geographic Position-Latitude/Longitude

    Note: A valid status is derived from all the parameters set in the software. This includes the minimum number of satellites required, any DOP mask setting, presence of DGPS corrections, etc. If the default or current software setting requires that a factor is met, then if that factor is not met the solution will be marked as invalid.
  • Page 12 GSA - GNSS DOP and Active Satellites Table B-5 contains the values for the following example: $GPGSA,A,3,07,02,26,27,09,04,15,,,,,,1.8,1.0,1.5*33 Table B-5 GSA Data Format Name Example Units Description Message ID $GPGSA GSA protocol header Mode 1 See Table B-6 Mode 2 See Table B-7 Satellite Used Sv on Channel 1 Satellite Used...
  • Page 13 GSV - GNSS Satellites in View Table B-8 contains the values for the following example: $GPGSV,2,1,07,07,79,048,42,02,51,062,43,26,36,256,42,27,27,138,42*71 $GPGSV,2,2,07,09,23,313,42,04,19,159,41,15,12,041,42*41 Table B-8 GSV Data Format Name Example Units Description Message ID $GPGSV GSV protocol header Number of Messages Range 1 to 3 Message Number Range 1 to 3 Satellites in View Satellite ID...

  • Page 14: Rmc - Recommended Minimum Specific Gnss Data

    RMC - Recommended Minimum Specific GNSS Data Note – Fields marked in italic apply only to NMEA version 2.3 (and later) in this NMEA message description Table B-9 contains the values for the following example: $GPRMC,161229.487,A,3723.2475,N,12158.3416,W,0.13,309.62,120598,,,A*10 Table B-9 RMC Data Format Name Example Units...
  • Page 15 VTG - Course Over Ground and Ground Speed Note – Fields marked in italic apply only to NMEA version 2.3 (and later) in this NMEA message description Table B-10 contains the values for the following example: $GPVTG,309.62,T,,M,0.13,N,0.2,K,A*23 Table B-10 VTG Data Format Name Example Units...
  • Page 16 ZDA - Time and Date This message is included only with systems which support a time-mark output pulse identified as "1PPS". Outputs the time associated with the current 1PPS pulse. Each message is output within a few hundred ms after the 1PPS pulse is output and tells the time of the pulse that just occurred. Table B-11 contains the values for the following example: $GPZDA,181813,14,10,2003,,*4F<CR><LF>...
  • Page 17 NMEA Input Command A). Set Serial Port ID: 100 Set PORTA parameters and protocol This command message is used to set the protocol (SiRF Binary, NMEA, or USER1) and/or the communication parameters (baud, data bits, stop bits, parity). Generally, this command would be used to switch the module back to SiRF Binary protocol mode where a more extensive command message set is available.
  • Page 18 SUM<CR><LF> <X> X coordinate position INT32 <Y> Y coordinate position INT32 <Z> Z coordinate position INT32 <ClkOffset> Clock offset of the receiver in Hz, Use 0 for last saved value if available. If this is unavailable, a default value of 75000 for GSP1, 95000 for GSP 1/LX will be used.
  • Page 19 <baud> 1200,2400,4800,9600,19200,38400 <DataBits> <StopBits> <Parity> 0=None, Odd=1,Even=2 Example: Set DGPS Port to be 9600,8,N,1 PSRF102,9600,8,1.0*12 D). Query/Rate Control ID: 103 Query standard NMEA message and/or set output rate This command is used to control the output of standard NMEA message GGA, GLL, GSA, GSV, RMC, VTG.
  • Page 20 E). LLA Navigation lnitialization ID: 104 Parameters required to start using Lat/Lon/Alt This command is used to initialize the module for a warm start, by providing current position (in Latitude, Longitude, Altitude coordinates), clock offset, and time. This enables the receiver to search for the correct satellite signals at the correct signal parameters.
  • Page 21 Format: PSRF105,<debug>*CKSUM<CR><LF> <debug> 0=Off, 1=On PSRF105,1*3E Example: Debug On PSRF105,0*3F Example: Debug Off G). Select Datum ID: 106 Selection of datum to be used for coordinate Transformations GPS receivers perform initial position and velocity calculations using an earth-centered earth-fixed (ECEF) coordinate system. Results may be converted to an earth model (geoid) defined by the selected datum.

  • Page 22: Recommended Layout Pad

    PCB Layout Recommend Recommended Layout PAD Unit: mm Tolerance: 0.1mm PCB Layout Recommendations Do not routing the other signal or power trace under the engine board. This pin receives signal of GPS analog via external active antenna .It has to be a controlled impedance trace at 50ohm.

  • Page 23: Recommended Reflow Profile

    Recommended Reflow Profile: 150±10[ ] Pre heating temperature: Pre heating time: 90±30[sec.] 235±5[ ] Heating temperature: Heating time: 10±1[sec.] Peak temperature must not exceed 240 and the duration of over 200 should be 30±10 Seconds. 2012/8/31...
  • Page 24 Appendix LABEL Artwork A: Brand: GLOBALSAT B: MODULE Model: EB-5318RF B-1: R = UART, I = I2C I/F E = Included EEPROM F = Included FLASH C: CHIP Type: SiRF IV D: Bar code E: Serial Number: Product NO (HEX) Place of origin, T= Taiwan, C=China Product Month, 123456789XYZ, X->Oct,Y->Nov,Z->Dec...
