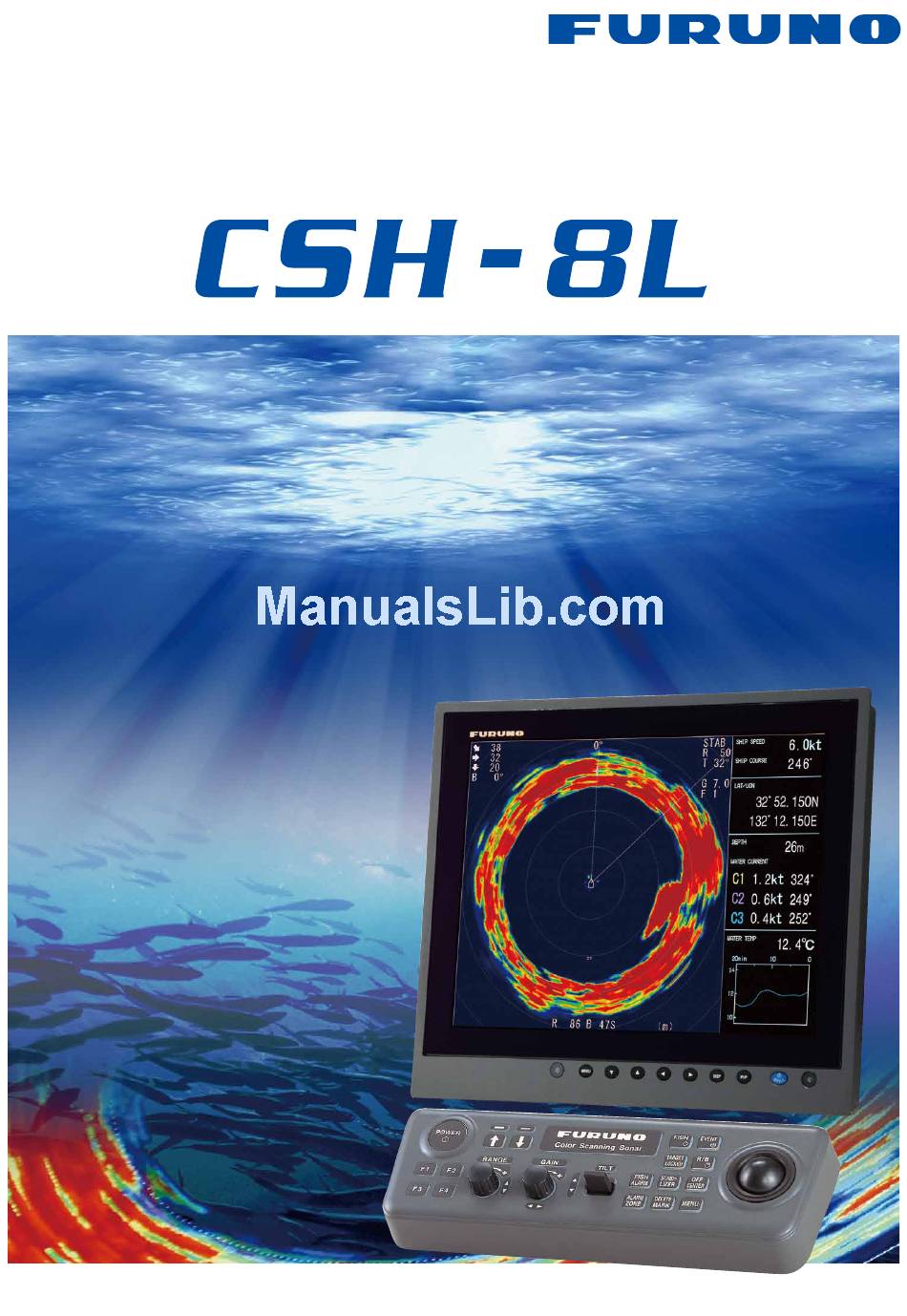

Furuno CSH-8L Quick Manual

Full-circle color scanning sonar

Hide thumbs Also See for CSH-8L:

Download this manual See also: Operator's Manual, Installation Manual

Full-circle scanning sonar detects and

instantaneously displays fish schools

and underwater conditions

Vivid 16-color display assists in rec-

ognition of bottom structure, and

concentration and distribution of fish

schools

Various fishing and navigation data*

keep operator abreast of fishing and

navigation conditions

*appropriate sensors required

Four user-programmable function

keys for quick set up according to

fishing conditions or specific func-

tion

High power transmitter ensures

reliable operation under any condi-

tions

Transducer frequency : 85 kHz

FULL-CIRCLE COLOR

SCANNING SONAR

Control unit with

optional monitor

MU-150HD

www.furuno.com

Need help?

Do you have a question about the CSH-8L and is the answer not in the manual?

Page 1 *appropriate sensors required Four user-programmable function keys for quick set up according to fishing conditions or specific func- tion High power transmitter ensures reliable operation under any condi- tions Transducer frequency : 85 kHz Control unit with optional monitor MU-150HD www.furuno.com...
Page 2 Fish distribution and The CSH-8L is provided in a BlackBox con guration for a seabed conditions in 360 degrees around your vessel are space saving and exible installation. It consists of a compact shown in 16 colors.
Page 3 Easy-to-Use Controls The control unit of CSH-8L combines ergonomics and functions in a user-friendly manner. All controls quickly respond to the operator’s command and the associated reaction can be seen on the screen immediately. Four user-de ned functions can be assigned to Function keys (F1 to F4), providing for rapid setup and operation.
Page 4: Interconnection Diagram
