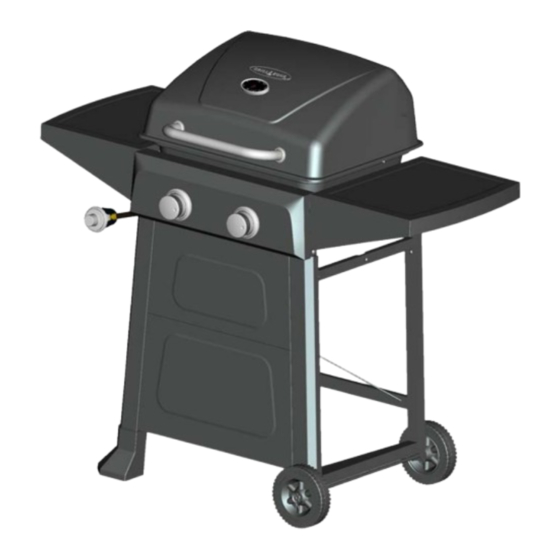

- Page 1 30,000 BTU Gas Grill USER MANUAL MODEL NO.: SRGG21201 / TV NO.: 143761 Consumer: Retain this manual for future reference. Installer: Leave this manual with consumer. FOR OUTDOOR USE ONLY PLEASE CONTACT 1-866-814-0585 FOR ASSISTANCE DO NOT RETURN TO PLACE OF PURCHASE...
- Page 2 SAFETY INSTRUCTIONS DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. Open lid. 4. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department. WARNING 1.
-
Page 3: Table Of Contents
TABLE OF CONTENTS SECTION ONE SECTION FOUR Safety Instructions………………………… 4 Operating Instructions………………..… Placement of the Grill……………………...8 Lighting Instructions…………………….. SECTION TWO SECTION FIVE Exploded View…………………………...… Care & Maintenance ………………….… Part List and Hardware List…………..…... How to Replace Main Burner………...… Assembly Instructions…….………..……..Trouble Shooting…………………………... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS RECOGNIZED SAFETY SYMBOLS, WORDS AND LABELS DO NOT USE ALUMINUM FOIL TO LINE THE WARNING GRILL RACKS OR GRILL BOTTOM. This can Do not try lighting this appliance without first severely upset combustion airflow or trap excessive reading the “LIGHTING INSTRUCTIONS” section heat in the control area. - Page 5 SAFETY INSTRUCTIONS RECOGNIZED SAFETY SYMBOLS, WORDS AND LABELS WARNING: Always keep your face and body away from the burner when lighting. WARNING: IMPORTANT! BEFORE LIGHTING… Inspect the gas supply hose prior to turning the gas “ON”. If it is evident there is excessive abrasion or wear, or the hose is cut, it must be replaced prior to the grill being put into operation.
- Page 6 SAFETY INSTRUCTIONS DO NOT STORE ITEMS OF INTEREST TO TESTED ACCORDANCE WITH CHILDREN AROUND OR BELOW THE GRILL OR IN Z21.58-2007 / CSA 1.6- 2007, ANS Z1.58- 2008 / THE CART. NEVER ALLOW CHILDREN TO CRAWL CSA1.6a-2008 STANDARD OUTDOOR INSIDE OF THE CART. COOKING GAS APPLIANCES.
- Page 7 SAFETY INSTRUCTIONS When using the grill, do not touch the grill rack, Use only in well ventilated areas. Do not use in burner grate or immediate surroundings as these buildings, garages, sheds, breezeways or other such areas become extremely hot and could cause enclosed areas.
-
Page 8: Placement Of The Grill
PLACEMENT OF THE GRILL MINIMUM CLEARANCE: LOCATION 2’ Clearance from both sides of combustible When determining a suitable location take into material, and 3’ Clearance from the back. account concerns such as exposure to wind, proximity to traffic paths and keeping any gas supply lines as short as possible. -
Page 9: Exploded View
EXPLODED VIEW... -
Page 10: Part List And Hardware List
PART LIST 1. Cooking grate, 1pc 15. Rear support bar, 1pc 2. Right side shelf, 1pc 16. Cart front panel-upper, 1pc 3. Connection bar, 2pcs 17. Cart front panel-lower, 1pc 4. Rear right pole, 1pc 18. Flame tamer, 2pcs 5. Cart right support bar, 1pc 19. -
Page 11: Assembly Instructions
ASSEMBLY INSTRUCTIONS STEP 1 Attach front leg stand (27) to front left pole (26) with 3pcs M4 x 10 bolts. Attach rear leg stand (25) to rear left pole (21). M4x10 bolts 3pcs STEP 2 Attach cylinder fixing plate (23) and the slot on cart left support bar-upper (22) with 1pc M6 x 30 bolts and 1pc M6 wing nut. - Page 12 ASSEMBLY INSTRUCTIONS STEP 3 Attach cart right support bar (5) to rear right pole (4) and front right pole (6) with 4pcs M5 x 10 bolts as illustrated, two on each side. Attach wheel supporter (7) to rear right pole (4) and front right pole (6) with 4pcs M5 x 10 bolts (BB) as illustrated, two on each side.
- Page 13 ASSEMBLY INSTRUCTIONS STEP 5 Attach rear support bar (15) to rear right pole (4) and rear left pole (21) with (4) M5 x 10 bolts. M5x10 bolts 4pcs STEP 6 Insert the axle (9) into wheel supporter (7), secure with 2pcs R-pins. Attach 2pcs D10 washer, 2pcs wheels (8), 2pcs M10 nuts and 2pcs R-pins to axle (9), secure in turn as illustrated.
- Page 14 ASSEMBLY INSTRUCTIONS STEP 7 Install two connection bars (3) as illustrated. STEP 8 Carefully place the grill body (11) onto the cart assembly, fix them with 4pcs M6 x 12 bolts, two on each side. NOTE: It should be done with 2pcs persons for safety & accuracy. M6x12 bolts 4pcs...
- Page 15 ASSEMBLY INSTRUCTIONS Step 9 Install one heat isolation panels (20) to grill body (11) with 2pcs M4 x 10 bolts. Install 4pcs M5 x 10 bolts onto the grill body (11) as illustrated and keep them half loosen. Then install left side shelf (19) onto grill body (11) with these 4pcs M5 x 10 bolts. Fix left side shelf (19) and grill body (11) with 1pc M4 x 10 bolt at the position as illustrated.
- Page 16 ASSEMBLY INSTRUCTIONS STEP 10 Install grease cup (14) onto grease cup hanger (13), and place it at the bottom of grill body (11). STEP 11 Open the lid, place 2pcs flame tamers (18), cooking grate (1) and warming rack (10) into the grill body (11) respectively.
-
Page 17: Gas Cylinder Installation Instruction
GAS CYLINDER INSTALLATION INSTRUCTIONS STEP 1 1. Place gas cylinder (not included) into the slot of cart left support bar-lower (24) as illustrated. Fig.1 2. Make sure the valve of gas cylinder is securely turned off prior to the left position of the grill. Then slide cylinder fixing plate (#23) over cylinder handle to secure the gas cylinder tightly. -
Page 18: Gas Hook-Up
GAS HOOK-UP Other cylinder may be acceptable for use with the Only the pressure regulator and hose assembly supplied appliance provided they are compatible with the appliance with the grill should be used. Any replacement pressure retention means. regulator and hose assembly must be those specified by the grill manufacturer. - Page 19 GAS HOOK-UP around the gas grill housing. This outdoor gas grill is not Open the cylinder valve fully (counterclockwise). intended to be installed in or on recreational vehicles Use a soapy water solution to check all connections and/or boats. for leaks before attempting to light the grill. See below.
- Page 20 GAS HOOK-UP When your gas grill is not in use, the gas must WARNING be turned off at the supply cylinders. Storage A strong gas smell or the hissing sound of gas of an outdoor cooking gas appliance indoors indicates a serious problem with your gas grill or the permissible only cylinder...
-
Page 21: Leak Testing
LEAK TESTING GAS FLOW CHECK GENERAL Each grill burner is tested and adjusted at the factory prior Although all gas connections on the grill are leak to shipment; however, variations in the local gas supply tested at the factory prior to shipment, a complete gas may make it necessary to adjust the burners, the flames tightness check must be performed at the installation of the burners should be visually checked. -
Page 22: Installer Final Check
INSTALLER FINAL CHECK OPERATING INSTRUCTIONS Specified clearance maintained 2 feet from USING THE GRILL sides of combustibles, and 3 feet from the back. Grilling requires high heat for searing and proper All internal packaging removed. browning. Most foods are cooked at the “MAX” heat Knobs turn freely. -
Page 23: Lighting Instructions
LIGHTING INSTRUCTIONS WARNING: IMPORTANT! BEFORE LIGHTING… Inspect the gas supply hose prior to turning the gas “ON”. If it is evident there is excessive abrasion or wear, or the hose is cut, it must be replaced prior to Burner flames should be blue and stable with no the grill being put into operation. - Page 24 LIGHTING INSTRUCTIONS Keep a spray bottle of soapy water near the gas supply valve and check the connections before each use. Do not attempt to light the grill if odor of gas is present. Call for customer service 1-866-814-0585.
-
Page 25: Care & Maintenance
CARE & MAINTENANCE GREASE TRAY CLEANING STAINLESS STEEL The grease tray should be emptied and wiped down Under extreme conditions, stainless steel can rust and periodically and washed in a mild detergent and warm the rust may not be removable. These conditions may water solution. -
Page 26: How To Replace Main Burner
HOW TO REPLACE MAIN BURNER in burner image Ignition hole (upwards) 3. Line up burner and burner supporter and secure both parts by using M5x10 bolts and D5 washers and M5 nuts. Washer D5 Nut M5 1. Line up burner and nozzle. 2. -
Page 27: Trouble Shooting
TROUBLE SHOOTING SPIDER AND INSECT WARNING!!! 1. The smell of gas in conjunction with the burner Spiders and insects can nest in the burners of the grill flames appearing yellow. and cause the gas to flow from the front of the burner. 2. -
Page 28: Limited Warranty
ONE-YEAR LIMITED WARRANTY True Value Company warrants your gas grill to be free from manufacturer’s defects in workmanship or material under normal operating conditions for one (1) year from the original date of purchase. This warranty applies only to products sold at retail. True Value Company will, at its option, repair or replace free of charge any defective part, where the Purchaser has notified their Retailer within the warranty period.
