INSTRUCTIONS-PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS
30:1 RATIO, STAINLESS STEEL
President Sprayer
3600 psi (25.0 MPa, 250 bar) Maximum Fluid Working Pressure
120 psi (0.83 MPa, 8.3 bar) Maximum Air Inlet Pressure
Part No. 236–066
Wall Mount Pump
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
http://www.graco.com
COPYRIGHT 1993, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
308–333
Supersedes Rev. A
First choice when
quality counts.
Rev. C
and PCN C
Advertisement
Related Manuals for Graco President 236-066
Summary of Contents for Graco President 236-066

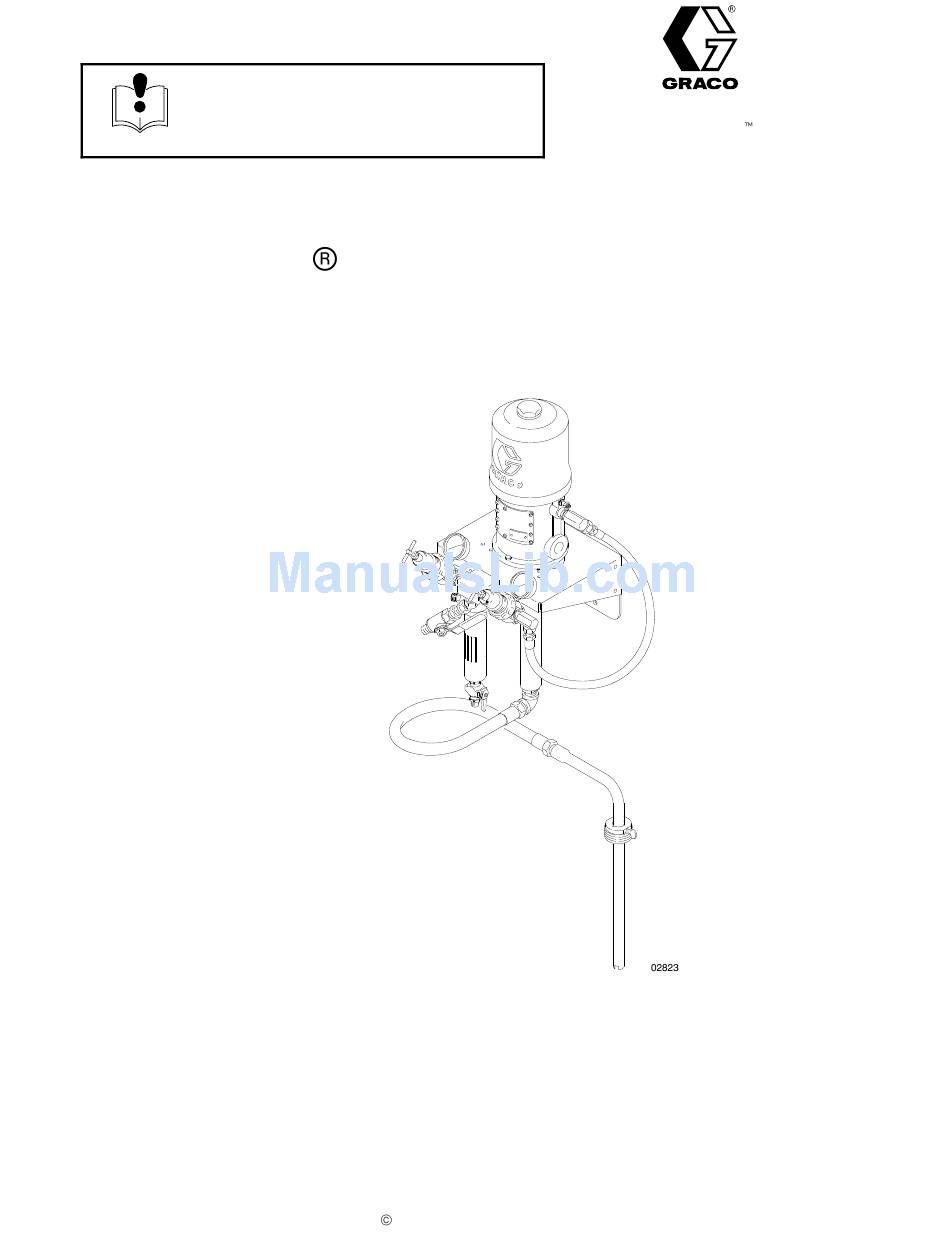

- Page 1 INSTRUCTIONS-PARTS LIST This manual contains important warnings and information. READ AND KEEP FOR REFERENCE. INSTRUCTIONS 30:1 RATIO, STAINLESS STEEL President Sprayer 3600 psi (25.0 MPa, 250 bar) Maximum Fluid Working Pressure 120 psi (0.83 MPa, 8.3 bar) Maximum Air Inlet Pressure Part No.
- Page 2 Table of Contents Warnings ........Installation .
- Page 3 FIRE AND EXPLOSION HAZARD Improper grounding, poor air ventilation, open flames, or sparks can cause a hazardous condition and result in fire or explosion and serious injury. Ground the equipment and the object being sprayed. See Grounding on page 4. If there is any static sparking while using the equipment, stop spraying immediately.
- Page 4 Grounding WARNING FIRE AND EXPLOSION HAZARD Before operating, ground the system as explained below. Also read the section FIRE AND EXPLOSION HAZARD on page 3. Pump: loosen the grounding lug locknut (W) and washer (X). Insert one end of a 1.5 mm minimum ground wire (Y) into the slot in lug (Z) and tighten the locknut securely.
- Page 5 NOTES: Be sure that all operators read and understand this entire manual and the separate manuals supplied with components and accessories before using this equipment. Reference numbers and letters in parentheses refer to the figures and parts lists. Accessories are available from your Graco distribu- tor.
- Page 6 Typical Installation – Cart-Mount Model Shown Pump Bleed-Type Master Air Valve (required for pump) Pump Air Supply Hose Master AIr Valve (for accessories) Air Line Filter Pump Air Regulator Gun Air Regulator Fluid Drain Valve (required) Fluid Suction Hose Fluid Filter Gun Fluid Supply Hose Gun Air Supply Hose Air-Assisted Airless Spray Gun...
- Page 7 Pressure Relief Procedure WARNING INJECTION HAZARD Fluid under high pressure can be in- jected through the skin and cause serious injury. To reduce the risk of an injury from injection, splashing fluid, or moving parts, follow the Pressure Relief Procedure whenever you: are instructed to relieve the pressure, stop spraying,...
- Page 8 Never allow the pump to run dry of the fluid being pumped. A dry pump will quickly accelerate to a high speed, possibly damaging itself. If your pump acceler- ates quickly, or is running too fast, stop it immediately and check the fluid supply. If the supply container is empty and air has been pumped into the lines, refill the supply container and prime the pump and lines with fluid, being sure to eliminate all air from the fluid sys-...
- Page 9 Notes 308–333...
- Page 10 Part No. 236–066 Wall Mount Pump See Detail. Apply thread sealant to male threads, except at swivel connections DETAIL 308–333 Parts 13 (REF)
-
Page 11: Technical Data
Part No. 236–066 Wall Mount Pump Ref. Part No. Description 186–727 BRACKET, wall mounting 223–843 PRESIDENT PUMP; stainless steel See manual 308–106 for parts 223–160 FLUID FILTER; stainless steel See manual 307–273 for parts 235–992 BALL VALVE; 3/8 npt x 1/4 npt(mbe); stainless steel;... -
Page 12: Graco Phone Number
The Graco Warranty Graco warrants all equipment listed in this manual which is manufactured by Graco and bearing its name to be free from defects in material and workmanship on the date of sale by an authorized Graco distributor to the original purchaser for use. With the exception of any special extended or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
