INSTRUCTIONS-PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS

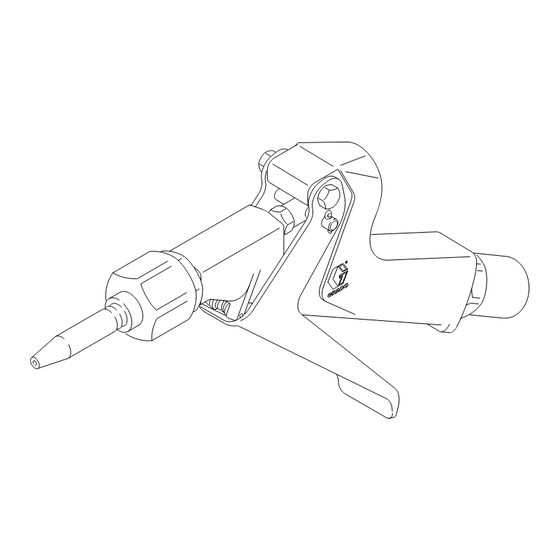

Pistol Grip Flo-Gun
6000 psi (414 bar) Maximum Working Pressure
Model 207-945, Series B
Table of Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
2
2
5
7
8
10
11
12
. . . . . . . . . . . . . . . . .
12
COPYRIGHT 1996, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
307-004
Rev. G
Supersedes F
Advertisement
Table of Contents
Related Manuals for Graco 207–945
Summary of Contents for Graco 207–945
-
Page 1: Table Of Contents
INSTRUCTIONS-PARTS LIST This manual contains important warnings and information. READ AND KEEP FOR REFERENCE. INSTRUCTIONS Pistol Grip Flo-Gun 6000 psi (414 bar) Maximum Working Pressure Model 207–945, Series B Table of Contents Symbols ........Safety Warnings . -
Page 2: Symbols
Warning Symbol WARNING This symbol alerts you to the possibility of serious injury or death if you do not follow the instructions. EQUIPMENT MISUSE HAZARD Equipment misuse can cause the equipment to rupture or malfunction and result in serious injury. INSTRUCTIONS This equipment is for professional use only. - Page 3 INJECTION HAZARD Fluid dispensed from the gun, leaks or ruptured components can inject fluid into your body and cause extremely serious injury, including the need for amputation. Fluid splashed in the eyes or on the skin can also cause serious injury. Fluid injected into the skin might look like just a cut, but it is a serious injury.
- Page 4 FIRE AND EXPLOSION HAZARD Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and result in a fire or explosion and serious injury. Ground the equipment and the object being sprayed. Refer to your pump instruction manual. If there is any static sparking or you feel an electric shock while using this equipment, stop dis- pensing immediately.
-
Page 5: Operation
Pressure Relief Procedure WARNING INJECTION HAZARD The system pressure must be manually relieved to prevent the system from starting or dispensing accidentally. Fluid under high pressure can be injected through the skin and cause serious injury. To reduce the risk of an injury from injection, splashing fluid, or moving parts, follow the Pressure Relief Procedure whenever you:... - Page 6 Notes...
-
Page 7: Service
NOTE: The numbers in parentheses in the text refer to reference numbers in the parts drawing on page 8. NOTE: Periodically inspect the vent in the gun handle for build-up of fluid, which could indicate an internal leak. See Fig. 1. Service the valve needle and packing as needed. -
Page 8: Parts
Torque to 100 in-lb (11 N.m). Apply thread lubricant. Lubricate with general purpose grease. Parts... - Page 9 Part No. Description 203–953 SCREW, lock 207–962 SEAT, valve 215–224 STEM valve 100–975 NUT, hex; No. 5–40 101–421 PIN, cotter; 0.062” (1.59 mm) x 0.375” (9.52 mm) 102–232 PIN, spring; 0.094” (2.38 mm) x 0.25” (6.4 mm) 102–921 PACKING, v-block; polyurethane 102–924 SPRING, compression 102–925...
-
Page 10: Accessories
Use Only Genuine Graco Parts and Accessories Straight Swivel 207–947 6000 psi (415 bar) Maximum Working Pressure 1/2 npt(f) x 1/2 npt(m) Zee Swivel 207–948 6000 psi (415 bar) Maximum Working Pressure 1/2 npt(f) x 1/2 npt(m) Valve Seat 208–176 5000 psi (350 bar) Maximum Working Pressure To adapt 7/8 thread nozzles. -
Page 11: Technical Data
Category Maximum fluid working pressure Inlet port size Outlet port size Wetted parts Height Length Weight Viton is a registered trademark of the DuPont Co. Technical Data Data 6000 psi (414 bar) 1/2 npt(f) 1/4 npt(f) with quick detachable adapter and 0.094” (2.38 mm) pencil tip nozzle Steel, tungsten carbide, polyurethane, nitrile rubber, copper 5.25”... -
Page 12: Warranty
Graco Warranty and Limitation of Liability WARRANTY Graco warrants all equipment listed in this manual which is manufactured by Graco and bearing its name to be free from defects in material and workmanship on the date of sale by an authorized Graco distributor to the original purchaser for use. Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defec- tive.
