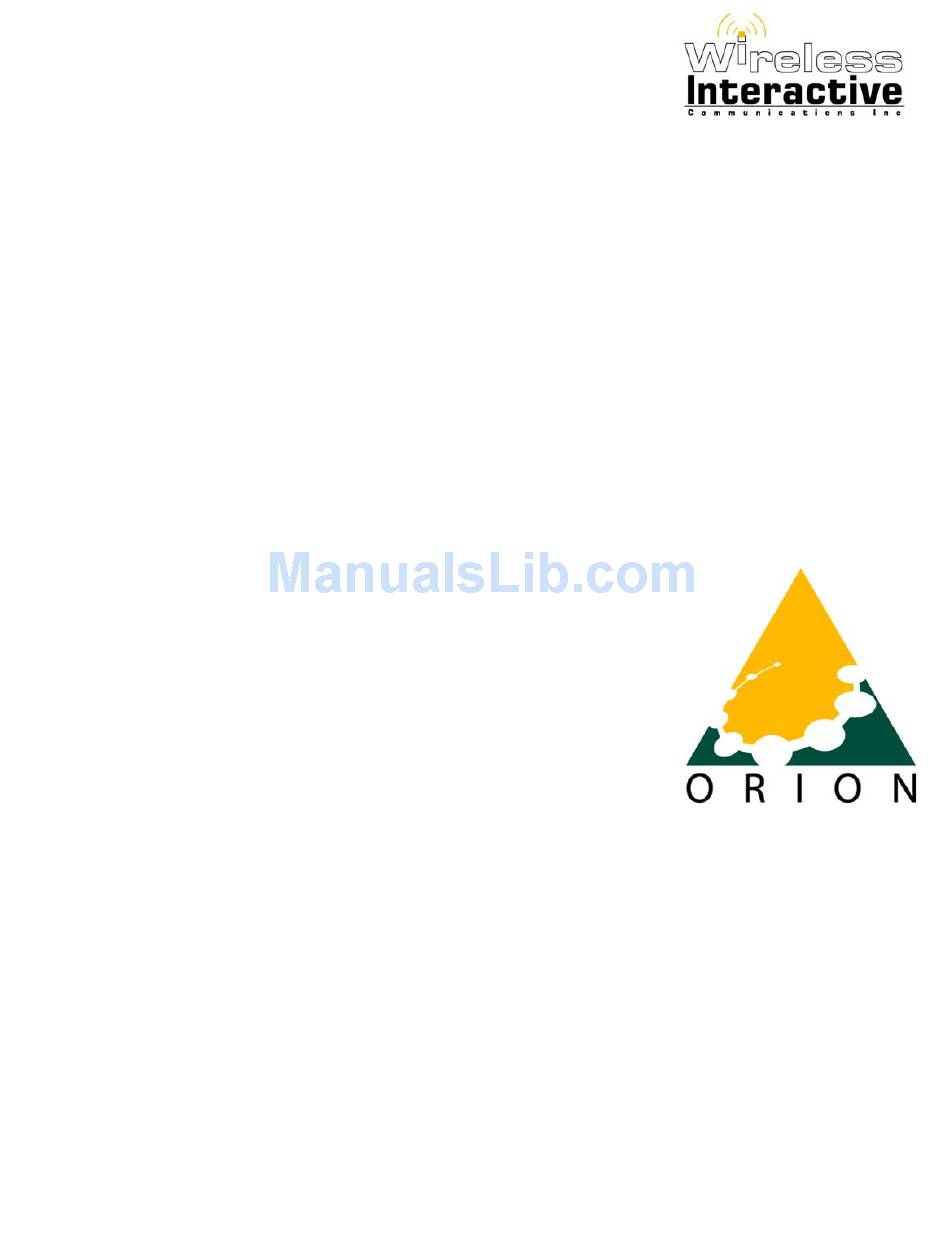

  • Page 1 900 MHz OFDM Users Manual November 2006, Version1.05...

  • Page 2: Technical Support

    Notice: The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device.

  • Page 3: Table Of Contents

    Table of Contents SYMBOLS……………………………………………………………………………………..4 GLOSSARY..................COMING IN NEXT REVISION CHAPTER 1 INTRODUCTION....................5 1-1 FEATURES AND BENEFITS ..........................5 ..............................CHAPTER 2 HARDWARE INSTALLATION ................6 2-1 PRODUCT KIT..............................7 2-2 SYSTEM REQUIREMENTS ..........................7 2-3 MECHANICAL DESCRIPTION ........................8 2.4 HARDWARE INSTALLATION........................10 CHAPTER 3 ANTENNA AND RF TUTORIAL.................

  • Page 4: Symbols

    Symbols This publication uses the following symbols to convey instructions and information: reader take note This symbol means . Notes contain helpful suggestions or references to materials not contained in this manual. reader be aware This symbol means . In this situation an action could result in equipment damage or loss of data.

  • Page 5: Chapter 1 Introduction

    Chapter 1 Introduction The Orion-900, 900MHz OFDM radio is a cost-effective point-to-point / point-to-multipoint, and multipoint-to-multipoint solution for ISM band wireless backhaul deployment equipped with an Ethernet interface. This radio is one of the first OFDM radios, utilizing 16/64QAM modulation. Although line of sight installations are always recommended, OFDM technology makes the system ‘more...

  • Page 6: Chapter 2 Hardware Installation

    The Orion-900, 900MHz ISM band radio and POE injector can be damaged by incorrect power installation. Read and carefully follow the installation instructions before connecing 802.11a Outdoor Multi-function Radio User Manual the system to its power source.

  • Page 7: Product Kit

    2-1 Product Kit Before installation, make sure that you have the following items: Wireless Outdoor Bridge……….…….…..…………….…..…..x 1 Power over Ethernet………………………………….……….…x 1 Power Adapter……………………………….…….…………..…x 1 Power Cord……………………………………………………..…x 1 Mounting kit..……………………………….…………………..x 1 Product CD……………………………………………………..…x 1 Quick Installation Guide……………………………….……….x 1 NOTE: If any of the above items are missing or damaged, please contact your supplier for support. System Requirements 2-2 System Requirements Before installing the 900MHz ISM band radio, please ensure that you are in access of the following:...

  • Page 8: Mechanical Description

    Grounding stud N- Jack Antenna RJ-45 Port Connector Orion-900, 900MHz ISM band radio Use SFTP CAT5 cable with a weatherproof connector to connect to RJ-45 Port the “TO ODU” side of poe injector. Attach N-male connector to this port which will lead to the antenna N-jack antenna of choice.
  • Page 9 Power Over Ethernet (POE) DC Input LED Indicator (Power) To Ethernet To Radio Power Over Ethernet Injector (POE) This RJ-45 port is used to connect to the 10/100 Base-T compliant TO ETHERNET device such as switch, router or PC. This RJ-45 port is used to connect to the ODU and provides power to TO ODU the radio.

  • Page 10: Hardware Installation

    Hardware Installation 2-4 Hardware Installation The Orion-900, 900MHz ISM band radio is a radio device, so it is susceptible to common causes of interference that can reduce throughput and range. Follow these basic guidelines to ensure the best possible performance: If there is any other 900MHz RF device deployed in the area, try to set the channel to one that does not overlap the interferer.

  • Page 11: Chapter 3 Antenna And Rf Tutorial

    Configure and test the Orion-900, 900MHz ISM band radio indoors first before installing and mounting antennas. The Power Over Ethernet Injector is not a waterproof unit, and should not be exposed outdoors without protection or you may void your warranty.

  • Page 12: Site Selection

    Gain “Gain” specifies the receive and transmit performance of any antenna compared to a standard omni-directional antenna (“spherical radiator”). The objective of a directional antenna design is to achieve gain, improving sensitivity and effective radiating power to increase range or data rate. Gain is measured and stated in decibels, abbreviated dB.
  • Page 13 For this reason, a proper antenna site must meet the following criteria: 1. For optimum performance at maximum range, there must be a clear line-of-sight path among all antennas that communicate directly with each other. At shorter ranges, some degree of obstruction may be tolerated, but performance in the presence of obstruction is difficult to predict.
  • Page 14 A reasonable approximation of the radio horizon based on antenna height can be obtained from the graph below. (Note that this graph does not take atmospheric effects into account.) To use the graph, set a straight edge so that it crosses the height of one of the antennas in the column on the left and the height of the other antenna in the column on the right.
  • Page 15 Using short cables to connect the radio to the antenna reduces signal losses. The below table shows loss per 100 feet (30 meters) at 2.4 GHz for typical antenna cable types. Loss at 900 MHz for LMR Equivalent Coaxial Cable Types Cable Type Loss per 100 ft.
  • Page 16 Connector Loss Loss is introduced with each pair of cable connectors. Attenuation losses of some standard cable types are shown in the following table: Connector type Loss per connector Most RF Connectors 0.25 dB The loss of each pair of connectors on all cables must be included to determine the total signal loss (attenuation) between the antenna and ODU.

  • Page 17: Chapter 4 Configuration

    POE. When the Orion-900 radio is powered up, expect a 40-50 second delay before you can access it with your computer.
  • Page 18 1. Type the IP address http://192.168.1.1 in the address bar of your browser (Internet Explorer for example). 2. The main page will appear. 3. Enter the system name (the default setting is “admin”) and password (the default setting is “password”). 4.
  • Page 19 Basic Setup The Wireless bridge Name is used to give a name to your Wireless bridge. This will enable you to manage your Wireless bridge more easily if you have multiple radios on your network (note: this is not the SSID of the radio). Ethernet Data Rate: you can choose the Ethernet data rate you require.
  • Page 20 Time: While you are connected to the Internet, it will automatically synchronize the current time with the Time Server that you have set. Time Server: the time off of your Time Server. Time Server Port: the port of your Time Server. Time Zone: You may select the appropriate local time zone for your radio from a list of all available time zones.

  • Page 21: Wireless Setup

    4-2 Wireless Setup Wireless Setup / Radio Settings Operating mode: There are 3 operating modes that can be selected in this field. In a point to point environment where there are only two radios, Peer to Peer is recommended because it works more efficiently, but one radio as a base station and the other as a CPE works as well.
  • Page 22 Site Survey: Site survey only works in CPE mode, which can scan for Base stations. See above recommendation (Operating mode). The systems is optimized when the signal strength is higher that -70 dBm. A lower signal of -71dBm or lower may cause the link to fail. Base Station ID: Commonly called SSID, this station ID works only in Base station to CPE mode.
  • Page 23 Bandwidth: Set the Bandwidth of the radio. The options are 20MHz / 10MHz / 5MHz. Different bandwidth selections have different throughputs. Below is the list. Bandwidth Throughput 5MHz 5.5Mbps 10MHz 10Mbps 20MHz 20Mbps SEE OUTPUT POWER AND SPECIFICATION CHART FOR THE ABOVE SETTINGS. Bandwidth, output power and channel selection are all affected during the programming process.
  • Page 24 Time Slice: set the time slice of the VQOS / TDM. This function will allow a certain amount of time (in ms) that data will transmit to each user before it moves to the next user. This is a repetitive cycle.
  • Page 25 Only 4 remote addresses may be entered. However, each of these remotes may then act as repeater stations for another 4 remotes, etc. II. Multi-point to multi-point Bridge: To activate the Multi-Point to Multi-Point Bridge mode follow the exact steps as above. However, in this case you would enter the MAC address’s of other radios within your network.

  • Page 26: Status

    WEP Passphrase There are three methods for creating WEP data encryption: 64 bits WEP: Enter 10 hexadecimal digits (between 0-9, a-f and A-F). 128 bits WEP: Enter 26 hexadecimal digits (between 0-9, a-f and A-F). 152 bits WEP: Enter 32 hexadecimal digits (between 0-9, a-f and A-F). The WEP key must be set up exactly the same on the Wireless bridges as they are on the wireless clients.
  • Page 27 Connections Page in Base Station mode Connections Page in CPE mode Statistics The Statistics screen provides various Ethernet and Wireless TX/RX packet statistics on the Wireless bridge. Click the Refresh button to update the statistics on this screen.

  • Page 28: Management

    4-4 Management Management / Change Password This option allows you to change the Wireless Bridge’s password. To change the password of the Wireless Bridge, do the following: 1. To change the current password, choose the “Change Password” option from the “Management”...
  • Page 29 Management / Remote Management Remote Console Secure Shell (SSH): If Secure Shell is enabled, the Wireless bridge will only allow remote access via Secure Telnet. SNMP Enable SNMP to allow the SNMP network management software to manage the Wireless bridge via the SNMPv2 protocol.
  • Page 30 Management / Upgrade Firmware Browse The Upgrade Firmware menu will display the Upgrade Firmware window so that you could update the latest firmware on the Wireless Bridge. Please make sure that you have or have downloaded the latest and correct firmware before upgrading.
  • Page 31 Management / Backup / Restore Settings Browse The current system settings can be saved into a file as a backup by clicking “Backup”. The saved file can be loaded back on the radio by clicking “Browse”. When you have selected the settings file, click “Retrieve”...
  • Page 32 Management / Event Log Enable SysLog if you have a Syslog Server on your network environment. If enabled, you need to input the Syslog Server IP Address (default is 0.0.0.0) and the port number your Syslog Server is configured to use. The default port number is 514. The Event Log Window lists Wireless bridge events.

  • Page 33: Appendix A Frequency Table

    Appendix A Frequency table CHANNEL FREQUENCY (MHZ) 905.0 910.0 915.0 920.0 925.0...

  • Page 34: Appendix B Troubleshooting

    Appendix B Troubleshooting This appendix helps you isolate and troubleshoot the Orion-900, 900MHz ISM band radio. Before you start troubleshooting, it is important that you have checked the details in the product user manual first. In some cases, rebooting the unit resolves any issues. If the below does not help resolve your troubleshooting issue, then please consult the manufacturer.

  • Page 35: Connection Issues

    AVOIDING INTERFERENCE When a source of interference is identified and when the level and frequencies are known, the next step is to avoid the interference as best as possible. Some of the following actions can be attempted: Change the RF channel to the one away from the source of interference. Change the polarization of the antenna.

  • Page 36: Appendix C Output Power And Specification Chart

    Appendix C Output Power and Spec. Chart When radio channel bandwidth is set at 20 MHz* Output power Modulation Sensitivity Data Effective Full Half Quarter Eighth (BER 1E10-6) Rate Data Rate 64QAM -73dBm 54 Mbps 22 Mbps 26dBm 23dBm 20dBm 17dBm 8dBm 64QAM...
