Summary of Contents for Orion RCD-832
-

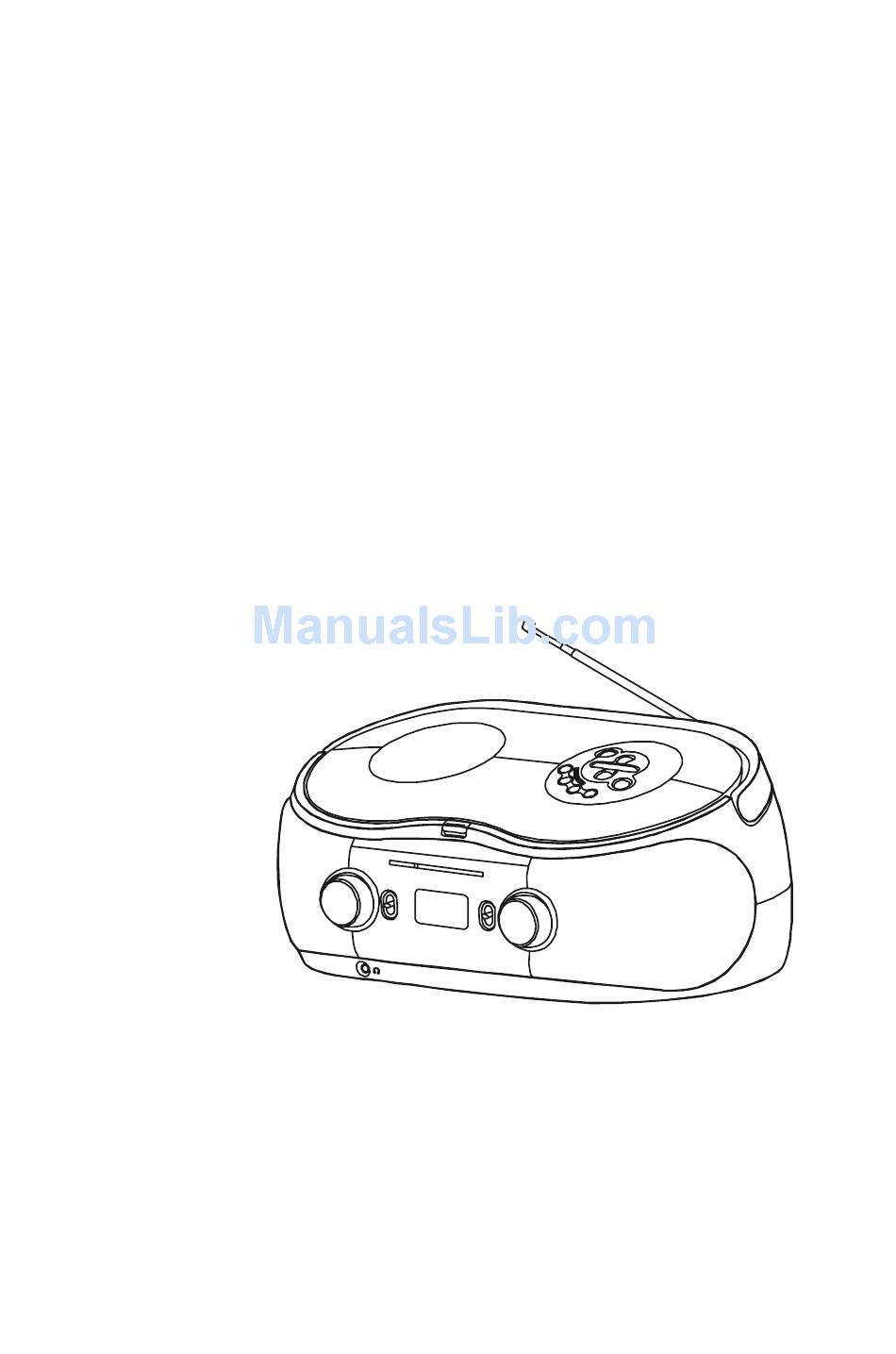

Page 1: Instruction Manual
PORTABLE RADIO WITH CD/MP3 PLAYER INSTRUCTION MANUAL... -
Page 2: Features And Controls
FEATURES AND CONTROLS... -
Page 3: Dangerous Voltage
To achieve the utmost in enjoyment and performance, please read this manual carefully before attempting to operate the unit in order to became familiar with its features, and assure you years of faithful, trouble free performance and listening pleasure. Important Notes Keep safety and operating instructions in a safe place for future reference. -
Page 4: Operating The Unit
FEATURES AND CONTROLS 1. ANTENNA 15. POWER LED INDICATOR 2. HANDLE 16. DIAL SCALE 3. CD STOP BUTTON 17. FM STEREO LED INDICATOR 4. REPEAT BUTTON 18. SPEAKER 5. SKIP/SEARCH UP BUTTON 19. TUNING KNOB 6. CD PLAY/PAUSE BUTTON 20. AM/FM/FM STEREO (BAND SELECTOR) 7. - Page 5 LISTENING TO COMPACT DISC (CD / MP3) When playing of CD / MP3 , press the CD DOOR OPEN BUTTON first, and then the CD door will open itself automatically.(F.1) Insert the CD or MP3 disc into the CD compartment, press the CD door , and then the CD door will close .
- Page 6 LISTENING TO MP3 DISC (CD) Playing The MP3 Push the function switch CD/MP3//OFF//RADIO to CD/MP3 position to select the MP3 mode, the MP3 indicator and total folder & file number will appear on the display, but the total folder is one more than the actual ones, which is empty. (F.7) Press the PLAY/PAUSE button once to start playing the MP3 from the first track of the second folder, and the "...
-
Page 7: Unit Button
HUNDRED BUTTON You can select and enter the hundred numbers of the tracks directly, and only the number from 0 to 9 can be entered, and the number that has been selected flashing on the display (F.12). Note: Note: Note: Note: Note: the button is in effect only while using MP3 disc. -
Page 8: Repeat Play Function
REPEAT PLAY FUNCTION While playing the CD: If you desire to repeat the same track only , press the REPEAT button once and the "RPT" will appear on the display . (F.17) If repeat all , press the REPEAT button twice and the "RPT ALL" will appear on the display(F.18) To can cel repeat pl ay, press t he REPEAT but t on or press t he STO P but t on until the repeat indicator disappeared. -
Page 9: Random Play
RANDOM PLAY On stop mode, press RANDOM button to playing with random , the playing tracks are edited randomly,and the "RDM" will appear on the display. (F.25) (F.26) To cancel random play, press the STOP button until the random indicator disappeared. F.25 F.26 STOPPING PLAY... -
Page 10: Erasing A Program
ERASING A PROGRAM A program is erased if you : Pess the PROGRAM button, and then STOP button in stop mode. Or Switch the unit OFF. Listen to Music By Using Headphone Headphone socket is provided on the unit. You can use headphone by inserting the headphone jack to the socket. -
Page 11: Display Window
DISPLAY WINDOW TRACK NUMBER INDICATOR FOLDER NUMBER INDICATOR CD PAUSE INDICATOR CD PLAY INDICATOR PRESET INDICATOR SPECIFICATION POWER SUPPLY : 230V~50Hz OUTPUT POWER : 1.5 Watts x 2 UNIT DIMENSION : 330(L) x 220 (W) x 140 (H) mm N. W. : 2.30 kg RADIO SECTION FREQUENCY RANGE :...
