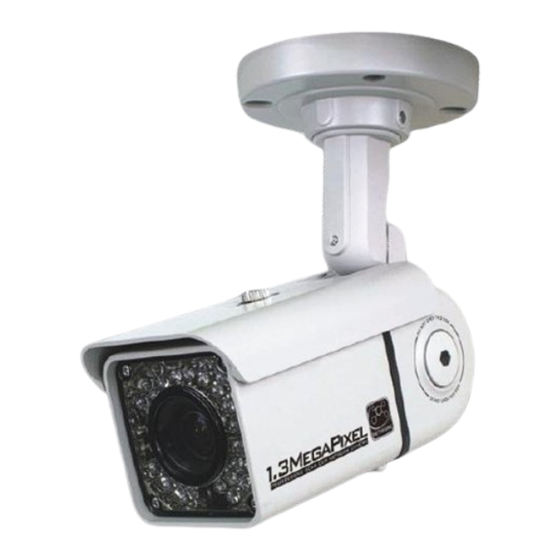

Orion Technology H.264 Mega-Pixel User Manual

H.264 mega-pixel network camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
H.264 Mega-Pixel
NETWORK CAMERA
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H.264 Mega-Pixel and is the answer not in the manual?

Questions and answers

Related Manuals for Orion Technology H.264 Mega-Pixel

Summary of Contents for Orion Technology H.264 Mega-Pixel

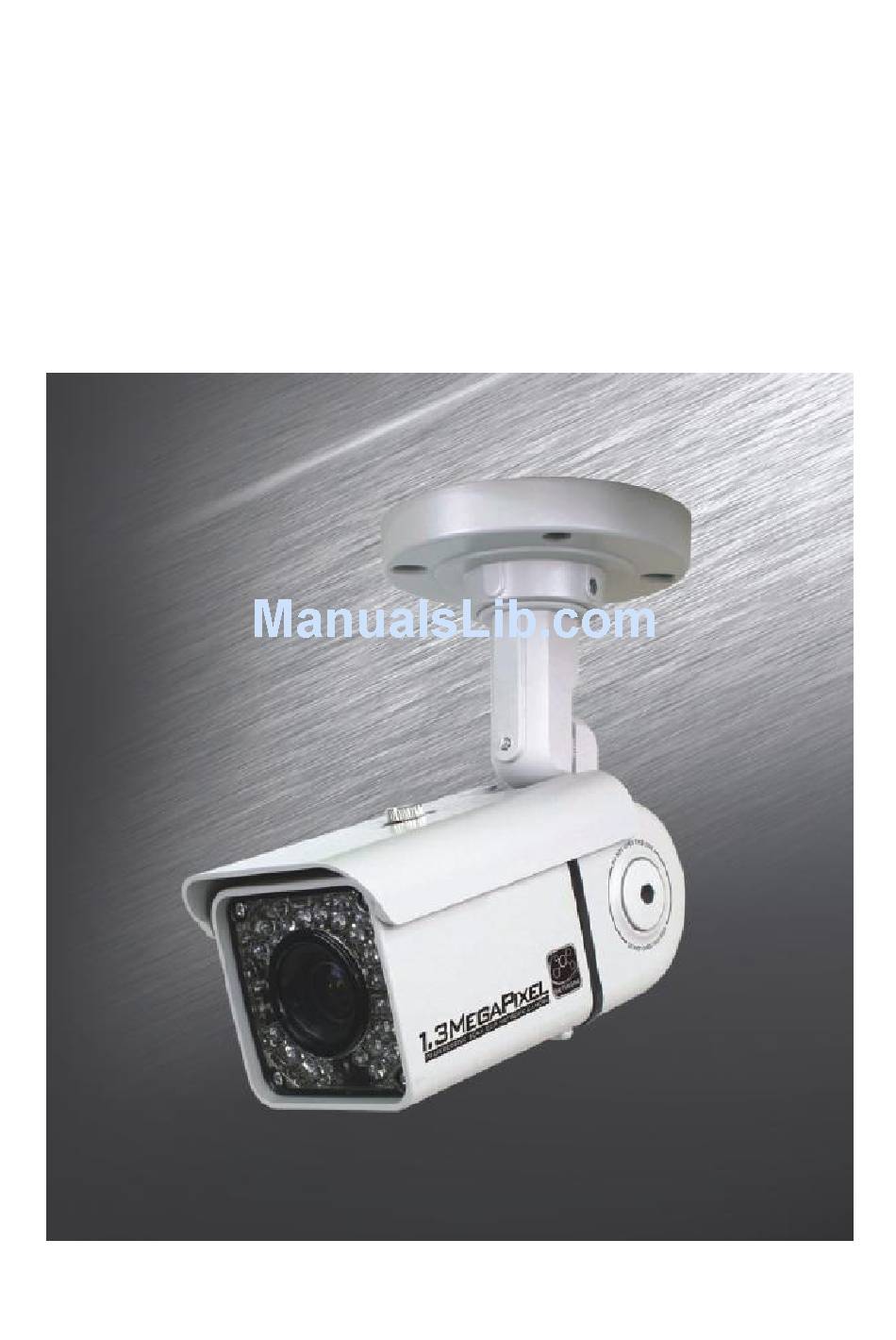

  • Page 1 H.264 Mega-Pixel NETWORK CAMERA USER MANUAL...

  • Page 3: Table Of Contents

    INDEX In troduc tion ............................6 Safe ty Cautions ............................. 6 Chap ter 1. Package ..........................7 1.1 Came ra Features ........................7 1.2 Package ............................ 7 1.3 HO W TO INSTALL ........................8 1.3.1 Accessories for installatio n.................... 8 1.3.2 Configuration ........................
  • Page 4 5.2 Language ..........................37 5.3 Administrato r's ID and Password Change................38 5.4 Network Se tting ........................38 5.5 Web port..........................38 5.6 DDNS............................39 5.7 Date & Time........................... 39 5.8 User Registration ........................40 5.9 Firmware Upgrade........................41 5.10 System Reset/Restart ......................41 Chap ter 6.
  • Page 5 10.3 Ping test ..........................61 Chap ter 11. Appendix ......................... 63 11.1 Basic setting table ........................ 63 11.2. Troubleshooting of cable connection................... 64 11.3 Troub leshooting of network connection ................65 Chap ter 12. Troub leshooting ......................66 Chap ter 13. Warranty Card ........................ 67...

  • Page 6: Introduction

    Introduction This is a megapixel network camera which uses a 1/3-inch megapixel progressive scan SONY CMOS sensor. Built-in H.264, MPEG4, MPEG CODEC and streaming server, the advantage of this camera allow you to monitor real time image from a remote location via in ternet. This camera supports both sta tic IP and dynamic IP, and can change communication port, r esulting in one IP address supporting multiple servers.

  • Page 7: Chapter 1. Package

    Chapter 1. Package 1.1 Camera Features 1) Firmware upgrading and function con trolling are available by network. 2) Built-in 1.3 Mega pixel 1/ 3" progressive scan SONY CMOS sensor. 3) Triple codec(H.264, Mpeg4, MJPEG) 4) This camera has a mechanical exchange of two filters with Sense up function to receive the maximum available ligh t a t nigh t.

  • Page 8: How To Install

    1.3 HOW TO INSTALL 1.3.1 Accessories for installation...

  • Page 9: Configuration

    1.3.2 Con figura tion [Reference] Please refer to 1.4.5. regarding 'Alarm In/Out'...

  • Page 10: Wall Mount

    1.3.3 WALL MOUNT 1. Make a hole of 30mm in diame ter for passing cable. 2. Using the mount hole pla te, drill four holes on the wall. 3. Insert the anchors. 4. Fix the screws.
  • Page 11 <Adjust horizontal angle> 1) Loosen a bolt to adjust horizontal angle of the camera. 2) Use the WRENCH to tigh ten a bolt a fter adjusting the camera.
  • Page 12 <Adjust vertical angle> 1) Loosen a bolt to adjust ver tical angle of the camera. 2) Use the WRENCH to tigh ten a bolt a fter adjusting the camera.

  • Page 13: Ceiling Mount

    1.3.4 CEILING MOUNT 1. Make a hole of 30mm in diame ter for passing cable. 2. Using the mount hole pla te, drill four holes on the ceiling. 3. Insert the anchors. 4. Fix the screws.
  • Page 14 <Adjust horizontal angle>...
  • Page 15 <Adjust vertical angle> 1) Loosen a bolt to adjust ver tical angle of the camera. 2) Use the WRENCH to tigh ten a bolt a fter adjusting the camera.

  • Page 16: Focus Adjustment

    1.3.5 Focus adjustment (1) Turn the fixing screw in a counterclockwise to loosen the screw. (2) Adjust the lever when you get the image s you want. (3) Turn the fixing screw in a clockwise tigh tly to fix the screw.

  • Page 17: Control Board

    1.3.6 Con trol board ① SYSTEM RESET: Press the button to reset when the unit is not working normally. ② FACTORY RESET: Turn on the power and wait 2 minu tes. Press the button for 3 seconds to set the ID and Passwords for administration and IP setting values to the Factory de fault.

  • Page 18: Specification

    1.4 Specification 1.4.1 Camera Specification Item Specification Type Megapixel network camera Image Sensor 1.3 Mega Pixel SONY CMOS Image Sensor Total pixel 1384 (H) × 1076 (V) approx. 1.48M pixels Effec tive pixel 1329 (H) × 1049 (V) approx. 1.39M pixels Scanning System Progressive Scan S/N ratio...

  • Page 19: Network Specification

    1.4.3 Network Specification Classification Item Specification Embedded Linux Network In ter face RJ45 10/100BaseT, Ethernet Setting By web browser Leased Line, Cable Modem, Support Dynamic IP Network support and Static IP. ADSL usable under Router Summary TCP/IP, UDP/IP, RTP, RTSP, RTCP, NTP, HTTP, DHCP, Supported Protocol FTP, SMTP, DNS, DDNS Security...

  • Page 20: Alarm Input/Output

    Operation Temp. -10℃ ~ 50℃ Preservation Temp. -20℃ ~ 60℃ Dimension 79(W) X 76.5(H) X 172.3(D)mm Weight 1.22Kg ※The specifica tion is subjec t to change without any prior notice to improve the quality. 1.4.5 Alarm Input/Outpu t 1.4.6 Audio Input/Output...

  • Page 21: Chapter 2. Installation And Video Check

    Chapter 2. Installation and Video check 2.1 Installation On the assumption that User PC and the camera are used under static IP, and the camera is to be directly connected with User PC or Local Network, The installation procedure is to be; (1) Connect the camera and PC with LAN cable(Direct cable or cross cable).

  • Page 22: Video Check

    2.2 Video check Basic network setting value of the unit is to be; To connect the unit in user's PC, change the setting value of PC network environment. Set IP Address, Subnet Mask and Gate -way of user's PC with 192.168.1.50 / 255.255.255.0 / 192.168.1.1 as shown on [Pic.

  • Page 23: Connect The Camera With Web Browser

    2.2.2 Connect the camera with web browser [Pic. 2-2] Web browser address Input (1) Run web browser as shown [Pic. 2-2]. (2) Input 192.168.1.30 (de fault value) in URL and press "ENTER " bu tton . (3) And then, [Pic. 2-3] is to be shown. [Pic.

  • Page 24: See The Video

    2.2.3 See the video Shown as [Pic. 2-3], input ID and password and click on “Viewer ” to see the video feed. User’s authority to see the video feed is as follow Password Authority Detail Stream, admin admin Web management root root Stream...
  • Page 25 [Pic. 2-5] Ac tiveX Download...

  • Page 26: Installation Complete

    2.2.5 Installation complete Upon installation, Web Viewer [Pic. 2-6] appears and image of camera is to be seen. [Pic. 2-6] Web Viewer Installation and check video are completed successfully. Must change ID/PASSWORD.

  • Page 27: Net Viewer Description

    2.2.6 Net Viewer description Item Description ① S tream Select stream codec and resolution menu relat ed to live-view was selection defined only by the admin.(H.264/MPEG/MJPEG) Default size is 640X480. Adjust the screen to the optimal size ② Window size (Rec ommendation : Select the same size with stream resolution) ③...

  • Page 28: Chap Ter 3. Ne Twork Setting

    Chapter 3. Network Setting 3.1 Check Network and Installation Type This Chapter is for basic setting regarding Network. To install hardware, basic understanding of ne twork is required. [Warning] The se tting value might be different in accordance with ne twork environment of user's PC. [Reference] Please refer to Appendix for be tter understanding.
  • Page 29 [Pic. 3-1] Main Page (4) Administration page log -in Shown as [Pic. 3-1], input ID and password and click on “Manager” to see the admin page. [Caution] If you logged in first in administrator mode, please change the password and ID of administrator.
  • Page 30 (5) Ne twork Setting Click 'Network Setting' on [Pic. 3-3], [Pic. 3-4] appears. [Pic. 3-4] Ne twork Se tting (6) DNS Server Setting For setting of DNS server, input DNS address to fit with ne twork environment to set(De fault address is DNS address of 'Dacom', ' Hanaro telecom').
  • Page 31 [Pic. 3-5] IP change [Pic. 3-6] IP Change page...

  • Page 32: Dynamic Ip Setup

    (8) Remove LAN Cable(cross cable) connected between the camera and PC. (9) Connect the camera to ne twork with LAN cable(Direct cable). (10) Connect PC to network with LAN cable(Direct cable). (11) Set up IP address, Subnet Mask and Ga te way of P C according to networ k environment (Recommended to user to remember the value before changing user's PC setting).
  • Page 33 [Pic. 3-8] Network Setting (4) DNS server setting For setting of DNS Server, input DNS address to fit with ne twork environment to set(De fault address is DNS address of 'Dacom', 'Hanaro telecom'). Use DNS value normally set in PC. DNS address should be necessarily input.

  • Page 34: Installation With Ip Sharing Device(Router)

    (6) Remove LAN cable(cross cable) connected between the camera and PC. (7) Connect the camera to ne twork with LAN cable(direct cable). (8) Connect PC to Networ k with LAN cable(direct cable). (9) Set up IP address, Subnet Mask and Gate way of PC according to network environmen t. (10) Installa tion check.
  • Page 35 (4) DNS Server Setting For setting of ' DNS server', input DNS address to fit with ne twork environment to set. (De fault address is DNS address of Dacom', ' Hanarotelecom'.) Use DNS value normally set in PC. Clic k Save button to save the setting value. (5) IP Address Setting Click 'Sta tic IP Address' in 'IP Setting' of [Pic.

  • Page 36: Chapter 4. General Information

    Chapter 4. General Information 1. General Information User can find product in formation as like H/W version, F/W version, and the URL for RTSP connection.

  • Page 37: Chapter 5.System Information

    Chapter 5.System Information 5.1 Camera Name Server title would be shown on the top of the video when you see the video by the viewer. Server title is to be English withou t space(Max. 10 characters). Click ‘Save ’ bu tton to save title a fter inpu tting name. 5.2 Language This is to select language to be displayed in all web pages such as Administrator's page, web viewer and main page.

  • Page 38: Administrato R's Id And Password Change

    5.3 Administrator's ID and Password Change Adminis trator's ID and password should be English, within 20 characters, without space. Click 'Save' button to save the changed value after changing Administrator's ID and password. In case of forgetting Administrator's ID and password, click ' Factory Se t' bu tton for 3 sec to return to initial value, and change Administrator's ID.

  • Page 39: Ddns

    5.6 DDNS DDNS is an abbreviation of Dynamic Domain Name Service that conver ts the IP address of a camera into a general Host Name so that the user can easily remember it. 1) Click [Enable]. 2) En ter the product domain name(over 4 characters) and email address. 3) Perform the duplicate check for the domain tha t you entered by clicking [Check].

  • Page 40: User Registration

    5.8 User Registration This is to register an account of user who monitors and controls video. Adminis trator's ID and password should be English, within 20 characters, withou t space. Allow the authority to users and click 'Save' button . A maximum user to allow registration is 20 persons. Click ‘Delete ’...

  • Page 41: Firmware Upgrade

    5.9 Firmware Upgrade In case firmware is upgraded in the near fu ture, our upgrade server(http://iplinker.net) will automa tically upgrade firmware of the unit. 5.10 System Reset/Restart This is the function to restart the camera system.

  • Page 42: Chapter 6. Stream Information

    Chapter 6. Stream Information 6.1 Video 1) Image mirror Select a video source mode(Normal, Flip, Mirror, Both) 2) Resolution Set the video size. This camera supports 2 kinds of resolution simultaneously. 3) S tream Setting Set the stream. This camera supports 3 kinds of stream simultaneously.(H.264, MPEG4, MJPEG) Choose the input source of resolution and codec.

  • Page 43: Audio

    6.2 Audio You can configure the I/O settings of the audio source from the camera. 6.3 RTSP Setting This camera provides the RTSP/RTP stream transmission as well as TCP/IP stream. The function is based on VLC(h ttp://www.videolan.org/) media player. If duplicated por t used in this function with the port used from other process, it will not be working well.

  • Page 44: Osd

    -T ime to live(TTL): TTL is reduced one by one when it is transferred each router. When it reaches to "0" value, the router will discard the data. The TTL Value determines how far the da ta is delivered. Generally the value is 128. 6.4 OSD Con figure the settings as necessary of OSD in s tream.

  • Page 45: Privacy Zone

    6.5 Privacy Zone You can specify a certain area of the camera video to be protec ted for your privacy. Check the ‘Enable ’ to activa te the function . ‘Show ’ is to specify the privacy zone. * You can specify up to 6 zones. 6.6 External Video Analog video output for installation.

  • Page 46: Http/Cgi

    6.7 HTTP/CGI This function transfer the stream by using Server Push method and can use the control function by CGI calls.(EX. Port I/O control) Good poin t of th is function is using web por t , so it is able to transfer the stream and contro l which is not a ffected by fire wall.

  • Page 47: Chapter 7. Event Information

    Chapter 7. Event Information 7.1 Motion Enable : To use motion de tection function , click ‘Enable’. Sensitivity Le vel : Setting up sensitivity to de tect motion to adjust input video by situation. You can select 1~5, and 5 is the highest. 7.2 Alarm Input 1) Alarm Input Click ‘Enable ’...

  • Page 48: Alarm Output

    7.3 Alarm Output 1) Alarm Outpu t Click ‘Enable ’ to activa te the alarm outpu t func tion . 2) Linkage Alarm input : Alarm ou tpu t function operates only by alarm input e vent. Motion : Alarm ou tpu t func tion operates only by motion event. 3) Dura tion Time Set duration time upon alarm events.

  • Page 49: Ftp

    7.5 FTP 1) FTP Server : To send the recorded video to FTP server upon alarm event, Input FTP server address, folder name, user IP and password, Passive mode : Select it if you need to connect in passive mode due to the firewall or the FTP server settings.

  • Page 50: Chapter 8. Camera Information

    Chapter 8. Camera Information 8.1 Day & Night This menu is to set IR Cu t filter, IR LED On/Off, Color and B/W mode. Auto : Au tomatic day(Color) & nigh t(B/W) switching by setting value. Please set the value properly according to the environment. Day : The pic ture is always displayed in Color(using IR cut filter).

  • Page 51: White Balance

    8.3 White Balance Auto : Adjust white balance automatically. Indoor : Adjust white balance to indoor environment(3200˚K). Outdoor : Adjust white balance to outdoor environment(5600˚K). Fluorescent : Adjust white balance to fluorescent environment(4000˚K). User : User can adjust the red and blue gains of the camera video manually. 8.4 WDR It displays a sharp image of the objects in a scene where both brigh t and dark areas exist.

  • Page 52: Digital Noise Reduction(Dnr)

    8.5 Digital Noise Reduction(DNR) It is used for reduce noise in the pic ture at low luminance. 8.6 Effect Color Bar : Display color bar picture. Mono : Change color picture to B/W. Negative : Re verse the brightness and color. 8.7 Sense Up This is relating to sense up function.

  • Page 53: Shutter Speed

    8.8 Shutter Speed Adjust the electronic shutter of the camera. Auto : Con trol shutter speed from 1/30 to 1/ 9000 second automa tically to have the best image depending on the variable light condition Suppress Rolling / Strong : Shutter speed is fixed between 1/30, 1/ 40, 1/60 and 1/120 automa tically depending on the variable light condition.

  • Page 54: Chapter 9. Ip Manager

    Chapter 9. IP Manager 9.1 Use of IP Manager This program is the utility to find ou t the unit connected to local network. It is useful for the application of the unit connected by DHCP function. It can provide you the in forma tion such as IP address, MAC, web por t for easy installation and use. 9.1.1 Run IP Manager program Double click "IP Manager"...

  • Page 55: Find Ip Address

    9.1.2 Find IP address Click “Find” bu tton to find the cameras that are currently connected to the local network. Below picture will be shown, a fter IP finding comple ted. [Pic. 5-2] IP finding completed User can connect easily by inputting the in formation of IP address and web port. 9.1.3 Change IP address After finding IP address, if you want to change IP address, Gateway or Subnet Mask, double click IP address you want to change or check the list on the “index ”...
  • Page 56 [Pic 5-3] Change of IP address ② Check the “S tatic IP Address ”, input the in forma tion (IP Address, Subnet Mask, De fault Gateway, Web Port, Stream por t) you want to change. ③ Input ID and password. ④...
  • Page 57 [Pic. 5-4] IP address change window ② Click the “Ba tch ” bu tton , the dialog appears. [Pic. 5-5] IP address change dialog ③ Check the “S tatic IP Address ”, input the in forma tion ( IP Address, Subnet Mask, De fault Gateway, Web Port, Stream por t) you want to change.
  • Page 58 ⑤ Input ID and password, and click the “Save ” bu tton . After a while, the changed IP address dialog appears.(Pic. 5-6) [Pic. 5-6] Changed IP address dialog ⑥ Click the “Change” bu tton . After a while, setup will be comple ted. ⑦...

  • Page 59: Chapter 10. Basic Network

    Chapter 10. Basic Network This chapter is the basic explanation for installa tion. 10.1 Public IP [Pic. 6-1]In ternet environment All hosts connected to in ternet have the exclusive number called IP address. Communication among hosts is available by using it. There are two ways to allocate IP address.

  • Page 60: Private Ip

    10.2 Private IP [Pic. 6-2]In ternet connection by IP sharing device. The most common use of these addresses is in home networks, since most In ternet Service Providers (ISPs) only allocate a single IP address to each customer, but many homes have more than one networking device (for example, several computers, or a printer).

  • Page 61: Ping Test

    10.3 Ping test Ping is the test to check response among the devices connected with ne twork. Input "Ping IP address" to command window of PC and check response. In case of Ping failure, there is some communication problem be tween the devices. By firewall, this test can not be available.
  • Page 62 [Ping Failure] [Ping Success]...

  • Page 63: Chapter 11. Appendix

    Chapter 11. Appendix 11.1 Basic setting table Item De fault(Basic setting) Remarks Network Static IP / Dynamic IP Static IP IP Server Enable IP address 192.168.1.30 Gateway 192.168.1.1 Subnet Mask 255.255.255.0 Web Connection Port Do not duplicate the same Port. RTSP port RTP port range 5000 ~ 5999...

  • Page 64: Troubleshooting Of Cable Connection

    11.2. Troubleshooting of cable connection 11.2.1 Power cable connection check Check if the power cable is connected to the camera properly. ※ Check whe ther the ou tput of the adaptor is regulated 12V DC 1A(for built-in IR LED model) or 500mA(for No IR LED model) 11.2.2 Ne twork cable(LAN Cable) connection check Check whether the network cable is connected correctly.

  • Page 65: Troubleshooting Of Network Connection

    11.3 Troubleshooting of network connection 11.3.1 Cannot connect with network Check with "7.2.2 Networ k cable(LAN cable) and cable connection check". [PING Test] ① In case camera uses Static/Public IP : inpu t "Ping IP address" to command window of PC and check response.

  • Page 66: Chapter 12. Troubleshooting

    Chapter 12. Troubleshooting ※If you can not solve the problem, please con tac t an authorized technician.

  • Page 67: Chapter 13. Warranty Card

    Chapter 13. Warranty Card...
