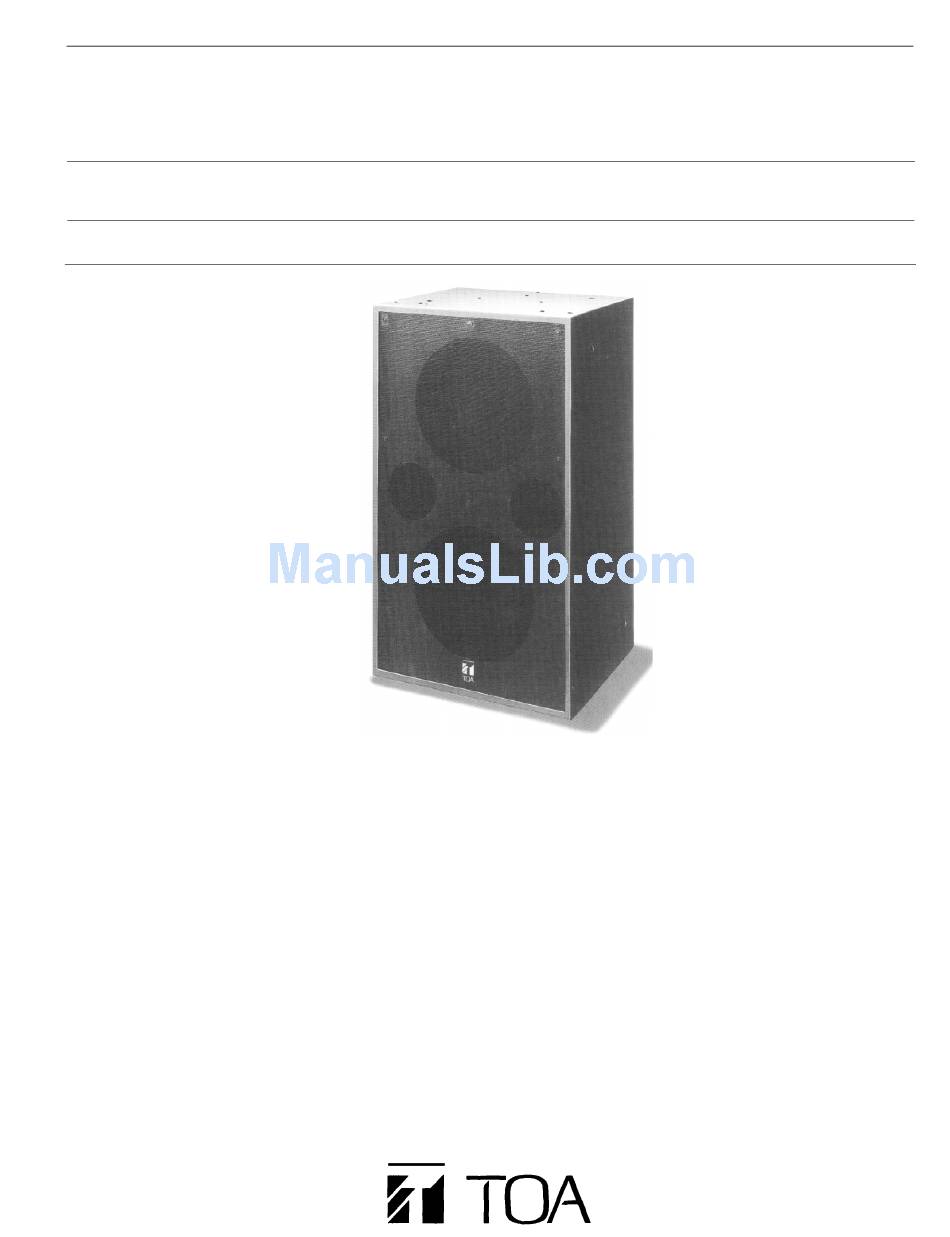

LOW-FREQUENCY ENCLOSURE
DESCRIPTION
The TOA SB-38W is a vented, bass-reflex, low-frequency
enclosure for permanent speaker-system installations.
It serves as a low-frequency enclosure for two HLS38UL-8
woofers. It may be used in multi-amp systems employing
the TOA SAORI for optimal time alignment, phase
programs, equalization and channel divider functions.
The optional HNW-500 dividing network should be used
when operating the speaker system passively. The
optional HY-700 suspension kit may be mounted in the
SB-38W before the woofers are installed, and the LE-M94
or LE-940 may be attached with the HY-M94 or HY-940
horn mounting bracket. A large screw terminal input
panel ensures safe and solid connections. The enclosure
comes with a protective punched-metal grille and a
leatherette finish.
TOA SPEAKER COMPONENT
SB-38W
FEATURES
1. Low-frequency, vented (bass-reflex) enclosure for fixed
installations.
2. Two HLS38UL-8 woofers may be installed to produce a
woofer system that is highly efficient in reproducing the
low-frequency range. Box tuning frequency (fb) is 45Hz.
3. Creates a wide-range, highly efficient speaker system
when used in conjunction with the LE Series horn, an
HFD Series compression driver and two HLS38UL-8
woofers.
4. SB-38W may be suspended by using the optional HY-700
suspension kit.
5. Speaker system configuration allows for easy mounting
of LE-M94/LE-940 to the enclosure with the optional
HY-M94 or HY-940 horn mounting bracket.
6. Large, screw terminal, barrier-strip input panel.
7. Optional HNW-500 cross-over network with HF
equalization can be mounted in the supplied input panel
opening.
8. Protective punched-metal grille.
9. Leatherette finish.
