PROFESSIONAL SOUND SYSTEM
Low Frequency Enclosure

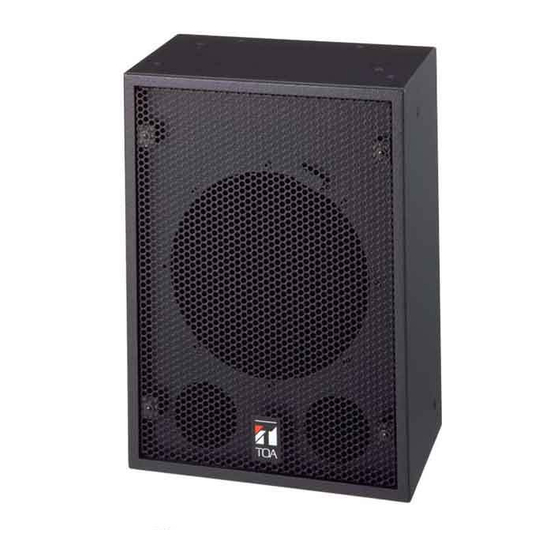

APPEARANCE
FEATURES
1. Low frequency, vented(bass-reflex) enclosure for permanent installation.
2. Creates a woofer system that reproduces low frequencies with high efficiencies when the
HLS30S2-8 woofer is mounted. The tuning frequency is 75Hz.
3. The speaker unit is mounted to the baffle board from the rear of the enclosure, facilitating
maintenance after installation.
4. Creates a wide-range, high-efficient standard speaker system(GS-302S) when used in
conjunction with a LE-M94 CD horn, a HFD-220-8 compression driver, and a HLS30S2-8
woofer.
5. It is possible to suspend the SB-30S with the optional HY-38S suspension kit.
6. It is easy to mount the LE-M94 to the enclosure with the optional HY-M94 horn mounting
bracket when the standard speaker system is configured.
7. Large input screw terminal.
8. A protective punched-metal grille.
9. Finished with paint(dark gray).
Instruction Manual
Model SB-30S
Stands for the position of the gravity
center when the speaker unit HLS30S2-8
is installed inside.
Note:Be sure to install each speaker unit from
the inside of the enclosure baffle board.

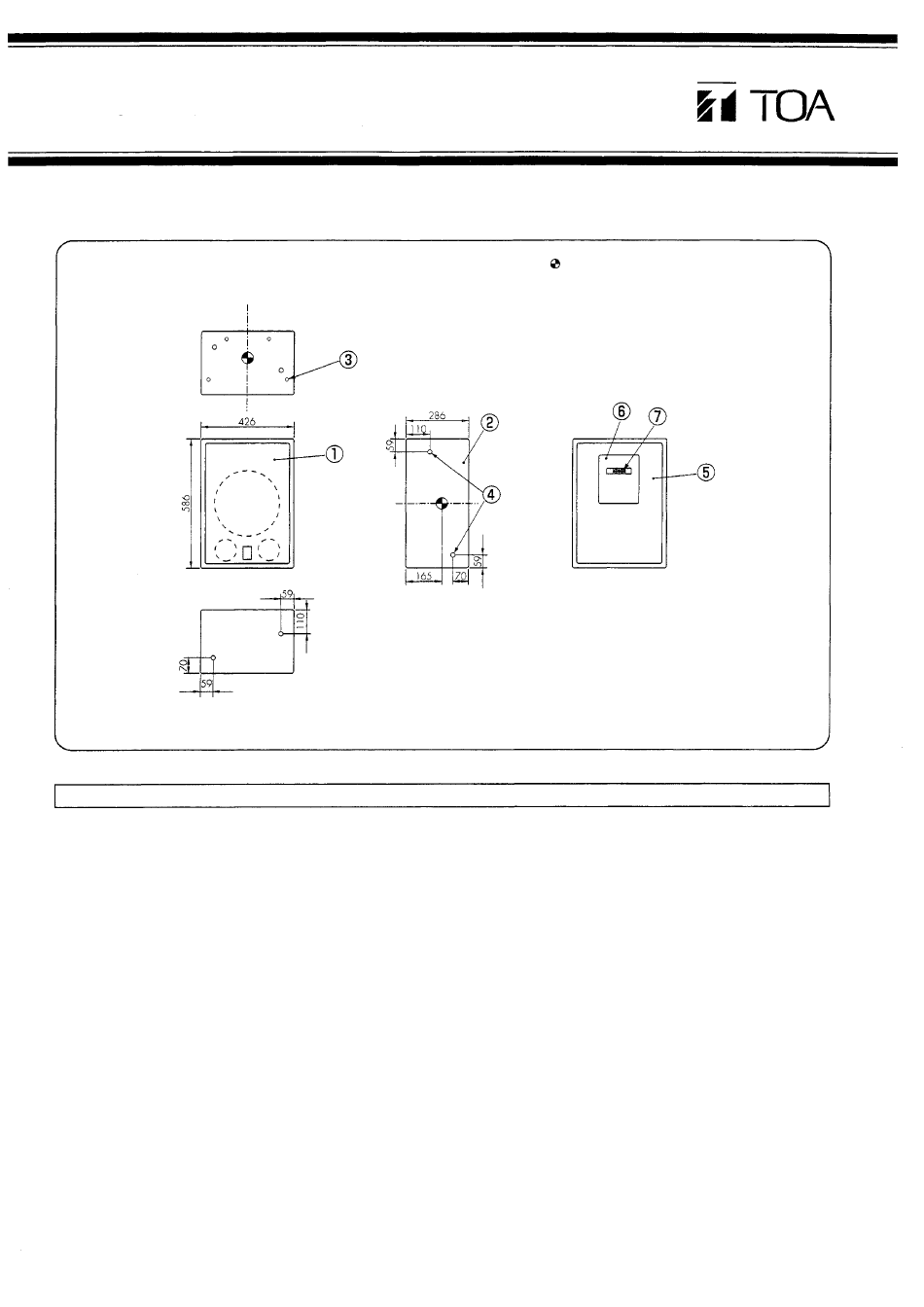

1. Punched-metal grille
2. Enclosure
3. Nut for horn mounting bracket(HY-M94)
4. Hole for suspension kit(HY-38S)
5. Rear board
6. Terminal panel
7. Input terminal
