PLASMA TV

PL-4250V / PL-5000V

PL-5500V / PL-6300

PAL

OWNER'S MANUAL

Table of Contents

Need help?

Do you have a question about the PL-4250V and is the answer not in the manual?

Questions and answers

Summary of Contents for H&B PL-4250V

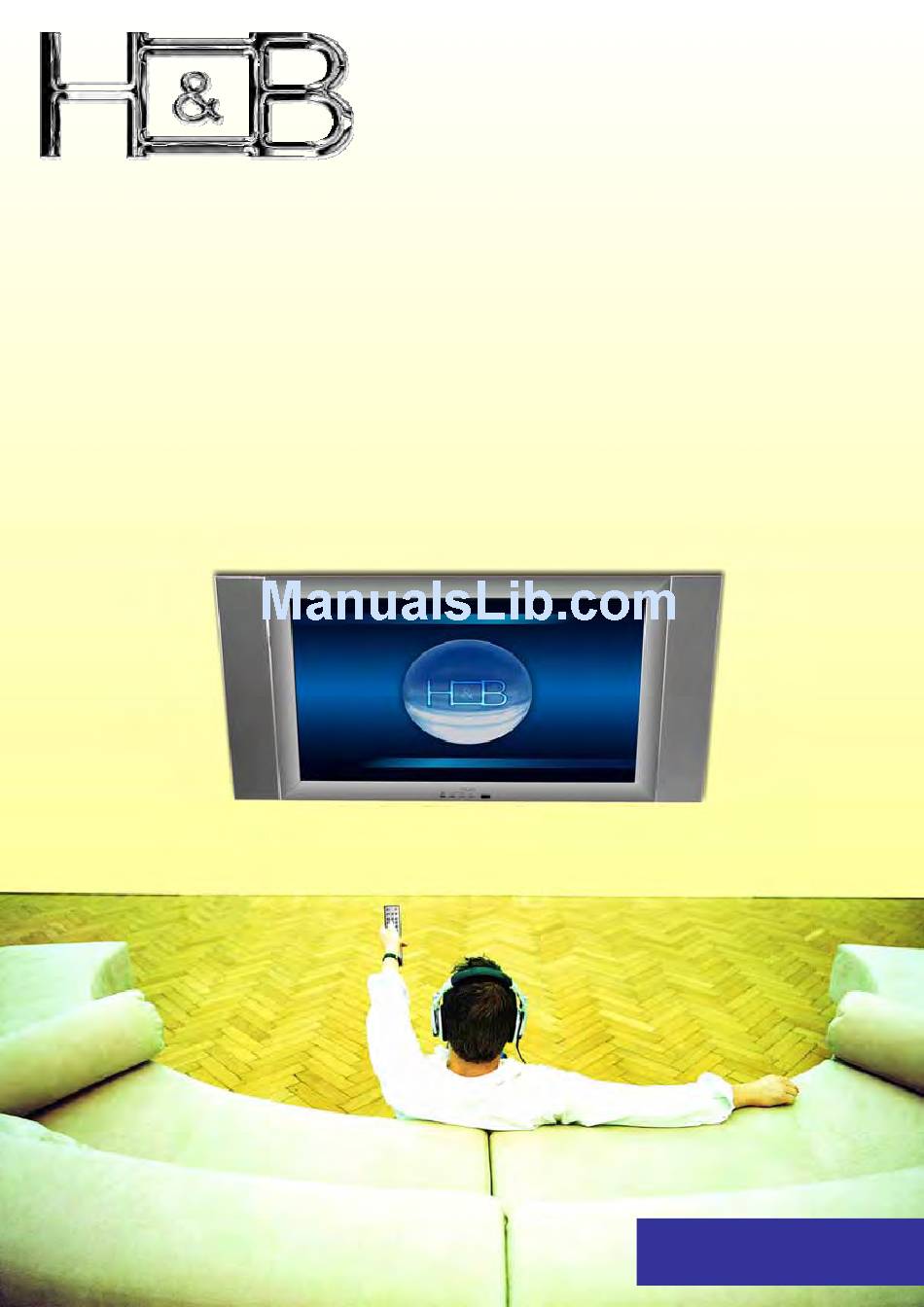

Page 1 PLASMA TV PL-4250V / PL-5000V PL-5500V / PL-6300 OWNER'S MANUAL...
Page 2: Table Of Contents
Contents Foreword ■ Caution ■ Important Safety Instructions ■ Precaution Overviewing your the Monitor ■ Viewing the Control Panel ■ Viewing the Connecting Panel ■ Viewing the Remote Control - Button Description - PIP(Picture In Picture) - Loading the Batteries Installation ■...
Page 3 Contents Setting the Picture ■ Changing Color Enhancer ■ Video NR(Noise Reduction) ■ Changing the Screen Form ■ Selecting the Black Enhancer ■ Position Auto Adjust Setting the Sound ■ Adjusting the Sound Balance ■ Changing the Sound Mode ■ User Adjust ■...
Page 4: Caution
Caution CAUTION - TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR SHOCK HAZARD. - DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. - SHOCK HAZARD DO NOT OPEN. CAUTION These servicing instructions are for use by qualified service personnel only.
Page 5: Precaution
Precaution Always be careful when using your TV. To reduce the risk of fire, electrical shock, and other injuries, keep these safety precautions in mind when installing, using, and maintaining your machine. Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions.
Page 6 Precaution In case of the following cases, unplug the unit from the wall outlet and contact qualified service center. * When power supply code or plug is damaged * If liquid has been spilled on the unit or if alien objects have fallen into the unit. * If the monitor has been exposed to rain or water.
Page 7 Precaution Setting WARNING When installing the Monitor on a table, Provide ventilation for the Monitor. The unit be careful not to place the edge of its is designed with slots in the cabinet for stand. ventilation to protect it from overheating. Do not block these openings with any - This may cause the Monitor to fall, object, and do not place the Monitor on a...
Page 8 Precaution CAUTION Use only the accessory cord designed for this product to prevent shock. The power supply voltage rating of this product is AC100-240V, the power cord attached conforms to the following power supply voltage. Use only the power Unplug the Monitor from the wall outlet cord designated by our dealer to ensure Safety and EMC.
Page 9 Precaution Operation CAUTION Upon completion of any service or Do not place anything containing Never add any attachments and/or repairs to this Monitor, ask the liquid on top of the Monitor. equipment without approval of the service technician to perform safety manufacturer.
Page 10 Precaution WARNING Operation Put the batteries in right Only use the specified direction (+/-). batteries. DO not use new battery with - Otherwise, it can make a fire, old one. -This make cause injury and pollution caused by – This can lead a fire or damaged the Monitor or bursting of batteries.
Page 11: Viewing The Control Panel
Viewing the Control Panel OSD Key Position OSD Key Function INPUT SELECT SCART S-Video / AV, Select the signal source from multiple input sources such as TV, SCART 1, COMPONENT1, COMPONENT2,PC , DVI and HDMI. VOL/CH ▲/▼(HP-XXXXV) OR VOL/CH -/+(HP-XXXXVP) To change the CHANNEL ,press ▼button first and change the channel with ▲,▼buttons.
Page 12: Viewing The Connecting Panel
Viewing the Connecting Panel Back Panels and Jacks 1. DVI & D-Sub(PC) Sound 2. DVI(HDCP) 3. HDMI 4. RS-232C 5. D-Sub(PC) 6. Component1,2 7. Component Sound1,2 8. SCART 1 9. SCART 2 10. Phone Jack 11. S-Video Input 12. AV Input 13.
Page 13: Viewing The Connection Panel
Viewing the Connection Panel -DVI, D-Sub(PC) Sound -DVI Cable -HDMI Cable Cable Connect (2) port. Connect (3) port. Connect (1) port. -RS-232C Cable -D-Sub(PC) Cable -Component Cable Connect (4) port. Connect (5) port. Connect (6) port. -Component & S-Video -SCART Cable -Phone Jack Cable &...
Page 14: Viewing The Remote Control
Viewing the Remote Control Button Description Stand By Turn the TV on and off. Mute Temporarily cut the sound and restore it. Pre PG Turn to the previous programme or exit OSD. V.Size Choose the screen form. 16:9 > 4:3 > Panorama > Zoom1 > Zoom2 FAVORITE (FAVOURITE) Tune to your next favorite programme.
Page 15: Pip(Picture In Picture)
Remote Control Choose the MTS (Stereo) mode. Each time it is pressed, different mode is selected. Mono > Stereo > Language A > Language B > Language AB * You can select only available modes depending on the source. INFO Display the current information.
Page 16 Viewing the Picture-in-Picture MOVE KEY : Move the position of PIP Left Up Right Up Left down Right Down (Start) SWAP KEY : Swap the sources of the main screen and PIP Window. MODE KEY : Change the PIP window mode. OFF→SMALL→LARGE→TWIN SMALL LARGE...
Page 17: Loading The Batteries
Controls Of The Remote Control Loading The Batteries Press on the cover and slide Close the cover until it clicks. Load two AAA batteries, in the direction of the arrow. taking care that the + and - ends face the correct direction.
Page 18: Installation
Installation OWNER'S MANUAL...
Page 19 Installation OWNER'S MANUAL...
Page 20 Be sure TV power is turned off before making any connections. Place the speakers in the position you want. Install the speaker wires on the TV and speaker. Be sure to connect the positive "+" wire to the "+" input and the negative "-" wire to the "-"...
Page 21: Connection The Tv Cable
Watching TV Speaker Output port only for HP-XXXXV Connection the TV Cable Connect the TV antenna cable to the TV input jack. Press INPUT button on the remote control and select TV on OSD. Use PG+, PG- button or numeric key to change TV programme for your programme selection.
Page 22: Connection The Vcr
Watching VCR Speaker Output port only for HP-XXXXV Connecting the VCR With SCART (Eurocable) Connect a SCART cable to the SCART jacks of the VCR and the TV. With S-Video Connect a S-Video cable to the S-Video jacks of the VCR and the TV. Connect L (White), R (Red) sound cable (composite) to the sound jacks of the VCR and the TV.
Page 23: Connection The Dvd
Watching DVD Connecting the DVD • Connect the three separate component video cables to the DVD player’s Y, Pb and Pr jacks and to the Component jacks on the TV. • Connect the audio cable to the DVD player’s audio L (White) and R (Red) jacks and to the L and R audio jacks beside the Component jacks on the TV.
Page 24 Watching Set Top Box How to connect Connect Set Top Box video inputs to SCART, COMPONENT, HDMI,PC or DVI jacks on the TV. Audio inputs to Audio sockets beside the L (White) and R (Red) audio jacks which you connect video inputs.. Speaker Output port only for HP-XXXXV How to use Supported Signals...
Page 25 Connecting The PC (D-Sub and DVI) Speaker Output port only for HP-XXXV Speaker Output port only for HP-XXXXV Connecting a PC to the TV • Connect a PC (15pin) video cable between the Video Output port on the PC and the PC port on the TV. Pin Configuration Description Pin NO.
Page 26: Displayable Monitor Specification
Displayable TV Specification Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz) 31.469 70.08 720 X 400 37.927 85.03 31.469 59.94 35.000 66.66 37.861 72.80 640 X 480 37.500 75.00 43.269 85.00 45.913 90.03 53.011 100.04 35.156 56.25 37.879 60.31 48.077 72.18 800 X 600 46.875 75.00...
Page 27: Basic Operation
Basic Operation Turning the Monitor On And Off Press the Power key on the remote control. The TV will turn on and you will be ready to use its features. You can also use the Power key on the front panel. Select Source Press INPUT key on the remote control.
Page 28: Osd Menu Structure
OSD Menu Structure • OSD (On Screen Display) allows users to control or adjust various features and settings in accordance with his/her preferences. • Press the Menu/Set button on the remote control to see the main OSD menu. EXAMPLE of OSD Menu ◄...
Page 29: Auto Scan
CHANNEL (TV) AUTO SCAN You can now search for and store the TV channels in two different ways : using Auto Scan or Manual Scan. Auto Scan Press Menu/set button to display the main OSD menu. Select the TV Main menu. Press Menu/Set to enter the sub menu.
Page 30 CHANNEL (TV) Auto Scan (Other Countries) • ASIA Nation Selection Nation Selection Malaysia Others Israel Others Pakistan Others Kuwait Others Singapore Others Anrab Emirates Others Iran Others China Czech Republic Saudi Arabia Others • Europe Nation Selection Nation Selection Albania Others Estonian Hungary...
Page 31: Manual Scan
CHANNEL (TV) Manual Scan Press Menu/set button on the remote control to display the main OSD menu. Select the TV main menu with key on the remote control. Press Menu/Set button to enter the sub menu. Select Manual Scan with button and press Menu/Set button.
Page 32 CHANNEL (TV) Edit Favorite programme List You can store of your favorite channels for each available input source (such as TV or CATV). Then, when you press the FAVORITE button on the remote control, the TV display only the favorite channels you previously stored, allowing you to quickly and easily find frequently wanted channels.
Page 33 CHANNEL (TV) Digest With the Digest function, you can select a TV prgoramme watching 16 programme at once. This function works in TV mode only. Press the DIGEST button on the remote control. . By Pressing the channel number. The selected channel becomes main window.
Page 34 TELETEXT Teletext On / Mix / Off You can switch on and off teletext function by pressing TEXT key on remote control TOP text The user guide displays four fields - red, green, yellow and blue - at the bottom of the screen. The yellow field denotes the next group and the blue field denotes next block.
Page 35 PICTURE Mode - Your TV has 3 automatic factory preset picture settings (“Standard”, “Vivid” and “Mild”). You can choose Standard, Vivid or Mild by pressing “Picture” key on the remote control (or by making a selection from the menu). Or you can select USER which automatically recalls your personalized picture settings.
Page 36 PICTURE Contrast Adjust brightness difference between bright part of the screen and dark part. Distinct ◀ ▶ Vague Brightness Adjust brightness of the screen. Dark ◀ ▶ Bright Color Adjust deep and light color of the screen. Decrease ◀ ▶ Increase Sharpness Adjust vividness of the screen.
Page 37 PICTURE Temperature - Your TV has 5 screen temperatures (color settings): Press Menu/set key to display the main OSD menu. Select the picture main menu. Press Menu/Set to enter the picture menu. Select Temperature and press Menu/Set to enter the under menu. Then the Picture-Temperature under menu appear.
Page 38 PICTURE Video NR(Noise Reduction) - This function automatically filters out and reduces the image noise and improves picture quality where receiving weak signals. Press Menu/Set button to display the main OSD menu. Select the picture main menu item. Press Menu/Set to enter the sub menu.
Page 39 PICTURE Screen Format Description 16 : 9 16:9 video: No change. 4:3 video: Expands 4:3 video signal horizontally to fit the 16 : 9 screen. Panorama 16:9 video: No change. 4:3 video: Expands 4:3 video horizontally to fit the 16 : 9 screen and to minimize distortion, sides are expanded more than center.
Page 40 PICTURE ( PC ) In PC mode, you can adjust the H,V-Position, H-Size and Phase. Also you can adjust them automatically. Position You can change H, V-Position, H-Size and Phase in PC mode like usual PC monitors. You can also adjust them automatically. (Auto adjust function.) Press Menu/set button to display the main OSD menu.
Page 41 PICTURE ( PC ) H-POSITION ◀ ▶ V-POSITION ◀ ▶ PHASE Mismatch Match OWNER'S MANUAL...
Page 42: Sound Mode
SOUND In Sound Menu, you can adjust balance, MTS ( Multi-Track Sound), AVC (Auto Volume Control) and select the equalizer settings. Balance This control allows you to adjust the balance of the left and right speaker output. Press Menu/set button to display the main OSD menu.
Page 43: Spatial Effect
SOUND User You can use the OSD menu to change the Treble, Bass, Balance and DRC according to your preference. Select USER mode (Previous page) equalizer menu appear when you select USER mode. Select a gain bar with button on the remote control and adjust it with button.
Page 44 SOUND - Select sound signal format from the input source. There are Mono, Stereo and Bilingual sound formats. Press Menu/set button to display the main OSD menu. Select the SOUND main menu with button on the remote control. Press Menu/Set to enter the sub menu.
Page 45 SET UP In SET UP menu, you can adjust the transparency of the OSD menu and set PIP and others. Translucent - Adjust the transparency of the OSD menu. There are 8 step from OFF to 7. Press Menu/set button to display the main OSD menu.
Page 46 SET UP Size in PIP ( Picture In Picture ) - Change the size of the PIP window. There are 3 sizes: Small, Large, Twin Select Size and press Menu/Set button. Adjust size function with button and press Menu/Set button. SMALL LARGE TWIN...
Page 47 SET UP Picture Swap in PIP ( Picture In Picture ) - Swap the sources of the main screen and the PIP window. * Select Picture Swap and press Menu/Set button. Position in PIP - Change the position of the PIP window. Select Position with button on the remote control and press...
Page 48: Set Id In Advanced
SET UP SET UP Advanced - You can se up ID, Burn Protect, Blue Back, Language and Front Key Lock in Advanced Menu. Press Menu/set button to display the main OSD menu. Select the SET UP main menu with button on the remote control.
Page 49: Burn Protect In Advanced
SET UP Language in Advanced Set the language to use in OSD. Supported languages are English, French, German, Spanish, Italian. Select language and press Menu/Set button. Choose the Language with button and press Exit button. Front key Lock in Advanced Lock the OSD panel of the TV monitor.
Page 50 TIME In the TIME menu, you can set the current time and auto power on / off. Time Set Set the current time. Press Menu/set button to display the main OSD menu. Select the TIME main menu. Press Menu/Set to enter the sub menu.
Page 51 TIME On Channel Set the channel when TV power turn on automatically. ** Available only when the Time is set and On Time is ON. Press Menu/set button to display the main OSD menu. Select the TIME main menu with button on the remote control.
Page 52 TIME Off Time This TV can be set to turn off automatically at specific times that you choose. Before using the timer, you must set the TV’s clock as described previously. Press Menu/set button to display the main OSD menu. Select the TIME main menu with button on the...
Page 53 PICTURE MODE Contrast Standard Brightness Vivid Color Mild Sharpness User Tint (Only For NTSC) Recall TEMPERATURE WARM2, WARM1, NORMAL, COOL1, COOL2 VIDEO NR VIDEO NR ON/OFF COLOR ENHANCER COLOR ENHANCER ON/OFF SCREEN FORM 16:9, PANORAMA, ZOOM1, ZOOM2, 4:3 BLACK ENHANCER BLACK ENHANCER ON/OFF SOUND BALANCE...
Page 54 SET UP TRANSLUCENT SIZE OFF, SMALL, LARGE, TWIN SOURCE PICTURE SWAP POSITION RIGHT DOWN, RIGHT UP, LEFT UP, LEFT DOWN ADVANCED SET ID 0~99 BLUE BACK BLUE BACK ON/OFF NATIONAL SELECTIONS LANGUAGE BRUN PROTECT BRUN PROTECT ON/OFF BRUN CLEAR BRUN CLEAR ON/OFF FRONT KEY LOCK ON/OFF Front Key Lock OWNER'S MANUAL...
Page 55 TIME TIME SET ON TIME ON TIME ON/OFF ON CHANNEL SELECTION ON VOLUME 1~100 OFF TIME OFF, 10, 20, 30, 60, 90, 120, 150, 180 Min SLEEP TIME AUTO SCAN Fine Tune FINE TUNE EDIT OWNER'S MANUAL...
Page 56 PICTURE MODE Standard Vivid Mild User Contrast, Bright, Color, Tint, Sharpness, Recall TEMPERATURE WARM2, WARM1, NORMAL, COOL1, COOL2 GEOMETRY H-POSITION V-POSITION H-Size PHASE SCREEN FORM 16:9, 4:3 OWNER'S MANUAL...
Page 57 SOUND BALANCE SOUND MODE STANDARD MOVIE MUSIC NEWS USER 100Hz, 500Hz, 1.5KHz, 5KHz, 10KHz EQUALIZER (PRESS SET) SPATIAL EFFECT SPATIAL EFFECT ON/OFF AVC ON/OFF SET UP TRANSLUCENT SIZE OFF, SMALL, LARGE, TWIN SOURCE PICTURE SWAP POSITION RIGHT DOWN, RIGHT UP, LEFT UP, LEFT DOWN ADVANCED SET ID 0~99...
Page 58 TIME TIME SET ON TIME ON TIME ON/OFF ON CHANNEL SELECTION ON VOLUME 1~100 OFF TIME OFF, 10, 20, 30, 60, 90, 120, 150, 180 Min SLEEP TIME OWNER'S MANUAL...
Page 59: Troubleshooting
Troubleshooting Before you call a service technician, please scan this list of problems and possible solutions. It may save you time and money. Problem Quick Action for Possible Solution No picture & No sound Check whether the Monitor is turned on. Power cord inserted into wall outlet? Plug another product’s power cord into the wall outlet where the Monitor’s power cord was plugged in.
Page 60: Position
Specification – 42 Inch PDP / HD - PL-4250V 42” Plasma HD TV Function and Display Specification Display Size 42-Inch 16 : 9 Diagonal Screen Display Mode Variable 4 Modes (4:3 Mode/ 16:9 X 3 Modes) Pixel Format 1024x768 Physical Pixel...
Page 61 Specification – 50 Inch PDP – PL-5000V 50” Plasma TV Function and Display Specification Display Size 50-Inch 16 : 9 Diagonal Screen Display Mode Variable 4 Modes (4:3 Mode/ 16:9 X 3 Modes) Pixel Format 1366x768 Physical Pixel Contrast Ratio 3000:1 1000 cd/ ㎡...
Page 62 Specification – 55 Inch PDP – PL-5500V 55” Plasma TV Function and Display Specification Display Size 55-Inch 16 : 9 Diagonal Screen Display Mode Variable 4 Modes (4:3 Mode/ 16:9 X 3 Modes) Pixel Format 1366x768 Physical Pixel Contrast Ratio 1000:1 800 cd/ ㎡...
Page 63 Specification – 63 Inch PDP – PL-6300V 63” Plasma TV Function and Display Specification Display Size 63-Inch 16 : 9 Diagonal Screen Display Mode Variable 4 Modes (4:3 Mode/ 16:9 X 3 Modes) Pixel Format 1366x768 Physical Pixel Contrast Ratio 1000:1 800 cd/ ㎡...
Page 64 WARRANTY & INFORMATION Please check out regularly our web site for further updates and assistance about this product: www.hbdirect.com Important safety information Read these instructions carefully and pay attention to all warnings and guidelines. Do not overload electrical sockets or extension cables. Overloading can result in fire or electric shock. Never insert objects into the unit.
