  • Page 1 DIGITAL TERRESTRIAL RECEIVER DTR 2420 DEUTSCH ENGLISH FRANÇAIS ITALIANO SUOMI ESPAÑOL...
  • Page 2: Table Of Contents

    CONTENTS ____________________________________________ General information Packing contents Receiving digital stations Special features of your digital receiver Set-up and safety Overview The front of the digital receiver The back of the digital receiver The remote control 9-10 Connection and preparation Connecting the antenna Connecting the television Connecting a video recorder Connecting a hi-fi system...
  • Page 3 CONTENTS _________________________________________________ Special settings Resetting the digital receiver to its original state Updating the digital receiver software 29-31 Information Displaying station reception properties Displaying device information Connecting the digital receiver to a PC Technical data Rectifying minor problems...
  • Page 4: General Information

    Power cord Operating manual Receiving digital stations To use your new DTR 2420 digital receiver you need a digital outdoor or indoor antenna. Unlike analogue broadcasting, not every station has its own trans- mission frequency. Instead, several stations are grouped into what are known as bouquets on a regional or national level.
  • Page 5: Set-Up And Safety

    This digital receiver is designed to receive, record and play back ON/OFF RADIO DTR 2420 DIGITAL TERRESTRIAL RECEIVER video and audio signals. Any other use is expressly prohibited. When setting up the digital receiver, make sure it is in a horizontal position and that the mains socket is easily accessible.
  • Page 6: Overview

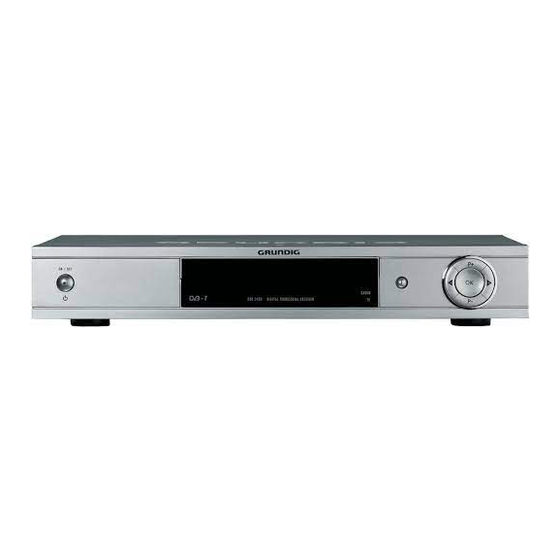

    OVERVIEW ____________________________________________ The front of the digital receiver ON/OFF RADIO DTR 2420 DIGITAL TERRESTRIAL RECEIVER Switches the digital receiver to standby mode and ON/OFF off again. • The digital receiver is in standby mode. (red) • RADIO Lights up in radio mode.
  • Page 7: The Back Of The Digital Receiver

    OVERVIEW _________________________________________________ The back of the digital receiver DIGITAL INPUT TER. 230 V 50 Hz VHF/UHF EURO AV 2 10 W max. 5 V max. 30 mA RS 232 OUTPUT TER. EURO AV 1 INPUT TER. Socket for the indoor or outdoor antenna. HF output for connecting an HF cable to the anten- OUTPUT TER.
  • Page 8: The Remote Control

    Switches to radio mode. RADIO Opens the »Record timer« menu. Opens the »Subtitles« menu. Opens the »Sound« menu. Switches to operating a GRUNDIG AV receiver, AVR, TV AV receiver, GRUNDIG television or GRUNDIG DVD player. Keep the appropriate button (»AVR«, »TV«, »DVD«) pressed down.
  • Page 9: Connection And Preparation

    CONNECTION AND PREPARATION DIGITAL INPUT TER. 230 V 50 Hz VHF/UHF EURO AV 2 10 W max. 5 V max. 30 mA RS 232 OUTPUT TER. EURO AV 1 DEC. - AV 2 AUDIO EURO - AV 1 Connecting the antenna Connect the cable of the indoor or outdoor antenna to the »INPUT TER.«...
  • Page 10: Connecting A Hi-Fi System

    CONNECTION AND PREPARATION _________________ Connecting a hi-fi system DIGITAL INPUT TER. Plug a standard cinch cable into the »AUDIO L R« sockets (left/right) VHF/UHF 5 V max. 30 mA on the digital receiver and the corresponding input sockets on the hi-fi OUTPUT TER.
  • Page 11: Settings

    SETTINGS ______________________________________________ The menu This digital receiver has a very comprehensive, user-friendly menu system. The menu is displayed on the television screen. The digital receiver responds to many functions which you select on the remote control with informative menus and icons on the tele- vision screen.
  • Page 12: Searching For Stations

    SETTINGS _________________________________________________ Searching for stations The automatic search looks for receivable stations among the avail- Menüsprache able bouquets of digital stations. Türkçe Deutsch English Español Switch on the digital receiver by pressing » « on the receiver. Français Suomi – The »Menüsprache« (Language) menu appears when the Italiano device is first switched on.
  • Page 13: Editing The Station List

    SETTINGS _________________________________________________ Editing the station list You can change the order of preset stations as required and delete stations you do not need. Preset list In the main menu, select »Preset list« with »P+« or »P-« and Sort press »OK« to confirm. Edit bookmarks Select »Sort«...
  • Page 14: Creating A List Of Favourite Stations

    SETTINGS _________________________________________________ Creating a list of favourite stations You can select your favourite stations and save them in a list. Preset list In the main menu, select »Preset list« with »P+« or »P-« and Sort Edit bookmarks press »OK« to confirm. Select »Edit bookmarks«...
  • Page 15: Setting The Local Time

    SETTINGS _________________________________________________ Setting the local time To ensure that the TV guide always shows the current programmes at the right time, you must enter the difference between your local time and GMT (Greenwich Mean Time at longitude “0”). Installation All times given by the TV guide are then converted to your local Menu language time.
  • Page 16: Adjusting The Digital Receiver To The Television Set

    SETTINGS _________________________________________________ Adjusting the digital receiver to the television set Specifying the video signal at the Euro AV (TV) Installation output Menu language Station search You can choose between the settings »FBAS« (normal picture Video output quality), »RGB« (high picture quality) »Y/C« (S-Video signal) and Time »YUV«...
  • Page 17: Audio Settings

    SETTINGS _________________________________________________ Selecting the television picture conversion If you have a 4:3 format television or flat screen, the following settings are available: »Pan-Scan« for wide-screen playback without black bars on the top and bottom edges of the screen. »Letterbox« for wide-screen playback with black bars on the top and bottom edges of the screen.
  • Page 18: Sound Settings

    SETTINGS _________________________________________________ Sound settings Here you can select the audio mode, such as stereo, mono (left) and Sound mono (right). Sound channel TV English Stereo Select »Sound settings« by pressing »P-« or »P+« and press Sound settings Deutsch Mono (left) Volume adjustment »OK«...
  • Page 19: Basic Functions

    BASIC FUNCTIONS ______________________________ Switching on and off Press » « to switch on the digital receiver from standby mode. – The mode indicator lights up green (TV mode) or yellow (radio mode). Press » « to switch the digital receiver to standby mode. –...
  • Page 20: Muting The Sound

    BASIC FUNCTIONS ______________________________________ Muting the sound Press » « on the remote control to mute the sound. Press » « on the remote control to switch the sound on again. – You can hear the sound at the volume previously set. Selecting stations from lists You can select stations from various lists (e.g.
  • Page 21: Tv Guide

    BASIC FUNCTIONS ______________________________________ TV guide The TV guide provides information on the current station such as the title and descriptions of the current and next programmes. Press »TV-G« to view the station information. – All today’s programmes are shown. TV Guide Monday 10.05.2004 9:15 - 9:30 Börse&Wirtschaft...
  • Page 22: Additional Functions

    ADDITIONAL FUNCTIONS _________________ Setting the menu language Press »i« to open the main menu. Select »Installation« with »P-« or »P+« and press »OK« to Menu language confirm. Deutsch Language English Select »Menu language« with »P-« or »P+« and press »OK« Français Italiano confirm.
  • Page 23: Automatic Station Search

    ADDITIONAL FUNCTIONS _____________________________ Automatic station search The automatic search looks for receivable stations among the avail- able bouquets of digital stations. Installation In the main menu, select »Installation« with »P-« or »P+« and Menu language press »OK« to confirm. Station search Video output Select »Station search«...
  • Page 24: Manual Station Search

    ADDITIONAL FUNCTIONS _____________________________ Manual station search You enter the channel to be searched directly during the manual search. In the main menu, select »Installation« with »P-« or »P+« and Station search press »OK« to confirm. Automatic search Manual search Select »Station search« with »P-« or »P+« and press »OK« to confirm.
  • Page 25: Selecting The Video Channel

    ADDITIONAL FUNCTIONS _____________________________ Selecting the video channel Some stations (such as Pay-TV stations) provide viewers with the choice of several stations or camera angles on the same preset posi- Settings tion. This menu allows you to choose between the various stations. Sound If no additional stations are provided on the current preset position, Subtitles...
  • Page 26: Timer Functions

    ADDITIONAL FUNCTIONS _____________________________ Timer functions You can set your digital receiver to switch off at a selected time or to Timer program a recording on a connected video recorder. A total of Sleep timer 10 recording timers are available. Record timer Entering the switch-off time In the main menu, select »Timer«...
  • Page 27 ADDITIONAL FUNCTIONS _____________________________ Programming the recording timer In the main menu, select »Timer« with »P-« or »P+« and press Record timer »OK« to confirm. Timer place (1...10) 00:00 Uhr Start at Select »Record timer« with »P-« or »P+« and press »OK« to 00:00 Uhr Stop time confirm.
  • Page 28: Special Settings

    SPECIAL SETTINGS ______________________________ Resetting the digital receiver to its original state This function enables you to delete the station lists and all custom settings. In the main menu, select »Installation« with »P-« or »P+« and press »OK« to confirm. Special functions Manual Software update Select »Special functions«...
  • Page 29: Information

    9- or a 15-pin D-SUB socket, and a 9-pin D-SUB plug for connection to the receiver. You can use this connection for software updates and for uploading and downloading other data. You can find more information on the internet at www.grundig.com.
  • Page 30: Technical Data

    INFORMATION ___________________________________________ Technical data This product complies with the following EU directives: 73/23/EEC and 89/336/EEC. It complies with the standards required for CE labelling, EN 55013: 1990 including A12: 1994, A13: 1996, A14: 1999, EN 55020: 1994 including A11: 1996, A12, A13, A14: 1999, EN 60065: 1998, EN 61000-3-2: 1995 including A14: 2000, EN 61000-3-3: 1995.
  • Page 31: Rectifying Minor Problems

    INFORMATION ___________________________________________ Rectifying minor problems If a fault occurs, first refer to this information before you take the digital receiver for repair. If you are unable to rectify the fault using the information given here, contact your local dealer or service specialist. Under no circumstances should you attempt to repair the digital receiver yourself, as this will invalidate the guarantee.
