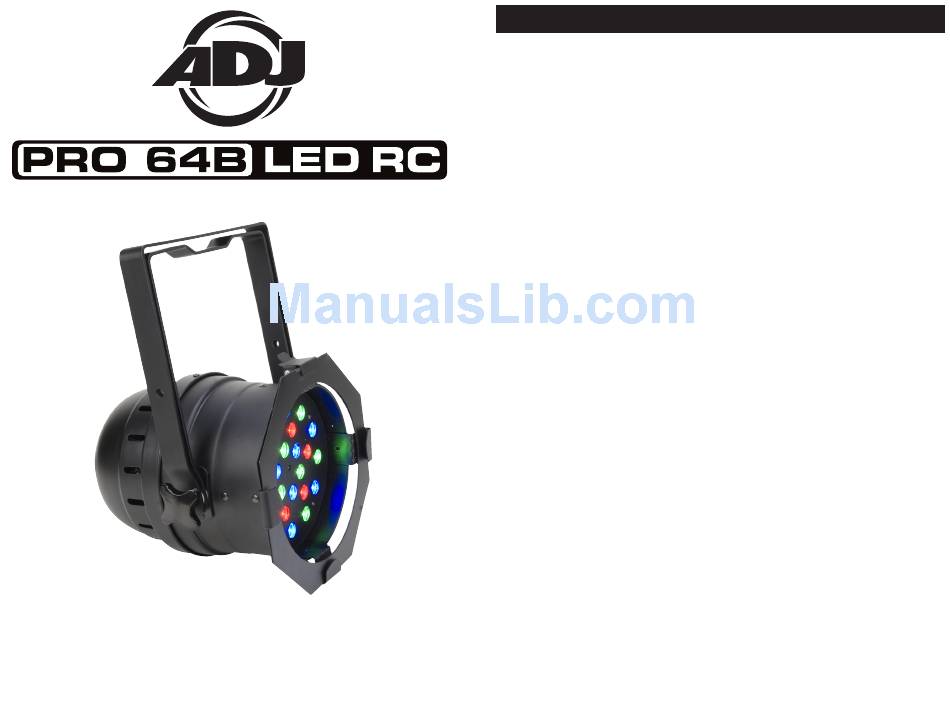

PRO64B LED RC
Unpacking:
Thank you for purchasing the PRO64B LED RC by Amer-
ican DJ
. Every PRO64B LED RC has been thoroughly tested and has
®
been shipped in perfect operating condition. Carefully check the ship-
ping carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your fixture for any
damage and be sure all accessories necessary to operate the unit has
arrived intact. In the case damage has been found or parts are miss-
ing, please contact our toll free customer support number for further
instructions. Do not return this unit to your dealer without first contact-
ing customer support.
Introduction:
The American DJ
tinuing pursuit to create high quality intelligent lighting. The PRO64B
LED RC is a DMX intelligent, high powered LED par can. This fixture
can be used in a stand alone mode or connected in a Master/Slave
configuration. The unit can also be controlled via DMX controller. This
par can has six operating modes: Manual Color mode, Color Change
mode, Color Fade mode, Sound Active mode, Auto mode, and DMX
control mode.
Customer Support:
American DJ provides a customer support line,
to provide set up help and to answer any question should you encoun-
ter problems during your set up or initial operation. You may also visit
us on the web at www.American DJ.com for any comments or sugges-
tions. Service Hours are Monday through Friday 9:00 a.m. to 5:00 p.m.
Pacific Standard Time.
Voice:
(323) 582-3322
Fax:
(323) 582-3108
E-mail:
support@American DJ.com
Warning!
To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Caution!
There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
American DJ.
PLEASE recycle the shipping carton when ever possible.
American DJ
- www.Americandj.com - PRO64B LED RC User Manual Page 2
©
®
