Additional Information - Alpine SWD-2030 Owner's Manual

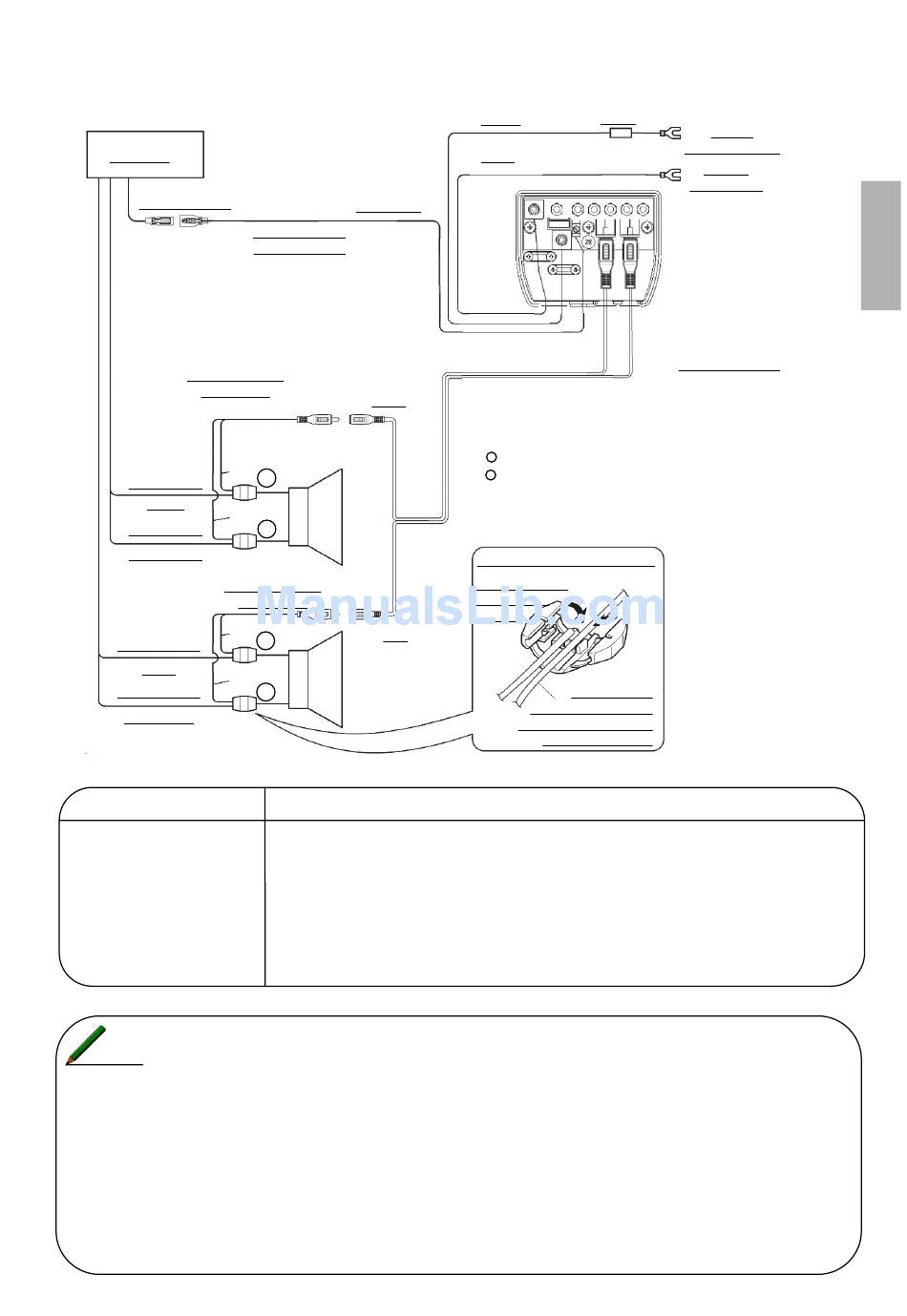

• CONNECTIONS FOR SPEAKER LEVEL INPUT
Head Unit
Remote turn on
Speaker to RCA
Left speaker
Green
Left speaker
Green/Black
Right speaker
Violet
Right speaker
Violet/Black
Type of Lead
Remote turn on lead
Ground lead
Battery power lead
• This product cannot be used with cars fitted with a common negative speaker system.
Memo
• Speaker impedance must be 3.2 ~ 8 ohms.
• To prevent external noise from entering the audio system:
8
Blue/White
Remote turn on
extension lead*
input lead**
White
+
_
Speaker to RCA
input lead**
+
_
Connect the remote cable coming from the radio.
In case your radio does not provide a remote signal, the SWD-2030 will generate it
from the radio outputs and switch on and off together with the radio. A remote cable
may also be connected when using High-Power radio outputs, but in general this is
not necessary.
Attach securely and safely to a bare metal spot of the car's chassis.
Connect directly to the positive terminal of the car's battery.
• Locate the unit and route the leads at least 10 cm away from the car harness.
• Keep the battery power leads as far away from other leads as possible.
• Connect the ground lead securely and safely to a bare metal spot (remove the coating if
necessary) of the car chassis.
• If you add an optional noise suppressor, connect it as far away from the unit as possible. Your
Alpine Dealer carries various Alpine noise suppressors, contact them for further information.
• Your Alpine Dealer knows best about noise prevention measures so consult your dealer for
further information.
Yellow
Black
** - transparent insulation / no stripe
+ transparent insulation / red stripe
Connections using Scotchlock
Press until they
are securely
locked
Red
2-2.7mm in diameter
If not seek advice from
your Alpine Dealer

Additional Information

FUSE
Battery
extension lead *
Ground
Connection*
* Sold separately
