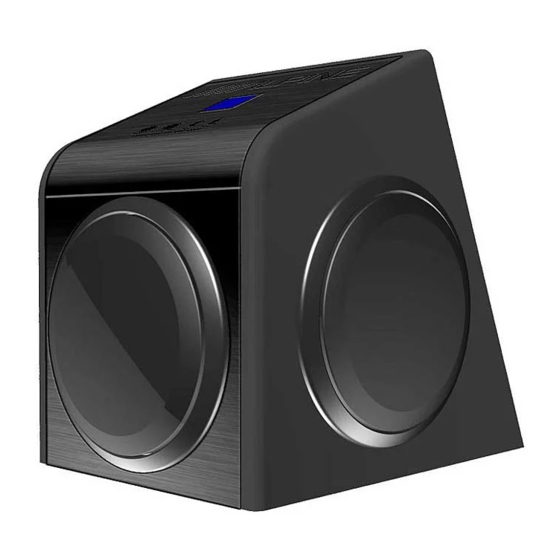

Alpine SWD-2030 Owner's Manual

Class-d amplified subwoofer
Hide thumbs Also See for SWD-2030:
Table of Contents

Advertisement

Quick Links

Class-D Amplified Subwoofer
• OWNER'S MANUAL
Please read before using this equipment.
• BEDIENUNGSANLEITUNG
Lesen Sie diese Bedienungsanleitung bitte vor Gebrauch des Gerätes.
• MODE D'EMPLOI
Veuillez lire avant d'utiliser cet appareil.
• MANUAL DE OPERACIÓN
Léalo antes de utilizar este equipo.
• ISTRUZIONI PER L'USO
Si prega di leggere prima di utilizzare l'attrezzatura.
• ANVÄNDARHANDLEDNING
Innan du använder utrustningen bör du läsa igenom denna användarhandledning.
SWD-2030
EN
DE
FR
ES
IT
SE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWD-2030 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alpine SWD-2030

Summary of Contents for Alpine SWD-2030

  • Page 1 SWD-2030 Class-D Amplified Subwoofer • OWNER’S MANUAL Please read before using this equipment. • BEDIENUNGSANLEITUNG Lesen Sie diese Bedienungsanleitung bitte vor Gebrauch des Gerätes. • MODE D’EMPLOI Veuillez lire avant d’utiliser cet appareil. • MANUAL DE OPERACIÓN Léalo antes de utilizar este equipo.

  • Page 2: Owners Manual

    Please read this owners manual thoroughly to familiarise yourself with each control and function. We at Alpine hope that your new SWD-2030 will give you many years of listening enjoyment. In case of problems when installing your SWD-2030, please contact your authorised Alpine dealer.
  • Page 3 Using such parts could disable control of the vehicle and/or cause fire, etc. HALT USE IMMEDIATLEY IF A PROBLEM APPEARS. Failure to do so may cause personal injury or damage to the product. Return it to your Authorised Alpine Dealer or the nearest Alpine Service Centre for repairing.

  • Page 4: Caution In Use

    CAUTION IN USE DO NOT USE A MOBILE PHONE NEAR THIS PRODUCT. Use of a mobile phone may cause interference and noise. DO NOT EXCEED THE INPUT LEVEL SPECIFIED FOR THIS PRODUCT. If there is distortion or a popping noise from the subwoofer, the input level is too high. If the subwoofer has prolonged use in this condition, this may result in deterioration of performance or may cause damage to the subwoofer.

  • Page 5: Specifications

    • Please ensure that there is sufficient length of the various cables for your desired subwoofer location. • Certain products are incompatible with this subwoofer. Please read the instructions of the product that will be used with the SWD-2030, alongside this manual during installation. 1. INSTALLATION Park the car at a safe place, on a level surface.
  • Page 6 WARNING - DO NOT USE BOLTS OR NUTS IN THE BRAKE OR STEERING SYSTEMS TO MAKE GROUND CONNECTIONS. Bolts or nuts used for the brake or steering systems (or any other safety related system), or tanks should NEVER be used for installations or ground connections.
  • Page 7 FIRST • Make all connections securely. • Any unused connections should be insulated with electrical insulation tape. Disconnect the cable from the negative terminal of the car battery. Memo • On cars fitted with computers and other such devices (e.g. head units with security code), you may loose the memory when disconnecting the negative lead.

  • Page 8: Additional Information

    Remote turn on lead Connect the remote cable coming from the radio. In case your radio does not provide a remote signal, the SWD-2030 will generate it from the radio outputs and switch on and off together with the radio. A remote cable may also be connected when using High-Power radio outputs, but in general this is not necessary.
  • Page 9 3. CHECK Secure all loose cables. CAUTION - ARRANGE THE WIRING SO IT IS NOT CRIMPED OR PINCHED BY A SHARP METAL EDGE. Route the cables and wiring away from moving parts (like the seat rails) or sharp or pointed edges. This will prevent crimping and damage to the wiring. If wiring passes through a hole in metal, use a rubber grommet to prevent the wires insulation from being cut by the metal edge of the hole Reconnect the negative lead to the battery terminal...
  • Page 10 California 90501, U.S.A. Tokyo 141-0031, Japan Phone 1-800-ALPINE-1 (1-800-257-4631) Phone 03-5496-8231 ALPINE ELECTRONICS OF CANADA, INC. ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD. 7300 Warden Ave., Suite 203, Markham, 6-8 Fiveways Boulevarde Keysborough, Ontario L3R 9Z6, Canada Victoria 3173, Australia Phone 1-800-ALPINE-1 (1-800-257-4631)
