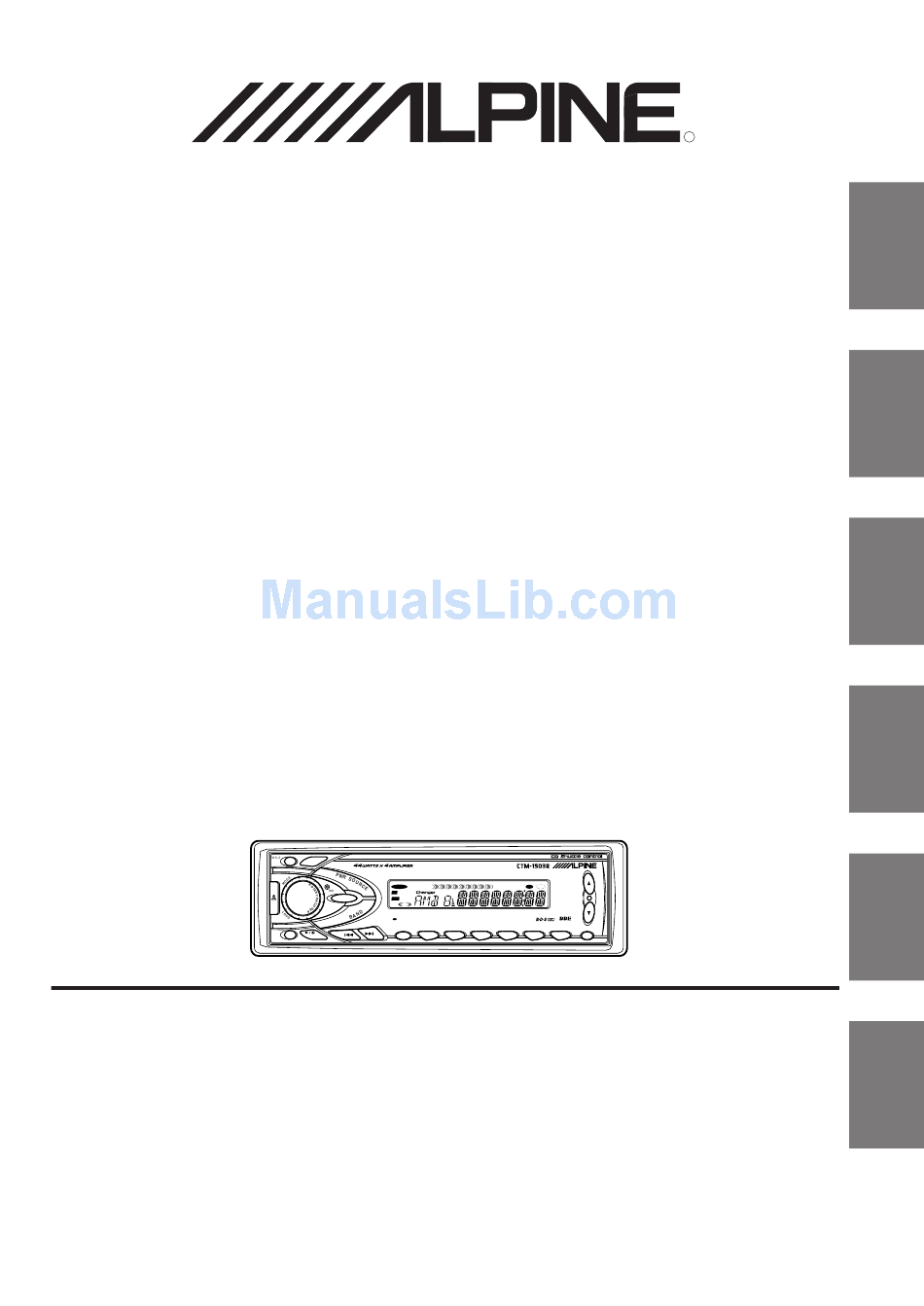

CTM-1503R
Digital Commander/Receiver
• OWNER'S MANUAL
Please read before using this equipment.
• BEDIENUNGSANLEITUNG
Lesen Sie diese Bedienungsanleitung bitte vor
Gebrauch des Gerätes.
• MODE D'EMPLOI
Veuillez lire avant d'utiliser cet appareil.
• MANUAL DE OPERACIÓN
Léalo antes de utilizar este equipo.
• ISTRUZIONI PER L'USO
Si prega di leggere prima di utilizzare il
attrezzatura.
• ANVÄNDARHANDLEDNING
Innan du använder utrustningen bör du läsa
igenom denna användarhandledning.
DISP
CHG
BBE
MIN.
AF
T.INFO
BBE
EON
NEWS
TP
ST
BASS FREQ. CONTROL
AF
UP
DN
F
1
T.INFO
TUNE/A.ME
ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.
6-8 Fiveways Boulevarde Keysborough,
Victoria 3173, Australia
Tel.: (03) 9769-0000
ALPINE ELECTRONICS GmbH
Kreuzerkamp 7-11 40878 Ratingen, Germany
Tel.: 02102-45 50
ALPINE ITALIA S.p.A.
Via C. Colombo 8, 20090 Trezzano Sul Naviglio
MI, Italy
Tel.: 02-48 47 81
DIGITAL COMMANDER / RECEIVER
RPT ALL M.I.X.
F
MAX.
DX SEEK
ANGLE
NEWS
PTY
M.I.X.
RPT
SCAN
2
3
4
5
6
B.C.
ALPINE ELECTRONICS FRANCE S.A.R.L.
98, Rue De La Belle Etoile, Z.I. Paris Nord Il
B.P. 50016 F-95945, Roissy, Charles De Gaulle
13 Tanners Drive, Blakelands, Milton Keynes
ALPINE ELECTRONICS DE ESPAÑA, S.A.
R
(RCS PONTOISE B 338 101 280)
Cedex, France
Tel.: 01-48 63 89 89
ALPINE ELECTRONICS OF U.K., LTD.
MK14 5BU, U.K.
Tel.: 01908-61 15 56
Portal De Gamarra 36, Pabellón 32
01013 Vitoria (Alava)-Apdo. 133, Spain
Tel.: 34-45-283588
Designed by ALPINE Japan
Printed in China (Y)
68P01434K12-O
EN
DE
FR
ES
IT
SE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CTM-1503R and is the answer not in the manual?

Questions and answers

Related Manuals for Alpine CTM-1503R

Summary of Contents for Alpine CTM-1503R

  • Page 1 NEWS M.I.X. SCAN T.INFO B.C. TUNE/A.ME ALPINE ELECTRONICS, INC. ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD. ALPINE ELECTRONICS FRANCE S.A.R.L. Tokyo office: 1-1-8 Nishi Gotanda, 6-8 Fiveways Boulevarde Keysborough, (RCS PONTOISE B 338 101 280) Shinagawa-ku, Victoria 3173, Australia 98, Rue De La Belle Etoile, Z.I. Paris Nord Il Tokyo 141-8501, Japan Tel.: (03) 9769-0000...
  • Page 2 More musical selections, more versatility, more convenience. An Alpine CD Changer adds more musical choices to your sound system. All models can be controlled from Alpine head units and deliver excellent sound quality. The CHA-S624 is a high-performance 6-disc changer with a new M DAC, Ai-NET compatibility, Optical Digital Output, 150 Disc Title Memory and CD TEXT.
  • Page 3 Händlerstemple Tips der Polizei: [ Stellen Sie Ihr Fahrzeug stets gut sichtbar ab. [ Verschließen Sie Türen, Fenster, Schiebedach und Kofferraum immer, auch bei nur kurzer Abwesenheit. [ Lassen Sie keine Wertsachen sichtbar im Auto liegen. [ Wird Ihr Fahrzeug aufgebrochen, wenden Sie sich sofort an die nächste Polizeidienststelle. [ Belassen Sie Ihr Fahrzeug nach einem Aufbruch im Originalzustand.
  • Page 4 Car Audio and Navigation Systems GERÄTE-PASS AUDIO SYSTEME Fahrzeugmarke: Typ: Amtl. Kennzeichen: Name des Halters: Straße: Wohnort: Bitte füllen Sie diesen Pass vollständig aus und bewahren Sie ihn außerhalb des Fahrzeugs auf: Im Falle eines Diebstahls wird für Sie die Schadensabwicklung mit der Versicherung einfacher, und Sie erleichtern der Polizei die Fahndung nach den Tätern.

  • Page 5: Table Of Contents

    ENGLISH Contents Receiving Traffic Information While Playing Operating Instructions CD Changer or Radio ........10 Priority News ..........10 WARNING CD Changer Operation (Optional) WARNING ..........2 Controlling CD Changer (Optional) ....11 CAUTION ..........2 Music Sensor (Skip) ........11 PRECAUTIONS ........

  • Page 6: Warning

    USE THE CORRECT AMPERE RATING WHEN Installation Location REPLACING FUSES. Make sure the CTM-1503R will not be installed in a Failure to do so may result in fire or electric shock. location subjected to: DO NOT BLOCK VENTS OR RADIATOR PANELS.

  • Page 7: Basic Operation

    • Controlable with Remote Control This unit can be controlled with an optional Press the PWR (Power) button for more than 3 Alpine remote control. For details, consult your seconds to turn off the power. Alpine dealer. • Connectable to Remote Control Interface...

  • Page 8: Display Angle Adjustment

    Basic Operation MODE INTLZ/DISP B.C. f UP DN g Display Angle Adjustment Adjusting Source Signal Levels Movable display If the difference in volume level between the CD changer and FM radio is too great, adjust the FM signal level as follows. Press and hold the INTLZ button for at least 3 seconds.

  • Page 9: Turning Loudness On/Off

    Turning Loudness On/Off Setting Bass Frequency Loudness introduces a special low- and high- The bass control centre frequency can be set at frequency emphasis at low listening levels. This 60, 80, 100 or 200 Hz. compensates for the ear's decreased sensitivity to bass and treble sound.

  • Page 10: Radio Operation

    Radio Operation INTLZ SOURCE BAND f UP TUNE/A.ME DN g Preset buttons (1 through 6) Manual Tuning Automatic Seek Tuning Press the SOURCE button until a radio Press the SOURCE button until a radio frequency appears in the display. frequency appears in the display. Press the BAND button repeatedly until the Press the BAND button repeatedly until the desired radio band is displayed.

  • Page 11: Manual Storing Of Station Presets

    Manual Storing of Station Presets Automatic Memory of Station Presets Select the radio band and tune in a desired radio station you wish to store in the preset memory. Press the SOURCE button to select the radio mode. Press and hold any one of the Preset buttons (1 through 6) for at least 2 seconds until the station Press the BAND button repeatedly until the frequency on the display blinks.

  • Page 12: Rds Operation

    RDS Operation INTLZ BAND DN g f UP T.INFO Tips Setting RDS Reception Mode and The RDS digital data includes the followings: Receiving RDS Stations Programme Identification Programme Service Name List of Alternative Frequencies Traffic Programme The RDS (Radio Data System) is a radio Traffic Announcement information system using the 57 kHz subcarrier Programme Type...

  • Page 13: Receiving Rds Regional (Local) Stations

    Receiving RDS Regional (Local) Stations PTY (Programme Type) Tuning Press and hold the INTLZ button for at least 3 Press the F button so that the F indicator lights up. seconds to activate the setting mode. Press the PTY button to activate the PTY mode. Press the Preset 2 button to turn on or off the The Programme Type of the station being REG (Regional) mode.

  • Page 14: Receiving Traffic Information While Playing Cd Changer Or Radio

    RDS Operation DN g T.INFO f UP NEWS Receiving Traffic Information While Priority News Playing CD Changer or Radio This function allows you to preset to give priority to the News programme. You will never miss the Press the T.INFO button repeatedly until the News programme as the unit automatically gives T.INFO indicator appears in the display.

  • Page 15: Cd Changer Operation (Optional)

    Press the f UP button once to advance to the NOTE beginning of the next track. If you wish to access The CD controls on the CTM-1503R for the CD the beginning of a track further ahead, press changer operation are functional only when the CD repeatedly until the desired track is reached.

  • Page 16: Fast Forward And Backward

    CD Changer Operation (Optional) f UP M.I.X. SCAN DN g M.I.X. (Random Play) Fast Forward and Backward Press and hold the DN g or f UP button to Press the F button so that the F indicator lights. quickly move backward or forward until you Press the M.I.X.

  • Page 17: Information

    • You are in a weak signal area. properly connected or consult your authorized - Make sure the tuner is in the DX mode. Alpine dealer. • If the area you are in is a primary signal area, the antenna may not be grounded and connected properly.

  • Page 18: Indication For Cd Changer

    Unable to fast forward or backward the CD. • Malfunction in the CD Changer. • The CD has been damaged. - Consult your Alpine dealer. Press the magazine eject - Eject the CD and discard it; using a damaged CD in button and pull out the magazine.

  • Page 19: Specifications

    Specifications FM TUNER SECTION CHASSIS SIZE Tuning Range 87.5 – 108.0 MHz Width 178 mm (7") 0.7 µV Mono Usable Sensitivity Height 50 mm (2") Alternate Channel Selectivity 80 dB Depth 155 mm (6-1/8") Signal-to-Noise Ratio 65 dB Stereo Separation 35 dB NOSEPIECE SIZE Width...

  • Page 20: Installation And Connections

    • Be sure to disconnect the cable from the (–) battery post DO NOT USE BOLTS OR NUTS IN THE BRAKE OR before installing your CTM-1503R. This will reduce any chance of damage to the unit in case of a short-circuit.

  • Page 21: Installation

    Installation Slide the CTM-1503R into the dashboard. When the unit is in place, make sure the locking pins are fully seated in the down position. This can be done by pressing firmly in on the unit while Metal plate pushing the locking pin down with a small screwdriver.

  • Page 22: Connection

    Installation and Connections Connection Antenna < ISO Antenna Plug To vehicle phone (Pink/Black) AUDIO INTERRUPT IN (Blue/White) REMOTE TURN-ON To amplifier or equalizer To power antenna (Red) IGNITION (Black) Ignition Key (Blue) POWER ANT (Yellow) BATTERY Battery DIN Connector PIN Configuration lgnition Power Supply Ground Data Ground...
  • Page 23 • Connect the ground lead securely to a bare metal spot (remove the coating if necessary) of the car chassis. • If you add an optional noise suppressor, connect it as far away from the unit as possible. Your Alpine dealer carries various Alpine noise suppressors, contact them for further information.
