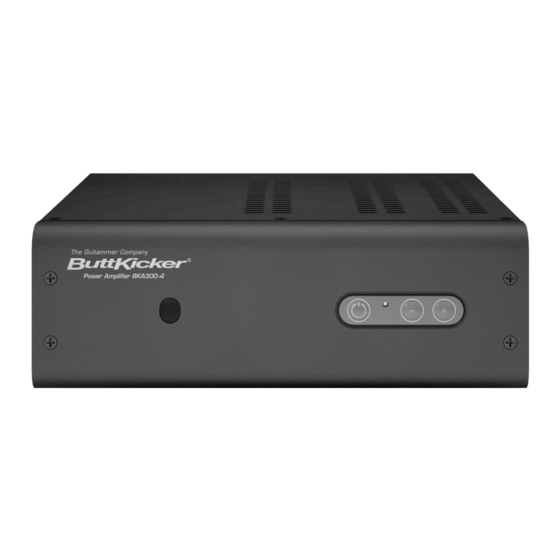

- Page 1 OWNER’S MANUAL Please record the serial number on the rear panel of your amplifier for easy reference. Serial Number: BKA300-...
- Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage "...
-
Page 3: Amplifier Specifications
OWNER’S MANUAL Amplifier Specifications Dimensions: 8.25” L x 9.25“ W x 3.5” H Weight: 4.6 lbs./2 kgs. Power Output: 300 watts rms @ 4 ohms / 150 watts rms @ 2 ohms 120V / 240V - Convertible Frequency Response: 10 - 300Hz Input Sensitivity: 100 mVolt Wireless Specifications Frequency:... -
Page 4: Table Of Contents
Power Amplifier BKA300-4 Contents............Page Number Important Safety Instructions..........01 Amplifier Warnings / Cautions..........02 Amplifier Specifications............03 Wireless Specifications............03 Included Accessories............03 Amplifier Operation..............05 Rear Panel Operation............05 - 06 Front Panel Operation..............07 Amplifier Setup..............08 - 10 Wireless RF Receiver / Transmitter Setup........08 RF Receiver / Transmitter Wireless Connection Setup...09 - 10 Optional Base Stand Usage...............09... -
Page 5: Amplifier Operation
OWNER’S MANUAL Amplifier Operation Rear Panel... -
Page 6: Rear Panel Operation
IR OUT/IN Use for daisy chaining multiple BKA300-4 units together so that one Remote Control can control all units simultaneously. Use a cable with either a mono or stereo mini jack connector (not included) to connect one BKA300-4’s IR “out” to the next BKA300-4’s IR “in”... -
Page 7: Front Panel Operation
LED will turn “green”. If the Amplifier is turned off the LED turns “red”. INTENSITY CONTROL Controls the output level of the Amplifier (i.e. the “volume” control). Set this to balance the ButtKicker Advance with the sound system when using the ® amplifier to power the ButtKicker Advance. -
Page 8: Amplifier Setup
Power Amplifier BKA300-4 Amplifier Setup Wireless RF Receiver / Transmitter Setup Step 1. Plug the RF Receiver unit into the ”RF Receiver” input on the back of the Amplifier. The green light Figure 1 on the side of the RF Receiver indicates that the unit is powered on (See Figure 1). -
Page 9: Rf Receiver / Transmitter Wireless Connection Setup
OWNER’S MANUAL Amplifier Setup RF Receiver / Transmitter Wireless Connection Setup The RF Transmitter and RF Receiver link to each other using a randomly generated address. Once the Amplifier, RF Transmitter and RF Receiver have been properly set up per Steps 1 and 2, then do the following: a) Press once the recessed button located next to the LED on the RF Receiver (See Figure 3 - pg 10). -
Page 10: Amplifier Setup
Power Amplifier BKA300-4 Amplifier Setup Figure 3 - RF Receiver Recessed Button LED Light Figure 4 - RF Transmitter Recessed Button... -
Page 11: Remote Control
LED settings on the Amplifier. INTENSITY Remotely controls the output level of the Amplifier (i.e. the “volume” control). Set this ® to balance the ButtKicker Advance with the sound system when using the Amplifier ® to power the ButtKicker Advance. -
Page 12: More Information
Limited Warranty Your ButtKicker Power Amplifier BKA300-4 is warranted against failure for 1 YEAR unless otherwise stated. The Guitammer Company will service and supply all parts at no charge to the customer providing the unit is under warranty. Shipping costs are the responsibility of the customer.
