Related Manuals for ButtKicker BKA1000-P
Summary of Contents for ButtKicker BKA1000-P

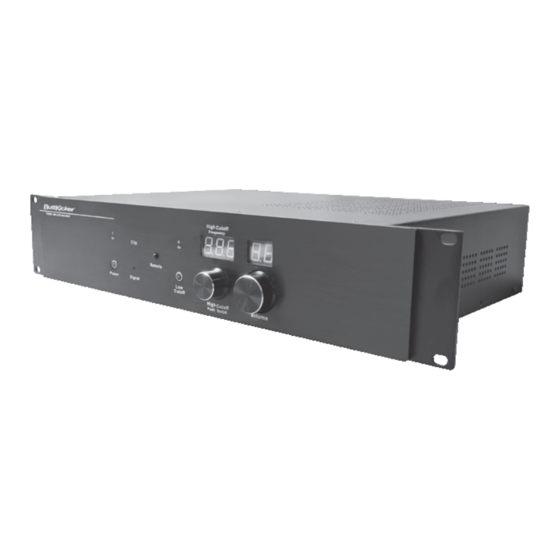

- Page 1 OWNER’S MANUAL Power Amplifier BKA1000-P Serial Number: Please record the serial number from the rear panel of your amplifier for reference. www.thebuttkicker.com...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS READ BEFORE OPERATING EQUIPMENT 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Page 3 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION RISQUE DE CHOC ÉLECTRIQUE NE PAS OUVRIR CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ATTENTION: POUR RÉDUIRE LE RISQUE DE CHOC ÉLECTRIQUE, NE RETIREZ PAS LE COUVERCLE (OU LE DOS) AUCUNE PIÈCE RÉPARABLE PAR L'UTILISATEUR À...
- Page 4 OWNER’S MANUAL Contents............Page Number Important Safety Instructions......02 Amplifier Warnings / Cautions......03 Amplifier Usage Guidelines.......05 Amplifier Specifications........05 Amplifier Operation - Front Panel.....06 - 07 Amplifier Operation - Rear Panel......08 - 09 Remote Control..........10 Rack Ears.............10 Cooling............10 Power Status Indicator Modes......11 Contact Information........Back Cover Warranty............Back Cover...
-
Page 5: Amplifier Specifications
Power Amplifier BKA1000-P Amplifier Usage Guidelines This amplifier is designed for use with the following ButtKicker ® transducer models only: BK-LFE....(quantity 4 max) BK-CT....(quantity 4 max) BK-mini-CT..... (quantity 4 max) BK-mini-LFE....(quantity 8 max) BK4-4....(quantity 8 max) Please refer to the wiring diagrams available at TheButtKicker.com for connection information Amplifier Specifications... -
Page 6: Front Panel
OWNER’S MANUAL Front Panel... - Page 7 (From Left to Right) POWER Power on or off the BKA1000-P . The power indicator LED will illuminate green when the amplifier is on and red when the amplifier is off or in standby mode, activated after ~ 20 minutes without signal POWER STATUS INDICATOR (Red/Green LED) Red indicates two possible modes.
-
Page 8: Rear Panel
OWNER’S MANUAL Rear Panel... - Page 9 Used for attaching speaker wire to the ButtKicker Unit(s). NOTE: Please see the ® Amplifier Usage Guidelines on page 5 for a list of ButtKicker models that can be used with this amplifier. Turn the amplifier off before connecting to the Speaker Output.
-
Page 10: Remote Control
Rack Cooling Requirements Ensure a minimum of 1 RU (rack unit) of clearance between the BKA1000-P and all other devices mounted in rack. If multiple BKA1000-P units are installed in the same rack then a rack cooling fan must be utilized to ensure proper cooling, with open or vented rack panel between. - Page 11 Power Amplifier BKA1000-P POWER STATUS INDICATOR (Orange LED Fault Indicator) If Power Status Indicator begins flashing orange, the amplifier has experienced a problem and entered a fault mode. THERMAL PROTECTION This occurs if the amplifier’s internal temperature becomes too high. The Power Status Indicator will change from Green to Blinking Orange, and output from amplifier will stop.
- Page 12 Limited Warranty Your ButtKicker Power Amplifier BKA1000-P is warranted against failure for 1 YEAR unless otherwise stated. The Guitammer Company will service and supply all parts at no charge to the customer providing the unit is under warranty. Shipping costs are the responsibility of the customer.
