Summary of Contents for Doro SECURE 350

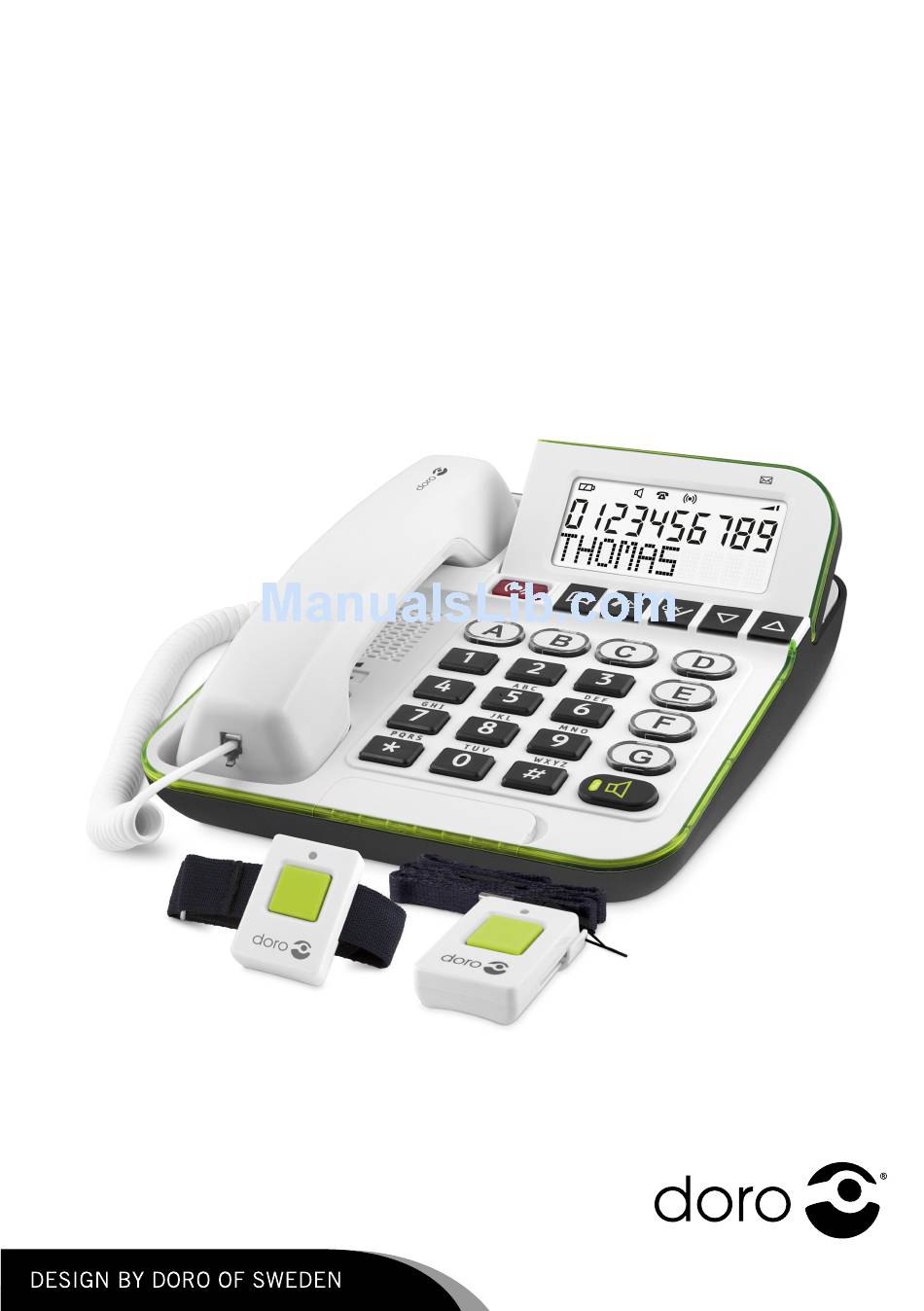

Page 1 Doro Secure 350 English...
Page 2 English Microphone level 11. Delete/back Additional alert equipment 12. Handsfree/headset key Phonebook 13. Speed dial keys Alarm key 14. Call log Powerful amplification 15. Scroll keys (boost) 16. Confirm/0 Tone control 17. Display Volume control 18. Missed call indicator Cordless alarm pendant 19.
Page 3: Table Of Contents
English Contents Installation ................1 Connection ................1 Batteries ................1 Cordless pendant ..............1 Basic setup ................. 2 Wall mounting ..............6 Operation................... 6 Making a call............... 6 Answering a call ..............8 Call timer ................8 Volume control..............8 Pillow shaker ...............
Page 4: Installation
English Installation This device is intended for the analogue telephone network lines in AT, BE, BG, CH, CY, CZ, DE, DK, EE, ES, FI, FR, GB, GR, HU, IE, IS, IT, LV, LT, LU, MT, NL, NO, PL, PT, RO, SI, SK, SE. Connection Connect the curly cord to the handset and then to the socket marked q on the unit.
Page 5: Basic Setup
English Basic setup/PENDANT, p. 3 how to register (pair) a pendant. Changing batteries in the cordless pendant If the cordless pendant ceases to function, change the batteries. Use only 1 x 12 V (A23, LR23) Alkaline battery of good quality. Use a Phillips screwdriver to loosen the screws on the back and separate the parts gently.
Page 6 English NAME REC Record a name to be read aloud. Please see Phonebook, p. 9 instructions. PENDANT (cordless alarm key) The cordless alarm pendant can be used to answer an incoming call or to make an alarm call. The phone comes equipped with 2 cordless pendants which are already paired.
Page 7 English RING VOL Select the required ringer volume, then confirm with 0. BOOST LOCK The powerful amplification (boost) is by default set to switch OFF after every call, this can be changed so the amplification stays switched ON. CAUTION BOOST LOCK = ON should only be activated if all users have impaired hearing and require powerful amplification.
Page 8 English Press and hold 0 to record a new alarm message (max. 30 seconds). Start recording at the tone, and release 0 when finished. Speak clearly and about 15–20 cm from the keypad. Alternatively, press 0 briefly to play the recorded alarm message. Press 0 to confirm and continue.
Page 9: Wall Mounting
English Select 1 or 2 . Press 0. Enter the required number and confirm with 0. To dial, press and hold 1 or 2 and press or lift the handset. Wall mounting The phone can be wall mounted using the included wall mount bracket and two screws (not included).
Page 10 English Note! If you wish, you can switch between handset and handsfree mode by simply pressing or lifting the handset. Please remember that in handsfree mode it is only possible for one person at a time to talk. Pre-dialling This allows you to enter and change a phone number before it is dialled.
Page 11: Answering A Call
English Answering a call Lift the handset to answer an incoming call, or press You can also answer in handsfree mode by pressing the key on the cordless pendant. Call timer The display shows the current time when in standby mode. During a call the display will show a call timer instead, indicating the duration of the call.
Page 12: Pillow Shaker
English Pillow shaker A pillow shaker such as Doro HearPlus 55v can be connected to the socket Keypad characters Letters/Symbols [Space character] + & - / X 1 A B C Å Ä Æ æ å ä ß 2 D E F ë 3 G H I ï...
Page 13 English Enter a phone number. Use v/V to move the cursor and to erase if needed. Use # to insert a pause in the number. Press 0 to confirm. A blinking cursor is displayed on the second line on the display. Enter a name for the contact (see Keypad characters, p.
Page 14: Speed Dial
English Use v/V to move the cursor and to erase if needed. Use # to insert a pause in the number. Press 0 to confirm. A blinking cursor is displayed in the first letter of the name. Use v/V to move the cursor and to erase if needed.
Page 15: Caller Id And Call Log
English Caller ID and call log Caller ID allows you to see who is calling before you answer and to see who has called in your absence. If the number is stored in the phonebook, the name is also shown. Note! The Caller ID function must be subscribed.
Page 16: Alarm Function
English Press until (two seconds) EMPTY is displayed. Note! This deletes the Caller ID memory, not the Phonebook memory. Transferring numbers to the phonebook Press Use v/V to select desired number. Press and hold W for two seconds. A blinking cursor is displayed in the first digit of the selected number.
Page 17: Alarm Message
English Alarm message (AL.MESSAGE) A pre-recorded message “This is an emergency call, to accept this call, press zero.” This message will be played unless you decide to record your own message. The alarm message should include your name, address, and how to activate the speakerphone.
Page 18: Others
English IMPORTANT! The only way to stop the alarm sequence is if the called party • accepts the call within 60 seconds by pressing 0 (zero), or when all the alarm numbers have been dialled. The receiver of the alarm call, the alarm contact, can disconnect •...
Page 19: Warranty
1 x 12 V (A23, LR23) Alkaline (cordless remote) Declaration of Conformity Doro hereby declares that Doro Secure 350 conforms to the essential requirements and other relevant regulations contained in the Directives 1999/5/EC (R&TTE) and 2002/95/EC (RoHS). A copy of the Declaration of Conformity is available at...
