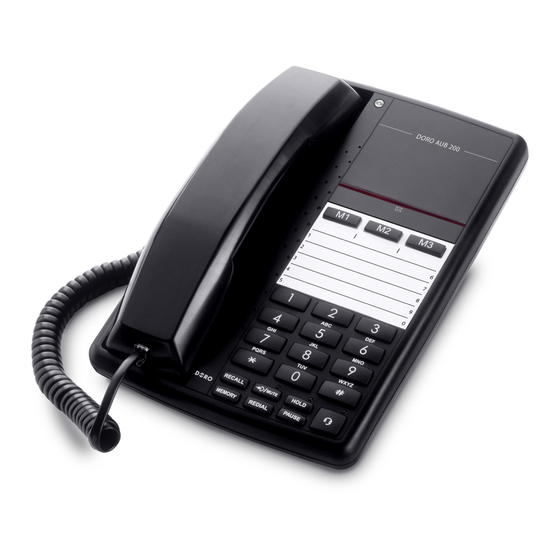

doro AUB 200

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AUB 200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Doro AUB 200

Summary of Contents for Doro AUB 200

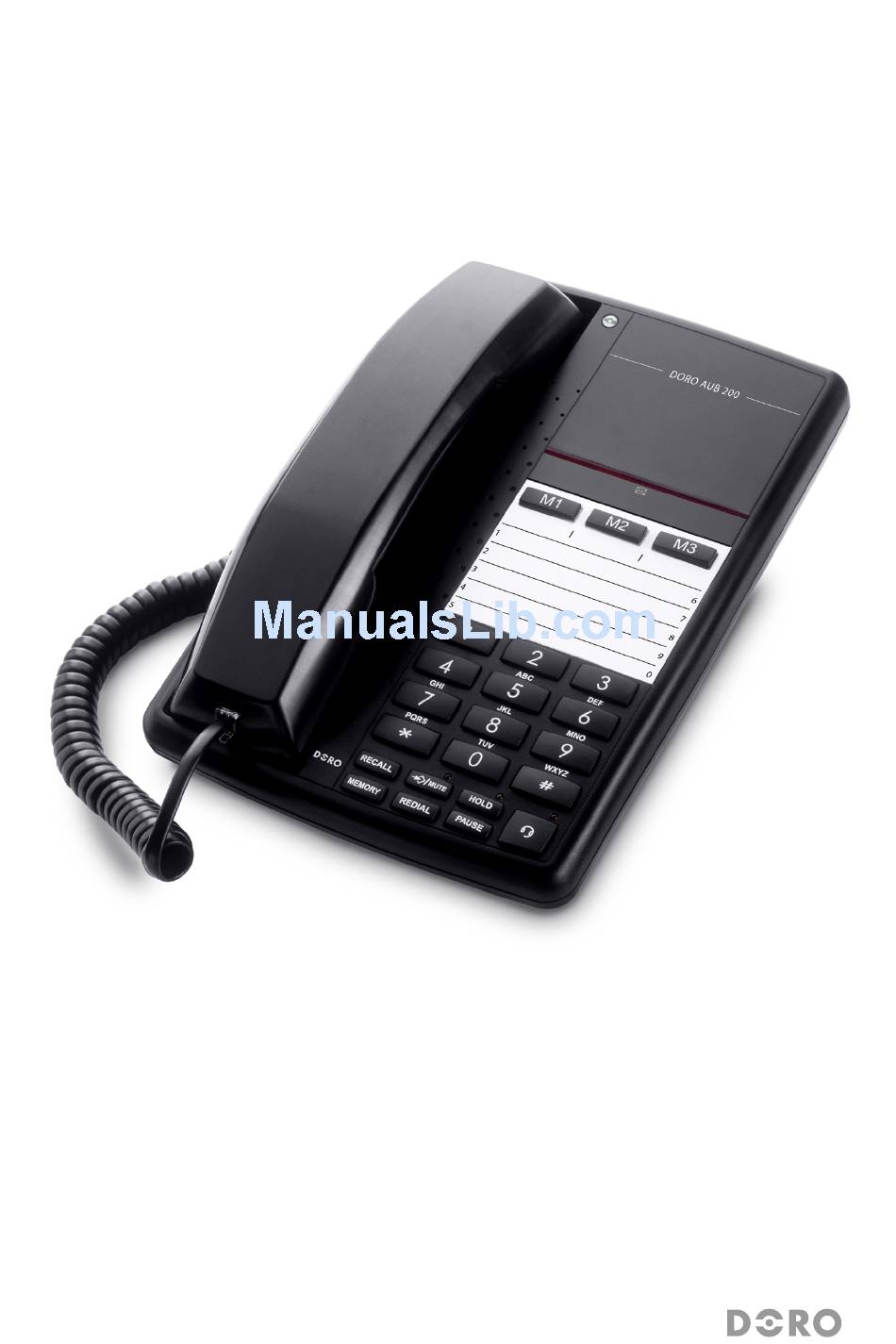

  • Page 1 AUB 200...
  • Page 2 English (see page EN 1-8) 1 Wall mounting hanger hook 9 Headset button and LED 2 Headset socket 10 Hold button and LED 3 Handset socket 11 Handset/Headset volume control 4 Store/Mute button and LED 12 One-Touch memories 5 Recall button 13 Ring/Message Wait Indicator 6 Memory button 14 Input socket for additional equipment 7 Redial button 8 Pause button...

  • Page 3: Hearing Aid Compatible

    The LED next to the headset button will illuminate when activated. Please note! DORO original headsets are tested and adapted for this telephone. Other types and makes of headsets may be used, though the function and sound quality can not be guaranteed. Any damage occurring due to incompatible or non Doro headsets being installed, will not be covered under the telephone guarantee.

  • Page 4: Volume Control

    English Volume control The volume level in the earpiece can be increased or decreased using the volume control knob on the side of the telephone. Mute button The microphone can be turned off/on during a call by pressing MUTE. Redial button If the number dialled is engaged or if the last number dialled is to be redialled, lift the receiver or press the headset button and press the REDIAL button. On Hold Press the HOLD button to place a call on hold. The LED next to the button will illuminate. The call can be resumed by pressing the HOLD button again or from another telephone connected to the same line. Recall Press the RECALL button followed by the extension number to transfer calls when connected to a PBX. Access to additional network services can be gained by using the RECALL button, and keys. Contact your network operator for more information. Select either TIME/EARTH recall using the switch located on the underside of the unit. Memory The telephone will store 3 one-touch(M1-M3) and 10 two-touch memories (up to 21 digits). When a number is stored, you need only press one or two buttons to make a call. Storing One-touch Memories 1. Lift the handset and press (ignore anything you hear in the earpiece). 2. Press desired location M1-M3. 3. Enter the phone number. Press and replace the handset. Dialing using One-touch Memories Lift the handset and press desired location M1-M3. Storing Two-touch Memories 1. Lift the handset and press (ignore anything you hear in the earpiece).

  • Page 5: Technical Information

    English Ringer 1. Lift the receiver (ignore the dialling tone) and press the store button and 2. Select ring signal by pressing the number keys in accordance with the table below. 3. Press store button and replace the receiver. The ring signal is now set. Melody type Key/level Melody A ......1=Low, 2=Normal, 3=High Melody B ......4=Low, 5=Normal, 6=High Melody C ......7=Low, 8=Normal, 9=High Off* ........0 * If the key 0 is selected, the ring signal will be turned off until the next time the receiver is lifted. After that, the ring signal will revert to the previous setting.

  • Page 6: Declaration Of Conformity

    English Declaration of conformity Doro hereby declares that this product, Doro AUB 200, conforms with the essential requirements and other relevant regulations contained in the Directive 1999/5/EC, 2002/95/EC. A copy of the manufacturer’s declaration is available at www.doro.com/ dofc Troubleshooting Check that the telephone cord is undamaged and properly plugged in. Disconnect any additional equipment that may be connected. If the problem is resolved the fault is with the other equipment. Test the equipment on a known working line. If the product works, then the fault is probably with your line. If you are still experiencing difficulties, contact the place of purchase. If you cannot resolve the fault using the faultfinder section, technical support is premium rate telephone available by email on tech@doro-uk.com or via a...
  • Page 7 English...
  • Page 8 English Version 1.0...
