Summary of Contents for Electrolux EFC 90505

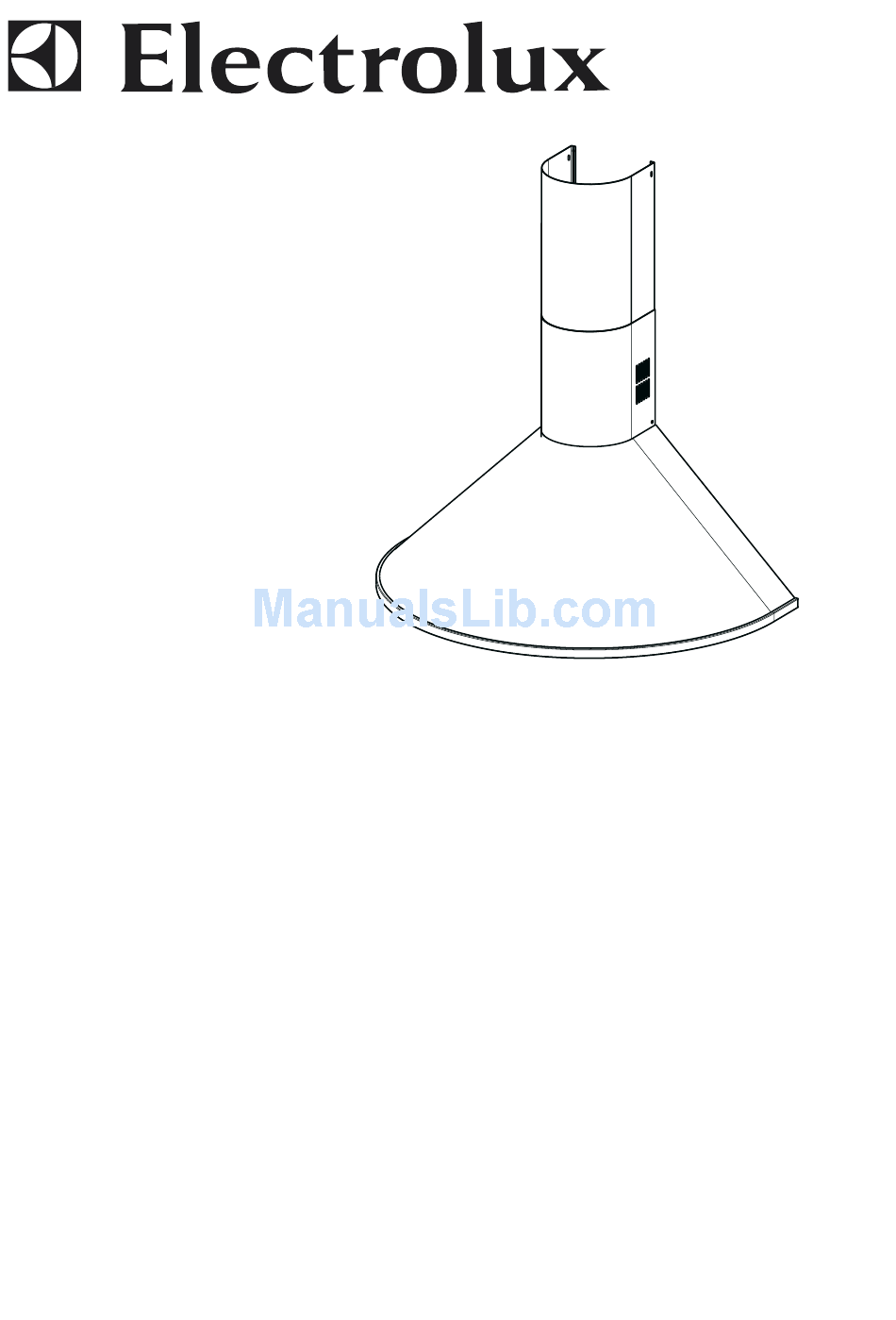

- Page 1 EFC 90505 Instructions Manual Manual de instrucciones Manual de Instruções...
-
Page 2: Table Of Contents
Instructions Manual INDEX RECOMMENDATIONS AND SUGGESTIONS ........................5 CHARACTERISTICS................................6 INSTALLATION ..................................8 USE.......................................11 MAINTENANCE..................................12... - Page 3 Manual de instrucciones ÍNDICE CONSEJOS Y SUGERENCIAS ............................13 CARACTERÍSTICAS ................................14 INSTALACIÓN..................................16 USO ......................................19 MANTENIMIENTO................................20...
-
Page 4: Características
Manual de Instruções ÍNDICE CONSELHOS E SUGESTÕES ............................21 CARACTERÍSTICAS ................................22 INSTALAÇÃO ..................................24 UTILIZAÇÃO..................................27 MANUTENÇÃO ..................................28... -
Page 5: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. • The minimum safety distance between the cooker top and the extrac- tor hood is 650 mm. • Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood. -
Page 6: Characteristics
CHARACTERISTICS Dimensions... - Page 7 Components Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Blower, Filters Telescopic Chimney comprising: Upper Section Lower Section Reducer Flange ø 150-120 mm 14.1 Air Outlet Connection Extension Air Outlet Connection Ref. Q.ty Installation Components Hood Body Fixing Bracket 7.2.1 Upper Chimney Section Fixing Brackets Wall Plugs...
-
Page 8: Installation
INSTALLATION Wall drilling and bracket fixing Wall marking: • Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed. • Draw a horizontal line at 650 mm above the hob for installation without the back panel, or at height H (H = height of the visible part of the panel) for installation with the back panel. - Page 9 Mounting the hood body • Before hooking up the hood body, adjust the two screws Vr located on the hood body connection points so that they are at the half way point. • Hook the hood body to the mounted bracket. •...
- Page 10 ELECTRICAL CONNECTION • Connect the hood to the mains through a two-pole switch hav- ing a contact gap of at least 3 mm. • Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.
-
Page 11: Use
Light Switches the lighting system on and off Motor Switches the extractor motor on and off Speed Sets the operating speed of the extractor: 1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour. 2. -
Page 12: Maintenance
MAINTENANCE Grease filters CLEANING METAL SELF- SUPPORTING GREASE FILTERS • The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher. • Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time. - Page 16 The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could oth- erwise be caused by inappropriate waste handling of this product.
