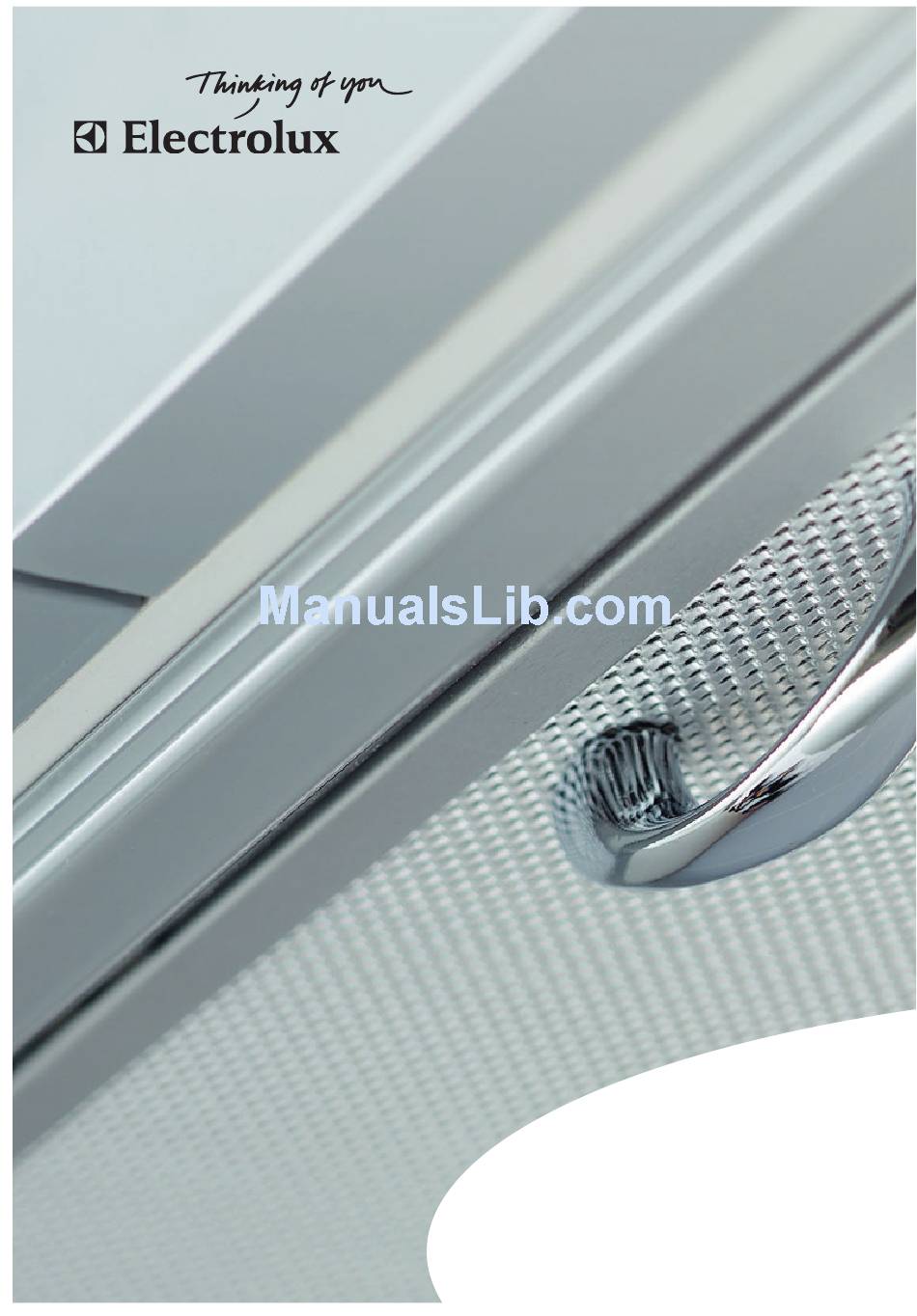

- Page 1 USER MANUAL EFC90245X...
- Page 2 We were thinking of you when we made this product...
- Page 3 If you require guidance in the use of the appliance or require further in- formation on Electrolux Products, please contact our Customer Care Department. For general enquiries concerning your Electrolux appliance or for further information, visit our website at http://www.electrolux.co.uk...
-
Page 4: Important Safety Information
• Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or more serious malfunction. Refer to your local Electrolux Service Force Centre. Always insist on genuine spare parts. -
Page 5: Your Appliance
OPERATING INSTRUCTIONS This cooker hood is designed to extract unpleasant odours from the kitchen, it will not extract steam. Cooker Hood Controls The cooker hood functions are controlled by four push button switches located centrally in the control fascia. Turns the worktop lighting On and Off Mains light - illumination indicates fan motor is running V1 Turns the fan motor On and Off at low speed,... - Page 6 To Operate Select the required fan speed and light if required. Recirculation In the recirculation mode the contaminated air enters the cooker hood through the grease filters. The air is cleaned by passing through the charcoal filters before being passed back into the kitchen through the grilles in either side of the chimney stack.
-
Page 7: Maintenance And Cleaning
MAINTENANCE AND CLEANING Before carrying out any maintenance or cleaning isolate the cooker hood from the mains supply. The cooker hood must be kept clean, as a build up of grease or fat can be a fire hazard. External Cleaning Wipe the cooker hood frequently with warm soapy water using a mild detergent. - Page 8 Position the new charcoal filter in the position marked and while holding the filter replace the fixing hooks as illustrated. This appliance can be a possible fire hazard if the grease and charcoal filters are not cleaned and replaced as recommended.
-
Page 9: Something Not Working
For general assistance with your appliance or for further information on Electrolux products please contact our Customer Care Department. Customer Services Department Major Appliances... - Page 10 GUARANTEE CONDITIONS We Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux built-in appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, the company will, at our option repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition that: •...
-
Page 11: Installation Instructions
INSTALLATION INSTRUCTIONS It is dangerous to alter the specifications or attempt to modify this product in any way. Technical Information DIMENSIONS ELECTRICAL SUPPLY: Note: CE Marking certifies that this appliance complies with the requirements laid down in EEC directive 89:336. (Electromagnetic compatibility) and subsequent modifications and Low Voltage directive 72/23/E. -
Page 12: Installing The Cooker Hood
INSTALLING THE COOKER HOOD Please ensure that when the appliance is installed it is easily accessible to an engineer in the event of a breakdown. All installations must comply with the local authorities requirements for the discharge of exhaust air. Incorrect installation may affect the safety of this cooker hood. -
Page 13: Fitting The Wall Brackets
INSTALLING THE COOKER HOOD Fitting the Wall Brackets Wall marking: • Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed. •... - Page 14 INSTALLING THE COOKER HOOD Fitting the Hood Body Before starting to fix the hood body, tighten the two screws Vr located on the top of the hood body. Hook the hood body onto the two 4.2x44.4mm screws item 12a. Fully tighten the screws item 12a. Using a screw driver and spirit level, adjust the screws item Vr until the hood body is level.
- Page 15 INSTALLING THE COOKER HOOD Extraction The charcoal filter is not required in this mode and should be removed. Ducting The ducting used must be Ø150mm or Ø120mm in diameter. If possible duct through the wall immediately above the hood body. For the best performance use the shortest possible duct run and the minimum number of bends.
-
Page 16: Fitting The Chimney Stack
INSTALLING THE COOKER HOOD Fitting the Chimney Stack ����� The chimney consists of two sections. The lower chimney measures 740mm and the ��� upper chimney (with the recirculation grilles on either side) measures 465mm. The overall installed measurement is min. 870 - max ���... -
Page 17: Service And Spare Parts
Service Force Centre covering your post code area. Customer Care Department For general enquiries concerning your Electrolux appliance or for further information on Electrolux products, please contact our Customer Care Department by letter or telephone at the address below Customer Services Department... - Page 20 436005302_01 - 110125...
