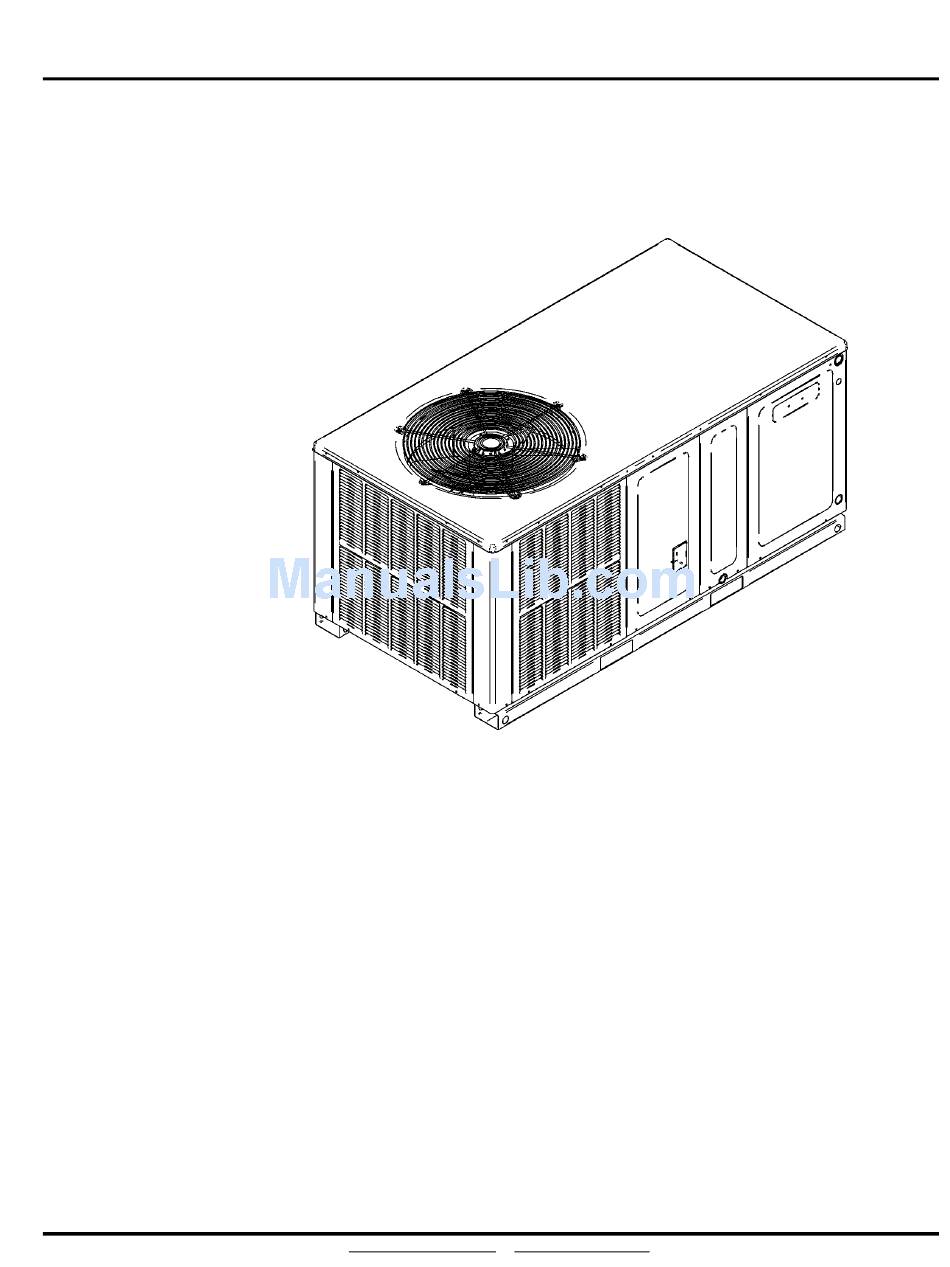

REPAIR PARTS
GPH14 H-Series
Package Heat Pumps
GPH1424H41AB
GPH1430H41AB
GPH1436H41AB
GPH1442H41AB
GPH1448H41AB
GPH1460H41AB
This manual is to be used by qualified technicians only.
© 2010 Goodman Manufacturing Company, L.P. ◊ 5151 San Felipe, Suite 500 ◊ Houston, TX 77056
www.goodmanmfg.com
www.amana-hac.com
RP-631
September 2010
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Goodman GPH1424H41AB
Summary of Contents for Goodman GPH1424H41AB
-
Page 1: Repair Parts
REPAIR PARTS GPH14 H-Series Package Heat Pumps GPH1424H41AB GPH1430H41AB GPH1436H41AB GPH1442H41AB GPH1448H41AB GPH1460H41AB This manual is to be used by qualified technicians only. © 2010 Goodman Manufacturing Company, L.P. ◊ 5151 San Felipe, Suite 500 ◊ Houston, TX 77056 www.goodmanmfg.com www.amana-hac.com... - Page 2 Important Information Index Functional Parts List Illustration and Parts Views shown are for parts illustrations only, not servicing procedures. Text Codes: AR - As Required NA - Not Available NS - Not Shown 00000000 - See Note QTY - Quantity Example (QTY 3) (If Quantity not shown, Quantity = 1) M - Model Example (M1) (If M Code not shown, then part is used on all Models)
-
Page 3: Functional Parts
REVERSING VALVE (M3, M4, M5, M6) B1225022S SOLENOID COIL B1141643 TRANSFORMER 208/230, 24V RP-631 SPECIAL PARTS IO-398 B1757910 Expanded Model Nomenclature M1 - GPH1424H41AB M2 - GPH1430H41AB M3 - GPH1436H41AB M4 - GPH1442H41AB M5 - GPH1448H41AB M6 - GPH1460H41AB www.goodmanmfg.com www.amana-hac.com I&O SUPPLEMENTAL INSERT (EBTDR) -
Page 4: Cabinet Assembly
Cabinet Assembly www.goodmanmfg.com www.amana-hac.com RP-631... - Page 5 LOUVERED PANEL 5 BANK 32.5" (M3, M4) 0121G00091PDGS LOUVERED PANEL 5 BANK 36" (M5, M6) 0121G00044PRF BASEPAN RAIL (QTY 2) Expanded Model Nomenclature M1 - GPH1424H41AB M2 - GPH1430H41AB M3 - GPH1436H41AB M4 - GPH1442H41AB M5 - GPH1448H41AB M6 - GPH1460H41AB RP-631 Ref.
-
Page 6: Chassis Assembly
Chassis Assembly www.goodmanmfg.com www.amana-hac.com RP-631... - Page 7 0130M00057 0130M00009P Image 3: 0201G00031P 0201G00030P 0161G00001P B1373315 0163G00000P B9102097 Expanded Model Nomenclature M1 - GPH1424H41AB M2 - GPH1430H41AB M3 - GPH1436H41AB M4 - GPH1442H41AB M5 - GPH1448H41AB M6 - GPH1460H41AB www.goodmanmfg.com www.amana-hac.com Description: COMPRESSOR SCROLL HARNESS EVAP DRIP SHIELD SOLENOID COIL FLOWRATOR .047 [COND] (M2)
- Page 8 Top Panel and Control Box Assembly www.goodmanmfg.com www.amana-hac.com RP-631...
- Page 9 CAPACITOR 5/45/440V (M3, M4, M5) CAP050700440RTS CAPACITOR 5/70/440V (M6) 20520901 CAPACITOR STRAP 0259G00003 WIRE HARNESS, ELECTRIC HEAT Expanded Model Nomenclature M1 - GPH1424H41AB M2 - GPH1430H41AB M3 - GPH1436H41AB M4 - GPH1442H41AB M5 - GPH1448H41AB M6 - GPH1460H41AB RP-631 Ref.
-
Page 10: Blower Assembly
Blower Assembly www.goodmanmfg.com www.amana-hac.com RP-631... - Page 11 LOCKNUT, NYLON, INSERT 1/4, 20 C6121810 BLOWER CUT-OFF (M1, M2, M3, M4, M5) 2964700 BLOWER CUT-OFF 11 X 8 (M6) Expanded Model Nomenclature M1 - GPH1424H41AB M2 - GPH1430H41AB M3 - GPH1436H41AB M4 - GPH1442H41AB M5 - GPH1448H41AB M6 - GPH1460H41AB RP-631 Ref.
- Page 12 THIS PAGE INTENTIONALLY LEFT BLANK RP-631...
