4. Insert a Handrail Extension (85) into the post on the left
Upright (82). If necessary, tap the Handrail Extension with
a rubber mallet to fully insert it. Align the holes in the
Handrail Extension with the holes in the post. Next, attach
the Handrail Extension by tightening three Handrail Screws
(54) into the indicated holes. Note that the hole in the left
side of the post is not used. Note: If there is only one
hole in the top of the post, tighten the third Handrail
Screw into the hole in the left side of the post.
Identify the Left Handrail Grip (110), which has a large
cutout in the right side. Slide the Left Handrail Grip as far
as possible onto the Handrail Extension (85). It may be
helpful to apply soapy water to the Handrail Extension.
5. Make sure that the front edge of the Left Handrail Grip
(110) is under the Console Base (87) as shown. Tighten a
Handrail Screw (54) into the side of the Left Handrail Grip
as shown.
Attach the Right Handrail Grip (not shown) and the other
Handrail Extension (not shown) as described in step 4
and this step.
Note: Extra screws may be included.

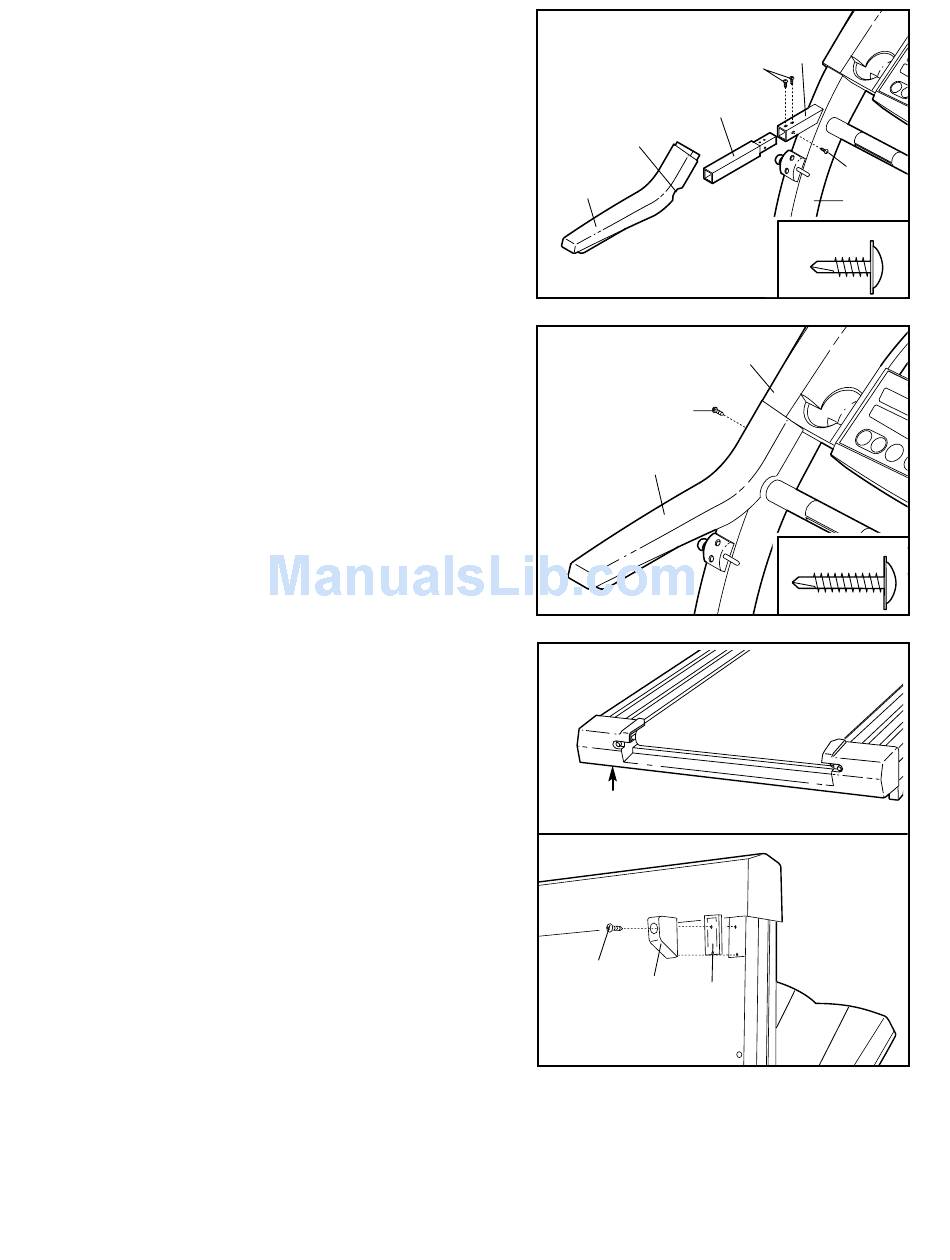

6. Refer to drawing 6a. Locate the left Rear Foot (59) on
the treadmill. If the left Rear Foot touches the floor, go to
step 7. If there is a space between the left Rear Foot and
the floor, follow the instructions below.
Hold the treadmill firmly with both hands, and raise the
treadmill to the storage position as described on page 18.
Refer to drawing 6b. Using a phillips screwdriver, remove
the Rear Foot Screw (60), the right Rear Foot (59), and
the Rear Foot Spacer (120) from the treadmill. Reattach
the right Rear Foot without the Rear Foot Spacer. Hold
the treadmill with both hands, and lower the treadmill as
described on page 18.
Check the left Rear Foot (59 [see drawing 6a]). If the left
Rear Foot is still off the floor, raise the treadmill and re-
move the left Rear Foot. Snap the Rear Foot Spacer
(120) onto the left Rear Foot and reattach the left Rear
Foot and the Rear Foot Spacer. Carefully lower the
treadmill.
7. Make sure that all parts are tightened before you use the treadmill. Keep the included allen wrench in a
secure place. The allen wrench is used to adjust the walking belt (see page 20). To protect the floor or carpet
from damage, place a mat under the treadmill.
