8-2-3. Installing the RC25 Rack Mount Kits

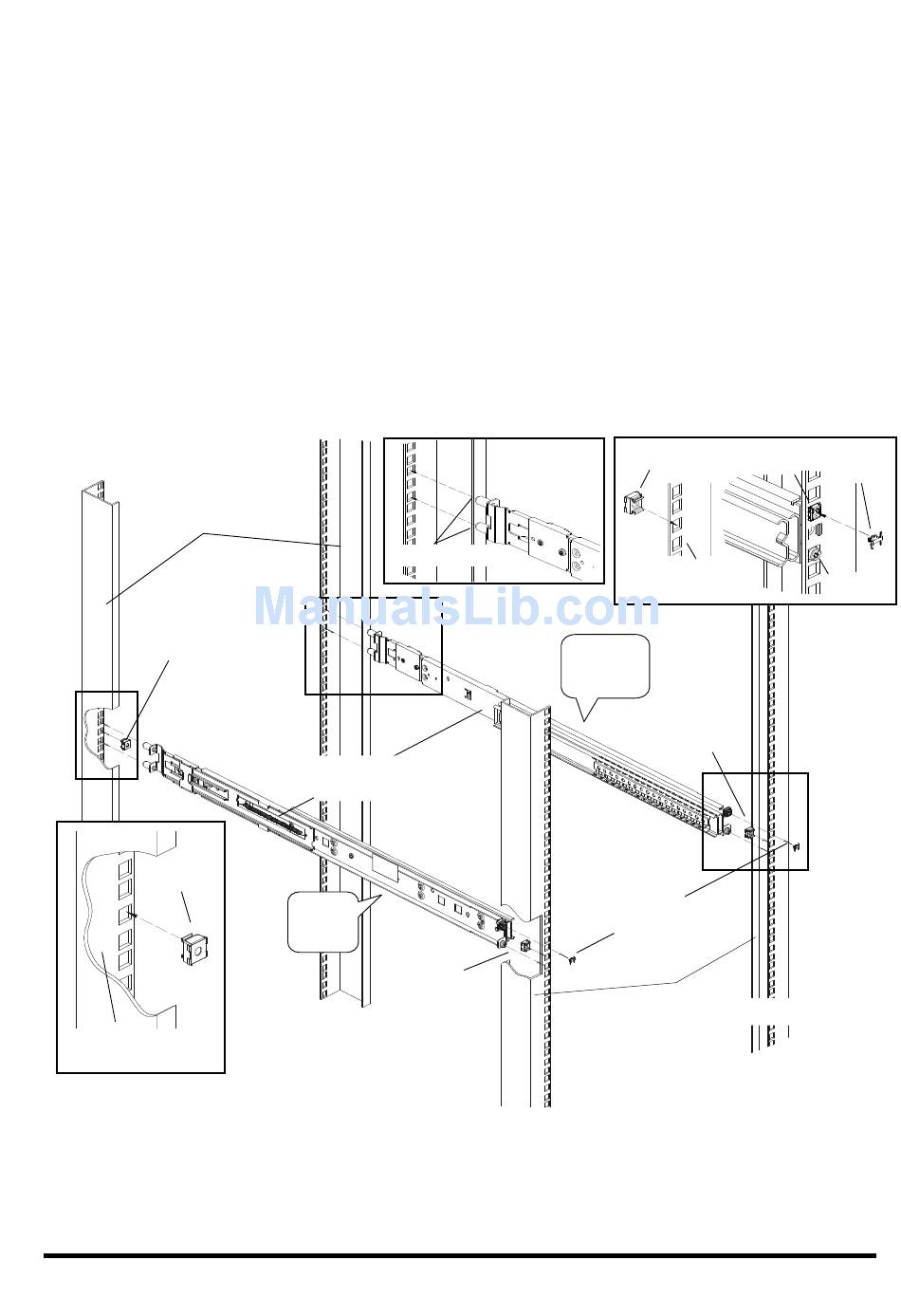

(1) Attach one cage nut on each of the right and left front-side rack braces, and attach
another cage nut on the left rear-side rack brace.
(2) Insert the two protrusions on the rear side of the RC25 Rack Mount Kits into the rear-side
rack braces, so that the inserted RC25 Rack Mount Kits are at the same height unit (U).
One RC25 Rack Mount Kit is for the left rear-side rack brace and the other is for the right.
Find the letters LEFT or RIGHT on the side of each RC25 Rack Mount Kit and attach
each RC25 Rack Mount Kit to the suitable side of the rack.
(3) Keep the RC25 Rack Mount Kits horizontal at the same height unit (U) and attach them to
the front-side rack braces.
Check that the Easy mounting-clips and centering screws are inserted firmly into the
front-side rack braces.
(4) Insert the Security locks into the Easy mounting-clips on the front side of the RC25 Rack
Mount Kits.
Rear-side rack braces
Cage nut
Cage nut
Rear-side rack
brace
Protrusions
RC25 Rack
Mount Kits
LEFT
Cage nut
7
Easy
Cage nut
mounting-clip
Front-side
rack brace
RIGHT
Cage nut
Security
locks
Front-side rack braces
Security
lock
Centering
screw
