Connections

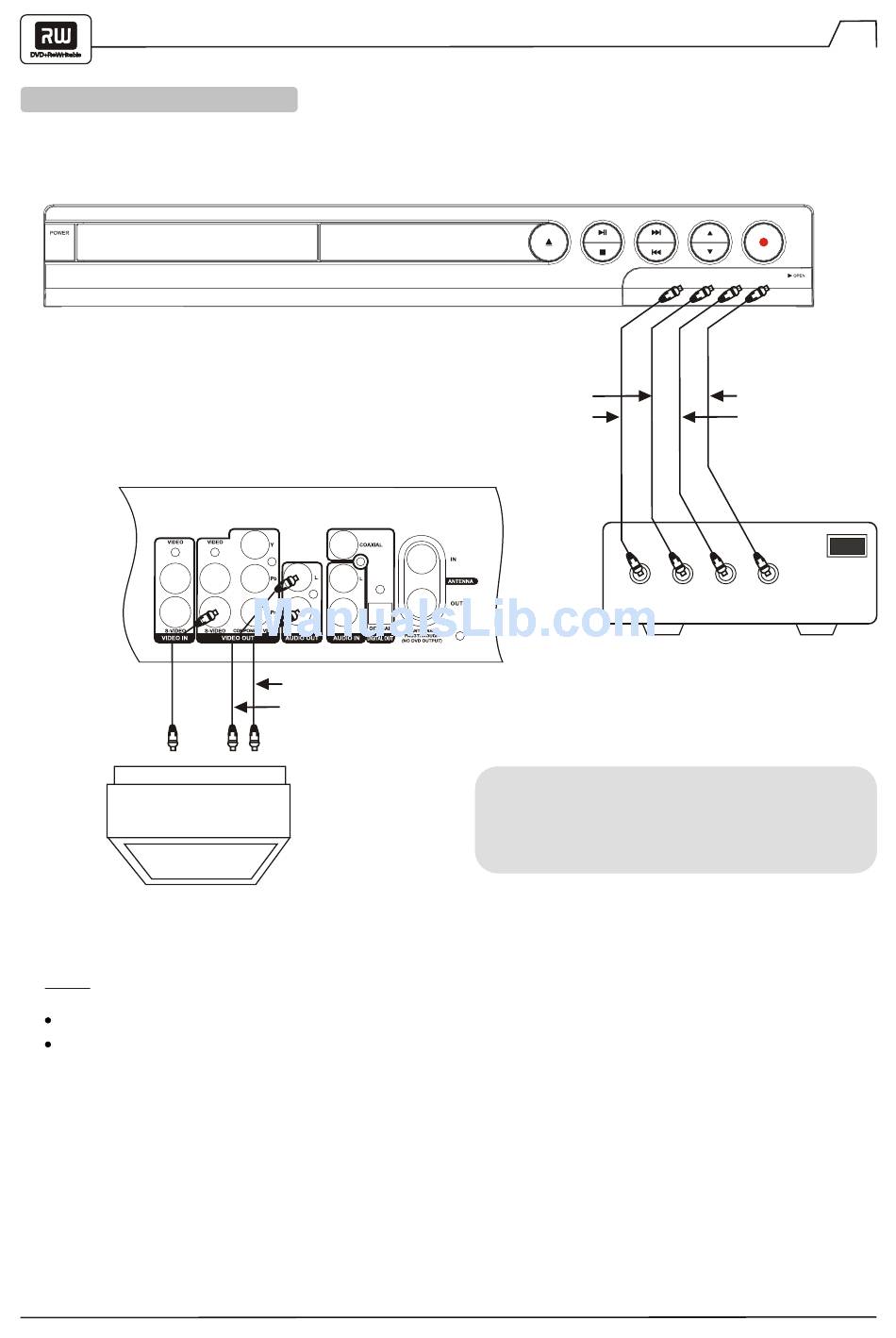

FRONT A/V CONNECTIONS

DVD recorder front panel
Video
cable
TV
NOTE
Refer to the owner's manual of your external source if necessary.
Turn off the power and unplug your external source and DVD recorder before making connections.
Audio
cables
(L, R)
Signal output
PLAY/PAUSE NEXT/PREV
OPEN/CLOSE STOP
Use either
S-Video or
Video cable
S-VIDEO
OUT
Connect your recorder with an S-Video cable (not
included) if your external Source is equipped with
an S-Video input. Do not connect the yellow video
cable when using an S-Video cable.
CHANNEL RECORD
Audio cables
(left, right)
External Source
VIDEO AUDIO OUT
OUT LEFT RIGHT
12
