AEG 6100 M-IN Installation And Operating Instructions Manual

Ceramic hob
Hide thumbs

Advertisement

Quick Links

6100 M-IN
Ceramic hob
Installation and Operating Instructions

Advertisement

loading

  Summary of Contents for AEG 6100 M-IN

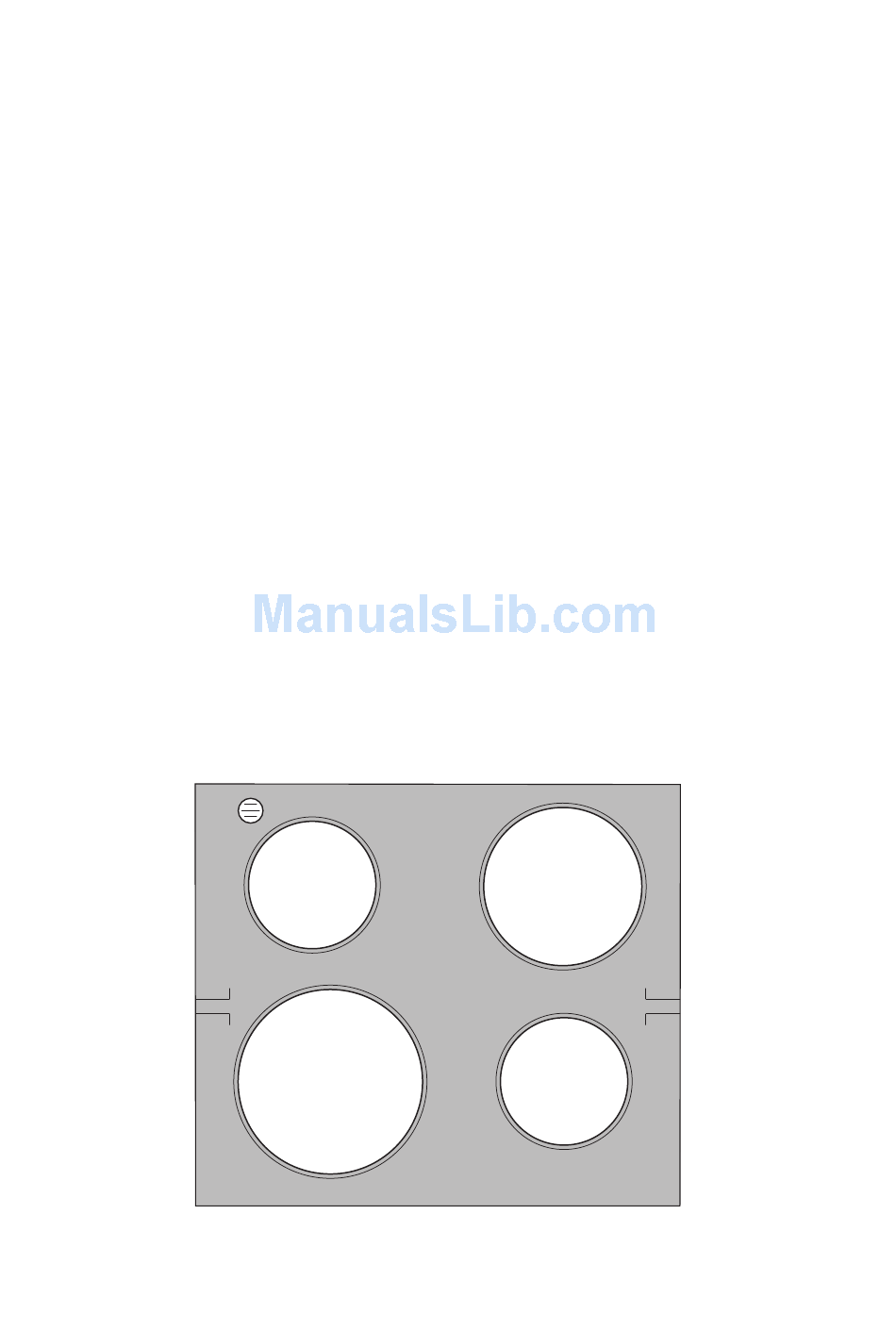

  • Page 1 6100 M-IN Ceramic hob Installation and Operating Instructions...
  • Page 2: Dear Customer

    Dear Customer, Please read these user instructions carefully and keep them to refer to later. Please pass the user instructions on to any future owner of the appli- ance. The following symbols are used in the text: Safety instructions Warning! Notes that concern your personal safety. Important! Notes that show how to avoid damage to the appliance.
  • Page 3: Table Of Contents

    Contents Operating Instructions ........Safety instructions.
  • Page 4: Operating Instructions

    Operating Instructions 1 Safety instructions Please comply with these instructions. If you do not, any damage re- sulting is not covered by the warranty. This appliance conforms with the following EU Directives: – 73/23/EEC dated 19.02.1973 Low Voltage Directive – 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Directive 92/31/EEC –...
  • Page 5: Safety During Use

    Safety during use • Remove stickers and film from the glass ceramic. • There is the risk of burns from the appliance if used carelessly. • Cables from electrical appliances must not touch the hot surface of the appliance or hot cookware. •...
  • Page 6: Description Of The Appliance

    Description of the Appliance Cooking surface layout Single cooking zone Single cooking zone 1200W 1800W Oven steam outlet Residual heat Residual heat indicator indicator Single cooking zone Single cooking zone 2300W 1200W Residual heat indicator The residual heat indicator lights up, as soon as the corresponding cooking zone is hot.
  • Page 7: Operating The Hob

    Operating the hob You operate the appliance with the combination appliance’s ring switches. The operation and the function of the ring switches is de- scribed in the Operating Instructions for the combination appli- ance. When a cooking zone is switched on, it may hum briefly. This is a char- acteristic of all ceramic glass cooking zones and does not impair either the function or the life of the appliance.
  • Page 8: Cleaning And Care

    Cleaning and care Take care! Risk of burns from residual heat. Important Sharp objects and abrasive cleaning materials will damage the appliance. Clean with water and washing up liquid. Important Residues from cleaning agents will damage the appliance. Remove residues with water and washing up liquid. Cleaning the appliance after each use 1.
  • Page 9: What To Do If

    What to do if … Problem Possible cause Remedy The cooking zones are not The desired heat setting is Set the heat setting. functioning. not set. The fuse in the house’s Check the fuse. electrical wiring (fuse box) If the fuses trip a number has been tripped.
  • Page 10: Disposal

    Disposal Packaging material The packaging materials are environmentally friendly and can be recy- cled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at your local waste disposal facilities. Old appliance The symbol on the product or on its packaging indicates that this...
  • Page 11: Installation Instructions

    Installation Instructions Safety instructions The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accord- ance with the regulations, etc.) Installation may only be carried out by a qualified electrician. The minimum distances to other appliances and units are to be ob- served.
  • Page 12 • In order to facilitate access if servicing is required, there must be a space the size of the cut-out section in the worktop and 150mm high under the hob. Anything installed in this area, e.g. anti-shock protec- tion, must be easily removable. Sticking the seal in the rabbet •...
  • Page 13: Assembly

    Assembly...
  • Page 15 Removal...
  • Page 16: Rating Plates

    Rating Plates 6100 M-IN 949 591 765 KEE2023 230 V 50 Hz 6,5 kW AEG - ELECTROLUX 6100 M-IN 949 592 346 55AAD55ZO 230 V 50 Hz 6,5 kW AEG - ELECTROLUX...
  • Page 17: Warranty Conditions

    Great Britain Standard guarantee conditions We, AEG, undertake that if within 12 months of the date of the purchase this AEG appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we...
  • Page 19: Service And Spare Parts

    AEG appliance, or for further information on AEG products please contact our Customer Care Depart- ment by letter or telephone at the address below or visit our website at www.aeg.co.uk. Customer Care Department For Customer Service in the Republic Major Appliances...
  • Page 20 USD 14 billion in more than 150 countries around the world. AEG Hausgeräte GmbH Postfach 1036 D-90327 Nürnberg http://www.aeg-electrolux.de © Copyright by AEG 822 925 109-B-101105-04 Subject to change without notice...
