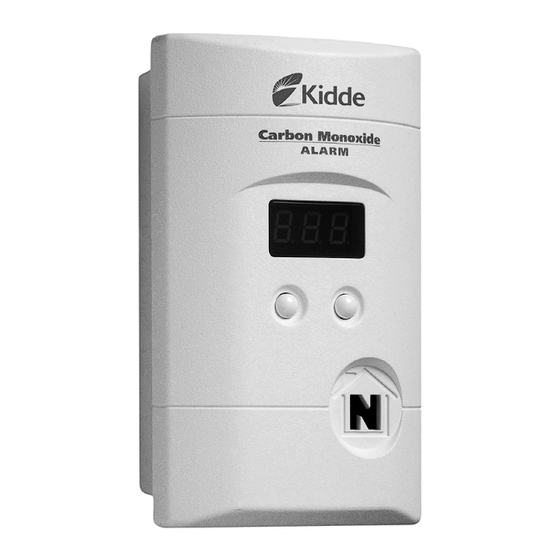

Kidde KN-COPP-3 User Manual

Carbon monoxide alarm with digital display, 120v ac, 9v battery backup, peak level memory
Hide thumbs Also See for KN-COPP-3:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , User Manual

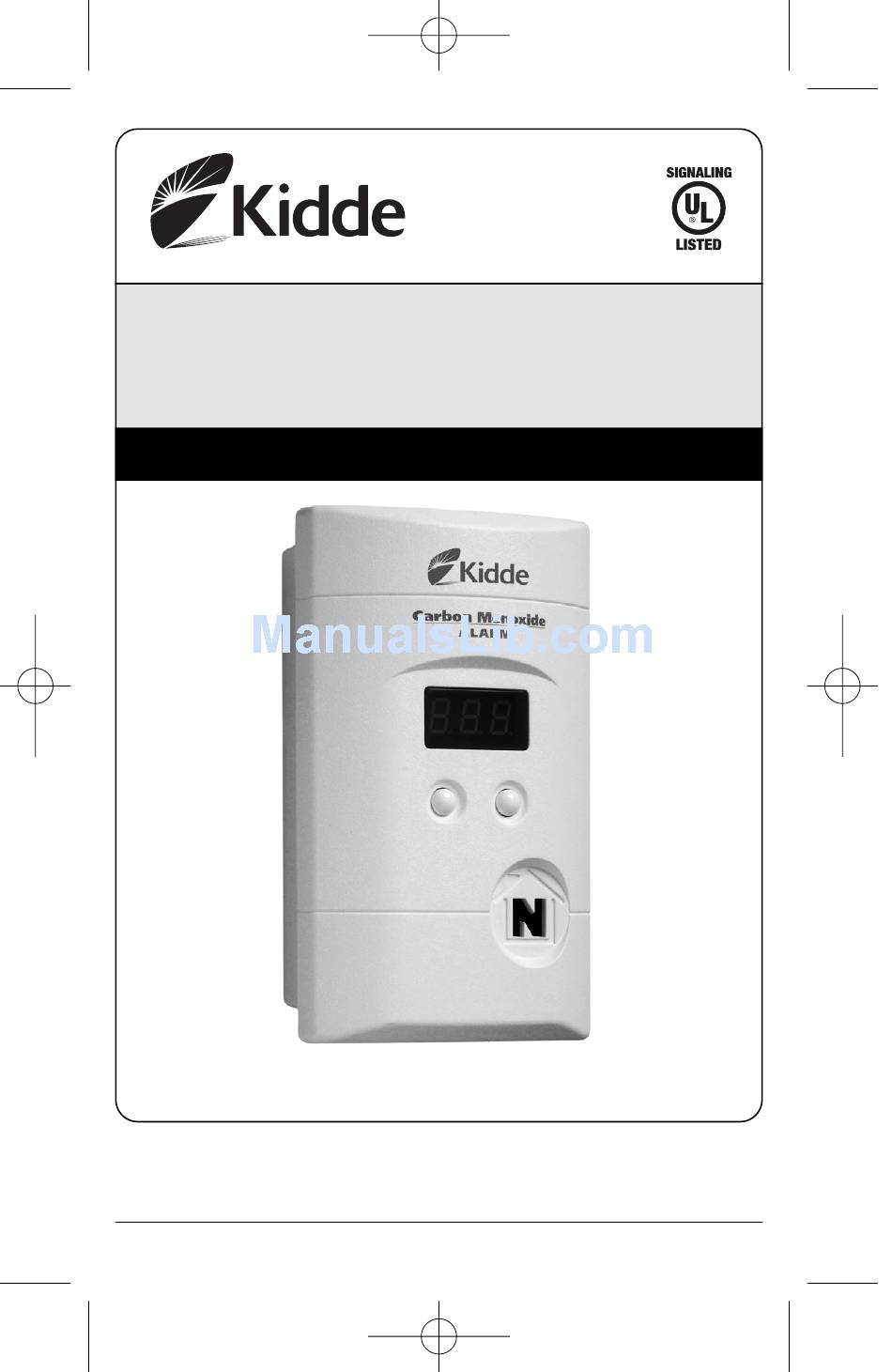

2507-7214-00.qxd

Carbon Monoxide Alarm

User's Guide
Model: KN-COPP-3 (900-0076)
• 120V AC
ATTENTION: Please take a few minutes to thoroughly read this
user's guide which should be saved for future reference and
passed on to any subsequent owner.
Manual P/N 820-1388 Rev. A
2008.1.9
• 9V Battery Backup
2507-7214-00
1:55 PM
Page 1
KN-COPP-3
with Digital Display
• Peak Level Memory

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KN-COPP-3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kidde KN-COPP-3

Summary of Contents for Kidde KN-COPP-3

  • Page 1: Carbon Monoxide Alarm

    2507-7214-00.qxd 2008.1.9 1:55 PM Page 1 Carbon Monoxide Alarm User’s Guide Model: KN-COPP-3 (900-0076) KN-COPP-3 with Digital Display • 120V AC • 9V Battery Backup • Peak Level Memory ATTENTION: Please take a few minutes to thoroughly read this user’s guide which should be saved for future reference and passed on to any subsequent owner.

  • Page 2: What To Do When The Alarm Sounds

    2507-7214-00.qxd 2008.1.9 1:55 PM Page 2 What to do When the Alarm Sounds! Carbon Monoxide Alarm Procedure WARNING: Activation of the CO Alarm indicates the presence of Carbon Monoxide (CO) which can kill you. 1) Operate the Test/Reset button; 2) Call your emergency services (Fire Department or 911); PHONE NUMBER: 3) Immediately move to fresh air - outdoors or by an open door/window.

  • Page 3: Important Warning Statements

    Note: Many times throughout this User’s Guide, we will refer to Carbon Monoxide as “CO”. This Kidde carbon monoxide (CO) alarm is an important part of your family’s home safety plan. This alarm has been designed and tested to detect CO buildup in a residential environment. Your alarm is for use specifically in the home.
  • Page 4 This alarm has not been investigated for carbon monoxide detec- tion below 70 PPM. Contents of This User’s Guide 1. Information About Carbon Monoxide 2. Product Features and Specifications 3. Installation Locations 4. Installation Instructions 5. Alarm Characteristics 6. KN-COPP-3 Operating Characteristics 7. Maintenance 8. Limited Warranty...

  • Page 5: Information About Carbon Monoxide

    If you experience even mild symptoms of CO poisoning, consult your doctor immediately! Carbon Monoxide PPM Levels Model KN-COPP-3 is equipped with a digital display that shows levels of CO (displayed in PPM – parts per million). Learn the difference between dangerous, high, mid and low levels.
  • Page 6 See “What to do When the Alarm Sounds” (inside front cover). Low Levels: Generally below 50 PPM. Kidde recommends you take action to eliminate the source of CO. See “What to do When the Alarm Sounds” (inside front cover).
  • Page 7 Because carbon monoxide is a cumulative poison, long-term exposures to low levels may cause symptoms, as well as short-term exposures to high levels. This Kidde unit has a time-weighted alarm – the higher the level of CO present, the sooner the alarm will be triggered.
  • Page 8 2507-7214-00.qxd 2008.1.9 1:55 PM Page 8 1. Information About Carbon Monoxide This CO alarm can only warn you of the presence of CO. It does not prevent CO from occurring, nor can it solve an existing CO problem. If your unit has alarmed and you’ve provided ventilation by leaving your windows and doors open, the CO buildup may have dissipated by the time help responds.

  • Page 9: Product Features And Specifications

    2507-7214-00.qxd 2008.1.9 1:55 PM Page 9 2. Product Features and Specifications Model KN-COPP-3 Digital with digital display Display Blinking Red Dot Test/Reset Peak Level Button Button Adapter Thumb Release Alarm Sounder Back Removable Door AC Adapter 9V Backup Holes Battery...

  • Page 10: Installation Locations

    Recommended Installation Locations CO alarms should be mounted in or near bedrooms and living areas. It is recommended that you install a Kidde CO alarm on each level of your home. When choosing your installation Recommended Locations locations, make sure you can hear the alarm from all sleeping areas.
  • Page 11 (4.4°C) or hotter than 100°F (37.8°C) such as crawl spaces, attics, porches and garages. • Do not install within 5 ft. of heating or cooking appliances. (Kidde recommends 15 ft. to prevent nuisance alarms). • Do not install near vents, flues, chimneys or any forced/unforced air ventilation openings.

  • Page 12: Installation Instructions

    4. Installation Instructions How to Install Your Alarm Your Kidde CO alarm with its removable adapter allows you to install the alarm as a wall mounted unit, a direct plug unit, or as a table top unit. Direct Plug Alarm In its “as shipped”...
  • Page 13 Wall Table Top Alarm You can use your Kidde CO alarm as a table top unit. Follow steps 1 thru 4 above. Instead of mounting the unit to a wall, pull out the slide support and place in a location that is easily visible. Be sure the alarm is...

  • Page 14: Alarm Characteristics

    WARNING: If at any time you test the alarm and it does not perform as described, have it replaced immediately. 6. Model KN-COPP-3 Operating Characteristics Whenever the alarm is operating, the digital display will display “0” to indicate the unit is monitoring for CO. If the alarm senses dangerous lev- els of CO, the digital display will indicate the CO concentration in parts per million (PPM), and the alarm will emit an audible alarm pattern.
  • Page 15 2008.1.9 1:55 PM Page 15 6. Model KN-COPP-3 Operating Characteristics the alarm should display “0” and begin monitoring the air for CO and will continue to do so as long as it receives power. The following table illustrates the possible digital displays, describes the audible alarm patterns, and the recommended actions to take.

  • Page 16: Maintenance

    2008.1.9 1:55 PM Page 16 6. Model KN-COPP-3 Operating Characteristics Peak Level Memory When the Peak Level button is pressed and held, the display shows the highest CO reading taken by the CO alarm since its last reset or power up.
  • Page 17 2507-7214-00.qxd 2008.1.9 1:55 PM Page 17 7. Maintenance Battery Replacement NOTE: This CO alarm is not battery operated. However, these alarms are equipped with 9 volt battery backup – the 9 volt battery is to supply short term back-up during a power outage. When replacing the battery, use one of the following approved brands: •...
  • Page 18 2507-7214-00.qxd 2008.1.9 1:55 PM Page 18 7. Maintenance Move the CO Alarm to a remote location, to prevent possible damage or contamination of the sensor, prior to performing any of the following: • Staining or stripping floors or furniture, painting or wall-papering •...
  • Page 19 IMPORTANT: Do not remove unit back cover. Back cover removal will void warranty. Your Kidde Carbon Monoxide Alarm is not a substitute for property, disability, life or other insurance of any kind. Appropriate insurance coverage is your responsibility. Consult your insurance agent.
