Summary of Contents for Kidde KHU100-28

  • Page 1 User Manual of Product 1: Kraus KHU100-28 Kitchen Sink, 28 Inch, Stainless Steel User Manual of Product 2: Kraus KPF-1610SFS Bolden 18-Inch Commercial Kitchen Faucet with Dual Function Pull-Down Sprayhead in all-Brite Finish, Spot Free Stainless Steel...

  • Page 2: Carbon Monoxide Alarm

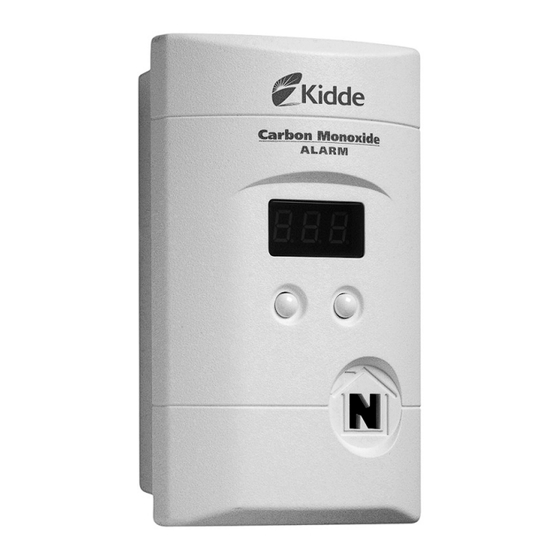

    Carbon Monoxide Alarm User’s Guide Model: KN-COPP-3 (900-0076) KN-COPP-3 with Digital Display • 120V AC • 9V Battery Backup • Peak Level Memory ATTENTION: Please take a few minutes to thoroughly read this user’s guide which should be saved for future reference and passed on to any subsequent owner.

  • Page 3: What To Do When The Alarm Sounds

    What to do When the Alarm Sounds! Carbon Monoxide Alarm Procedure WARNING: Activation of the CO Alarm indicates the presence of Carbon Monoxide (CO) which can kill you. 1) Operate the Test/Reset button; 2) Call your emergency services (Fire Department or 911); PHONE NUMBER: 3) Immediately move to fresh air - outdoors or by an open door/window.

  • Page 4: Important Warning Statements

    Note: Many times throughout this User’s Guide, we will refer to Carbon Monoxide as “CO”. This Kidde carbon monoxide (CO) alarm is an important part of your family’s home safety plan. This alarm has been designed and tested to detect CO buildup in a residential environment. Your alarm is for use specifically in the home.
  • Page 5 Important Warning Statements WARNING: This product is intended for use in ordinary indoor locations of family living units. It is not designed to meas- ure compliance with Occupational Safety and Health Administration (OSHA), commercial or industrial standards. It is not suitable for installation in hazardous locations as defined in the National Electric Code.

  • Page 6: Information About Carbon Monoxide

    1. Information About Carbon Monoxide General Carbon Monoxide Information Carbon monoxide is a colorless, odorless and tasteless poison gas that can be fatal when inhaled. CO inhibits the blood’s capacity to carry oxy- gen. Periodically review this user's guide and discuss your CO alarm emer- gency procedure with all the members of your family.
  • Page 7 See “What to do When the Alarm Sounds” (inside front cover). Low Levels: Generally below 50 PPM. Kidde recommends you take action to eliminate the source of CO. See “What to do When the Alarm Sounds” (inside front cover).

  • Page 8: Conditions That Can Produce Carbon Monoxide

    Because carbon monoxide is a cumulative poison, long-term exposures to low levels may cause symptoms, as well as short-term exposures to high levels. This Kidde unit has a time-weighted alarm – the higher the level of CO present, the sooner the alarm will be triggered.
  • Page 9 1. Information About Carbon Monoxide This CO alarm can only warn you of the presence of CO. It does not prevent CO from occurring, nor can it solve an existing CO problem. If your unit has alarmed and you’ve provided ventilation by leaving your windows and doors open, the CO buildup may have dissipated by the time help responds.

  • Page 10: Product Features And Specifications

    2. Product Features and Specifications Model KN-COPP-3 Digital with digital display Display Blinking Red Dot Test/Reset Peak Level Button Button Adapter Thumb Release Alarm Sounder Back Removable Door AC Adapter 9V Backup Holes Battery (shown installed) Cord Storage Slide Support for Table Top and Direct Plug Use Power Cord...

  • Page 11: Installation Locations

    Recommended Installation Locations CO alarms should be mounted in or near bedrooms and living areas. It is recommended that you install a Kidde CO alarm on each level of your home. When choosing your installation Recommended Locations locations, make sure you can hear the alarm from all sleeping areas.

  • Page 12: Locations To Avoid

    (4.4°C) or hotter than 100°F (37.8°C) such as crawl spaces, attics, porches and garages. • Do not install within 5 ft. of heating or cooking appliances. (Kidde recommends 15 ft. to prevent nuisance alarms). • Do not install near vents, flues, chimneys or any forced/unforced air ventilation openings.

  • Page 13: Installation Instructions

    In its “as shipped” configuration, all you need to do is install the 9V backup battery and your Slide support Kidde CO alarm is ready to be plugged directly into a wall socket. Direct Plug Alarm To install:...
  • Page 14 Table Top Alarm from Wall You can use your Kidde CO alarm as a table top unit. Follow steps 1 thru 3 above. Instead of mounting the unit to a wall, pull out the slide support and place in a location that is easily visible. Be sure the alarm is no more than three feet from the floor.The alarm does not have to be within three feet from...

  • Page 15: Important Labels Provided

    4. Installation Instructions Important Labels Provided Two labels have been provided that have important information on what to do in case of an alarm. Add the phone number of your emergency service provider in the space provided. Place one label next to the alarm after it is mounted, and one label near a fresh air source such as a door or window.
  • Page 16 6. Model KN-COPP-3 Operating Characteristics the alarm should display “0” and begin monitoring the air for CO and will continue to do so as long as it receives power. The following table illustrates the possible digital displays, describes the audible alarm patterns, and the recommended actions to take. Operating and Alarm Characteristics LED Display Shows Alarm Sound Unit Status...

  • Page 17: Maintenance

    6. Model KN-COPP-3 Operating Characteristics Peak Level Memory When the Peak Level button is pressed and held, the display shows the highest CO reading taken by the CO alarm since its last reset or power up. The Peak Level display feature will display levels between 11-999 PPM.

  • Page 18: Battery Replacement

    7. Maintenance Battery Replacement NOTE: This CO alarm is not battery operated. However, these alarms are equipped with 9 volt battery backup – the 9 volt battery is to supply short term back-up during a power outage. When replacing the battery, use one of the following approved brands: •...
  • Page 19 7. Maintenance proper sensor operation. Move the CO Alarm to a remote location, to prevent possible damage or contamination of the sensor, prior to performing any of the following: • Staining or stripping floors or furniture, painting or wall-papering • Using aerosols or adhesives WARNING: Reinstall the CO Alarm as soon as possible to assure continuous protection.
  • Page 20 IMPORT NT: Do not remove unit back cover. Back cover removal will void warranty. Your Kidde Carbon Monoxide Alarm is not a substitute for property, disability, life or other insurance of any kind. Appropriate insurance coverage is your responsibility. Consult your insurance agent.
  • Page 21 Carbon Monoxide Alarm User’s Guide Models: KN-COB-B-LPM and KN-COPP-B-LPM (with Digital Display) KN-COB-B-LPM KN-COPP-B-LPM KN-COPP-B-LPM with Digital Display with Digital Display • Digital Display • Peak Level Memory • 3-AA Battery Operation ATTENTION: Please take a few minutes to thoroughly read this user’s guide which should be saved for future reference and passed on to any subsequent owner.
  • Page 22 What to do When the Alarm Sounds! Carbon Monoxide Alarm Procedure WARNING: Activation of the CO Alarm indicates the presence of Carbon Monoxide (CO) which can kill you. 1) Operate the Test/Reset button; 2) Call your emergency services (Fire Department or 911); PHONE NUMBER: 3) Immediately move to fresh air - outdoors or by an open door/ window.

  • Page 23: Important Warning Statements

    Note: Many times throughout this User’s Guide, we will refer to Carbon Monoxide as “CO”. This Kidde carbon monoxide (CO) alarm is an important part of your family’s home safety plan. This alarm has been designed and tested to detect CO buildup in a residential environment. Your alarm is for use specifically in the home.
  • Page 24 Important Warning Statements WARNING: This product is intended for use in ordinary indoor locations of family living units. It is not designed to measure compliance with Occupational Safety and Health Administration (OSHA), commercial or industrial standards. It is not suitable for installation in hazardous locations as defined in the National Electric Code.

  • Page 25: Information About Carbon Monoxide

    1. Information About Carbon Monoxide General Carbon Monoxide Information Carbon monoxide is a colorless, odorless and tasteless poison gas that can be fatal when inhaled. CO inhibits the blood’s capacity to carry oxygen. Periodically review this user’s guide and discuss your CO alarm emer- gency procedure with all the members of your family.
  • Page 26 See “What to do When the Alarm Sounds” (inside front cover). Low Levels: Generally below 50 PPM. Kidde recommends you take action to eliminate the source of CO. See “What to do When the Alarm Sounds” (inside front cover).
  • Page 27 1. Information About Carbon Monoxide roded or disconnected vent pipes, loose or cracked furnace exchangers. • Vehicles and other combustion engines running in an open or closed garage, attached or near a home. • Burning charcoal or fuel in grills and hibachis in an enclosed area. Conditions That Can Produce Carbon Monoxide The following conditions can result in transient CO situations: •...
  • Page 28 Because carbon monoxide is a cumulative poison, long-term exposures to low levels may cause symptoms, as well as short-term exposures to high levels. This Kidde unit has a time-weighted alarm – the higher the level of CO present, the sooner the alarm will be triggered.

  • Page 29: Product Features And Specifications

    2. Product Features and Specifications Test / Reset Green, Button Power LED Red, Alarm LED Model KN-COB-B-LPM Green, Test / Reset Power LED Button Red, Alarm LED Peak Level Button Digital Display Model KN-COPP-B-LPM with digital display WARNING: After ten (10) years from initial power up, this alarm will “beep”...

  • Page 30: Installation Locations

    CO alarms should be mounted in or near bedrooms and living areas. KITCHEN BEDROOM BEDROOM DINING It is recommended that you install a Kidde CO alarm on each level of your home. LIVING ROOM BEDROOM When choosing your installation locations, make sure you can hear Recommended Locations the alarm from all sleeping areas.
  • Page 31 (4.4°C) or hotter than 100°F (37.8°C) such as crawl spaces, attics, porches and garages. • Do not install within 5 ft. of heating or cooking appliances. (Kidde recommends 15 ft. to prevent nuisance alarms). • Do not install near vents, flues, chimneys or any forced/unforced air ventilation openings.

  • Page 32: Installation Instructions

    4. Installation Instructions Battery Installation and Replacement To install or replace the batteries in this Kidde CO alarm, please perform the following steps. 1. Slide open the bottom cover to expose the battery compartment. 2. If replacing batteries, remove the old batteries and properly dispose of them as recommended by the battery manufacturer.
  • Page 33 4. Installation Instructions Mounting This CO alarm can be either wall mounted or placed on a tabletop. For wall mounting, follow these steps: 1. Remove back mounting plate from the alarm, place it in the desired location, and mark the location of the two holes needed on the wall Screw Head Distance 2.

  • Page 34: Operating Characteristics

    5. Model KN-COB-B-LPM Operating Characteristics Whenever the alarm is operating, the green Power LED flashes every 30 seconds to indicate the unit is monitoring for CO. If the alarm senses dangerous levels of CO, the red Alarm LED will flash and the alarm will emit an audible alarm pattern.
  • Page 35 6. Model KN-COPP-B-LPM (with digital display) Operating Characteristics The following table illustrates the possible digital displays, describes the audible alarm patterns, and the recommended actions to take. Operating and Alarm Characteristics LCD Display Shows Alarm Sound Unit Status Recommendation A steady display of 4 quick beeps, Alarm condition.
  • Page 36 6. Model KN-COPP-B-LPM (with digital display) Operating Characteristics Peak Level Memory (model KN-COPP-B-LPM only) When the Peak Level button is pressed and held, the display shows the highest CO reading taken by the CO alarm since its last reset or power up. In this example 120 PPM was the maximum amount of CO recorded since the unit was last reset.

  • Page 37: Maintenance

    7. Alarm Characteristics Carbon Monoxide Alarm Indicator When the alarm senses a dangerous level of CO, the unit will emit a loud alarm pattern. The alarm pattern is 4 quick beeps followed by 5 seconds of silence, repeating for as long as dangerous conditions exist. The red Alarm LED will flash the same pattern and the digital display (where equipped) will indicate CO concentrations in parts per million (PPM).
  • Page 38 8. Maintenance Move the CO Alarm to a remote location, to prevent possible damage or contamination of the sensor, prior to performing any of the following: • Staining or stripping floors or furniture, painting or wall-papering, • Using aerosols or adhesives WARNING: Reinstall the CO Alarm as soon as possible to assure continuous protection.
  • Page 39 IMPORTANT: Do not remove unit back cover. Back cover removal will void warranty. Your Kidde Carbon Monoxide Alarm is not a substitute for property, disability, life or other insurance of any kind. Appropriate insurance coverage is your responsibility. Consult your insurance agent.
