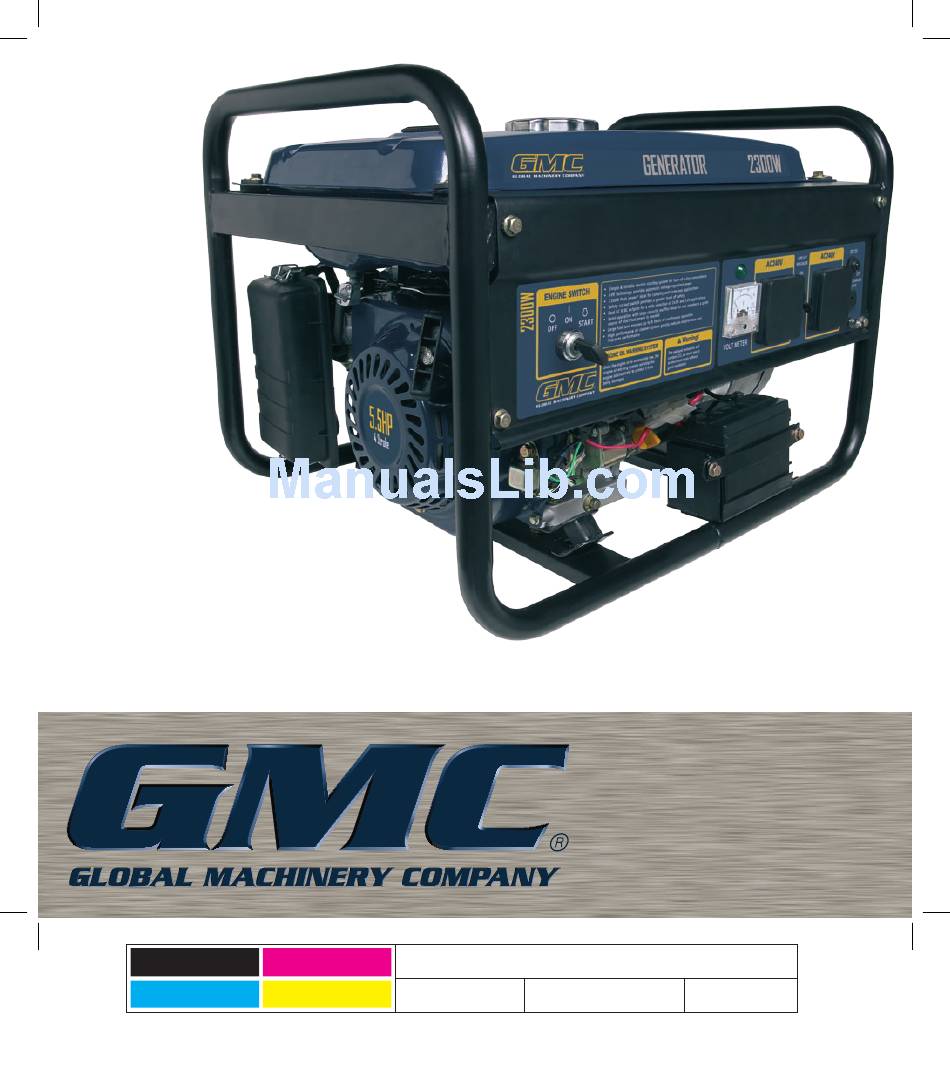

- Page 1 2300W AVR PETROL GENERATOR WITH ELECTRIC KEY START GEN2300ES INSTRUCTION MANUAL Black Magenta Cyan Yellow Code: GEN2300ES IM Date: 080219 Edition: 04 Op: DJ...
-
Page 2: Table Of Contents
Contents Warranty Introduction Environmental protection Scope of product Description of symbols Specifications Safety instructions Risk of electrocution and fire Risk of fire Risk of injury and property damage when transporting generator Risk of breathing – inhalation hazard Risk of unsafe operation Risk of hot surfaces Risk of moving parts Risk from lifting... -
Page 3: Introduction
Introduction Your new GMC power tool will more than satisfy your expectations. It has been manufactured under stringent GMC Quality Standards to meet superior performance criteria. You will find your new tool easy and safe to operate, and, with proper care, it will give you many years of dependable service. -
Page 4: Safety Instructions
Safety instructions WARNING. Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings below refers to your mains- operated (corded) power tool or battery-operated (cordless) power tool. - Page 5 • Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and •...
-
Page 6: Risk Of Electrocution And Fire
Hazard Improper storage of extension cord. Operation of generator in rain, wet, icy, or flooded conditions. Placing generator on or against highly conductive surface, such as a steel walkway or metal roof. Use of worn, damaged or ungrounded extension cords. Operation of unit when damaged, or with guards or panels removed. -
Page 7: Risk Of Fire
Hazard What could happen Fuel and fuel vapours can become ignited Attempting to fill the fuel by coming in contact with hot components tank while the engine is such as the muffler, engine exhaust gases, running. or from an electrical spark. Cigarettes, sparks, fires, or other hot Sparks, fire, hot objects objects can cause fuel or fuel vapours... -
Page 8: Risk Of Injury And Property Damage When Transporting Generator
Risk of injury and property damage when transporting generator Hazard What could happen Fuel or oil can leak or spill and Fire, inhalation, damage could result in fire or breathing to vehicle surfaces hazard, serious injury or death can result. Fuel or oil leaks can damage carpet, paint or other surfaces in vehicles or trailers. -
Page 9: Risk Of Hot Surfaces
Hazard Contact with hot engine and generator components. Hazard Contact with moving parts can result in serious injury. Hazard Lifting a very heavy object. Risk of hot surfaces What could happen Contact with hot surfaces, such as engines exhaust components, could result in serious burns. -
Page 10: Additional Safety Rules For Generators
Additional safety rules for generators • Do not operate in a hazardous location. include where there is a risk of explosion of petrol fumes, leaking gas or explosive dust. • Do not operate in a confined area. Exhaust gases, smoke or fumes could reach dangerous concentrations. •... -
Page 11: Know Your Product
Know your product 1. Fuel tank 2. Fuel tank cap 3. Fuel level gauge 4. AC safety switch 5. DC reset button 6. Ground (earth) terminal 7. Oil filler cap 8. AC sockets 9. DC socket 10. Key start ignition 11. -
Page 12: Automatic Voltage Regulator (Avr)
Automatic voltage regulator (AVR) This generator has been equipped with AVR technology which provides automatic voltage regulated power for continuous uninterrupted stable power supply. The AVR maintains a regulated AC output and reacts substantially quicker to rapid surges in voltage, therefore, preventing the possibility of damage to the generator and attached equipment. -
Page 13: Starting The Engine With Key Start
Starting the engine with key start WARNING. Before starting the motor, ensure you have filled the crank case to the correct level with oil. Note. The crank case is not filled with oil from the factory. 1. Before starting, ensure that no electrical apparatus has been connected to the generator (Fig. -
Page 14: Connecting Apparatus To The Generator
Connecting apparatus to the generator 1. Start the engine. Allow the motor to run for a couple of minutes to warm up prior to connecting any apparatus to the generator. 2. For AC current, ensure the safety switch (4) is turned OFF first, then plug the power cord into the AC output socket (8) (Fig. -
Page 15: Ac Safety Switch
WARNING. • The battery gives off explosive gases; keep sparks, flames and cigarettes away. • Provide adequate ventilation when charging or using batteries in an enclosed space. • The battery contains sulphuric acid (electrolyte). Contact with skin or eyes may cause severe burns. Wear protective clothing and a face shield. -
Page 16: Dc Overload Cut Out
DC overload cut out IMPORTANT. Exceeding the rated capacity of your generator can result in serious damage to your generator and connected apparatus. 1. The DC circuit has a circuit breaker to protect the generator from over loading. 2. If the circuit breaker trips, unplug all electrical apparatus from the generator. -
Page 17: Periodic Maintenance
Item Remarks Check condition, adjust gap and Spark plug clean. Replace if necessary. Check oil level. Engine oil Replace. Clean. Replace if necessary. Air filter Clean fuel drain filter. Replace if Fuel filter necessary. Check and adjust when engine Valve clearance is cold. -
Page 18: Storage
Storage If you are going to store your generator for more than 30 days, use the following information as a guide to prepare the generator for storage. Never store generator with fuel in the tank indoors or in enclosed, poorly ventilated areas, where fumes can reach an open flame, spark or pilot light as on a furnace, water heater, clothes dryer or other gas appliances. -
Page 19: Petrol Tank Filter
Petrol tank filter 1. Stop the engine. 2. Turn the fuel lever to the ‘off’ position. 3. The petrol tank filter is located directly under the petrol cap (2). This protects impurities entering the fuel tank during refuelling. 4. Remove the filter (Fig. N) and wash thoroughly in a solvent. 5. -
Page 20: Cleaning
7. Refill the tank with fuel and ensure there are no leaks between the tap and the tank, and with the fuel tap turned on, ensure there are no leaks where the fuel hose is fitted to the outlet of the tap. Cleaning 1. -
Page 21: Troubleshooting
Trouble Possible cause 1. Low on fuel or oil content Engine will not start 2. Ignition switch in “Off” position 3. Faulty spark plug 4. Choke in wrong position 5. Fuel shut-off valve in closed position 6. Unit loaded during start-up 7. - Page 24 GMC customer assist If your product needs repairing, replacing, technical service or you simply need help or advice, please contact us on our Customer Assist Line 1300 880 001 (Australia) or 0800 445 721 (New Zealand). For prompt service we suggest you log your service request online at www.gmcservice.com.au.
