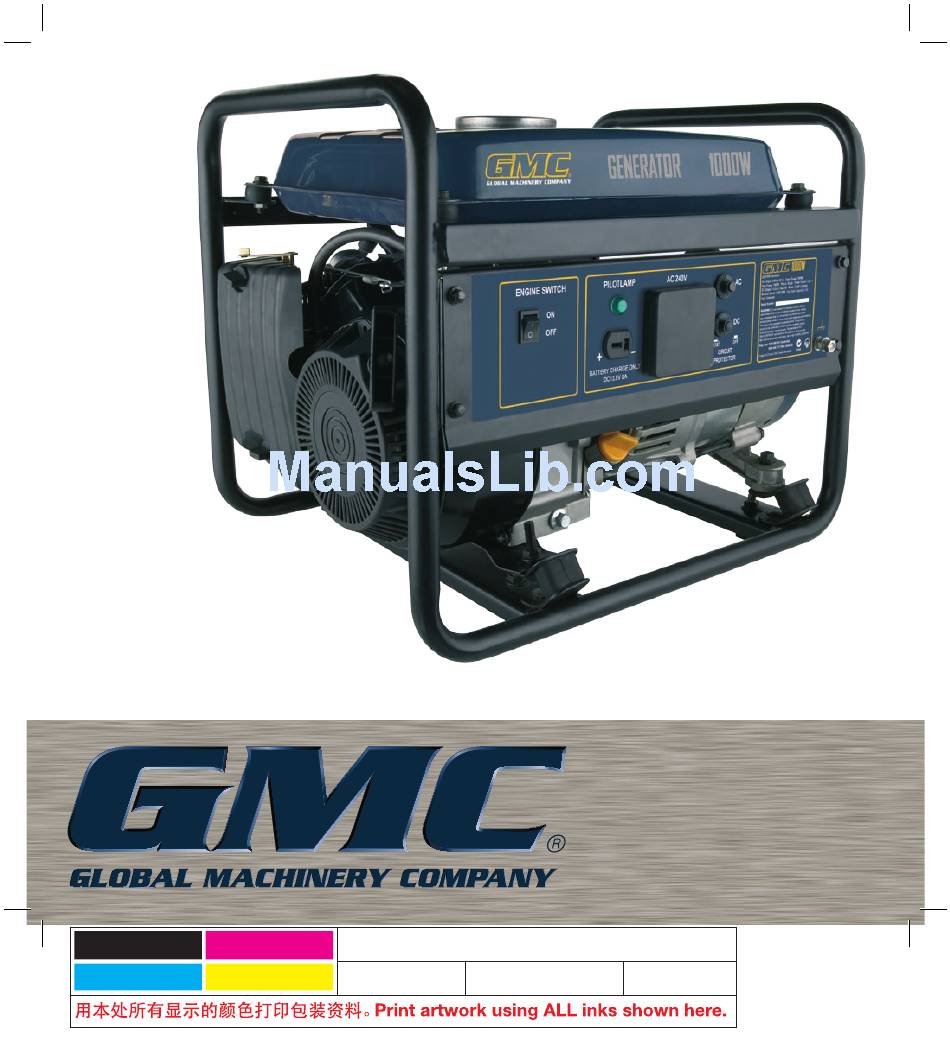

- Page 1 1000W AVR GENERATOR WITH AC AND DC OUTLETS GEN1000 INSTRUCTION MANUAL Black Magenta Cyan Yellow Code: GEN1000 Date: 080108 Edition: 03 Op: DCR...
-
Page 2: Table Of Contents
Contents Warranty Introduction Environmental protection Scope of product Description of symbols Specifications General safety instructions for power tools Risk of electrocution and fire Risk of fire Risk of injury and property damage when transporting generator 7 Risk of breathing - inhalation hazard Risk of unsafe operation Risk of hot surfaces Risk of moving parts... -
Page 3: Introduction
Introduction Your new GMC power tool will more than satisfy your expectations. It has been manufactured under stringent GMC Quality Standards to meet superior performance criteria. You will find your new tool easy and safe to operate, and, with proper care, it will give you many years of dependable service. -
Page 4: General Safety Instructions For Power Tools
General safety instructions for power tools To use this tool properly, you must observe the safety regulations, the assembly instructions and the operating instructions to be found in this Manual. All persons who use and service the machine have to be acquainted with this Manual and must be informed about its potential hazards. -
Page 5: Risk Of Electrocution And Fire
Save these instructions Hazard Improper storage of extension cord. Operation of generator in rain, wet, icy, or flooded conditions. Placing generator on or against highly conductive surface, such as a steel walkway or metal roof. Use of worn, damaged or ungrounded extension cords. -
Page 6: Risk Of Fire
Hazard Attempting to fill the fuel tank while the engine is running Sparks, fire, hot objects Improper storage of fuel Tampering with factory set engine speed settings Inadequate ventilation for generator Overfilling the fuel tank - fuel spillage Risk of fire What could happen Fuel and fuel vapours can become ignited by coming in contact with... -
Page 7: Risk Of Injury And Property Damage When Transporting Generator
Risk of injury and property damage when transporting generator Hazard Fire, Inhalation, Damage to Vehicle Surfaces Risk of breathing - inhalation hazard Hazard Gasoline engines produce toxic carbon monoxide exhaust fumes Hazard Operation of generator in careless manner What could happen Fuel or oil can leak or spill and could result in fire or breathing hazard, serious injury or death can result. -
Page 8: Risk Of Hot Surfaces
Hazard Operating generator while suspended Hazard Contact with hot engine and generator components Hazard Contact with moving parts can result in serious injury Hazard Lifting a very heavy object Risk of unsafe operation (cont.) What could happen Generator will not operate properly and will cause damage to the generator and could cause serious injury or death to you or others. -
Page 9: Additional Safety Rules For Generators
Additional safety rules for generators 1. Do not operate in a hazardous location. include where there is a risk of explosion of petrol fumes, leaking gas or explosive dust. 2. Do not operate in a confined area. Exhaust gases, smoke or fumes could reach dangerous concentrations. 3. -
Page 10: Know Your Product
Know your product 1. Fuel tank 2. Fuel tank cap 3. AC reset button 4. DC reset button 5. Oil filler cap 6. AC socket 7. DC socket 8. Engine switch 9. Oil drain 10. Recoil starter 11. Air filter cover 12. -
Page 11: Automatic Voltage Regulator (Avr)
Automatic voltage regulator (AVR) This generator has been equipped with AVR technology which provides automatic voltage regulated power for continuous uninterrupted stable power supply. The AVR maintains a regulated AC output and reacts substantially quicker to rapid surges in voltage, therefore, preventing the possibility of damage to the generator and attached equipment. -
Page 12: Starting The Engine
Starting the engine WARNING. Before starting the motor, ensure you have filled the crank case to the correct level with oil. Note. The crank case is not filled with oil from the factory. 1. Before starting, ensure that no electrical apparatus has been connected to the generator. -
Page 13: Charging The Battery
Charging the battery 1. Disconnect the leads from the battery. 2. Fully loosen the battery fluid filler caps. 3. Fill the battery cells with distilled water to the upper limit if the battery is empty. 4. Measure the specific gravity fluid by using a hydrometer and calculate the charging time in accordance with the table shown. -
Page 14: Periodic Maintenance
Item Remarks Check condition, adjust gap and Spark plug clean. Replace if necessary. Check oil level. Engine oil Replace. Clean. Replace if necessary. Air filter Clean the tap extension filter. Fuel filter Replace if necessary. Check and adjust when engine Valve clearance is cold. -
Page 15: Ac And Dc Overload Cut Out
AC and DC overload cut out IMPORTANT. Exceeding the rated capacity of your generator can result in serious damage to your generator and connected apparatus. 1. Each separate circuit has a circuit breaker to protect the generator from over loading. 2. -
Page 16: Air Filter
Air filter It is very important to maintain an air filter in proper condition. Damage to the generator may arise if the filter has: • Improperly been serviced. • Dirt and other foreign elements adhering to the filter due to improper installation and engine wear. ALWAYS keep the filter clean at all times. -
Page 17: Petrol Tank Filter
Holding the tap firm, tighten the lock nut, ensuring the seal is clamped between the lock nut and the tank. 6. Refit the fuel hose to the outlet of the tap and with the wire arms compressed, slide the hose clamp up onto the connection of the hose and the tap. -
Page 18: Troubleshooting
Trouble Possible cause 1. Low on fuel or oil content Engine will not start 2. Ignition switch in “Off” position 3. Faulty spark plug 4. Choke in wrong position 5. Fuel shut-off valve in closed position 6. Unit loaded during start-up 7. - Page 20 GMC customer assist If your product needs repairing, replacing, technical service or you simply need help or advice, please contact us on our Customer Assist Line 1300 880 001 (Australia) or 0800 445 721 (New Zealand). For prompt service we suggest you log your service request online at www.gmcservice.com.au.
