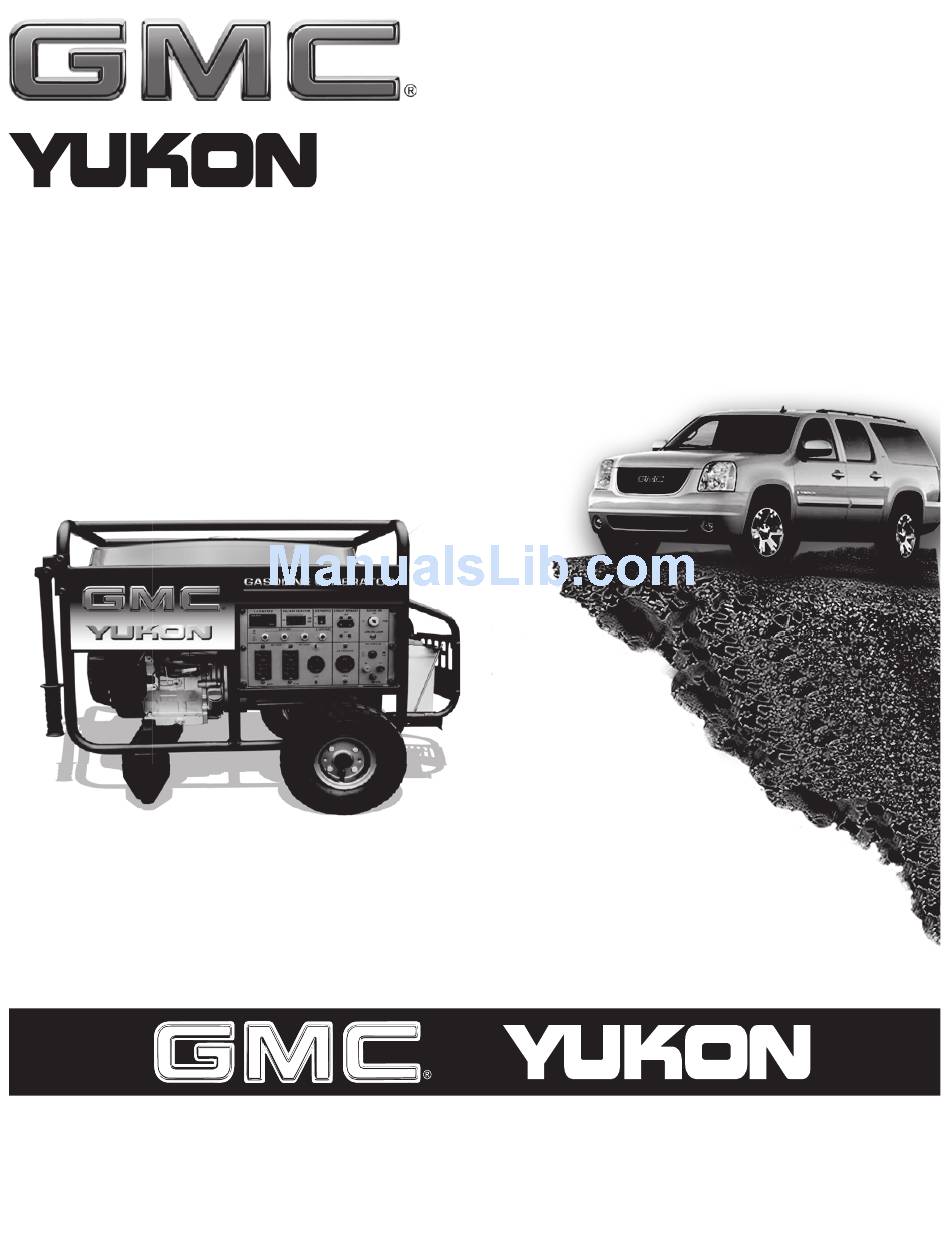

- Page 1 PORTABLE GASOLINE GENERATOR OWNER'S MANUAL Customer Support 1-866-409-4581...
-
Page 2: Table Of Contents
Power Output Fuel WARRANTY ____________________________________33 Serial Number PRODUCT REGISTRATION ________________________36 The GMC ® Trademark is used under license from General Motors Corporation. GMC ® General Motors Corporation makes no representation or warranties with respect to this product. Customer Support: 1-866-409-4581... -
Page 3: Important Safety Instructions
Failure to properly follow all the instructions and precautions can cause you and others to be seriously hurt or killed. Please do not hesitate to contact the California Air Tools GMC ® Generator Customer Service Department. Call 1-866-409-4581 or visit www.GMCGENERATORS.com. - Page 4 GENERATOR DANGER DANGER SHOCK TOXIC FUME Generator exhaust contains carbon monoxide (CO). Generator voltage is deadly. This is a poison you cannot see or smell. There is a danger of electric shock. If you can smell the generator exhaust, you are Use only undamaged electrical cords.
- Page 5 GENERATOR WARNING WARNING SHOCK FIRE SHOCK FIRE Sparks can result in fire or electrical shock. This generator produces powerful voltage that can cause death or injury. Only check for a spark with an approved spark plug tester. When this generator is used to supply a building wiring system, it must be installed by a qualified DO NOT check for a spark with the spark plug electrician and connected to a transfer switch as a...
- Page 6 GENERATOR WARNING CAUTION HOT SURFACE FIRE Always make sure the generator is properly grounded. Generator surfaces become hot during operation. The faceplate of your generator is marked with the Hot surfaces can cause severe burns. grounding symbol (as shown above), located above DO NOT touch hot surfaces.
-
Page 7: Locations Of Important Labels
GENERATOR LOCATIONS OF PRODUCT LABEL PART NUMBER IMPORTANT LABELS DANGER Read these important labels before operating. GMCS01 These labels provide important safety and maintenance information. These labels should be considered as permanent parts of the generator. Should any of these labels become Risk of electric shock. -
Page 8: Control Panel And Generator Components
GENERATOR CONTROL PANEL AND GENERATOR COMPONENTS CONTROL PANEL GENERATOR COMPONENTS V.F.T. Meter (Voltage/Frequency/Time) Handles Fuel Tank Voltage Selector Battery/Battery Cage Sky Hook Auto Throttle Control Panel Fuel Gauge Circuit Breaker Wheels Recoil Starter Grip Engine Switch Oil Cap/Dipstick Air Filter Low Oil Light Stand Fuel Valve... -
Page 9: Control Panel Features
GENERATOR CONTROL PANEL FEATURES Oil Alarm Circuit Breaker The Oil Alarm system is designed to prevent the engine from The circuit breaker protects the individual circuit protectors and being damaged because of a lack of oil in the crankcase. Before the 30A 120V/240V receptacle. -
Page 10: Assembly
GENERATOR Wheel & Handle Kit Assembly ASSEMBLY Installation Packaging List CAUTION CAUTION Keep all hands and fingers away from hinges when folding down the handles. Generator is heavy! Lifting generator can cause back or other bodily injury. NEVER lift generator without assistance. NOTICE Generator Never use this wheel kit with any other product. -
Page 11: Battery Cage Installation
GENERATOR Battery Cage Installation Sky Hook Assembly Installation 1. Install the two battery guards (2) onto the frame, then attach FUEL CAP the battery tray (3) and battery guard plate (4) to the two battery guards (2). 2. Route the starter cable (1) under the tank and connect it to the generator. -
Page 12: Operating The Generator
GENERATOR OPERATING THE GENERATOR Pre-Operation Checklist Engine Oil Recommendations Checking Oil Level SAE 10W-30 standard motor oil is recommended for normal WARNING operating conditions and temperatures (between 0°F and 100°F). Crankcase pressure can cause hot engine oil to spray out of engine fill hole. Hot engine oil can cause severe burns. - Page 13 If “pinging” or “knocking” or loud metal tapping occurs during steady engine speeds under normal load, shut off the engine and replace fuel with fresh gasoline. If these noises persist go to an authorized GMC ® Portable Gasoline Generator Service Center.
- Page 14 GENERATOR Generator Exhaust Select a safe and suitable location The generator should only be operated outdoors on a firm, level DANGER surface in a well-ventilated area. At least 5 feet of clearance should be maintained in relation to any structures or objects, and Using a generator indoors CAN KILL YOU IN MINUTES.
-
Page 15: Before Operation
GENERATOR Before Operation Grounding Always ground the generator. DANGER The faceplate of your generator is marked with the following grounding symbol, which is located above the grounding terminal: ELECTROCUTION EXPLOSION Before connecting to building’s electrical system, Attach a heavy gauge copper wire (12 AWG minimum) to this consult your local utility company or a qualified terminal and link it to a copper rod driven into the ground. -
Page 16: Starting The Generator
GENERATOR Starting the Generator WARNING 1. Make sure the AC circuit breaker is in the OFF position. HOT SURFACE The choke lever, if hot, could cause severe burns. DO NOT touch until the engine cools down. NOTICE Do not use choke lever if the engine is warm or if the 2. - Page 17 GENERATOR 6. For Recoil Starter – Pull the starter grip lightly until WARNING resistance is felt, then pull rapidly. For Electric Starter – Turn the engine switch to the START position and hold until the engine starts, but not more than 5 seconds or the starter will be damaged. Note: The battery must be installed to use the electric starter.
-
Page 18: Using Electric Power
GENERATOR Auto Throttle System 4. If the remote control starter is out of power, remove the back cover and replace the battery with a new battery. If you wish to use the Auto Throttle switch system, turn the Auto Throttle switch to the ON position after the engine has warmed up for 2 or 3 minutes. - Page 19 GENERATOR 3. Insert the plug(s) of the electrical appliance(s) into the CAUTION receptacle(s). 4. Turn the AC circuit breaker to the ON position. Always verify actual wattage requirements for 5. Turn on the ON switch(es) to the appliance(s) that are appliance you will be powering.
- Page 20 GENERATOR HOUSEHOLD APPLIANCES TYPICAL RUNNING WATTS CONTRACTOR APPLIANCE TYPICAL RUNNING WATTS Hand Drills Electric Range 1,500 ⁄ Inch Freezer Furnace ⁄ Inch Garage Door Opener ⁄ Inch Impact Wrenches Hair Dryer 1,200 ⁄ Inch Iron 1,200 Microwave 1,500 ⁄ Inch 1,000 Radio 1 Inch...
-
Page 21: Ground Fault Circuit Interrupter Receptacle
The Test Button should extend with a click. If the Test Button does When charging a large capacity battery or a totally not extend, take to an authorized GMC ® Portable Gasoline discharged battery, excessive current may force the Generator Service Center. -
Page 22: Stopping The Generator
2. Turn the AC circuit breaker to the OFF position. pilot screw. If you always operate the engine at altitudes higher than 5000 feet (1500 meters) above sea level, have an authorized California Air Tools GMC ® Portable Gasoline Generator Dealer perform this carburetor modification. -
Page 23: Maintenance
GENERATOR MAINTENANCE Emission Control System Proper maintenance is the responsibility of the owner. Combustion may generate such pollutants as carbon monoxide Your generator requires periodic maintenance and adjustments to (CO), nitrogen oxides and hydrocarbons, which may contaminate keep the generator in good operating condition. Refer to the the environment if large amounts of them are emitted into the air. -
Page 24: General Inspection & Maintenance Rules
GENERATOR General Inspection & DANGER Maintenance Rules Using a generator indoors CAN KILL YOU IN MINUTES. Make sure that all labels are present and legible. Generator exhaust contains carbon monoxide. Check that all protective guards, handles and wheels are This is a poison you cannot see or smell. undamaged. -
Page 25: Maintenance Schedule
GENERATOR Maintenance Schedule SERVICE FREQUENCY First Month Every 3 Months Every 6 Months Every Year Daily ITEM Maintenance Each Use 20 Hours of Use 50 Hours of Use 100 Hours of Use 200 Hours of Use General Inspection Maintenance Rules Check Oil Level Engine Oil... -
Page 26: Engine Oil
GENERATOR Engine Oil Changing Engine Oil 1. Have your generator on a flat, level surface. WARNING 2. Drain the oil while the engine is warm to assure rapid and complete draining. Crankcase pressure can cause hot engine oil to 3. Place an oil pan or other suitable container for the oil spray out of engine fill hole. -
Page 27: Air Filter Cleaning
GENERATOR Air Filter Cleaning 2. Remove the air filter cover by removing the two clips on the cover. WARNING F I LT E R EXPLOSION FIRE Gasoline and flammable solvents can cause fire or explosion. NEVER use gasoline or flammable solvents to clean the air filter. -
Page 28: Sediment Cup Cleaning
GENERATOR Sediment Cup Cleaning 4. Use a ⁄ " spark plug socket wrench to loosen and remove the spark plug. The sediment cup prevents dirt and water that may be in the fuel tank from entering the carburetor. Refer to the Maintenance Schedule for regular service intervals. 1. -
Page 29: Spark Arrestor Maintenance
GENERATOR 9. After the spark plug is seated, tighten with spark plug wrench 3. Loosen the screw near the exhaust port of the muffler and to compress the washer. remove the spark arrestor. When reinstalling a used spark plug, tighten ⁄... -
Page 30: Transporting & Storage
GENERATOR TRANSPORTING & STORAGE Transporting DANGER 1. Turn the engine switch to the OFF position. 2. Turn the fuel valve lever to the CLOSED position. 3. Keep the generator level to prevent fuel spillage. NOTICE EXPLOSION FIRE To avoid damage to generator, take care not to drop or strike generator when transporting. -
Page 31: Troubleshooting
GENERATOR TROUBLESHOOTING DANGER Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell. NEVER use inside a home Only use OUTSIDE and or garage, EVEN IF doors far away from windows, and windows are open. -
Page 32: Specifications
GENERATOR SPECIFICATIONS Generator Model YUKON 6000 Rated Output 5500 Watts Wiring Diagram Maximum Output 6000 Watts Frequency 60 Hz Voltage 120/240 Volts Rated Amps (120V/240V) 44/23 amps Engine Engine Type HS 188F Horsepower 13 hp Engine Speed 3600 RPM Displacement... - Page 33 8560 Siempre Viva Road, Unit 3A San Diego, CA 92154 Limited Warranty California Air Tools Inc. will repair or replace, free of charge, to the original retail customer who purchased a GMC ® Portable Gasoline Generator from an authorized dealer, distributor or distributor´s dealer in North America.
-
Page 34: Warranty
Warranty is also available by keeping and showing your original receipt from the date of purchase to an Authorized California Air Tools ® Portable Gasoline Generator service center. Service Do not return your generator to the place of purchase or any GMC car/truck dealership. ® For all customer service inquiries, call California Air Tools GMC ®... - Page 35 GENERATOR Customer Support: 1-866-409-4581...
-
Page 36: Product Registration
GENERATOR PRODUCT REGISTRATION To register your product, please complete the information below and mail to the mailing address at the end of this form, or register online at www.GMCGENERATORS.com. 1. Personal Information: Full Name (Include Middle Initial): _______________________________________________________________ Mailing Address: _____________________________________________________________________________ City:___________________________________ State:_______________ Zip Code: _______________________ Phone Number:______________________________________________________________________________ E-mail Address:______________________________________________________________________________...
