Page 2: Dear Customer
Dear customer, Please read these operating instructions carefully. Pay particular attention to the section “Safety information” on the first few pages. Please retain these operating instructions for later refer- ence. Pass them on to possible new owners of the appliance. The following symbols are used in the text: Safety instructions Warning: Information concerning your personal safety. -
Page 3: Table Of Contents
Contents Operating Instructions ........Safety instructions. - Page 4 Installation Instructions ........29 Technical Data ..........29 Safety Instructions for the Installer.
-
Page 5: Operating Instructions
Operating Instructions 1 Safety instructions Please comply with these instructions. If you do not, any damage re- sulting is not covered by the warranty. This appliance conforms with the following EU Directives: – 73/23/EEC dated 19.02.1973 Low Voltage Directive – 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Directive 92/31/EEC –... -
Page 6: Safety During Use
Safety during use • Remove stickers and film from the glass ceramic. • There is the risk of burns from the appliance if used carelessly. • Cables from electrical appliances must not touch the hot surface of the appliance or hot cookware. •... -
Page 7: Description Of The Appliance

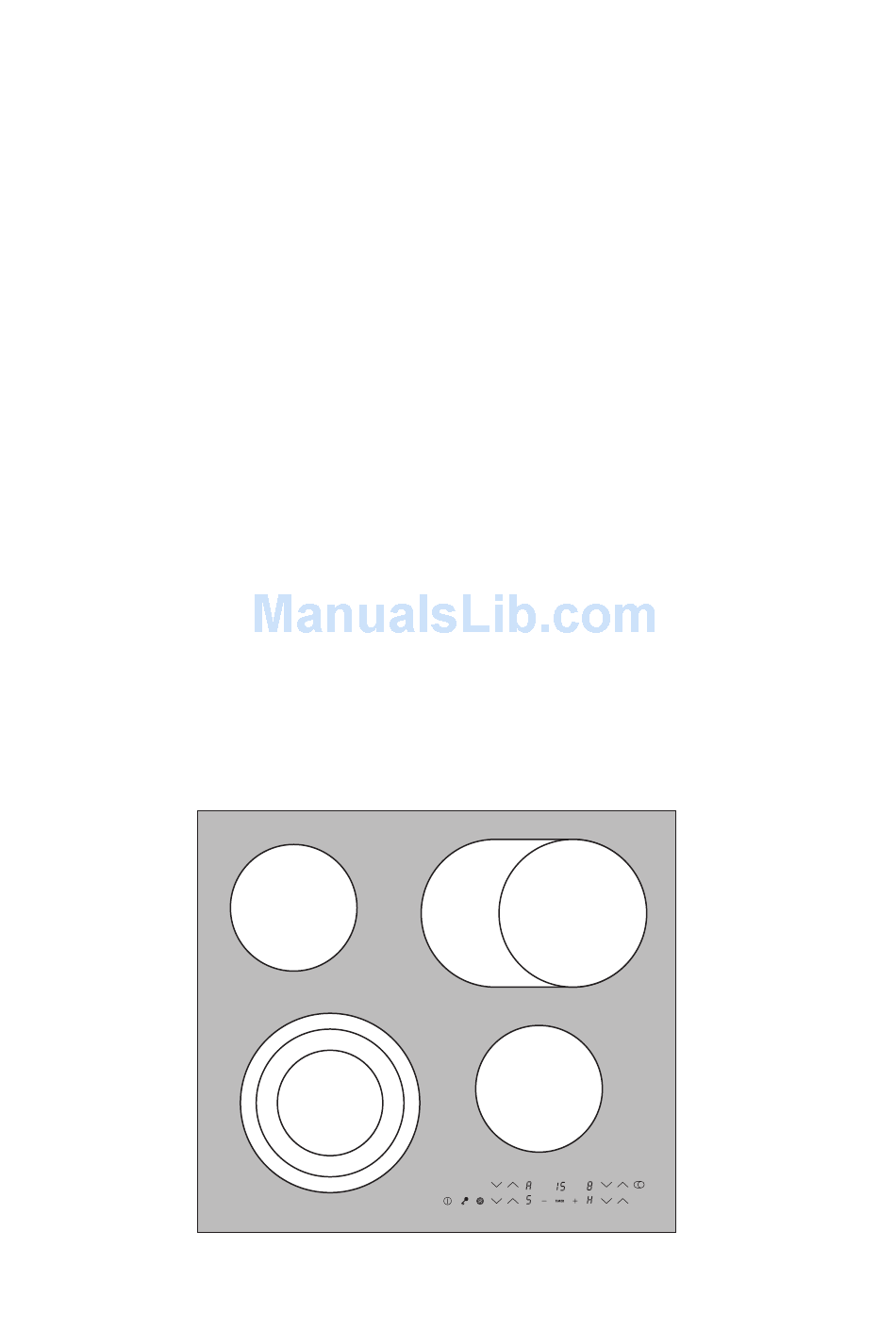

Description of the Appliance Cooking zones and control panel Single ring cooking zone Casserole zone 1200W 2400W Triple ring cooking zone Control panel Single ring cooking zone 2300W 1200W Three-ring sensor panel Browning zone sensor panel „Block“ Three-ring control lamps Browning zone control lamp sensor panel “Timer”... -
Page 8: Digital Displays
Digital displays The four display panels that belong to the four cooking zones indicate: – ¾ after having been switched on, – u when a keep warm setting has been selected, – ¿ to Ç, depending on the cooking setting selected, –... -
Page 9: Operating The Hob
Operating the hob Touch control sensor panels To operate the touch control sensor panels, touch the desired panel with the tip of your pointed finger until the relevant displays illuminate or go out, or until the desired function is carried out. Ensure that you are only touching one sensor panel when operating the appliance. -
Page 10: Switching Off The Appliance
Switching off the appliance To completely switch off the appliance, actuate the “On/Off” sensor panel I. Touch the “On/Off” sensor panel for approx. one second. After switching off a single cooking zone or the entire cooking surface, the existing residual warmth will be displayed in the digital displays of the corresponding cooking zones in the form of h (for “hot”). -
Page 11: Switching The Triple Ring Zone On And Off
Switching the triple ring zone on and off According to the size of the saucepan or frying pan, when using the tri- ple ring cooking zone you can switch from a smaller cooking zone to a larger cooking zone using the “triple ring zone” sensor panel. You can only switch to the next size if a heat setting has already been set for the smaller heating ring. -
Page 12: Switching The Casserole Zone On And Off
3. Touch the “triple ring” sensor panel to activate the outer heating ring. The upper control lamp will illuminate. 4. To switch off the outer heating ring, touch the “triple ring” sensor pan- el, and the heating ring that is outermost at the time will switch off. Switching the casserole zone on and off 1. -
Page 13: Switching Off A Cooking Zone
Switching off a cooking zone 1. To switch off a cooking zone touch the heat setting selector sensor panel simultaneously, or return the setting to zero using the heat setting selector sensor panel Residual Heat Indicator When an individual cooking zone or the entire hob is switched off, any residual heat is shown with an h (for “Hot”) in the digital display for the appropriate cooking zones. -
Page 14: Cooking Using The Automatic Warm Up Function
Cooking using the automatic warm up function All of the cooking surface’s four cooking zones can be adjusted to any of nine settings, and are equipped with an automatic warm up func- tion: – ¿, lowest heat setting – Ç, highest heat setting –... -
Page 15: Cooking Without The Automatic Warm Up Function
Cooking without the automatic warm up function If you wish to use the cooking zones without the automatic warm up function, select the desired heat setting using the heat setting selector sensor panel 1. Touch the heat setting selector sensor panel in order to set the de- sired heat setting from Ç... -
Page 16: Child Safety Lock
Child safety lock You can use the child safety lock to safeguard against unwanted use of the cooking surface. Switching on the child safety lock To be able to switch on the child safety lock the appliance must be switched on, but all the cooking zones must be switched off. 1. - Page 17 Overriding the child safety lock The child safety lock can be overridden in order to use the appliance (until the appliance is switched off again). When the appliance is switched on again the child safety device is activated once again. 1.
- Page 18 Switching off the child safety lock 1. Switch on the appliance. When the child safety device has been activated, l will be displayed. 2. Touch the sensor field for approx. three seconds. An acoustic signal will sound as confirmation. 3. Touch any heat setting sensor field The displays will become dark, and the child safety device is switched off.
-
Page 19: Timer
Timer There are two ways to use the timer: – as a safety cut-out function. Set a cooking period for a cooking zone, and after this time has elapsed the cooking zone will automati- cally switch itself off. This function can be used for more than one cooking zone simultaneously. - Page 20 2. While the control lamp is flashing rapidly, use the + or - timersetting sensor panels to set the desired period of time for this cooking zone up until the point where it automatically switches itself off (e.g. 15 minutes). The safety cut-out function will be activated after several minutes The control lamp will now flash more slowly and the remaining cooking time will be shown in the display as it elapses.
-
Page 21: Countdown Timer
Switching off the safety cut-out function before it has come to an end There are two ways to switch off the safety cut-out function before it has come to an end. Switch off the cooking zone and timer simultaneously 1. Using the heat setting selector sensor panel, reset the desired cook- ing zone to zero: the cooking zone and timer will switch themselves off. -
Page 22: Blocking/Unblocking The Control Panel
Blocking/unblocking the control panel At any stage of the cooking process the control panel, with the excep- tion of the “On/Off” sensor panel, can be blocked in order to prevent the settings being changed e.g. by wiping over the panel with a cloth. 1. -
Page 23: Uses, Tables And Tips
Uses, Tables and Tips Pans • You can recognise good pans by their bases. The base should be as thick and flat as possible. • Pay particular attention when buying new pans to the diameter of the base. Manufacturers often give only the diameter of the upper rim. -
Page 24: Advice On Cooking With And Without Automatic Warm Up
Advice on Cooking with and without Automatic Warm up The automatic warm up function is suitable for: • dishes that start off cold, are heated up at high power and do not need to be continually watched when cooking on the selected heat setting, •... -
Page 25: Settings For Cooking On The Zones
Settings for Cooking on the Zones The figures in the following table are benchmark figures. The switch setting required for a certain cooking method depends on the quality of the pans and the type and amount of food. Automatic Switch warm up func- Cooking Examples for use... -
Page 26: Cleaning And Care
Cleaning and Care Take care! Risk of burns from residual heat. Let the appliance cool down. Warning! Sharp objects and abrasive cleaning materials will damage the appliance. Clean with water and washing up liquid. Warning! Residues from cleaning agents will damage the appliance. Remove residues with water and washing up liquid. -
Page 27: What To Do If
What to do if … Rectifying faults It is possible that faults have been caused by a minor error, which you can correct yourself with the help of the following instructions. Do not attempt any further repairs if the following instructions do not help in each specific case. -
Page 28: Disposal
… after having switched off the cooking zones, no h for residual warmth is indicated in the display. Check whether – the cooking zone was only briefly used and therefore did not become hot enough. If the cooking zone is hot, please call customer service. …... -
Page 29: Installation Instructions
Installation Instructions Important! The new appliance may only be installed and connected by qualified personnel. Please observe this instruction, otherwise the warranty will not cover any damage that may occur. Technical Data Appliance dimensions Width 590mm Depth 520mm Height 44mm Worktop cut-out dimensions Width 560mm/594... -
Page 30: Safety Instructions For The Installer
Safety Instructions for the Installer • A device must be provided in the electrical installation which allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3 mm. Suitable isolation devices include line protecting cut-outs, fuses (screw type fuses are to be removed from the holder), earth leakage trips and contactors. -
Page 31: Built-In Installation
Built-in installation • In order to facilitate access if servicing is required, there must be a space the size of the cut-out section in the worktop and 150mm high under the hob. Anything installed in this area, e.g. anti-shock protec- tion, must be easily removable. -
Page 32: Electrical Connection
Electrical Connection Before connecting, check that the nominal voltage of the appliance, that is the voltage stated on the rating plate, corresponds to the avail- able supply voltage. The rating plate is located on the lower casing of the hob. The heating element voltage is AC230V~. -
Page 33: Service
Service In the “What to do if …” section a number of malfunctions are listed that you can rectify yourself Look there first if a fault occurs. Is it a technical fault? If so, please contact your customer service centre. (You will find ad- dresses and telephone numbers in the section “Customer Service Cen- tres”.) Always prepare in advance for the discussion. - Page 34 Built-in installation / Montage intégré / Montage geïntegreerd...
