Page 1: Instruction Manual
Fires up to 50mm x 16 Gauge • Melbourne • Perth • Auckland • Hong Kong • Shanghai uckland • Hong Kong • Shanghai uckland • Hong K • Taipei • New York • Verona • London • Paris ATBR1650K ATBR1650K 031216 PR ED08... -
Page 2: Table Of Contents
Contents Warranty Introduction Environmental protection Description of symbols Specifications General safety instructions for air tools Risk of eye or head injury Risk of fire or explosion Risk of loss of hearing Risk to injury Risk of electric shock Risk of entanglement Risk of cut or burns Know your product Preparing the tool... -
Page 3: Introduction
Dear Customer If you require any help with your product, whether it is a Warranty claim, spare part or user information, please phone our Help Line for an immediate response. Phone 1300 880 001 in Australia or 0800 445 721 in New Zealand. Introduction Your new GMC tool will more than satisfy your expectations. - Page 4 1. Keep the work area clean and tidy. areas and benches invite accidents and injury. 2. Consider the environment in which you are working. Do not use air tools in damp or wet locations. Keep the work area well lit. Do not expose air tools to rain. Do not use air tools in the presence of flammable liquids or gases.
-
Page 5: Risk Of Eye Or Head Injury
Important safety instructions What could happen • Air powered equipment are capable of propelling materials such as fasteners, metal chips, saw dust, and other debris at high speed, which could result in serious eye injury. • Tool attachments can become loose or break and fly apart propelling particles at the operator and others in the work area. -
Page 6: Risk Of Loss Of Hearing
What could happen • Long term exposure to noise produced from the operation of air tools can lead to permanent hearing loss. What could happen • Tools left unattended with the air hose attached, can be activated by unauthorized persons leading to their injury or injury to others. - Page 7 • Air tools can become activated by accident during maintenance or tool changes. • Air tools can cause the workpiece to move upon contact leading to injury. • Loss of control of the tool can lead to injury to self or others.
-
Page 8: Risk Of Electric Shock
• Fasteners could ricochet or be propelled causing serious injury or property damage. • Improperly maintained tools and accessories can cause serious injury. • There is a risk of bursting if the tool is damaged. • Use only accessories identified by the manufacturer to be used with specific tools. -
Page 9: Risk Of Entanglement
What could happen • Tools which contain moving elements, or drive other moving tools, can become entangled in hair, clothing, jewellery and other loose objects, resulting in severe injury. What could happen • Tools which cut, shear, drill, staple, punch, chisel, etc. are capable of causing serious injury Risk of entanglement How to prevent it... -
Page 10: Know Your Product

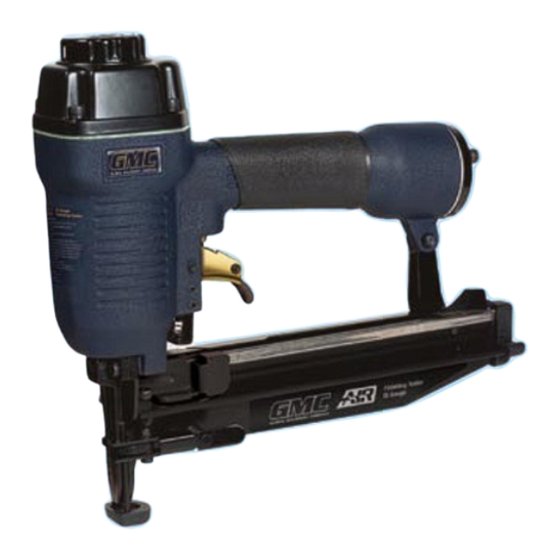

Know your product 1. Exhaust deflector 2. Trigger 3. Air inlet 4. Latch 5. Nail magazine 6. Safety strike element (Non marking tip) 7. Fastener discharge area 7. Fastener discharge area 8. Drive safety cover 9. Quick release latch 10. Depth adjustment thumb wheel... -
Page 11: Preparing The Tool
Preparing the tool Tool lubrication This finish nailer requires lubrication BEFORE initial use and BEFORE and AFTER each additional use throughout its life. 1. Disconnect the air hose, turn the finish nailer so the air inlet (3) is facing up. Place 3-4 drops of non detergent oil into the air inlet. -
Page 12: Operation
Operation Operating the tool: Firing mechanism: This tool operates on a single (full sequential actuation) firing system. Single (full sequential actuation) firing. To fire, grip tool firmly to maintain control, position nose of tool onto work surface, depress safety, and squeeze trigger to fire a fastener. -
Page 13: Adjusting The Exhaust Direction
Adjusting the exhaust direction: 1. The finish nailer is equipped with an adjustable direction exhaust deflector (1). Simply adjust the directional exhaust deflector so that the exhaust air blast will be directed away from the operator. Grasp the deflector and rotate it to the desired position for the current application. -
Page 14: Troubleshooting
Troubleshooting Trouble Nailer skips when driving brad nails. Air leaking near the top of the tool or in trigger area. Nailer runs slow or has loss of power. Air leaking near the bottom of the tool. Tool jams frequently. WARNING: Disconnect tool from air supply before performing any cleaning and maintenance procedures. - Page 16 Carefully read the entire Instruction Manual Before returning this product for a Warranty Claim or any other reason Please Call 1300 880 001 (Australia) or 0800 445 721 (New Zealand) When you make your call, please have the following information at hand: •...
