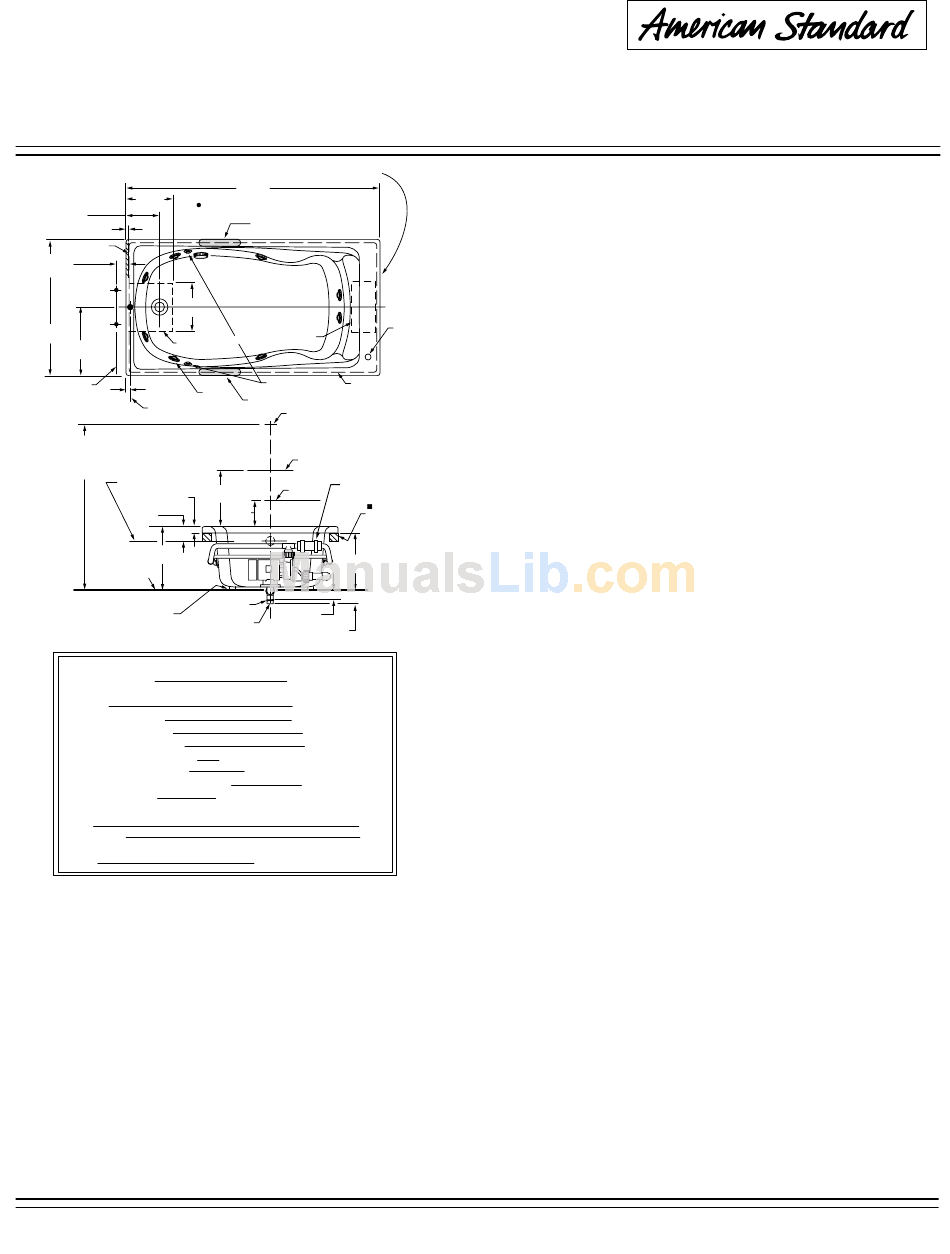

American Standard Cadet Elite 2774E SERIES Installation Instructions

CADET ELITE™
6' x 42"
HIGH GLOSS ACRYLIC
SHOWN LESS ALL FITTINGS
305 mm
(12)
229mm
(9)
19 mm
(3/4)
FINISHED
WALL
SEE FITTING
SPECS FOR
DIMENSIONS
229 mm
(9)
1067mm
(42)
CUTOUT IN FLOOR
533mm
FOR DRAIN
(21)
C/L OF
57mm
SUPPLIES
(2-1/4)
C/L OF DRAIN
OPTIONAL TO
FINISHED FLOOR
USUALLY BETWEEN
1651 & 1981mm
(65 & 78)
C/L OF
OVERFLOW
38mm
(1-1/2)
89mm
(3-1/2)
502mm
(19-3/4)
ROUGH
FLOOR
INTEGRAL 1-1/2 N.P.T.M.
SUPPORT
FEET
1-1/2 O.D.TAILPIECE
GENERAL SPECIFICATIONS FOR 2774E WHIRLPOOL
INSTALLED SIZE
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
MIn. OPERATING GAL.
BATHING WELL AT SUMP
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
(PROJECTED AREA)
PTS.
CUBE (FT 3 )
WHIRLPOOL ELECTRICAL SPECIFICATIONS
PUMP
GENERAL INSTALLATION INFORMATION
Carefully uncrate and inspect your new bath for any shipping damage. If such damage is found, report it to your vendor
immediately.
After inspection and during installation, protect the bath from construction damage. After installation, and before
enclosing with wallboard, tile, etc., water test the unit and check for leaks.
Do not make modifications to the whirlpool system or remove pump from factory mounting. This could adversely affect
the safety and performance of the whirlpool and void the warranty. Do not handle or move the whirlpool by the pump,
motor, or piping system.
Fittings (bath filler, shower arm, etc.) are not provided with the bath and must be ordered separately. Framing and
enclosing materials are provided by others. Check for availability of optional American Standard wall tiling bead
(required for recess installations).
Protect all finished surfaces of the whirlpool during construction and installation using a drop cloth.
WARNING! Do not lift whirlpool by the piping harness at any time.
FOR AFTER-SALES SERVICE CALL 1 (800) 442-1902 WEEKDAYS.
752863-100 REV. C
2774E SERIES
WHIRLPOOL/BATHING POOL

INSTALLATION INSTRUCTIONS

PROVIDE ACCESS TO PUMP FOR
SERVICING ON ALL INSTALLATIONS
1829 mm
(72)
RECOMMENDED FITTING LOCATION
64 X 330mm (2-1/2 x 13")
FOR PIER OR ISLAND
INSTALLATIONS ONLY
PUMP
OUTLINE OF CUTOUT
(2) AIR VALVES
1791mm x 1029mm
(8) JETS
ALT. FITTING
(70-1/2 X 40-1/2)
LOCATION #1
C/L OF
SHOWER ARM
C/L OF
VALVES
IN-LINE HEATER
REMOVABLE
C/L OF
305mm
BLANK
SPOUT
(12)
LEVELING
102mm
STRINGER
(4)
NOT FOR
SUPPORT
464 mm
(18-1/4)
THREADS 70 mm
(2-3/4)
117 mm
(4-5/8)
72 x 42 x 19-3/4 In.
(1829mm x 1067 mm x 502mm)
137 Lbs. (62 Kg.)
821 Lbs. (372 Kg.)
82 Gal. (310 L.)
66 Gal. (256 L.)
50 x 27 In. (1270 mm x 686 mm)
65 x 33 In. (1651 x 838mm)
13 In. (330 mm)
42 Lbs./Sq. Ft. (203 Kgs/Sq. m.)
27.8
55.5
2.1 HP, 14.4 AMPS, 120V.

THANK YOU...

for selecting an American Standard bath. Your new
bath is shipped to you after careful inspection. The
whirlpool version is completely assembled with pump,
motor, and system piping. All you need to finish the
installation are your selected fittings and electrical
connections for a whirlpool.
To insure maximum performance and pleasure from
ON/OFF
SWITCH
this product, please follow the instructions and
cautions.
List of Optional Components (not included):
• Flex-Jet Pulse Jet Kit*
• Flex-Jet Soft Jet Kit*
• E-Z-Install Heater*
• Tile Bead Kit*
• Apron Kit*
List of Required Components (not included):
• Drain*
* see your Home Depot Retailer
List of Required Tools and Supplies:
Tools
• Level
• Tape Measure
• Pipe Wrench
• Slip Joint Pliers
• Screw Driver
• Standard
• Personal Safety
• Caulking Gun
• Bath Filler*
Woodworking Tools
Equipment
© American Standard Inc. 2002
All product names listed herein are trademarks
of American Standard Inc. unless otherwise noted.
Supplies
• Nails
• Putty
• Caulking (waterproof)
• 1 x 3 or 2 x 2
Stringers
• Drop Cloth
• 20 amp GFI
Outlet
• Cement, Plaster,
Grout
