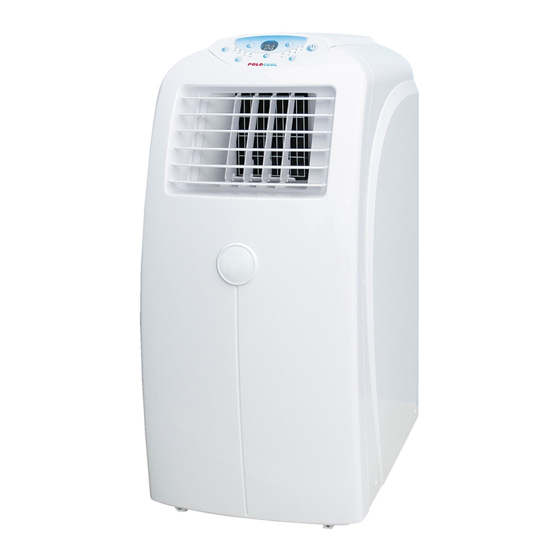

PORTABLE TYPE AIR CONDITIONER
PORTABLE REFRIGERATED AIR CONDITIONER
Thank you for selecting our quality air conditioner. Please be sure to read this user manual carefully before using.
Thank you for selecting our quality air conditioner. please be sure to read this user manual
POLOCOOL Portable Refrigerated Air Conditioners are imported and distributed throughout Australiasia by NOBO.
carefully before using. Any question, please contact the professional service for help.
Any enquiries should be directed to NOBO on 1800 my nobo or 1800 69 6626 in the first instance.
Australia
ABN 80 749 103 558
17 Brett Drive, Carrum Downs, VIC 3201
www.nobo.com.au
USER MANUAL
USER MANUAL
POLOCOOL
POLOCOOL
PC-53AP/C 19,000 BTU(5.5kW)
PC-44BP/C 15,000 BTU(4.4kW)
For
For
NC 34/BP
NC 39/BP
Advertisement
Table of Contents
Related Manuals for Polocool PC-53AP/C
Summary of Contents for Polocool PC-53AP/C
-
Page 1: User Manual
Thank you for selecting our quality air conditioner. please be sure to read this user manual POLOCOOL Portable Refrigerated Air Conditioners are imported and distributed throughout Australiasia by NOBO. carefully before using. Any question, please contact the professional service for help. - Page 2 Important Issues Regarding the Proper Use of this Air Conditioner Please contact NOBO on 1800 my nobo or 1800 69 6626 for advice before returning unit to the place of purchase. Use this air conditioner only as described in this instruction manual. • T his appliance is fitted with a special safety device. When the compressor switches off or when the appliance is first turned on, this device prevents the compressor from switching on again for at least three minutes.
-
Page 3: Table Of Contents
CONTENTS Introduction ..................Installation ..................Control panel ..................10 Operation of control panel ..............10 Operation of remote control ............... 12 Water drainage methods ..............14 Maintenance and service ..............15 Trouble shooting ................17... -
Page 4: Introduction
In general the higher the cooling capacity (BTU/kW) of an air conditioner, the bigger the room it will cool. (a) The PC-53AP/C – 19,000 BTU air conditioner, subject to the variables explained in box 2, can effectively cool rooms with a floor area of between 18 and 39 square metres. - Page 5 9 square metres. of up to 30 square metres. RODUCTION TIPS ON GETTING THE MOST OUT OF YOUR POLOCOOL PORTABLE AIR CONDITIONER ortable air conditioner can alter the room temperature and humidity. It has multiple functions of cooling, idifying (drying) and fan ventilation, and can be moved from room to room and transported from building to Portable air conditioners are not designed to cool large open spaces.
- Page 6 INTRODUCTION This portable air conditioner is a small size appliance, which can adjust the room temperature and humidity. It has multiple functions of cooling, dehumidifying and fan ventilation, and also a much more compact design comparing with NAME OF EACH PART AND FUNCTION other types of air conditioner with the same cooling capacity.
-
Page 7: Installation
INSTALLATION SELECTION OF INSTALLATION LOCATION (Fig.3) Place the portable air conditioner in a flat location where the air inlets and outlets cannot be covered up. Place the unit no less than 50cm away from a wall or other obstacle. ATION LOCATION (Fig.10) ner in a flat location where ed up. - Page 8 ASSEMBLY OF EXHAUST HOSE, HOSE INLET, HOSE OUTLET, WINDOW ADAPTOR AND WINDOW SLIDER (Fig.4) • F ully extend each end of the exhaust hose by about 10cm and attach the hose inlet and hose outlet to opposite ends by rotating the inlet/outlet in a counter clockwise direction approximately 3 to 4 turns, making sure that the hose wire is well threaded into the hose inlet and outlet. The hose inlet and outlet cannot be installed unless the hose ends have been fully extended. • Attach the window adaptor to the hose outlet by pressure fit. • C lip the window adaptor into the window slider. Take care to not break the tabs on the window adaptor when disconnecting from the window slider. INSTALLATION SELECTION OF INSTALLATION LOCATION (Fig.10) Place the portable air conditioner in a flat location where the air outlets cannot be covered up.
- Page 9 ATTENTION ATTENTION • The exhaust hose should be not longer than 1.5metres. • The exhaust hose should be not longer than 1.5metres. • Never bend the exhaust hose excessively when the appliance is working. • Never bend the exhaust hose excessively when the appliance is working. • Elevate the unit if possible to keep the exhaust hose straight. • Elevate the unit if possible to keep the exhaust hose straight. • A lways keep the exhaust hose at its shortest length and as straight as possible when the appliance is working.
-
Page 10: Window Slider Kit Installation
WINDOW SLIDER KIT INSTALLATION (Fig. 9, Fig. 10, Fig. 11 and Fig. 12) The window slider kit has been designed to fit most standard "vertical" and "horizontal" window applications. It may be necessary for you to improvise/modify some aspects of the installation procedures for certain types of windows. -
Page 11: Control Panel
CONTROL PANEL POLOCOOL A. ON/OFF button. B. MODE button. to select modes of cooling / dry / fan. C. FAN SPEED button, to select fan speed of High / Med / Low / Auto. D. SWING button, to switch on/off left/right auto swing function. -
Page 12: Cooling Mode
COOLING MODE Please note that this air conditioner will not cool if the room temperature is less than 18 degrees Celsius. The compressor will not switch on and the green light will not be illuminated. Press ON/OFF button to turn the appliance on. Press MODE button to select COOLING mode. -
Page 13: Operation Of Remote Control
SWING button does not perform any function press this button to switch the automatic swing function on/off MODE button POLOCOOL press this button to select the ON/OFF button modes of COOL, DRY or FAN press this button to switch the appliance on/off Fig. - Page 14 COOLING MODE (Fig. 16) TIMER ON TIMER OFF Press the ” ON /OFF” button to turn the appliance on. COOL AUTO HIGH Press the ”MODE” button to select COOL. Set the temperature using the ” ” button. SWING To select fan speed, press the ”FAN” button repeatedly until the required speed is selected ( HIGH, MED, LOW, AUTO ).
-
Page 15: Water Drainage Methods
WATER DRAINAGE METHODS WATER DRAINAGE (Fig. 20) This air conditioner is equipped with the very latest MIST technology which means that the water tank does not have to be emptied. This has been verified by independent testing conducted both in Australia and overseas under extremely humid conditions. -
Page 16: Maintenance And Service
MAINTENANCE AND SERVICE MAINTENANCE METHODS MAINTENANCE AND SERVICE ● Before cleaning or maintenance, turn the appliance off by pressing the ON/OFF button, MAINTENANCE METHODS then always unplug the appliance from the mains socket. ● Do not use chemical solvent ( like benzene, alcohol glazer) to clean the surface of the •... - Page 17 END OF SEASON OPERATIONS (Fig. 22) • Switch off the unit and disconnect the plug from the power supply outlet. • Remove the plug from the drain outlet to drain the water onto the drain pan and dispose of the water. Tilt the unit by lifting it at the front to ensure all water is removed from the water tank. Then operate the unit in fan mode for half a day until the pipe is dry.
-
Page 18: Trouble Shooting
TROUBLE SHOOTING Before seeking repair or service, please check the following. PROBLEM CHECK ACTION Is A/C plugged into power supply Insert power plug securely into • • outlet? power supply outlet and turn No power to Air Conditioner power on Has fuse blown (circuit breaker Turn A/C off, replace fuse wire •... -
Page 19: Specifications
Drainage Method . This is a fail safe display due to protect against spilling water, when the air conditioner is used in dry mode and the mist motor is not operating. SPECIFICATIONS TECHNICAL SPECIFICATIONS (1) Polocool PC-53AP/C (2) Polocool PC-44BP/C Rated voltage 240 Volts Rated voltage 240 Volts Rated power input 2300 Watts...
