Polocool HN 10C User Manual

Portable refrigerated air conditioner
Hide thumbs

Advertisement

Table of Contents

PORTABLE REFRIGERATED AIR CONDITIONER
Thank you for selecting our quality air conditioner. Please be sure to read this user manual carefully
before using. POLOCOOL portable refrigerated air conditioners are imported and distributed throughout
Australasia by POLO.
Any enquiries should be directed to Polo on 1 800 087 840 in the first instance.
ABN 80 749 103 558
17 Brett Drive, Carrum Downs, VIC 3201
www.polocool.com.au

USER MANUAL

POLOCOOL
POLOCOOL
HN 10C – 10,000 BTU (2.9kW)
For

Advertisement

Table of Contents
loading

Related Manuals for Polocool HN 10C

Summary of Contents for Polocool HN 10C

  • Page 1: User Manual

    HN 10C – 10,000 BTU (2.9kW) Thank you for selecting our quality air conditioner. Please be sure to read this user manual carefully before using. POLOCOOL portable refrigerated air conditioners are imported and distributed throughout Australasia by POLO. Any enquiries should be directed to Polo on 1 800 087 840 in the first instance.
  • Page 2 Important Issues Regarding the Proper Use of this Air Conditioner Please contact Polo on 1 800 087 840 for advice before returning unit Use this air conditioner only as described in this instruction manual. • This appliance is fitted with a special safety device. When the compressor switches off or when the appliance is first turned on, this device prevents the compressor from switching on again for at least three minutes.

  • Page 3: Table Of Contents

    CONTENTS Introduction ................Installation ................Control panel ................Operation ................. Description of remote control ........... 10 Water drainage methods ............14 Maintenance and service ............15 Trouble shooting ..............16 Specifications ................17...

  • Page 4: Introduction

    This Polocool HN10C portable refrigerated air conditioner has a maximum cooling capacity of 10,000 BTU or 2.9kW. It is suitable to cool rooms up to 17 square metres of floor area in ideal conditions.
  • Page 5 DESCRIPTION OF EACH PART AND FUNCTION Air outlet grill – cooled air comes out of this outlet Control panel – controls the functions of the air conditioner Castors – enables the air conditioner to be easily moved Air intake grills Remote control receiver –...

  • Page 6: Installation

    INSTALLATION SELECTION OF INSTALLATION LOCATION Place the portable air conditioner in a flat location where the air inlets and outlets cannot be covered up. Place the unit no less than 50cm away from a wall or other obstacle. In addition, a minimum 50cm clearance is required from all faces of the air conditioner including the rear face.
  • Page 7 MOUNTING OF ASSEMBLED AIR EXHAUST HOSE • Make certain the air intake and outlet grills are unobstructed. • Push the hose inlet into the air exhaust hose housing lining up the top and bottom lugs. It will fit securely in position – to remove turn the hose inlet either clockwise or anticlockwise. •...
  • Page 8 WINDOW SLIDER KIT INSTALLATION (Fig. 9, Fig. 10, Fig. 11 and Fig. 12) WINDOW SLIDER INSTALLATION The window slider has been designed to fit most standard “vertical” and “horizontal” window applications. It may The window slider kit has been designed to fit most standard "vertical" and "horizontal" window applications. It may be necessary for you to improvise/modify some aspects of the installation procedures for certain types be necessary for you to improvise/modify some aspects of the installation procedures for certain types of of windows.

  • Page 9: Control Panel

    CONTROL PANEL OPERATING FROM THE CONTROL PANEL The operating temperature ranges for cooling and dehumidifying are 18°C to 32°C. A temperature within this range may be set, but the room may not necessarily reach this set temperature. If the appliance is turned off during cooling or dry (dehumidifying) operation and turned on again immediately, the unit will wait at least 3 minutes before restarting the compressor.

  • Page 10: Operation

    OPERATION Plug into mains socket – do not plug into power boards being used for other appliances. for quieter operation DEHUMIDIFYING (DRY) MODE In dehumidifying mode the appliance must have the exhaust hose fitted to allow air to be discharged externally. The unit will not cool or dehumidify in this mode.

  • Page 11: Description Of The Remote Control

    DESCRIPTION OF THE REMOTE CONTROL 1. Mode indicator 2. Sleep indicator 3. Powerful indicator 4. Timer selection 5. Auto-speed indicator 6. Fan Speed indicator 7. (a) Increase (+) temperature button (b) Decrease (-) temperature button 8. FAN button - Press this button to select fan speed of HIGH/MED/LOW/AUTO 9.
  • Page 12 INSERTING OR REPLACING THE BATTERIES • Slide and remove the cover on the rear of the remote control; • Insert two “AAA” 1.5V batteries in the correct position (see instructions inside the battery compartment); • Replace the cover If the remote control is not used for long periods, remove the batteries. rating mode (COOL, DRY, FAN) and the fan speed.
  • Page 13 - Ideal for summer to cool rooms rapidly. - Activate by simply pressing the POWERFUL button - The appliance operates in cool mode at maximum fan speed. In this mode no set temperature is displayed and it is not possible to set the temperature or change the fan speed.
  • Page 14 – Turn on the appliance and set the working mode (COOL or DRY) you require when the appliance starts up from standby, for example, cooling mode, 25°C, fan speed high.

  • Page 15: Water Drainage Methods

    WATER DRAINAGE METHOD This air conditioner is equipped with the very latest MIST technology which means that the water tank NEVER needs emptying even in high humidity areas. Water drainage will generally only be required at the end of the season (see End of Season Operations – page 15) However, the mist technology does not operate when the unit is in dry (dehumidifying) mode.

  • Page 16: Maintenance And Service

    MAINTENANCE AND SERVICE MAINTENANCE METHODS • Before undertaking cleaning or maintenance, turn the appliance off by pressing the ON/OFF button, then always unplug the appliance from the power supply outlet. • Do not use chemical solvent to clean the surface of the unit. Never spray insecticides or similar in the vicinity of the unit.

  • Page 17: Troubleshooting

    TROUBLESHOOTING Before seeking repair or service, please check the following: PROBLEM CHECK ACTION No power to Air Conditioner • Is A/C plugged into power supply • Insert power plug securely into outlet? power supply outlet and turn power on. • Has fuse blown (circuit breaker •...

  • Page 18: Specifications

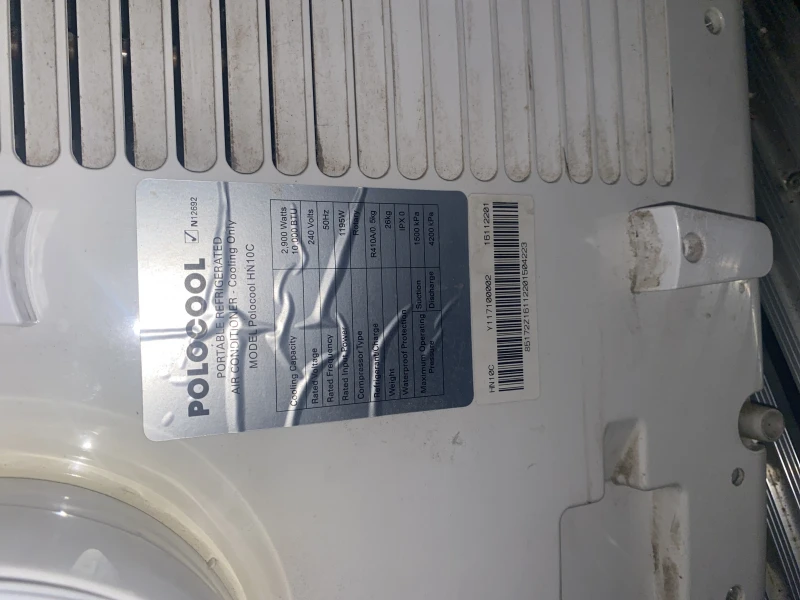

    SPECIFICATIONS 415mm TECHNICAL SPECIFICATIONS 690mm 315mm Polocool - HN10/C Rated voltage – 240 volts Rated power input- 1200 watts 690mm Refrigerant – R410a – 500gm Cooling capacity – 2,900 watts (10,000 BTU0 LIMIT CONDITIONS OF AIR CONDITIONING Room ambience in air conditioning Temperature 21C –...
