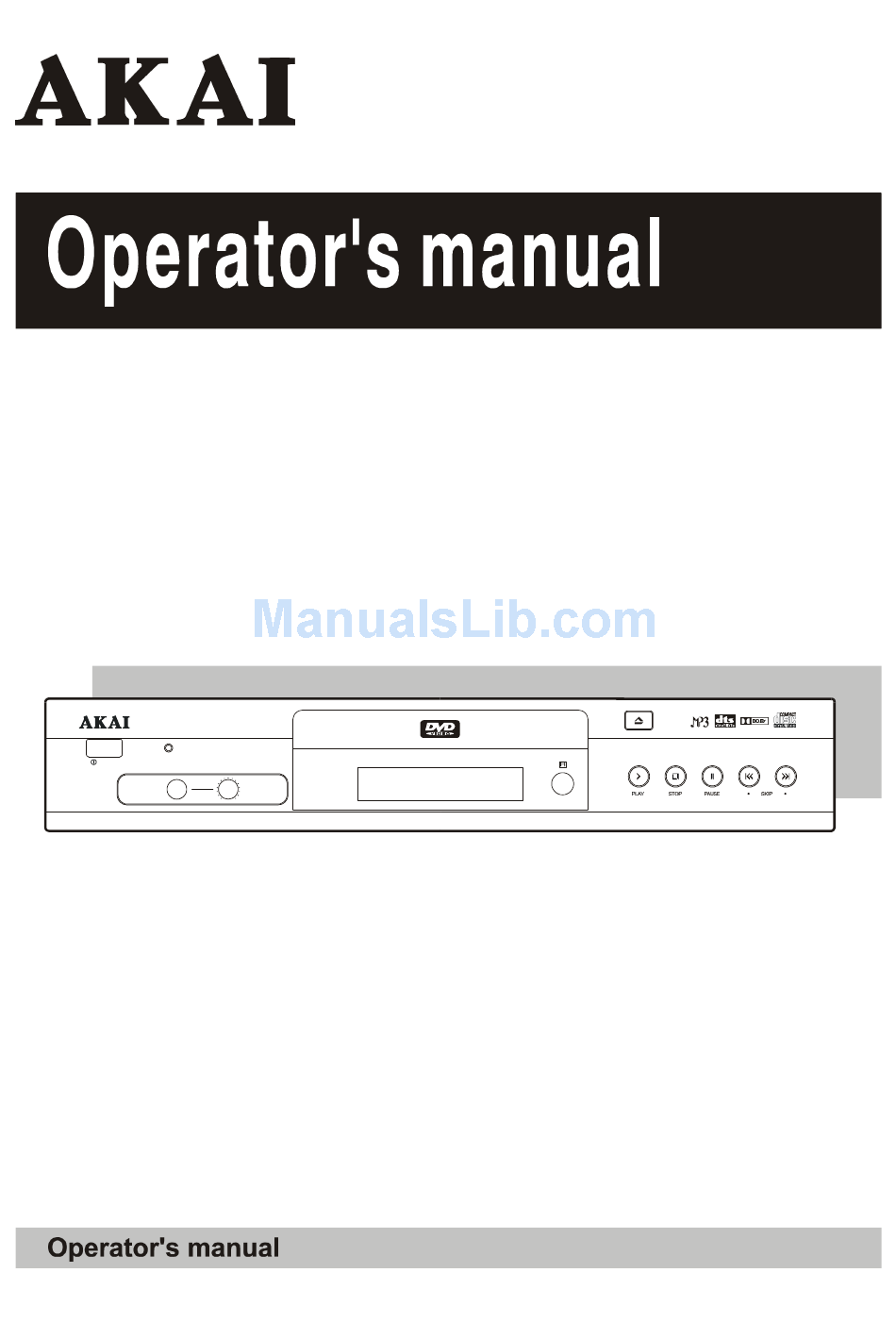

Page 1: Dvd Player
DVD PLAYER DV-P3410 DV-P3410 DVD/VCD/CD PLAYER OPEN/CLOSE STANDBY POWER PHONES LEVEL 1~24... -
Page 2: Safety Information
Dear Customers Precautions May we take this opportunity to thank you for purchasing this DVD/VIDEO CD/CD player. Please read these precautions before operating this unit. We strongly recommend that you carefully study the operating instructions before attempting to operate the Power cord protection unit and that you note the listed precautions To avoid any malfunctions of the units, and to protect... -
Page 3: Features
Accessories Features 96 kHz/24 bit audio D/A converter This player enables 96 kHz/24 bit linear PCM signals, which constitute the highest specifications in the DVD Please check and identify the sup- standards, to be reproduced faithfully. plied accessories. Advanced Dolby Digital (AC-3)/5.1ch surround de- coder The advanced Dolby Digital (AC-3)/5.1ch surround decoder incorporated in this player comes with... -
Page 4: Table Of Contents
Table of contents Getting Started: Advanced Operation Safety information ..........1 Program play ............15 Precautions ............1 Repeat play ............16 Features ............2 Repeat viewing (listening)........16 Accessories ............2 A-B repeat play............ 16 Index ..............3 Changing subtitle language [DVD only] ....17 Control reference guide ........ -
Page 5: Control Reference Guide
Controls and positions STANDBY P H O N E S Main Unit [5] Disc tray [6] Display window [1] POWER button [7] Remote control signal sensor Press to switch on the player or power off. [8] OPEN/CLOSE button [9] PLAY button [2] STANDBY indicator When the player is connected to the AC power [10] STOP button... -
Page 6: Basic Connection
Basic Connection • This player must be connected to a PAL TV or NTSC TV with A/V inlets. • Ensure that this player and other equipment to be connected are set to the standby mode or off and disconnect the AC power cords before commencing connection. •... -
Page 7: Basic Connection
Basic Connection Connecting to a TV set or monitor with component video input connectors TV set or monitor To audio input connectors (red, white) To Video input connector (Scart) Scart cable Video/audio cable DVD/VCD/ CD/MP3 player • The description of the component video input connectors may differ depending on the TV set or monitor (e.g. PR/PB/ Y, R-Y/B-Y/Y, Cr/Cb/Y and so on). -
Page 8: Optional Audio Connections
Optional Audio connections Connecting to an amplifier for Dolby Digital (AC-3) or DTS decoder When DVD recorded in Dolby Digital (or DTS) are played, Dolby digital bitstream is output from the player's OPTICAL digital audio output connector or COAXIAL digital audio output connector. When the player is connected to a Dolby Digital amplifier, you can enjoy theater-quality audio in your home. -
Page 9: Optional Audio Connections
Optional Audio connections Concerning the audio output from the player's optical coaxial digital audio output connector Optical/coaxial digital audio Sound Disc output from connector recording format Dolby Digital Dolby Digital bitstream (AC-3) (2-5.1ch) or PCM (2ch) (48 kHz/16 bit)*1 Linear PCM Linear PCM (2ch) (48 kHz sampling/16 bit only) (48/96 kHz... -
Page 10: Remote Control Unit Preparation
Remote control unit preparation Battery installation Insert the batteries while observing the correct (+) and (-) polarities as illustrated at right. Service life of batteries • The batteries normally last for about one year although this depends on how often, and for what operations, the remote control unit is used. -
Page 11: Before Using The Dvd/Vcd/Cd Player
Before enjoying DVD/Video CD/CD The On-Screen menu language of your player has been factory pre-set to English. If you would like to change the menu language, please OPEN/CLOSE refer to "Selecting language of On-Screen Display menu". In the explanation given below it is assumed that English has been selected as the menu language. -
Page 12: Stopping Play
Stopping play Press STOP For your convenience: OPEN/CLOSE • When play is stopped, the player records the point where STOP was pressed (RESUME function). Press PLAY again, playback will resume from this point. When the tray is opened or STOP is pressed again, the RESUME function will be cleared. -
Page 13: Enjoying Video Cds With Playback Control
Enjoying Video CDs with playback control • When playing VCDs2.0/3.0, press PBC button, on the screen, "PBC" will light up. it shows that the playing is with play-back control - the player will play from the be- ginning of the disc. POWER REPEAT PBC ON... -
Page 14: Slow Motion Picture [Dvds/Vcds]
Slow-motion play (DVDs/VCDs) By the remote control unit Press SLOW button during play. • Plays the disc at a 1/2 normal speed at first. Each time the button is pressed, the playspeed becomes1/4, 1/6, 1/7. • Press the PLAY button, normal play will resume. POWER REPEAT 1/ALL... -
Page 15: Mp3 Playback
MP3 Files Playback This unit is compatible for the reproduction of recorded pieces in MP3 format. Refer to the following instructions for a correct use: 1. Insert the disc containing the recorded passages in MP3 format to be playbacked and after a few seconds, on the TV screen will appear an icon of confirmation bearing the logo MP3. -
Page 16: Program Play
Program Play This player plays the tracks in the disc in an order you desired. 1. Press PROGRAM button in the stop mode, and the screen will display program menu. POWER REPEAT 1/ALL EJECT DISPLAY FUNCTION SUBTITLE ZOOM AUDIO ANGLE 2. -
Page 17: Repeat Play
Repeat play Repeat viewing (listening) 1. Press REPEAT 1/ALL button each time during play, it will repeat play one chapter or one title (for DVD disc), or re- peat play one track or all tracks DISC REPEAT CHAPTER POWER REPEAT REPEAT Repeat chapter 1/ALL... -
Page 18: Changing Subtitle Language [Dvd Only]
Changing subtitle language (DVD only) It is possible to change the subtitle language to a different language from the one selected at the initial settings. ( This operation works only with discs on which multiple subtitle languages are recorded) 1.Press SUBTITLE button during play, the screen will display the current language, each time the button is pressed, lan- guage is changed. -
Page 19: Search For Preferred Scene
Search for preferred scene Some discs with movies, for example, may be available with two or more titles. If the disc has a title menu re- corded on it, it is possible to select a specific scene di- rectly by using SEARCH button. When playing DVD disc 1.Press SEARCH button during play, then press NUMERIC button to choose number corresponding to the desired... -
Page 20: Initial Setting
Initial setting Once the initial programming is entered it is retained in memory until changed. the player can always be oper- ated under the same conditions. The settings will be retained in the memory until the settings are changed even after setting the player to the standby mode. -
Page 21: Select Tv Screen Type
Select TV Screen Type Choose TV by using Joystick, then press SELECT button to open TV menu, then press it again, the screen type is open. Language Video Audio Rating TV Shape 4:3 PS 4:3 PS L:3 LB Video 16:9 Move cursor to VIDEO item, then press SELECT button to POWER REPEAT... -
Page 22: Selecting Rating Level
Selecting Rating Level This function will disactivate the playback of certain DVDs not suitable for children. · Some DVDs are rated at a certain specific level. If the rating level of the DVD is higher than the one selected in the settings, the playback of that DVD will be forbidden. -
Page 23: Definition Of Terms
Definition of terms Specifications Power requirements: AC 110-230V, 50/60Hz Angle Power consumption: 25W (approx. 3.0W when set Recorded onto some DVD discs are scenes which have to the standby mode either by been simultaneously shot from a number of different angles the power button or the remote (the same scene is shot from the front, from the left side, from the right side, etc.). -
Page 24: Troubleshooting
Trouble-shooting Before requesting service for this player, check the chart below for a possible cause of the problem you are experiencing. Some simple checks or a adjustment on your part may eliminate the problem and restore proper operation. Symptom (Common) Remedy No power. -
Page 25: Disc Handling And Maintenance
Symptom (DVD) Remedy Play does not start even when title is Confirm the "Ratings" setting. selected. Audio soundtrack and/or subtitle lan- If the audio soundtrack and/or subtitle language does not exist on guage is not the initial settings. the disc, the language selected at the initial settings will not be seen/heard. -
Page 26: Region Management Information
Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this DVD/VCD/CD player, this DVD/VCD/CD player cannot play this disc. The Region number for this DVD/VCD/CD player is AKAI ELECTRIC CO., LTD.
