Summary of Contents for Akai DV-P4330S

  • Page 1: Dvd Player

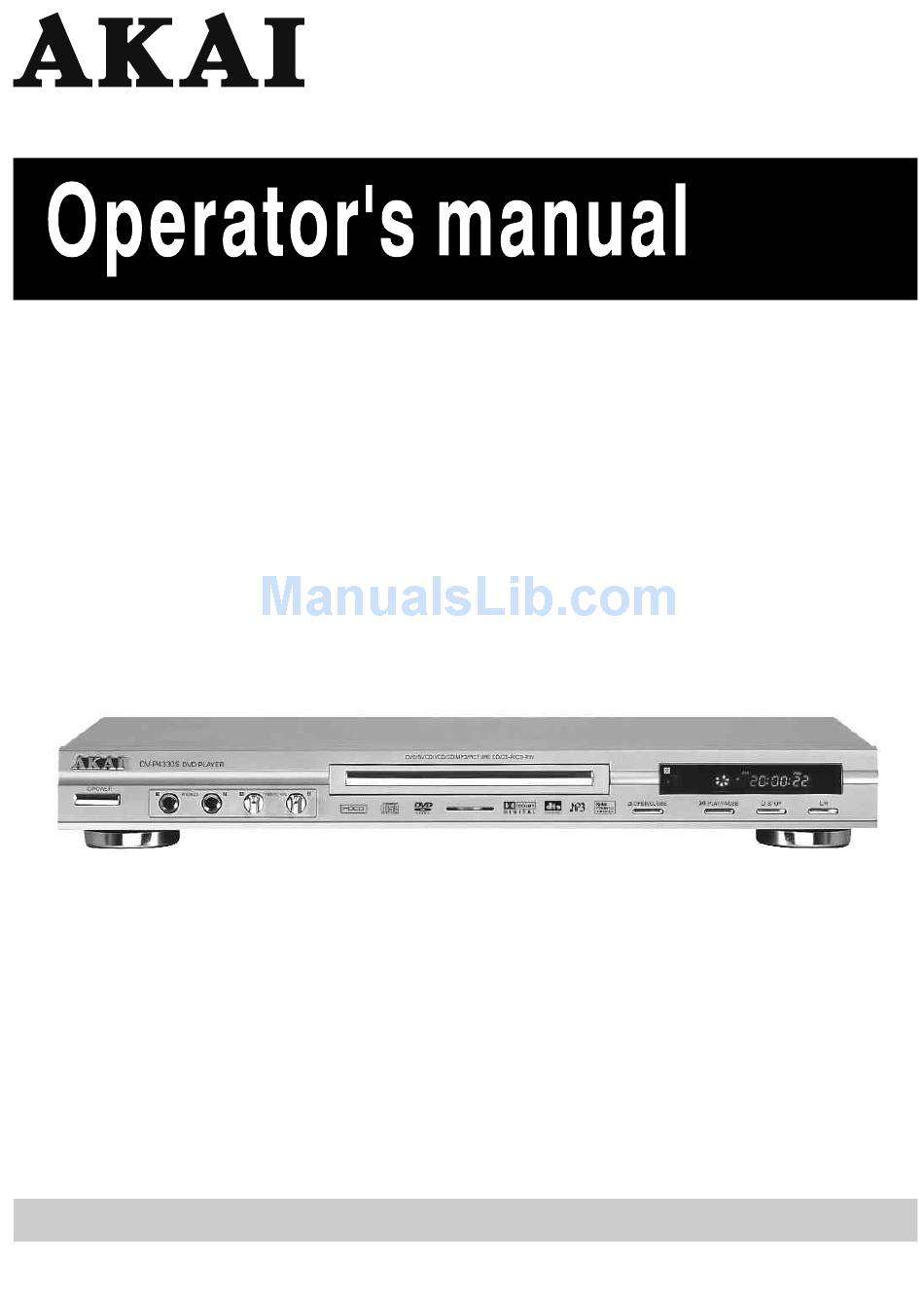

    DVD PLAYER DV-P4330S Operator's manual (GB) 1~33...

  • Page 2: Table Of Contents

    DV-P4330S Table of Contents Table of Contents 1¡¢FUNCTIONS 2¡¢ACCESSORIES 3¡¢OPERATION INTERFACE 4¡¢CONNECT TO THE A&V SYSTEM 5¡¢PLAY MODE 6¡¢ BASIC OPERATION ¡¢INITIAL SETTING UP 8¡¢WMA/ MP3/JPEG/KODAK PICTURE CD PLAY FORMAT 9¡¢TECHNICAL SPECIFICATION 10¡¢DVD DISC INFORMATION AND FEATURES 11¡¢TROUBLE SHOOTING ¡¢...
  • Page 3 DV-P4330S This player adopts the mature MPEG-¢òdecoding plan, built-in Dolby Digital (AC-3) and DTS double decoding. We also adopt the high stability loader, wide- range power supply, which enable the suitability of our players in different countries of different power requirement. The out-appearance is unique and beautiful. The...
  • Page 4 DV-P4330S Thanks for purchasing our DVD player. Before operating this player, please read this manual and retain it for future reference. SAFETY PRECAUTIONS SAFETY PRECAUTIONS W A R N I N G RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING:TO REDUCE THE RISK OF ELEC- TRIC SHOCK,DO NOT REMOVE COVER( OR B ACK).
  • Page 5 DV-P4330S This DVD player employs a laser System. Use of controls, adjustments or the performance of procedures other than those specified may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not try to open the enclosure.
  • Page 6 DV-P4330S IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS MANUAL AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE. This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard.
  • Page 7 DV-P4330S 10. Lightning 16.Disc For added protection for this product Do not use a cracked, deformed, or repaired disc. These discs during storm, or when it is left unatt- are easily broken and may cause ended and unused for long periods of serious personal injury and time, unplug it from the wall outlet.
  • Page 8 DV-P4330S Notes on handling Notes on Moisture Condensation When shipping the DVD player, the original shipping Moisture condensation damages the DVD player. carton and packing materials come in handy. For maxi- Please read the following carefully. mum protection, repack the unit as it was originally Moisture condensation occurs , for example, when packed at the factory.

  • Page 9: Functions

    DV-P4330S £±£®FUNCTIONS 1.1 Compatibility ¢ ¡ This player is compatible with DVD¡¢VCD¡¢SVCD¡¢DVCD¡¢HDCD¡¢CD¡¢CD-R¡¢CD-RW¡ ¡ ¢ discs and KODAK CD pictures. MP3 CDG 1.2 High quality video effect, lifelike and heart-quaking sound effect Horizontal resolution of our player is more than 500 lines. The progressive scan feature and the YUV output makes the picture more clear, more beautiful and full of spirit.

  • Page 10: Operation Interface

    DV-P4330S £³£®OPERATION INTERFACE 3.1 Front panel 1.Power switch 7.Remote receiver 2.Earphone jack1 8. VFD display 3.Earphone jack2 9. OPEN/CLOSE button 4.Phones VOL1button 10.PLAY/PAUSE button 5.Phones VOL2button 11.STOP button 6.Disc tray 12.L/R button 3.2 VFD description 1.PBC: Used for VCD, light means play function is working, dark means play function is off .
  • Page 11 DV-P4330S 3.3 Remote control LANGUAGE TIME MENU TITLE ENTER/PLAY MUTE RETURN MODE KEY- STEP KEY+ 3.4 Use of the remote control Remove the back cover of the remote control, correctly insert two AAA batteries and then close back cover. When using the remote control, please point the remitting port directly to the receiving port of the player and make sure no object is in between.

  • Page 12: Connect To The A&V System

    DV-P4330S £´£®CONNECTING TO THE A&V SYSTEM Note: No matter the VIDEO output is INTERLACE-YUV or P-SCAN Y Pb Pr, S-VIDEO and CVBS output can work at the same time. 4.1 connecting to the A&V part of a two channel TV Set Connect the y ellow pin of the AV wire to the yellow socket of this player and connect the other side of the AV wire to the yellow video input socket of the TV set.
  • Page 13 DV-P4330S ¢Ù Connecting DVD player to 2 channel TV set TWO CHANNEL AMP TV SET ¢Ú Connecting DVD player to 2 channel AMP and TV set...
  • Page 14 DV-P4330S OUTPUT AC-3/DTS DECODER AMP TV SET ¢Û Connecting DVD player to AC-3/DTS decoder AMP and TV set Y, Cb, Cr or Y, Pb, Pr DOUBLE CHANNEL AMP TV SET ¢Ü Connecting Y, Cr or Y, Pb, Pr output of DVD player with that of the TV set...
  • Page 15 DV-P4330S ¢Ý SCART output of DVD play + SCART outlet of computer display...

  • Page 16: Play Mode

    DV-P4330S 5£®PLAY MODE The player can provide the following play modes, including MENU PLAY, TITLE PLAY, ORDER PLAYER and PROGRAM PLAYER, etc. according to data area in disc. FUNCTION DESCRIPTION DISPLAY 1.ROOT MENU will be shown on TV if you play For DVD,SVCD,VCD2.0 discs.

  • Page 17: Basic Operation

    DV-P4330S 6£®BASIC OPERATION Insert the power plug to the AC power supply socket. Please check the voltage and frequency of power supply first. Press the powe r button on the front panel to turn on the player. The opening interface will appear on the ¡...
  • Page 18 DV-P4330S FUNCTION DESCRIPTION DISPLAY Press the button, the volume will be smaller. Volume[ VOL- Press the button to choose the title or chapter you The pressed number will appear on the TV screen. NUMERIC BUTTON want to play. 1.If press the button when the machine is playing 1.If you press the button when the machine is...
  • Page 19 DV-P4330S FUNCTION DESCRIPTION DISPLAY When you press this button, the player will retreat in ¡Á 2 /¡Á 4 / ¡Á 8 / ¡Á /20 will appear. ¡Á 2 /¡Á 4 / ¡Á 8 / ¡Á /20 speed. When you press the button, the disc will be slowly played SF 1/2,1/3,1/4,1/5,1/6,1/7 will appear.

  • Page 20: Initial Setting Up

    DV-P4330S When you press this button, the setup menu will appear on SETUP the screen. Use up/down directional button to choose setup Menu screens will show item, use ¡°Enter/Play¡±button to confirm the setup. When you press this button, the screen will show the programming menu and start programming-play setup function.

  • Page 21: Screen Saver

    DV-P4330S 7.1.1 TV SYSTEM TV system: The TV output mode maybe : Auto, NTSC, PAL, PAL 60. SYSTEM SETUP NTSC TV SYSTEM PAL 60 SCREEN SAVER VIDEO TV TYPE AUTO PASSWORD RATING DEFAULT EXIT SETUP Set up the system of your DVD player to match the system of your TV. The default setting of this DVD player is PAL .
  • Page 22 DV-P4330S 7.1.4 TV TYPE SYSTEM SETUP TV SYSTEM SCREEN SAVER VIDEO TV TYPE 4 : 3 PS PASSWORD 4 : 3 LB RATING 16 : 9 DEFAULT EXIT SETUP Reference pictures: 4:3 subtitle block to To view the standard To view broad mode...

  • Page 23: Language Setup

    DV-P4330S If you want to change the RATING grade or the password, please input the initial password 8888 to unlock, and press the¡° ENTER/PLAY¡±button first. Thereafter input your new password, and then press¡°ENTER/ PLAY¡± button. If later on you want to make a new setting for the RATING or if you want to change the password, please input the new password as set above.

  • Page 24: Osd Language

    DV-P4330S 7.2.1 OSD language LANGUAGE SETUP OSD LANGUAGE ENGLISH AUDIO LANG FRENCH SUBTITLE LANG NETHERLAND MENU LANG EXIT SETUP OSD has three languages: English, French, Netherland. If you choose French , the menu will be all in French. If choose the other language, the menu will be all in the corresponding language.

  • Page 25: Menu Language

    DV-P4330S 7.2.4 Menu language LANGUAGE SETUP OSD LANGUAGE CHINESE AUDIO LANG ENGLISH SUBTITLE LANG JAPANESE MENU LANG FRENCH SPANISH PORTUGUESE EXIT SETUP GERMAN LATIN The Menu can be in different languages: Chinese, English, Japanese, French, Spanish, Portuguese, German, Latin, etc, To choose menu language, the disc must be equipped with multi language menus.
  • Page 26 DV-P4330S 7.4.1 Brightness VIDEO SETUP BRIGHTNESS CONTRAST SATURATION EXIT SETUP Use up down directional button to adjust the brightness. 7.4.2 Contrast VIDEO SETUP BRIGHTNESS CONTRAST SATURATION EXIT SETUP Use up/ down directional button to adjust the colour contrast. 7.4.3 HUE...

  • Page 27: Speaker Setup

    DV-P4330S 7.5 Speaker setup Speaker setup: DOWNMIX SUBWOOFER BASS MODE 7.5.1 Downmix SPEAKER SETUP DOWNMIX LT/RT SUBWOOFER STEREO BASS MODE EXIT SETUP DOWNMIX has three output modes: LT/RT, STEREO, VSS. LT/RT is recommended if the discs support PROLOGIC DOLBY sound, you can enjoy clear and vivid sound effect as in the cinema. If the discs support 5.1channel output, ¡°STEREO¡±is recommended.

  • Page 28: Digital Setup

    DV-P4330S 7.6 Digital setup Digital setup OP MODE DYNAMIC RANGE DUAL MONO 7.6.1 Op mode DIGITAL SETUP OP MODE LINE OUT DYNAMIC RANGE RF REMOD DUAL MONO EXIT SETUP You may choose the output mode from LINE OUT and RF REMOD, In most cases, just use the LINE OUT, some cases such as when using earphone, you may choose RF mode.

  • Page 29: Wma/Mp3/Jpeg/Kodak Picture Cd Play Format

    DV-P4330S 8. WMA/MP3/JPEG/KODAK PICTURE CD PLAY FORMAT When putting MP3/JPG disc into the tray, the player will automatically search and save each directory of Mp3/ JPG. After the search is finished, the first directory of MP3 will show automatically in priority ( this function is only for disc containing different type files, otherwise the first directory of single-file disc will play), and in which the first song will be played.
  • Page 30 DV-P4330S You can enter into the directory that you want to play by using directional button, and then the first song will be played. The directional button can also be used to choose any file you like to play in the file area.

  • Page 31: Technical Specification

    DV-P4330S 9. TECHNICAL SPECIFICATION Response frequency: 4Hz - 22 Khz S/N ratio: > 98dB Audio output: Video output: 1.0V£¨P-P£© 75¦¸ S-video output: Y 1.0V£¨P-P£©£¬ C0. 28 75¦¸ power supply: 100-240V ~ 50/60Hz power consumption: ¡ £ ¡ £ Operation temperature:...
  • Page 32 DV-P4330S 10.1 Compare DVD disc with other discs: SVCD Digital/ Recording Analog Digital Digital Digital/MPEG MPEGI method Single-- Double Single- Double- side --side side side 650MB 650MB 650MB single-- single double- double- Volume layer --layer layer layer 4.7G 8.5G 9.4G...
  • Page 33 DV-P4330S 10.2 Function supported by DVD discs Functions supported by DVD discs are so many that it may be different from different producers. Some functions are as follows: Regional code and signal system Dolby digital surround sound DTS output Sort of language...
  • Page 34 DV-P4330S 10.4 The following discs can be played by this DVD player: Due to rapid advances in the technology of Digital discs, there may be a few new formats of the above kinds of discs which may not be supported by this DVD player. Please note this does not constitute...

  • Page 35: Trouble Shooting

    DV-P4330S 11.TROUBLE SHOOTING Phenomenon reason method to solve the problem Power connected but player Plug not fastened well. Connect the power supply again does not work Correctly insert the disc; clean or re- Disc inserted, but no tracks Disc inserted upside down; disc is dirty place the disc;...

  • Page 36: After Sales Service

    DV-P4330S 12.AFTER SALES SERVICE During our warranty period, when trouble happens to the machine under normal operation, we will repair or replace the machine for you. The customer must send the defect machine to the appointed service center according to the requirement for our reference.
