EWX 147410 W
EN WASHER-DRYER
USER MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Electrolux EWX 147410 W

Summary of Contents for Electrolux EWX 147410 W

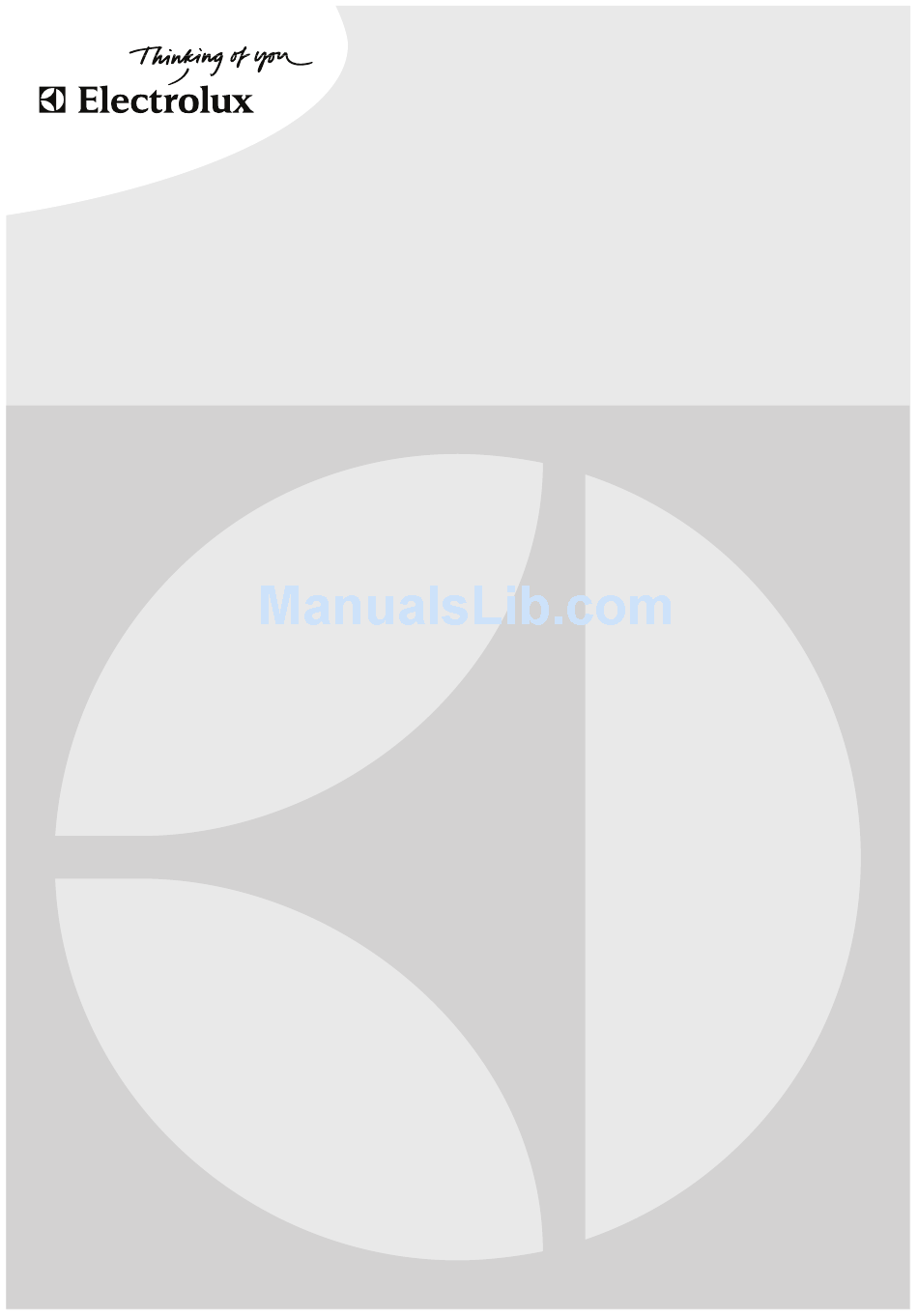

  • Page 1 ..................... EWX 147410 W EN WASHER-DRYER USER MANUAL...

  • Page 2: Table Of Contents

    2 electrolux Electrolux. Thinking of you. Share more of our thinking at www.electrolux.com CONTENTS Safety information Programmes Product description Drying Programmes Control panel Care and cleaning First use What to do if... Personalisation Consumption values Daily use Installation Use - Drying Building in Use - Washing &...
  • Page 3 3 may cause injury or serious malfunction- wired bras must NOT be machine wash- ing. Contact your local Service Centre. Always insist on genuine spare parts. • Garments which have been in contact with volatile petroleum products should INSTALLATION not be machine washed.

  • Page 4: Product Description

    4 electrolux • Keep all detergents in a safe place out of children’s reach. • Make sure that children or pets do not climb into the drum. To prevent children and pets becoming trapped inside the drum the machine incorporates a special feature.

  • Page 5: Control Panel

    5 DETERGENT DISPENSER DRAWER Compartment for detergent used for prewash and soak phase or for stain re- mover used during the stain action phase (if available). The prewash and soak detergent is added at the beginning of the wash pro- gramme.
  • Page 6 6 electrolux DRYING TIME TIME MANAGER buttons If you wish to carry out a timed drying pro- PROGRAMME SELECTOR DIAL gramme, press this button until the drying It allows you to switch the appliance on/off time you want appears on the display ac- and/or to select a programme.
  • Page 7 7 DISPLAY The display shows the following informa- of the display for a few seconds and the tion: integrated red light of button 8 start flash- 7.1: ing. • Duration of the selected programme • End of programme After selecting a programme, the duration...

  • Page 8: First Use

    8 electrolux FIRST USE • Ensure that the electrical and water ECO valve. Then run a cotton cycle connections comply with the installa- at the highest temperature without tion instructions. any laundry in the machine, to re- • Remove the polystyrene block and move any manufacturing residue any material from the drum.
  • Page 9 9 REDUCE THE SPIN SPEED BY PRESSING BUTTON 3 By selecting a programme, the appliance proposes automatically the maximum spin speed provided for that programme. Press button 3 repeatedly to change the spin speed, if you want your laundry to be spun at a different speed.
  • Page 10 10 electrolux 1. Set the washing machine to PAUSE by Type of Soil Type of fabric pressing button 8. washing cy- level 2. Press button 6 once until the symbol 0’ icon is displayed Super Quick For items used or 3.

  • Page 11: Use - Drying

    11 INTERRUPTING A PROGRAMME AT THE END OF THE PROGRAMME Press the button 8 to interrupt a pro- The machine stops automatically. Three gramme which is running, the correspond- blinking zeros ( ) appear on the dis- ing green pilot light starts blinking.

  • Page 12: Use - Washing & Drying

    12 electrolux 4. Set the timed drying: press the button 7. Turn the selector dial to the O position 5 until the time you want appears on to switch the machine off. the display (see the «Drying Pro- 8. Remove the laundry from the drum.

  • Page 13: Helpful Hints And Tips

    13 6. At the end of the programme turn the the machine off and remove the laun- selector dial to the O position to switch dry. HELPFUL HINTS AND TIPS SORTING OUT THE LAUNDRY • Cotton, linen: drum full but not too tightly packed;...

  • Page 14: Drying Hints

    14 electrolux Grass: soap lightly and treat with bleach for all types of fabric, or special for wool- (whites and fast coloureds only). lens only. Ball point pen and glue: moisten with The detergent and any additives must be placed in the appropriate compartments of...

  • Page 15: Programmes

    15 bed covers, quilts, sleeping bags and du- GARMENT LABELS vets must not be machine dried. For drying, follow the indications given on • Avoid drying dark clothes with light col- the manufacturer’s labels: oured fluffy items such as towels as •...
  • Page 16 16 electrolux Programme Maximum and Minimum Temperature Cycle Description Detergent Options Maximum Spin Speed Compartment Maximum Fabrics Load Type of Laundry SPIN — COTTONS WITH PREWASH RINSE HOLD 90°-Cold NO SPIN Prewash - Main wash - Rinses EXTRA RINSE Maximum spin speed 1400 rpm TIME MANAGER Max.
  • Page 17 17 Programme Maximum and Minimum Temperature Cycle Description Detergent Options Maximum Spin Speed Compartment Maximum Fabrics Load Type of Laundry SPIN — RINSES RINSE HOLD Rinses NO SPIN Maximum spin speed 1400 rpm EXTRA RINSE Max. load 7 kg With this programme it is possible to rinse and spin cotton garments which have been washed by hand.

  • Page 18: Drying Programmes

    18 electrolux Programme Maximum and Minimum Temperature Cycle Description Detergent Options Maximum Spin Speed Compartment Maximum Fabrics Load Type of Laundry — Drying Programmes — Cotton Drying — Synthetics Drying O = OFF For cancelling the programme which is running or to switch the machine off .
  • Page 19 19 MAINTENANCE WASH With the use of low temperature washes it is possible to get a build up of residues in- side the drum. We recommend that a maintenance wash be performed on a regular basis. To run a maintenance wash: •...

  • Page 20: Drain Pump

    20 electrolux 5. When no more water comes out, un- screw the pump cover (A) and remove it. Always keep a rag nearby to dry up spillage of water when removing the pump. DRAIN PUMP The pump should be inspected regularly and particularly if: •...

  • Page 21: What To Do If

    21 When the appliance is in use and depend- 2. Unscrew the inlet hose. ing on the programme selected there can 3. Place the end of the emergency empty- be hot water in the pump. Never remove ing hose and that of the inlet hose in a...
  • Page 22 22 electrolux Problem Possible cause/Solution The door has not been closed. E40 • Close the door firmly. The plug is not properly inserted in the power socket. • Insert the plug into the power socket. There is no power at the socket.
  • Page 23 23 Problem Possible cause/Solution The programme is still running. • Wait the end of washing cycle. The door lock has not been released. The door will not open: • Wait until the pilot light 9 goes off. There is water in the drum.

  • Page 24: Consumption Values

    24 electrolux Problem Possible cause/Solution No water is visible in the Machines based on modern technology operate very economically drum: using very little water without affecting performance. If you are unable to identify or solve the problem, contact our service centre. Before telephoning, make a note of the model, se- Mod.

  • Page 25: Installation

    25 INSTALLATION UNPACKING 4. Slide out the relevant plastic spacers. All transit bolts and packing must be re- moved before using the appliance. You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again.
  • Page 26 26 electrolux 2. Connect the hose with the angled con- nection to the machine. Do not place the inlet hose downwards. Angle the hose to the left or right depending on the position of your water tap. Accurate levelling prevents vibration, noise and displacement of the machine during 45°...

  • Page 27: Building In

    27 • In a sink drain pipe branch. This branch must be above the trap so that WATER DRAINAGE the bend is at least 60 cm above the The end of the drain hose can be posi- ground. tioned in three ways.
  • Page 28 28 electrolux The appliance is originally prearranged for Fig. 4 the assembly of a door opening from right to left (Fig. 2). Fig. 2 c) Mounting the door Fix the hinges to the appliance by means of the M5x15 screws. The hinges can be ad- justed to compensate for possible uneven thickness of the door.

  • Page 29: Electrical Connection

    29 Warning! Do not remove the screw B. Fig. 6 Fig. 7 If the door has to be opened from left to right, invert the position of the plates E, the magnet D and the plate C. Mount the counter-magnet D and the hinges A as pre- viously described (Fig.
  • Page 30 30 electrolux • The machine works more economically if • Measure out detergent according to the it is fully loaded. water hardness, the degree of soiling and • With adequate pre-treatment, stains and the quantity of laundry being washed. limited soiling can be removed; the laun- dry can then be washed at a lower tem- perature.
  • Page 31 31...
  • Page 32 132924410-A-122012...
