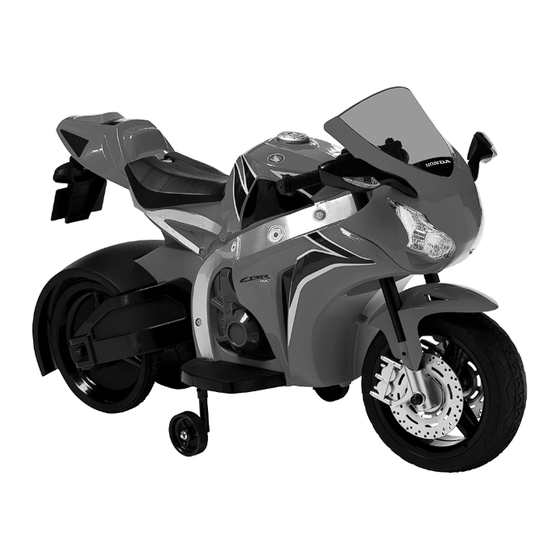

KID Trax KT1058WM Owner's Manual
  1. Manuals
  2. Brands
  3. KID Trax Manuals
  4. Toy
  5. KT1058WM
  6. Owner's manual

KID Trax KT1058WM Owner's Manual

Kid trax
Hide thumbs
Table of Contents

Advertisement

Quick Links

Honda Official Licensed Product. Designed and manufactured by Paragon Child
Products Company Ltd. (GOODBABY GROUP). These products are for purchase
only in the United States and its territories. Honda , the Wing logo, and Honda
vehicle model names and their trade dress are trademarks and intellectual property
of Honda Motor Co., Ltd., used under license from American Honda Motor Co.,
Inc. Many Honda vehicle model names and trade dress may be seen at
www.honda.com. All rights reserved.
The owner's manual contains assembly, use and maintenance
instructions. The Kid Trax Motorcycle must be assembled by an adult
who has read and understands the instructions in this manual. Keep the
packaging away from children and dispose all packaging before use.
4902 Hammersley Rd.
Madison, WI 53711
United States of America
Phone: (877) 741-6154
www.kidtraxtoys.com
Keep instructions for future reference.
TM
Owner's Manual
Model Number: KT1058WM
Styles and Colors may vary
Made in China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KT1058WM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KID Trax KT1058WM

Summary of Contents for KID Trax KT1058WM

  • Page 1 Honda Official Licensed Product. Designed and manufactured by Paragon Child Products Company Ltd. (GOODBABY GROUP). These products are for purchase only in the United States and its territories. Honda , the Wing logo, and Honda vehicle model names and their trade dress are trademarks and intellectual property of Honda Motor Co., Ltd., used under license from American Honda Motor Co.,...

  • Page 2: Thank You

    Thank You For purchasing this Kid Trax Motorcycle. We expect your child will have fun and enjoy riding for years to come. Features on the vehicle include lights and sounds, forward/reverse and a rechargeable battery. Please call us at Kid Trax Toys Consumer Relations at 877-741-6154 with comments or questions.

  • Page 3: Table Of Contents

    Contents Safety ..........1 User Requirements .

  • Page 4: Safety

    Safety WARNING! The following safety hazards may result in serious injury or death to the user of the Kid Trax Motorcycle: • This product contains small parts that are for adult assembly only. Keep small children away when assembling. Remove and dispose of all protective material and poly bags before assembly.
  • Page 5 Battery Warnings WARNING! The following safety hazards may result in serious injury or death to the user of the Kid Trax Motorcycle: • Use of a battery or charger other than the supplied Kid Trax Toys 6V rechargeable battery and charger may cause rechargeable battery and charger with the vehicle.

  • Page 6: User Requirements

    Here are basic safe riding rules you should read aloud to your child and anyone who may ride the Kid Trax Motorcycle: • An adult must always supervise a child that is riding the Honda Motorcycle. • Children under three years should not be allowed to use the vehicle.
  • Page 7 Motorcycle Body Parts Windscreen assembly Rear view mirrors (2) Kid Trax Motorcycle Body Includes: Main body, Kid Trax 6V 7AH battery, back wheels, and foot pedal. Seat License plate Handle bar assembly Support wheels (2) Front fender Disc brake (2) Battery charger Front wheel...

  • Page 8: Charge The Battery

    Charge the Battery The battery can be charged at any time during the assembly process; however, it’s best to do it at this time since you will be installing the motorcycle seat over the battery. The first charge will take twenty four hours. 1.

  • Page 10: Assembly

    Assembly Attach the Handle bars 1. Insert the Handle bar assembly down through the top of the Motorcycle body hole, sliding the metal plate on the handle bar assembly under the white stop of the handle bar tube. For easy alignment there is a peg in the middle of the metal plate that will fit into the inset of the white stop on the handle bar tube.
  • Page 11 Attach the Front Fender 1. Slide the front fender up into the handle bar assembly steering rods. Each steering rod will slide though the pockets of the front fender. 2. Using a phillips head screwdriver fasten a small screw into the hole on the side of the front fender and through the steering rod.

  • Page 12: Attach The Front Wheel

    Attach the Front Wheel 1. Slide the disc brake onto the end of each steering rod as far as they will go, making sure the holes on the steering rods are aligned with the holes in the hubcap. 2. Place the front wheel in between the steering rods, making sure the holes on the wheel is aligned with the holes of the steering rods.

  • Page 13: Attach The Training Wheels

    Attach the Support Wheels 1. Slide the end of the support wheel post into the support wheel holder located below the foot rest. Be sure the holes of the insert align with the holes at the top of the support wheel. 2.

  • Page 14: Attach The Windscreen

    Attach the Windscreen 1. Connect the wires coming from the front corner of Underside of the motorcycle body with windscreen the wires coming from the bottom of the windscreen. 2. Insert the long snap snap lock on the front of the lock motorcycle body into the slot on the bottom of the...

  • Page 15: Attach The Rear View Mirrors

    Attach the Rear View Mirrors 1. Position each rear view mirror with the mirror end facing out. 2. Snap the tabbed end of each rear view mirror into the holes located on the front of the windscreen until they snap into place. Attach the Seat 1.

  • Page 16: Using The Kid Trax Motorcycle

    Using the Kid Trax Motorcycle Important! Before using the Kid Trax Motorcycle for the first time the battery needs to be charged for at least twenty four hours. Only an adult who has read and understands the safety warnings (see Assembly) should handle, charge or recharge of the battery.

  • Page 17: Re-Charge Interval And Time

    Re-Charge Interval and Time Important! • Damage to the battery may occur if it is allowed to drain completely. Do not allow the battery to drain completely. • Check the battery and charger (supply connector) for wear and damage before charging. Do not charge the battery if damage has occurred.

  • Page 18: Battery Replacement And Disposal

    Battery Replacement and Disposal The Kids Trax Toys 6V battery will eventually lose the ability to hold a charge. Depending on the amount of use, and varying conditions, the battery should operate for one to three years. Follow these steps to replace and dispose the battery: 1.

  • Page 19: Maintenance

    Maintenance Motrocycle should be checked for damage, missing or badly worn parts before use. • Check the tightness of the fasteners before each use. • Ensure the battery is securely in place before use • Occasionally use lightweight oil to lubricate moving parts such as wheels and steering linkage.

  • Page 20: Troubleshooting Guide

    Troubleshooting Guide The following are examples of potential problems. Completely read through this manual and the troubleshooting guide table before calling Kid Trax Toys Consumer Relations. If you still need help resolving the problem please call 877-741-6154. Kid Trax Toys recommends that you take the vehicle to an authorized service center for periodic maintenance and service.
  • Page 21 Problem Possible Cause Remedy Vehicle does not Battery is old Replace battery (see run very long Battery: Replacement and Disposal) Vehicle runs Battery low on power Recharge battery (see sluggishly or Battery: Recharge beeping occurs Interval and Time) Battery is old Replace battery (see Battery: Replacement and Disposal)

  • Page 22: Services, Repairs And Parts

    Problem Possible Cause Remedy 6V Battery will not Battery connector or Check that battery recharge adapter connector is connectors are firmly loose plugged into each other Charger not Check that battery charger plugged in is plugged into a working wall outlet Charger is not Call Consumer Relations working (lights not...

  • Page 23: Warranty

    Warranty One-Year Limited Warranty Six-Month Limited Warranty on Battery Pacific Cycle, Inc. (PC) warrants this product to the original retail purchaser as follows: The vehicle (except for the 6-volt battery) is warranted against defective materials or workmanship for one year from the date of original purchase. The 6-volt battery is warranted against defective materials or workmanship for six months from the date of original purchase.

  • Page 24: Contact Information

    Contact Information If you have any questions or comments please contact us at: In U.S.A. © 2011 Pacific-Cycle Inc. 4902 Hammersly Rd. Madison, WI 53711 Customer Service: 877-741-6154 customerservice@kidtraxtoys.com www.kidtraxtoys.com...
