KID Trax KT1094TR Owner's Manual

Pedal quad
Hide thumbs
Table of Contents

Advertisement

Quick Links

Kid Trax
Pedal Quad
Model Number: KT1094TR,
KT1094TG, KT1094WM
Owner's Manual
The owner's manual contains important safety information as well
as assembly, use and maintenance instructions. The Pedal Quad
must be assembled by an adult who has read and understands the
instructions in this manual. Keep the packaging away from children
and dispose of properly before use. Keep this manual for future
reference.
Designed, manufactured and distributed by Pacific
Cycle Inc. HONDA, the Wing ® logo, Honda vehicle
model names and their trade dress are trademarks
of Honda Motor Co., Ltd. used under license from
American Honda Motor Co., Inc. Many Honda vehicle
model names and trade dress may be seen at www.
honda.com. All rights reserved.
Styles and colors may vary.
Made in China.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KT1094TR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KID Trax KT1094TR

Summary of Contents for KID Trax KT1094TR

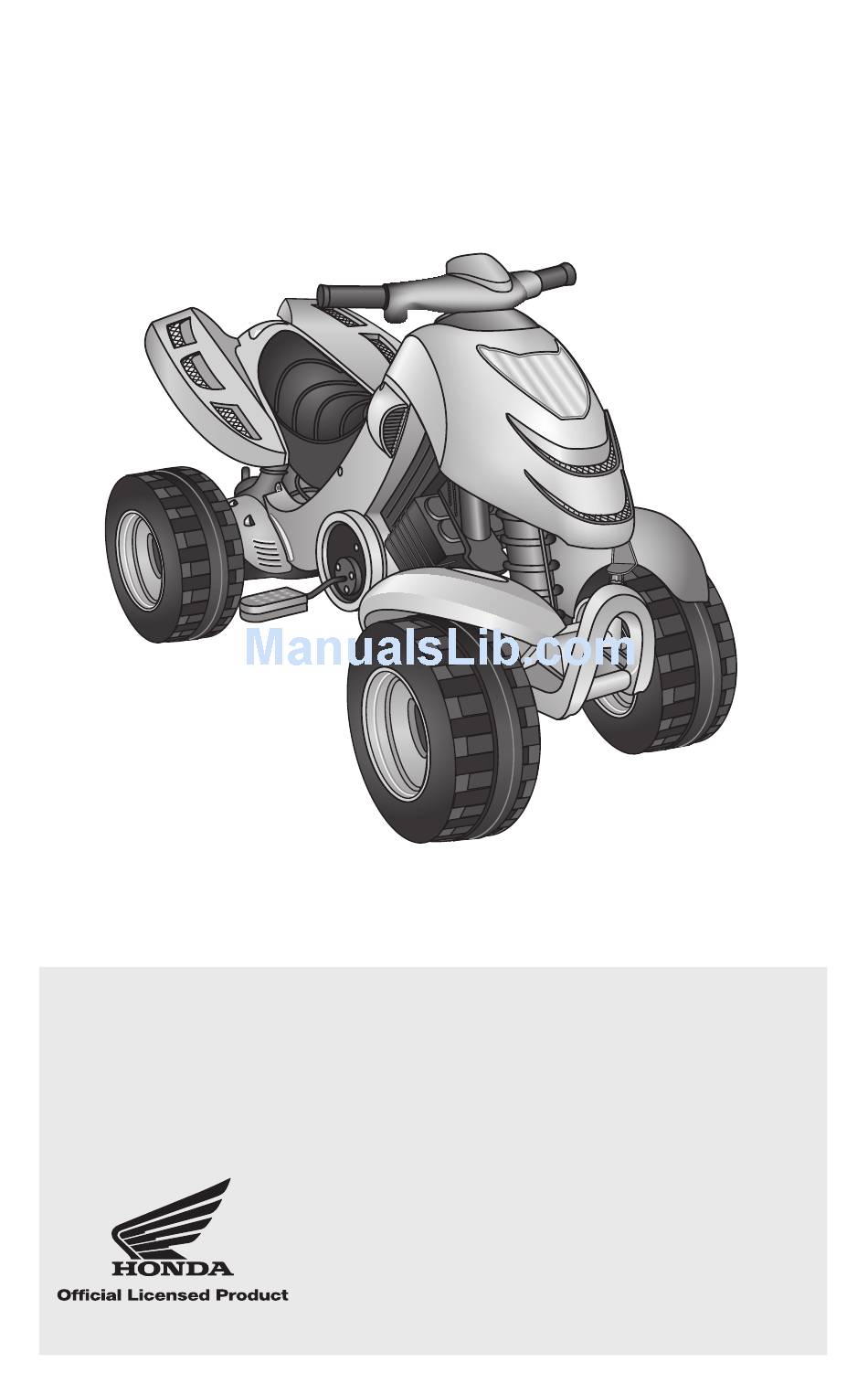

  • Page 1 Kid Trax Pedal Quad Model Number: KT1094TR, Styles and colors may vary. KT1094TG, KT1094WM Made in China. Owner’s Manual The owner’s manual contains important safety information as well as assembly, use and maintenance instructions. The Pedal Quad must be assembled by an adult who has read and understands the instructions in this manual.
