Nikon 1 AW 1 User Manual

Digital camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

DIGITAL CAMERA
User's Manual
En

Advertisement

Table of Contents
loading

Related Manuals for Nikon 1 AW 1

Summary of Contents for Nikon 1 AW 1

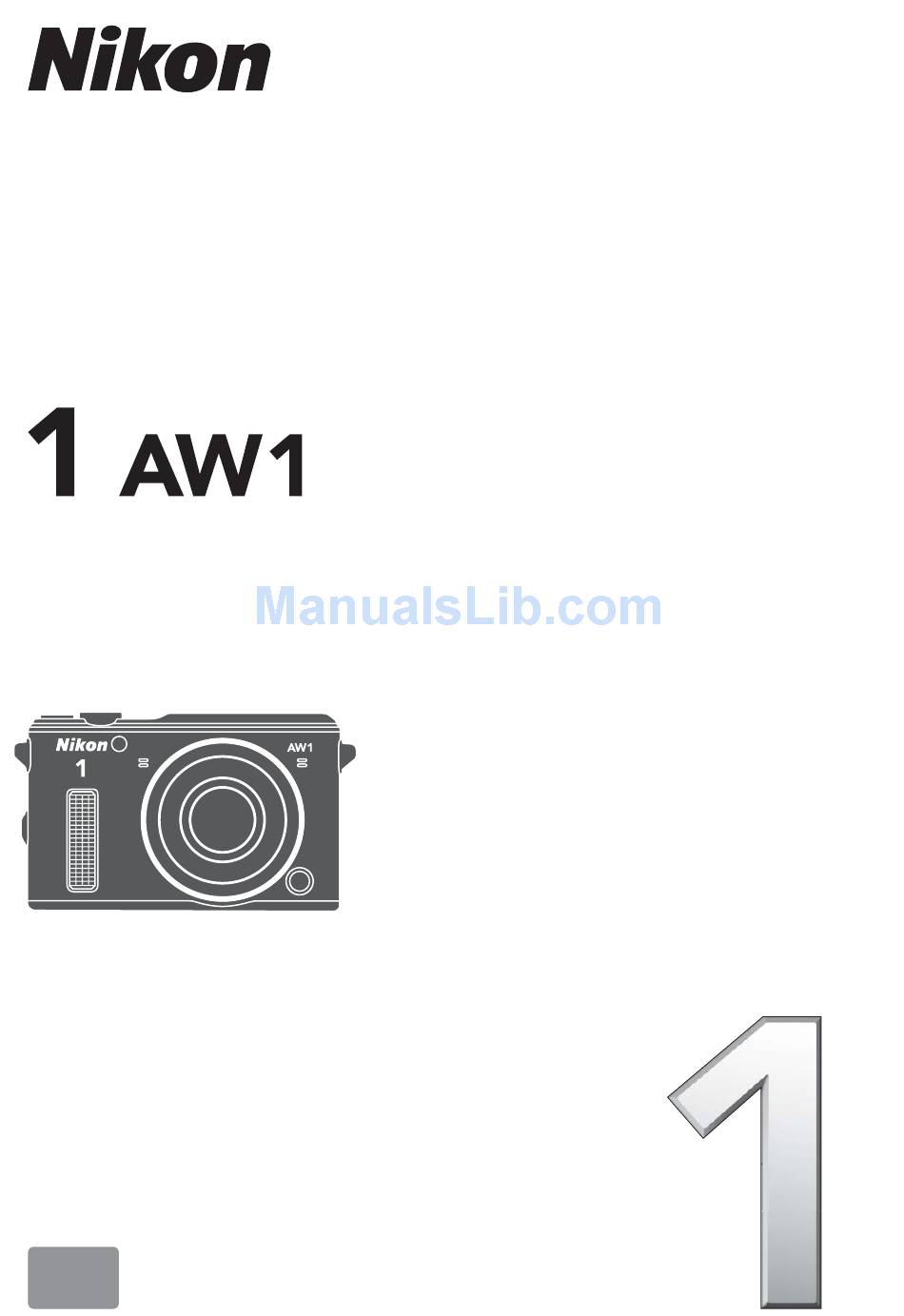

  • Page 1 DIGITAL CAMERA User's Manual...

  • Page 2: Table Of Contents

    Table of Contents Getting the Most from Your Camera .........3 Product Documentation ..............6 For Your Safety................7 Shock-, Water-, and Dust-Proofing ..........10 Shock-Proofing ..................10 Water- and Dust-Proofing..............10 : Waterproof Lenses ..........11 Precautions: Shock-Proofing............11 Precautions: Water- and Dust-Proofing ........11 Operating Environment..............13 : Location Data (GPS/GLONASS) ......14 Notices...................15 Introduction Package Contents................20...
  • Page 3 Taking Photos in P, S, A, and M Modes........... 52 Backlighting................... 57 Easy Panorama..................58 Underwater Photography : Precautions............... 61 Before Using the Camera Underwater ........62 The Final Check ..................64 Taking Pictures Underwater ............. 65 Tips and Tricks for Underwater Photography ....... 67 Auto Distortion Control..............
  • Page 4 Caring for the Camera and Battery: Cautions ..... 115 Troubleshooting ............... 119 Battery/Display................... 119 Shooting (All Modes) ............... 119 Movies ....................120 Playback....................120 Miscellaneous ..................120 Error Messages................121 Specifications ................123 Nikon 1 AW1 Digital Camera............123 Battery Life................... 135 Index ................... 136...

  • Page 5: Getting The Most From Your Camera

    Getting the Most from Your Camera Take photos with the shutter-release button. Photos can be taken in any mode by pressing the shutter- release button. See page 27 for more information. Shutter-release button Shoot movies with the movie-record button. Movies can be recorded by pressing the movie-record but- ton in auto (0 40), creative (0 49), and advanced movie...
  • Page 6 Shoot underwater. Attach a special-purpose waterproof lens to take pictures at depths of up to 15 m (49 ft) for as long as 60 minutes at a time. See page 61 for more information. The camera offers the fol- lowing features that may come in handy during underwater photography: •...
  • Page 7 Thank you for your purchase of a Nikon digital camera. For a complete guide to using your digital camera, see the Reference Manual (0 6). To get the most from your camera, please be sure to read this User’s Manual thoroughly and keep it where it will be read by all who use the product.

  • Page 8: Product Documentation

    Adobe website. 1 Start the computer and insert the reference manual CD. 2 Double-click the CD (Nikon 1 AW1) icon in Computer or My Computer (Windows) or on the desktop (Mac OS). 3 Double-click the INDEX.pdf icon to display a language selec- tion screen and click a language to display the Reference Man- ual.

  • Page 9: For Your Safety

    For Your Safety To prevent damage to your Nikon product or injury to yourself or to others, read the following safety precautions in their entirety before using this equip- ment. Keep these safety instructions where all those who use the product will read them.
  • Page 10 Keep out of reach of children. Failure to Do not leave the product where it will be observe this precaution could result exposed to extremely high temperatures, in injury. In addition, note that small such as in an enclosed automobile or in parts constitute a choking hazard.
  • Page 11 • When the battery is not in use, sold by Nikon for the purpose to attach the terminal cover and store maintain compliance with product in a cool, dry place.

  • Page 12: Shock-, Water-, And Dust-Proofing

    5 new samples, with the requirement that the test be passed within a total of 5 samples). 3 This signifies that according to tests performed using Nikon methods, the product can be used at the specified water pressure for the specified...

  • Page 13: Waterproof Lenses

    Important: Waterproof Lenses The product is not guaranteed shock-, water-, or dust-proof if the special-purpose waterproof lens is not attached. Before using this product, be sure to read the following sections, together with the instructions in “For Your Safety” (0 7–9) and in “Caring for the Camera and Battery: Cautions”...
  • Page 14 Ensure that memory cards and batteries are dry before insertion. Should the product leak, cease use immediately, dry the camera and lens, and consult a Nikon-authorized service representative. • Water and other liquids on the lens O-ring seal or inside the connector and battery-chamber/memory card slot covers should be removed immediately with a soft, dry cloth.

  • Page 15: Operating Environment

    • The product is not guaranteed waterproof if struck, dropped, or otherwise subjected to strong pressure or violent physical shocks or vibration. If the product does suffer a fall or other physical shock, take it to Nikon-authorized service personnel and have it tested to make sure that it is still waterproof.

  • Page 16: Location Data (Gps/Glonass)

    Important: Location Data (GPS/GLONASS) Observe the following precautions when using the location data and track log features: • Track logs: While Yes is selected for Location data > Record location data in the setup menu, location data will be recorded with all pictures taken and the camera will continue to monitor location data even while off.

  • Page 17: Notices

    Notices • No part of the manuals included • Nikon will not be held liable for any with this product may be repro- damages resulting from the use of duced, transmitted, transcribed, this product. stored in a retrieval system, or trans- •...
  • Page 18 Use the interface cables sold or pro- lar installation. If this equipment does vided by Nikon for your equipment. cause harmful interference to radio or Using other interface cables may television reception, which can be...
  • Page 19 Notice Concerning Prohibition of Copying or Reproduction Note that simply being in possession of material that has been digitally cop- ied or reproduced by means of a scanner, digital camera, or other device may be punishable by law. • Items prohibited by law from being copied •...
  • Page 20 Only Nikon brand electronic accessories (including charg- ers, batteries, AC adapters, and lens accessories) certified by Nikon specifically for use with this Nikon digital camera are engineered and proven to operate within the operational and safety requirements of this electronic circuitry.
  • Page 21 Before taking pictures on important occasions (such as at weddings or before taking the camera on a trip), take a test shot to ensure that the camera is functioning normally. Nikon will not be held liable for dam- ages or lost profits that may result from product malfunction.

  • Page 22: Introduction

    Introduction Package Contents Confirm that the package contains the following items: BF-N2000 body cap PA-N1000 O-ring protector Nikon 1 AW1 digital camera (comes with WP-O2000 O-ring attached; check O-ring for damage before use) EN-EL20 MH-27 battery rechargeable charger (AC wall...

  • Page 23: Parts Of The Camera

    Parts of the Camera Take a few moments to familiarize yourself with camera controls and displays. You may find it helpful to bookmark this section and refer to it as you read through the rest of the manual. The Camera Body 1 2 3 4 5 Movie-record button ....77, 79, 84 Dust shield ........114, 115...
  • Page 24 The Camera Body (Continued) 19 18 21 22 G (menu) button ......26 Flash pop-up button......91 Monitor .......... 24, 36 Memory card access lamp....43 W (playback zoom out/thumbnail) K (playback) button......44 J (OK) button ........30 button ..........44 X (playback zoom in) button...44 Multi selector........
  • Page 25 The Multi Selector To navigate the menus, press the multi selector up, down, left, or right (1,3, 4, or 2) as shown below. Move cursor up Select highlighted item Return to previous menu Select highlighted item or display sub-menu Move cursor down Holding the Camera When framing photographs, hold the camera as shown below.
  • Page 26 The Monitor 5 6 7 8 9 10 11 Battery fully charged or NO ICON partially discharged. Low battery. 25 24 Shooting mode ........27 Flash-ready indicator ......91 Live image control......47 “K” (appears when memory remains Creative mode ........49 for over 1000 exposures) Best moment capture selection Number of exposures remaining..39 Advanced movie selection ..
  • Page 27 35 36 37 38 1, 2 HDR ............57 Track log indicator 1, 2 Auto distortion control......99 Satellite signal indicator Self-timer ..........89 Altimeter/depth gauge ..68, 101 Heading Altitude/depth ......68, 101 Virtual horizon 1 Shown in detailed display. 2 Shown in altimeter, depth gauge, heading, and virtual horizon display. The $ (Display) Button Press $ to cycle through shooting or playback indicators.

  • Page 28: The G Button

    The G Button The shooting mode and most shooting, playback, and setup options can be accessed from the camera menus. Press the G button to display the menu selection dialog shown below, then use the multi selector to highlight the icon G button for the desired menu and press J.
  • Page 29 Choosing a Shooting Mode To display the shooting mode menu, press the G button, highlight Shooting mode, and press J. Use the multi selector to highlight a shooting mode and press J to select the highlighted option. Motion Snapshot mode Best moment capture mode Auto mode (0 40) Creative mode (0 49)
  • Page 30 u Best moment capture mode: Select Slow view to choose the tim- ing for a shot as the scene plays back in slow motion, or choose Smart Photo Selector to let the camera automatically pick the best shot based on motion and composition. •...
  • Page 31 v Advanced movie mode: Choose between HD (0 77) and slow- motion movies (0 83). • Programmed auto (P) • Manual (M) • Shutter-priority auto (S) • Slow motion (y) • Aperture-priority auto (A) & (Feature) The options for each mode can also be dis- played by pressing 1 (&) on the multi selec- tor after selecting the shooting mode.
  • Page 32 Using the Menus Use the multi selector to navigate the playback, shooting, movie, image pro- cessing, and setup menus. Multi selector Select an item. Press 1 or 3 to highlight menu items and press 2 to view options for the highlighted item.

  • Page 33: First Steps

    First Steps Attach the strap. The AN-N1000 strap supplied with the camera is exclusively for use on land. Attach the strap securely to the two camera eyelets. Remove the AN-N1000 before using the camera underwater. A hand strap (available separately from third-party suppliers) is recommended to prevent loss when the camera is used underwater.
  • Page 34 Insert the battery and a memory card. Undo the battery-chamber/memory card slot cover security lock (q) and unlatch (w) and slowly open the cover (e). After checking that they are in the correct orientation, insert the battery and memory card as follows: using the battery to keep the orange battery latch pressed to one side, slide the battery in until it latches (r), and then slide in the memory card until it clicks into place (t).
  • Page 35 Attach the special-purpose waterproof lens. The camera is used with special-purpose waterproof lenses that attach as shown below (for information on attaching non-waterproof 1 NIKKOR lenses, see page 110). The lens generally used in this manual for illustrative purposes is a 1 NIKKOR AW 11–27.5mm f/3.5–5.6.
  • Page 36 Check the lens: Remove any dust or other foreign matter from the lens O-ring seal (0 73). Mounting mark (camera) Align the mounting marks Mounting mark (lens) Place the lens over the O-ring Rotate the lens as shown until and press it into position it stops When placing the lens over the O-ring, be careful not to dam- age the camera or lens;...
  • Page 37 Detaching the Waterproof Lenses Be sure the camera is off when removing or exchanging lenses. To remove the lens, press and hold the lens release button (q) while rotating the lens as shown (w) and then detach the lens from the cam- era.
  • Page 38 Turn the camera on. Press the power switch to turn the camera on. The power lamp will briefly light green and the monitor will turn on. Be sure to remove the lens cap before shooting. Turning the Camera Off To turn the camera off, press the power switch again. The monitor will turn off.
  • Page 39 Set the clock. Use the multi selector and J button (0 22) to set the time and date. Note that the camera uses a 24-hour clock. Press 4 or 2 to highlight time Press 1 or 3 to highlight date zone and press J.
  • Page 40 Read the instructions on keeping your camera watertight. Once the clock is set, the camera will display a series of messages on main- taining a watertight seal, which you are encouraged to read before using the camera for the first time. Press 4 or 2 to scroll through the messages.
  • Page 41 Check the battery level and memory card capacity. Check the battery level and number Battery level of exposures remaining in the moni- tor (0 24). Exposures remaining...

  • Page 42: Taking And Viewing Photographs

    Taking and Viewing Photographs The camera gives you a choice of auto mode for “point-and- shoot” photography that leaves the camera in charge of choos- ing settings, creative mode, which lets you adjust settings according to your subject or creative intent, and a variety of other modes for hard-to-time shots or to capture the emotion surrounding special moments.
  • Page 43 Ready the camera. Hold the camera securely with both hands, being careful not to obstruct the lens, AF-assist illuminator, or microphone. Rotate the camera as shown at lower right when taking pic- tures in “tall” (portrait) orientation. Frame the photograph. Position your subject in the center of the frame.
  • Page 44 Focus. Press the shutter-release button halfway to focus. If the subject is poorly lit, the AF-assist illuminator (0 21) may light to assist the focus operation. If the camera is able to focus, the selected Focus area focus area will be highlighted in green and a beep will sound (a beep may not sound if the subject is moving).
  • Page 45 Shoot. Smoothly press the shutter- release button the rest of the way down to release the shutter and record the photograph. The memory card access lamp will light and the photograph will be displayed in the monitor for a few seconds (the photo will automatically clear from the display when the shutter-release button is...

  • Page 46: Viewing Photographs

    Viewing Photographs Press K to display your most recent pho- tograph full frame in the monitor (full- frame playback). K button Press 4 or 2 to view additional pictures. W button To zoom in on the current picture, press X. To view multiple pictures, press W when a picture is displayed full frame.

  • Page 47: Deleting Pictures

    Deleting Pictures To delete the current picture, press O. Note that once deleted, pic- tures can not be recovered. Display the photograph. Display the photograph you wish to delete as described on the preceding page. Press O. A confirmation dialog will be dis- played.
  • Page 48 Face Priority The camera detects and focuses on portrait subjects (face priority). A double yellow bor- der will be displayed if a portrait subject is detected facing the camera (if multiple faces, up to a maximum of five, are detected, the camera will select the closest subject).

  • Page 49: Live Image Control

    Live Image Control Live image controls let you adjust set- tings without leaving the shooting dis- play, allowing you to preview how the changes will affect your photographs. To view the live image controls available in auto mode, press 1 (&). Highlight a con- trol and press J to select, then press 1 or 3 to adjust the control and press J to return to shooting mode.
  • Page 50 Motion control: Suggest motion by blurring Freeze motion moving objects, or “freeze” motion to capture moving objects clearly. Blur motion Freeze motion Blur motion Brightness control: Make pictures brighter Brighter or darker. Brighter Darker Darker Live Image Control Continuous shooting is not available (0 87) and the built-in flash can not be used when live image control is in effect.

  • Page 51: Choosing A Creative Mode

    Choosing a Creative Mode Choose creative mode to match settings to the subject or situa- tion, take photos using special effects, or control shutter speed and aperture. Select w mode. Press the G button to display the menus. Select Shooting mode, then highlight w (creative mode) and press J (0 27).

  • Page 52: Choosing A Mode That Matches The Subject Or Situation

    Choosing a Mode That Matches the Subject or Situation Choose a creative mode according to the subject or situation: Option Description The camera sets shutter speed and aperture for opti- mal exposure (0 52). Recommended for snapshots Programmed auto (P) and in other situations in which there is little time to adjust camera settings.

  • Page 53: Night Portrait (O)

    Option Description Capture background lighting in portraits taken at night or under low light. Each time the shutter- release button is fully pressed, the camera takes a series of shots, some with the flash and some with- out, and combines them; during processing, a mes- sage is displayed and no pictures can be taken.

  • Page 54: Taking Photos In P, S, A, And M Modes

    Taking Photos in P, S, A, and M Modes P, S, A, and M modes offer varying degrees of control over shutter speed and aperture. Choose a mode and adjust settings accord- ing to your creative intent. P Programmed Auto In this mode, the camera automatically adjusts shutter speed and aperture for optimal exposure in most situations.
  • Page 55 S Shutter-Priority Auto In shutter-priority auto, you choose the shutter speed while the camera automatically selects the aperture that will produce the optimal exposure. Use slow shutter speeds to suggest motion by blurring moving subjects, fast shutter speeds to “freeze” motion.
  • Page 56 A Aperture-Priority Auto In aperture-priority auto, you choose the aperture while the camera automatically selects the shutter speed that will produce the optimal exposure. Large apertures (low f-numbers) reduce depth of field, blurring objects behind and in front of the main subject.
  • Page 57 M Manual In manual mode, you control both shutter speed and aperture. Choosing Shutter Speed and Aperture Adjust shutter speed and aperture with reference to the exposure indicator (see below). Press 2 to highlight shutter speed or aperture and use the X and W W button buttons to choose a value, then repeat for the remaining item.
  • Page 58 The Exposure Indicator When shutter speeds other than “Bulb” are selected, the exposure indicator shows whether the photograph would be under- or over-exposed at current settings. Optimal exposure Underexposed by Overexposed by over 2 EV...

  • Page 59: Backlighting

    Backlighting The method used to capture details in shaded areas of back-lit subjects depends on the option selected for HDR in the shoot- ing menu (0 99). Details in highlights and shadows are preserved using HDR (high dynamic range); Z appears in the display. Each time the shutter- release button is fully pressed, the camera takes two shots in quick succession and combines them to preserve details in highlights and shadows in high-contrast scenes;...

  • Page 60: Easy Panorama

    Easy Panorama Follow the steps below to shoot panoramas. During shooting, the camera focuses using auto-area AF; face detection is not available. Exposure compensation can be used, but the built-in flash will not fire. Set focus and exposure. Frame the start of the pan- orama and press the shut- ter-release button halfway.
  • Page 61 An example of how to pan the camera is shown below. With- out changing your position, pan the camera in a steady curve either horizontally or vertically. Time the pan according to the option selected for Image size in the shooting menu: about 15 seconds are needed to complete the pan when A Normal panorama is selected, about 30 seconds when B Wide panorama is selected.
  • Page 62 Viewing Panoramas Panoramas can be viewed by pressing J when a panorama is displayed full frame (0 44). The start of the panorama will be displayed with the smallest dimension filling the display and the camera will then scroll through the picture in the original pan direction.

  • Page 63: Underwater Photography

    Underwater Photography With a special-purpose waterproof lens attached, the camera can be used at depths of up to 15 m (49 ft) for as long as 60 minutes at a time. Before using the camera under water, be sure that you have read and understood the instructions in this section and have removed straps intended exclusively for use on land (hand straps, available separately from third-party suppli- ers, are recommended to prevent loss during underwater use).

  • Page 64: Before Using The Camera Underwater

    Should the product leak, cease use immediately, dry the camera and lens, and consult a Nikon-authorized service representative. • The camera does not float. Be careful not to drop the camera while in or on the water.
  • Page 65 (when using a cotton swab, be sure not to leave any threads behind). If the watertight channel is cracked, deformed, or damaged, consult a Nikon-authorized service representative. Be sure that the connector and battery-chamber/memory card slot covers are fully closed, that the hand strap is not caught in either cover, and that the latches and security locks are in the positions shown.

  • Page 66: The Final Check

    Dry the camera and lens thoroughly and check the O- ring and connector and battery-chamber/memory card slot cov- ers are properly sealed. Consult a Nikon-authorized service rep- resentative if you find that the camera leaks in normal use.

  • Page 67: Taking Pictures Underwater

    Taking Pictures Underwater Follow steps below to take pictures in “Underwater” mode. Turn the camera on. Press the power switch to turn the camera on. Select w mode. Press the G button to display the menus, then select Shooting mode, highlight w (creative mode), and press J (0 27).
  • Page 68 Choose an option. Highlight one of the following options and press J to select the highlighted option and return to the shooting dis- play. • 4 Standard: Standard processing for balanced results when shooting along the shore or in shallow water. •...

  • Page 69: Tips And Tricks For Underwater Photography

    Tips and Tricks for Underwater Photography The following features may come in handy when you are taking pictures underwater. Auto Distortion Control To control distortion when shooting underwater, select On (underwater) for Auto distortion control in the shooting menu (0 99). This option is only available when a special-purpose underwater lens is attached.

  • Page 70: The Depth Gauge

    The Depth Gauge Using the depth gauge, you can view your depth during shooting or include the depth in the photo info recorded when a picture is taken. Set the gauge to zero before entering the water (0 70). Viewing Depth Select Record location data.
  • Page 71 Select Depth gauge. Highlight Depth gauge and press J. Exit the menus. Press the shutter-release button half- way to exit the menus. Display the depth gauge. Press the $ button to display the depth gauge (0 25). The Depth Gauge The camera depth gauge is not intended as a replacement for specialized diving gauges;...
  • Page 72 Setting the Depth Gauge to Zero Follow the steps below to set the depth gauge to zero. Select Alt./depth correction. In the setup menu, select Altitude/ depth options, then highlight Alt./ depth correction and press 2. Select Correct manually. Highlight Correct manually and press Set the depth gauge to zero.

  • Page 73: After Using The Camera Underwater

    After Using the Camera Underwater The camera and lens should be cleaned within 60 minutes of underwater use. Leaving the lens attached, immerse the camera in fresh water to remove salt and other foreign matter. Failure to observe this precaution could result in damage, discoloration, corrosion, offensive odors, or vulnerability to leaks.
  • Page 74 Clean the zoom ring and camera controls. Being careful not to touch the lens release button or the latches or security locks on the connector and battery- chamber/memory card slot covers, press the flash pop-up button to raise the built-in flash and gently move the camera side to side, then operate the lens zoom ring and each of the remaining camera controls a few times to remove salt and other foreign objects.

  • Page 75: The O-Ring

    To prevent water falling into the camera when the covers are opened, hold the camera so that the covers open down- wards. Remove the lens. After confirming that the lens and camera are dry, detach the lens and gently wipe the lens O-ring seal with a soft, dry cloth to remove any foreign objects.
  • Page 76 Wash the O-ring. Wash the O-ring thoroughly in fresh water and dry thor- oughly. Do not use benzene, thinner, alcohol, soap, neutral detergents, or other cleaning products, as these could dam- age or weaken the O-ring. Inspect the O-ring. Remove any foreign matter with a soft, dry cloth, taking care not to leave tissue or threads on the O-ring.
  • Page 77 O-ring becoming stretched or otherwise deformed. Replacement O-rings and silicon grease can be purchased from a Nikon camera retailer or Nikon-authorized service representa- tive. Do not use grease in excessive amounts or apply using paper or cloth, as this may cause dust or fibers to adhere to the O-ring, making the product vulnerable to leaks.
  • Page 78 • To ensure that the product remains waterproof, have the watertight channel inspected once a year, and serviced once every 3 to 5 years, by a Nikon-authorized service representative. Fees are charged for these services. Foreign Matter on the Camera and Lens...

  • Page 79: Recording And Viewing Movies

    Recording and Viewing Movies The camera can record high-definition (HD) movies with an aspect ratio of 16 : 9 and slow-motion movies with an aspect ratio of 8 : 3. Movie recording is available in the shooting modes listed below (movie recording is not available in best moment capture and Motion Snapshot modes).

  • Page 80: Recording Hd Movies

    Recording HD Movies Record movies with sound at an aspect ratio of 16 : 9. Turn the camera on. Press the power switch to turn the camera on. Frame the opening shot. Frame the opening shot with your subject in the center of the display. The 0 Icon A 0 icon indicates that movies can not be recorded.
  • Page 81 Start recording. Press the movie-record button to begin recording. A recording indica- tor, the time elapsed, and the time available are displayed while record- ing is in progress. Audio Recording Movie-record button Be careful not to cover the microphone Recording indicator/ and note that the built-in microphone Time elapsed may record sounds made by the camera...

  • Page 82: Taking Photographs During Hd Movie Recording

    Taking Photographs During HD Movie Recording Press the shutter-release button all the way down to take a photograph without interrupting HD movie recording. Photo- graphs taken during movie recording have an aspect ratio of 3 : 2. Taking Photographs During Movie Recording Up to 20 photographs can be taken with each movie shot.

  • Page 83: Viewing Movies

    Viewing Movies Movies are indicated by a 1 icon in full-frame playback (0 44). Press J to start playback. Movie playback indicator/ 1 icon/Length Current position/total length Guide Volume The following operations can be performed: Description Pause Pause playback. Resume playback when the movie is paused Play or during rewind/advance.

  • Page 84: Deleting Movies

    Deleting Movies To delete the current movie, press O. A confirmation dialog will be displayed; press O again to delete the movie and return to playback, or press K to exit without deleting the movie. Note that once deleted, movies can not be recovered. O button See Also The Edit movie option in the playback menu can be used to trim...

  • Page 85: Recording Slow-Motion Movies

    Recording Slow-Motion Movies Silent slow-motion movies with an aspect ratio of 8 : 3 can be recorded by pressing 1 (&) in advanced movie mode and selecting y Slow motion. Slow-motion movies are recorded at 400 fps and play back at about 30 fps. Select v mode.
  • Page 86 Focus. Focus area Start recording. Press the movie-record button to begin recording. A recording indica- tor, the time elapsed, and the time available are displayed while record- ing is in progress. The camera focuses on the subject at the center of the dis- Movie-record button play;...
  • Page 87 End recording. Press the movie-record button again to end recording. Recording will end automatically when the maximum length is reached, the memory card is full, the lens is removed, or the camera becomes hot (0 18). Movie-record button Maximum Length Up to 3 seconds of footage can be recorded;...
  • Page 88 Recording Movies Flicker, banding, or distortion may be visible in the display and in the final movie under fluorescent, mercury vapor, or sodium lamps or if the camera is panned horizontally or an object moves at high speed through frame (flicker and banding can be reduced in HD movies by choosing a Flicker reduction option that matches the frequency of the local AC power supply as described on page 101, but note that the slowest shutter speed available is...

  • Page 89: More On Photography

    More on Photography This section describes other features you can use when taking pictures. Continuous Mode In continuous (burst) mode, the camera takes pictures while the shutter-release button is pressed all the way down. Display release mode options. Press 4 (C) to display release mode options.
  • Page 90 Continuous Mode The maximum number of shots that can be taken in a single burst var- ies with the release mode. At frame rates of 30 and 60 fps, the maxi- mum number of shots that can be taken in a single burst is 20. The built-in flash can be used when 5 fps is selected, but only one pic- ture will be taken each time the shutter-release button is pressed;...

  • Page 91: Self-Timer Modes

    Self-Timer Modes The self-timer is used to delay shutter release until 10, 5, or 2 sec- onds after the shutter-release button is pressed all the way down. Display release mode options. Press 4 (C) to display release mode options. Select the desired self-timer option. Use the multi selector to highlight E 10 s, E 5 s, or E 2 s and press J.
  • Page 92 Note that the timer may not start or a photograph may not be taken if the camera is unable to focus or in other situations in which the shutter can not be released. Turning the camera off cancels the self-timer. Movie Mode In self-timer mode, start and stop the timer by pressing the movie- record button instead of the shutter-release button.

  • Page 93: The Built-In Flash

    The Built-in Flash Use the built-in flash for additional lighting when the subject is poorly lit or to “fill-in” (illuminate) back-lit subjects. Raise the flash. Press the flash pop-up button to raise the flash. Flash pop-up button Choose a flash mode (0 92). Press 3 (N) on the multi selector to display a list of flash modes, then use the multi selector to highlight the...
  • Page 94 Flash Modes The options available vary with the shooting mode. • N (fill flash): The flash fires with every shot. • NY (red-eye reduction): Use for portraits. The flash fires with every shot, but before it fires, the red-eye reduction lamp lights to help reduce “red-eye.
  • Page 95 Raising the Flash When using the flash, be sure it is fully raised as shown at right. Do not touch the flash dur- ing shooting. Lowering the Built-in Flash To save power when the flash is not in use, press it gently downward until the latch clicks into place.
  • Page 96 Using the Built-in Flash The built-in flash can not be used with live image control (0 47) and will not fire during continuous shooting at frame advance rates faster than 5 fps (0 87) or when On is selected for HDR in the shooting menu (0 57).

  • Page 97: The C (Action) Button

    The C (Action) Button Some operations can be performed by keeping the C button pressed and tilting the camera left or right. Shooting: Choosing a Shooting Mode While the view through the lens is displayed, you can choose the shooting mode by pressing the C button, tilting the camera left or right to highlight the desired mode, and releasing the button to select the highlighted option.

  • Page 98: Playback: Scrolling Through Pictures

    Playback: Scrolling Through Pictures During playback, you can choose the picture displayed by press- ing the C button, tilting the camera left or right, and releasing the button to display the selected picture full frame (in thumb- nail playback, the camera will display and scroll through pictures full frame while the C button is pressed, and then when the but- ton is released return to thumbnail playback with the selected picture highlighted).

  • Page 99: Menus: Outdoor Display

    Menus: Outdoor Display When menus are displayed, you can toggle the outdoor display on or off by pressing the C button, tilting the camera left or right, and releasing the button to select the current mode. Enabling the outdoor display makes the display easier to read outdoors or wherever ambient lighting is bright by setting the Display brightness and High contrast display options in the Display menu to Hi and On, respectively (0 100), but also...

  • Page 100: Menu Options

    Menu Options To display the playback, shooting, movie, image processing, and setup menus, press the G button. Following menu options are available: G button Playback Menu Options Option Description Delete Delete multiple images. Slide show View movies and photos in a slide show. Choose whether pictures are displayed after Image review shooting.

  • Page 101: Shooting Menu Options

    Shooting Menu Options Option Description Reset shooting Reset shooting options to default values. options Choose how the camera sets shutter speed and Exposure mode aperture in Motion Snapshot mode. Image quality Choose a file format and compression ratio. Image size Choose a size for new photos.

  • Page 102: Movie Menu Options

    Movie Menu Options Option Description Reset movie options Reset movie menu options to their default values. Frame rate Choose a frame rate for slow-motion movies (0 83). Movie settings Choose HD movie frame size and frame rate (0 78). Metering Choose how the camera meters exposure.
  • Page 103 Option Description Choose the sounds made during shooting. Sound settings Auto power off Choose the auto power off delay. Shutter button AE Choose whether exposure locks when the shutter- release button is pressed halfway. lock Disable selected controls. Control lock Record or view location data or use location data to set the clock, update assisted GPS files, and choose Location data...

  • Page 104: Connecting To A Computer

    • Short Movie Creator Remove the installer CD from the CD-ROM drive. Supplied Software Be sure to update to the latest versions of the supplied software. Nikon Message Center 2 will periodically check for updates while the computer is connected to the Internet.

  • Page 105: System Requirements

    System Requirements The system requirements for ViewNX 2 are: Windows • Photos: Intel Celeron, Pentium 4, Core Series; 1.6 GHz or better • Movies (playback): Pentium D 3.0 GHz or better; Intel Core i5 or better recommended when viewing movies with a frame size of 1280 ×...
  • Page 106 Motion Snapshots ViewNX 2 is required to view Motion Snapshots saved using the File format > NMS files option in the shooting menu (0 99). Supported Operating Systems See the websites listed on page 19 for the latest information on sup- ported operating systems.

  • Page 107: Viewing And Editing Pictures On A Computer

    Viewing and Editing Pictures on a Computer Transferring Pictures Choose how pictures will be copied to the computer. Choose one of the following methods: • Direct USB connection: Turn the camera off and ensure that the memory card is inserted in the camera. Unlock (q), unlatch (w), and open (e) the connector cover and then connect the camera to the computer using...
  • Page 108 If a message is displayed prompting you to choose a pro- gram, select Nikon Transfer 2. Windows 7 If the following dialog is displayed, select Nikon Transfer 2 as described below. 1 Under Import pictures and videos, click Change pro- gram.

  • Page 109: Viewing Pictures

    Viewing Pictures P i c t u r e s a r e d i s p l a y e d i n ViewNX 2 when transfer is com- plete. Starting ViewNX 2 Manually • Windows: Double-click ViewNX 2 shortcut on the desk- top.

  • Page 110: Technical Notes

    • Rechargeable Li-ion Battery EN-EL20 (0 31–32): Additional EN-EL20 batteries are available from local retailers and sources Nikon-authorized service representatives. • Battery Charger MH-27 (0 31): Recharge EN-EL20 batteries. • Power Connector EP-5C, AC Adapter EH-5b: These accessories can be used to power the camera for extended periods (EH-5a and EH-5 AC adapters can also be used).
  • Page 111 Wireless Mobile Adapter WU-1b: Supports two-way communica- Wireless mobile tion between the camera and smart devices running the Wireless Mobile Utility app. Use the Wireless Mobile Utility to adapters take pictures remotely or download existing pictures to the smart device. Optional Accessories Availability may vary with country or region.

  • Page 112: Non-Waterproof 1 Nikkor Lenses

    Non-Waterproof 1 NIKKOR Lenses The supplied O-ring protector must be attached to the camera lens mount before the camera can be used with non-waterproof 1 NIKKOR lenses like the 1 NIKKOR VR 10–30mm f/3.5–5.6 shown in the illustrations below. Use a soft cloth to remove any foreign matter from the inside of the protector before use, and be care- ful to prevent dust entering the camera or adhering to the O- ring protector.
  • Page 113 Mounting mark (camera) Keeping the mounting marks aligned, position the lens on Mounting mark (lens) the camera Rotate the lens as shown until it clicks into place. If the lens supports vibration reduction Zoom ring (VR), vibration reduction can be con- trolled from the camera (0 99).
  • Page 114 Nikon website for your area). The lens can be retracted and the zoom ring locked by pressing the retractable lens barrel button and rotating the ring in the opposite direction.

  • Page 115: Approved Memory Cards

    Approved Memory Cards The following cards have been tested and approved for use in the camera. Cards with class 6 or faster write speeds are recom- mended for movie recording. Recording may end unexpectedly when cards with slower write speeds are used. SD cards SDHC cards SDXC cards...

  • Page 116: Storage And Cleaning

    Storage and Cleaning Underwater Use For information on cleaning the camera after use under water or on the seashore, see page 71. Storage If the camera will not be used for an extended period, remove the battery and store it in a cool, dry area with the terminal cover in place.

  • Page 117: Caring For The Camera And Battery: Cautions

    Caring for the Camera and Battery: Cautions Before using the camera, read the warnings on pages 7–14. Read pages 61–76 before using the camera under water. Do not drop: The product may mal- scratch or otherwise damage the function if subjected to strong shield.
  • Page 118 Storage: To prevent mold or mildew, Do not apply pressure to the dis- store the camera in a cool, dry, play, as this could cause damage or well-ventilated area. If you are malfunction. Dust or lint on the using an AC adapter, unplug the display can be removed with a adapter to prevent fire.
  • Page 119 Batteries: Batteries may leak or • The internal temperature of the explode if improperly handled. battery may rise while the battery Observe the following precautions is in use. Attempting to charge when handling batteries: the battery while the internal • Use only batteries approved for temperature is elevated will use in this equipment.
  • Page 120 Servicing the Camera and Accessories The camera is a precision device and requires regular servicing. Nikon recommends that the camera be inspected by the original retailer or Nikon-authorized service representative once a year, and that it be ser- viced once every three to five years (note that fees apply to these ser- vices).

  • Page 121: Troubleshooting

    Troubleshooting If the camera fails to function as expected, check this list of com- mon problems before consulting your retailer or Nikon repre- sentative. Battery/Display The camera is on but does not respond: • Controls are locked (0 101). • The camera is busy. Wait for recording or any other processing to end.

  • Page 122: Movies

    Flicker or banding appears in movies or in the display: Choose a Flicker reduc- tion setting that matches the local AC power supply (0 101). No flash: See page 94. The flash will not fire when off (0 92) or when low- ered.

  • Page 123: Error Messages

    Error Messages This section lists the error messages that appear in the display. Message Solution If the subject is too bright, lower ISO sensitivity or choose a faster shutter speed or smaller aper- (Shutter-speed or ture (higher f-number). aperture display If the subject is too dark, raise ISO sensitivity, use flashes) the flash, or choose a slower shutter speed or...
  • Page 124 • Use an approved card. This memory card • Format the card. If the problem persists, the cannot be used. Card card may be damaged. Contact a Nikon-autho- may be damaged; rized service representative. insert a different card. • Insert a new memory card.

  • Page 125: Specifications

    Effective pixels 14.2 million Image sensor Image sensor 13.2 mm × 8.8 mm CMOS sensor (Nikon CX for- mat) Storage Image size (pixels) Still images (auto, best moment capture, and all creative modes other than Easy panorama; aspect ratio 3 : 2) •...
  • Page 126 • NEF (RAW): 12-bit, compressed File format • JPEG: JPEG-Baseline compliant with fine (approx. 1 : 4), normal (approx. 1 : 8), or basic (approx. 1 : 16) compression • NEF (RAW) + JPEG: Single photograph recorded in both NEF (RAW) and JPEG formats Picture Control system Standard, Neutral, Vivid, Monochrome, Portrait, Landscape;...
  • Page 127 Exposure Metering TTL metering using image sensor • Matrix Metering method • Center-weighted: Meters 4.5 mm circle in center of frame • Spot: Meters 2 mm circle centered on selected focus area P programmed auto with flexible program; Mode S shutter-priority auto; A aperture-priority auto; M manual;...
  • Page 128 Flash Built-in flash Manual pop-up Approx. 5/16 (m/ft, ISO 100, 20 °C/68 °F; at ISO Guide Number (GN) 160, Guide Number is approx. 6.3/20.7) Control i-TTL flash control using image sensor Fill flash, red-eye reduction, fill flash + slow sync, Mode red-eye reduction + slow sync, rear curtain + slow sync, rear-curtain sync, off...
  • Page 129 Monitor 7.5 cm (3-in.), approx. 921k-dot, TFT LCD with brightness adjustment Playback Full-frame and thumbnail (4, 9, or 72 images or calendar) playback with playback zoom, movie and panorama playback, slide show, histogram display, auto image rotation, and rating option Interface Hi-Speed USB Type C mini-pin HDMI connector...
  • Page 130 • Nikon reserves the right to change the specifications of the hardware and software described in this manual at any time and without prior notice. Nikon will not be held liable for damages that may result from any mistakes that this manual may contain.
  • Page 131 EN-EL20 rechargeable Li-ion battery Type Rechargeable lithium-ion battery 7.2 V, 1020 mAh Rated capacity Operating temperature 0 °C–40 °C (+32 °F–104 °F) Dimensions (W × H × D) Approx. 30.7 × 50.0 × 14.0 mm (1.2 × 2.0 × 0.6 in.) Approx.
  • Page 132 Weight Approx. 118 g (4.2 oz) * When attached to waterproof cameras. Specifications subject to change without notice. Nikon will not be held liable for damages that may result from any mistakes that this manual may contain.
  • Page 133 Waterproof 1 NIKKOR Lenses 1 NIKKOR AW 11–27.5mm f/3.5–5.6 Zoom ring Lens cap Lens mounting mark O-ring seal CPU contacts Focal length mark Focal length scale 1 NIKKOR AW 10mm f/2.8 Lens mounting mark Lens cap O-ring seal CPU contacts...
  • Page 134 Waterproof 1 NIKKOR lenses are exclusively for Nikon 1 AW1 interchangeable lens format digital cameras. The angle of view is equivalent to a 35 mm format lens with a focal length about 2.7× longer. When attached to a waterproof camera, the water-, dust-, and shock-proof 1 NIKKOR AW 11–27.5mm f/3.5–5.6 and...
  • Page 135 • The amount of force needed to operate the zoom ring increases with depth. • Should the product leak, cease use immediately, dry the camera and lens, and take them to a Nikon-authorized service representative. Supplied Accessories • 40.5 mm snap-on Front Lens Cap LC-N40.5 •...
  • Page 136 LLC. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. All other trade names mentioned in this manual or the other documen- tation provided with your Nikon product are trademarks or registered trademarks of their respective holders. FreeType License (FreeType2) Portions of this software are copyright ©...

  • Page 137: Battery Life

    • Using zoom with power zoom lenses • Using the location data or track log functions • Setting monitor brightness to Hi To ensure that you get the most from rechargeable Nikon EN-EL20 batteries: • Keep the battery contacts clean. Soiled contacts can reduce battery performance.

  • Page 138: Index

    Index Symbols C (Auto mode) ......28, 40 AC adapter ........108 w (Creative mode) ....28, 49 Accessories ........108 u (Best moment capture mode) 28 Advanced movie mode ..29, 77, 83 v (Advanced movie mode) .. 29, 77 Aperture ........54, 55 z (Motion Snapshot mode) ..
  • Page 139 Face priority .........46 Fill flash ..........92 Night landscape ......46, 50 Flash ............91 Night portrait ......46, 51 Flash mode ..........92 Nikon Transfer 2 .......106 Flash range ..........94 Non-waterproof lenses ....110 Flash-ready indicator .......91 Flexible program .......52 O-Ring ........33, 73, 108 Focal length .........41...
  • Page 140 Shutter-release button ....42 Silicon grease ......35, 75, 108 Size ..........123, 126 Slow motion ........83 Slow view ..........28 Smart Photo Selector ....... 28 Soft ............51 Speaker ..........22 Standard (Underwater mode) ..66 Strap for use exclusively on land . 31 System requirements .....103 Temperature warnings ....
  • Page 144 No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION. Printed in Singapore SB3I01(11) 6MVA6011-01...

This manual is also suitable for:

1 aw1

Table of Contents
