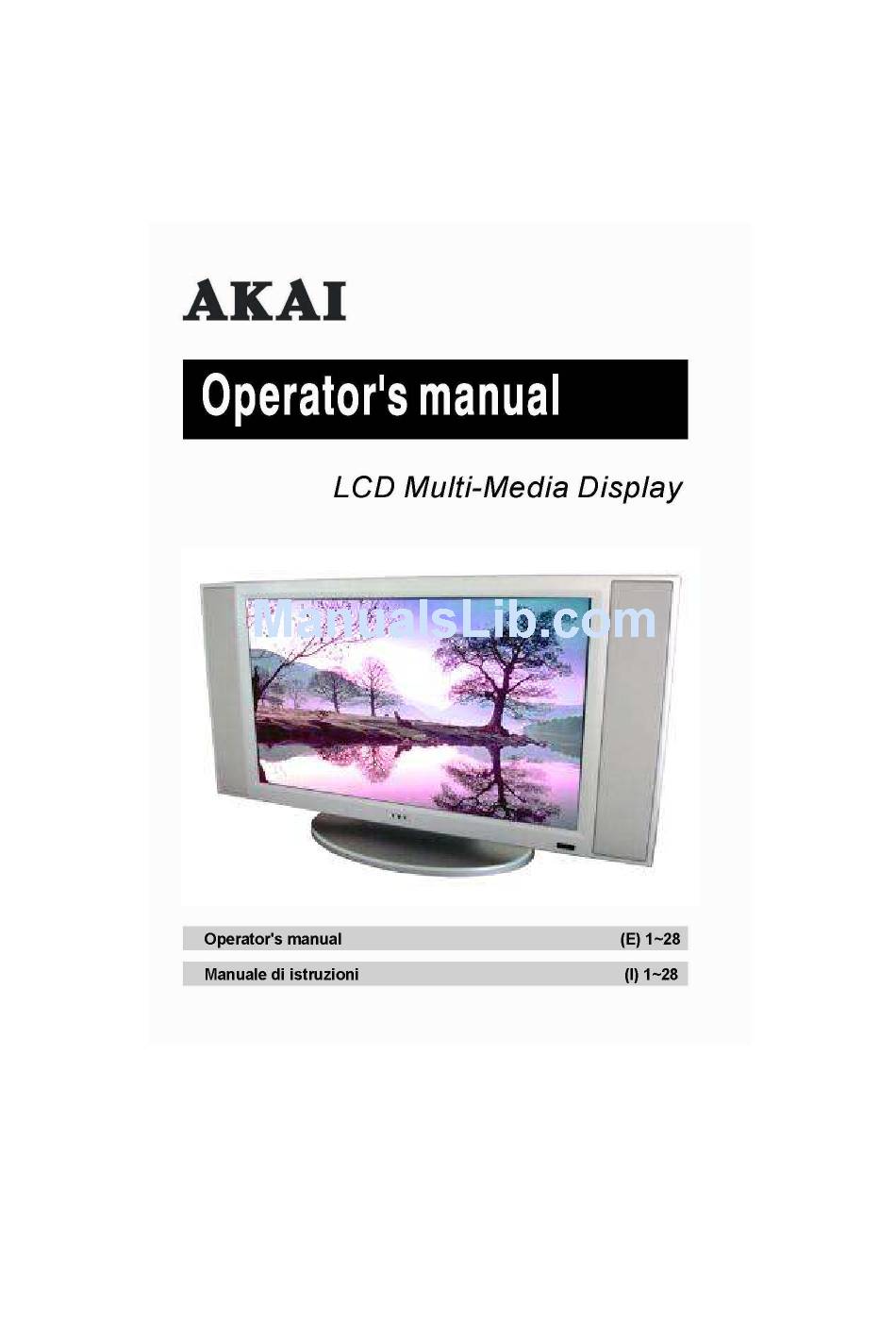

- Page 1 27“...
-
Page 2: Table Of Contents
Contents: 1.SAFETY AND PRECAUTIONS ..........1 Operating Safety..............1 Repair................2 Notes for Service Engineers ..........2 Point of use..............3 Environmental conditions..........3 Connecting ..............4 Standards/Electro-Magnetic Compatibility ......5 Precautions................ 6 Important Additional Safety Instructions........ 6 2.INTRODUCTION ..............7 Service................ - Page 3 Delete the programme ............27 Insert the programme ............28 Setting the CHILD LOCK............ 28 NICAM/IGR Broadcast Selection.......... 29 Colour/Sharpness Settings..........30 9.TELETEXT ................ 31 10.PC MODE ADJUSTMENT ........... 34 Image Settings..............34 Colour Settings..............36 11.VIEWING PICTURE-IN -PICTURE (PIP) ........ 37 Quick Way to activate PIP..........
-
Page 5: Safety And Precautions
AFETY RECAUTIONS AFETY RECAUTIONS Please read through this section carefully and follow the instruc- tions to maximize the reliable operation and lifetime of your LCD display. Always keep these instructions handy and close by your LCD display. Keep the instructions and the packaging so that if you sell or give away your LCD display you can give them to the new owner. -
Page 6: Repair
Do not touch the display with your fingers or with sharp ob- jects to avoid damage. Contact the Call Center immediately in any of the following situa- tions. Do NOT plug in or turn on your display: if the power cable/power supply overheats or is damaged if liquid has gotten into the monitor if the LCD display is dropped or the housing damaged EPAIR... -
Page 7: Point Of Use
OINT OF USE Keep your LCD display and all units connected to it away from moisture and avoid dust, heat and direct sunlight. Failure to observe these instructions can lead to malfunctions or damage to the LCD display. Place and operate all units on a stable, level and vibra- tion-free surface in order to avoid the LCD display from falling. -
Page 8: Connecting
ONNECTING Observe the following instructions to connect your LCD display properly: OWER UPPLY Do not open the power supply housing. An open housing presents a lethal hazard from electrical shock. There are no parts inside to be cleaned or serviced. Operate your LCD display only with grounded outlets with AC 100- 240V~/ 50-60 Hz. -
Page 9: Standards/Electro-Magnetic Compatibility
TANDARDS LECTRO AGNETIC OMPATIBILITY Your display fulfils the requirements for electro-magnetic compatibility and electrical safety specified in the following standards: EN 55022, EN 55024, EN 60950, EN 61000-3-2, EN 61000-3-3 When connecting ensure that Guidelines for Electro-Magnetic Com- patibility (EMC) are observed. Provide a space of at least three feet from high-frequency and magnetic sources of interference (television sets, loudspeakers, mobile telephones, etc.) in order to avoid malfunctions. -
Page 10: Precautions
RECAUTIONS Caution! There are no parts which can be serviced or cleaned inside of the monitor housing. You can increase the life of your LCD display by taking the follow- ing precautions: Before cleaning always disconnect the power line and all connection cables. -
Page 11: Introduction
NTRODUCTION NTRODUCTION Thank you for purchasing our LCD Multi-display. We thank you for your confidence in our products and are pleased to greet you as a new customer. We focused on great features, ease of use and reliability in manu- facturing your LCD display. - Page 12 Further features The LCD display is a plug and play device which is automati- cally recognized by your operating system. The power management fulfills the VESA DPMS standard. Dur- ing idle times (OFF mode) the power consumption is automati- cally reduced by up to 95%.
-
Page 13: Included Equipment
NCLUDED QUIPMENT Please make sure the following items are included with your LCD Display. Notify us within 14 days after purchase if it is not complete. With your LCD Display you receive: Cable Clamp (One Remote Control & big, two small) Batteries(AAA X2) User’s Manual 15 Pin D-sub... -
Page 14: Connecting External Devices
ONNECTING XTERNAL EVICES ONNECTING XTERNAL EVICES SCART VIDEO S-VIDEO CV (Y/Pb/Pr) POWER IN NGLISH NGLISH... - Page 15 D-SUB PC AUDIO IN HEAD PHONE AUDIO IN 1 / OUT(R/L) AUDIO IN 2 TV IN HEAD PHONE SPEAKERS Note: DVD PLAYER ANTENNA Audio out L/R:The level of audio output cannot be changed using the volume, treble, and bass controls on your display. This connector should be used with an external audio amplifier that can be used to control the volume.
-
Page 16: Controls And Location
Remote sensor window Power indicator Aim the remote control to- A green indicator lights when the power is wards this region on the LCD on and a red indicator lights when in the display. standby mode (the indicator will not light ONTROLS LOCATION ONTROLS... -
Page 17: Remote Control
EMOTE ONTROL EMOTE ONTROL The remote control pad works almost same as ordinary TV remote control that includes the basic function needed while viewing a live video. DISPLAY:Display the current source or programme digits. SAFETY PRECAUTIONS SAFETY PRECAUTIONS... -
Page 18: Summary Of Control Buttons
UMMARY OF ONTROL UTTONS Selecting the Signal Source Switch to the TV mode. Switch to the PC mode. SCART Switch to the Video mode or RGB mode from SCART. VIDEO/S-V Switch to the Video mode from RCA socket or S-Video mode. COMPONENT Switch to the Component mode (YPbPr or YCbCr). - Page 19 REVEAL Press “REVEAL“ button to display concealed information, such as solutions of riddles or a quiz. EXPAND Press “EXPAND“ button to enlarge the top half or bottom half of the Teletext page. SUB-PAGE/TIME Press “SUB-PAGE/TIME“ button to access to the sub-page you required.
-
Page 20: First Time Installation
A.P.S. F A.P.S. F IRST NSTALLATION IRST NSTALLATION 1. After removing the LCD display packaging, ensure the product is installed in a safe and well ventilated position. 2. Insert two AAA type batteries into battery compartment on the rear of the remote control. 3. -
Page 21: General Controls & Adjustment
& A & A ENERAL ONTROLS DJUSTMENT ENERAL ONTROLS DJUSTMENT URNING THE DISPLAY N AND Press the POWER button on the Remote Control. You can also use the POWER button on the top of the panel. Notice: To turn the unit on, the POWER button must be held down at least 0.5 seconds before it is released. -
Page 22: Switching Between Tv/Pc/Av
TV/PC/AV WITCHING BETWEEN 1. Turn on the power of the connected video equipment. 2. Press the applicable button. Press TV button to switch to TV mode. Press PC button to switch to PC mode. Press SCART button once to switch to SCART Video mode ... -
Page 23: Menu Items
TEMS 1. Press the MENU button to display the main menu screen. 2. Press UP/DOWN button to select the desired menu item. 3. Press VOL- / VOL+ to make adjustments. 4. Press the MENU button to return to the previous screen or press the EXIT button to exit. -
Page 24: Contrast And Brightness Settings
ONTRAST AND RIGHTNESS ETTINGS You may need to perform separate adjustments for brightness and contrast for the different video modes. Typically, PC mode will be best viewed with lower brightness and contrast settings than are appropriate for the other modes. 1. -
Page 25: Setup Menu Settings
ETUP ETTINGS 1. Press the MENU button to display the main menu screen. 2. Press the UP/DOWN button to move the cusor to Menu Setup. 3. Press the MENU button to enter Setup Menu. 4. This adjusts the blue background of the menu screens. 5. -
Page 26: Audio Menu Settings
UDIO ETTINGS 1. Press the MENU button to display the main menu screen. 2. Press the UP/DOWN button to move the cusor to Audio Menu. 3. Press the MENU button to enter Audio Menu. 4. Press the UP/DOWN button to select the desired item (Bass, Treble or Sound Source). -
Page 27: Tv Mode Adjustment
Note: Treble Treble When using the PIP feature in PC mode, you can listen to the sound of Audio Audio the sub screen instead of the main screen. To do so: Bass 1.Select “Audio“ Treble 2.Select “Sound Source“ Sound Source Exit 3.Select “Sub“... -
Page 28: Automatic Search Programmes
Automatic Search Manual Search Programme List Exit UTOMATIC EARCH ROGRAMMES 1. Press the MENU button to display the main menu screen. 2. Press the UP/DOWN button to select Programmes and press MENU button. 3. Select Country you are now located and the menu language, and then press Start. -
Page 29: Manual Search Programmes
Main Display Contrast/Brightness Colour/Sharpness Menu Setup Audio Programmes Child Lock Reset Exit Programmes Programmes Automatic Search Manual Search Programme List Exit Automatic Search Automatic Search country Language Start Exit ANUAL EARCH ROGRAMMES To programme a channel in a TV’s programme number manually : 1. -
Page 30: Programme List Settings
rection button . For example , when the TV is searching forward with VOL+ button , press VOL- button to stop searching. Press UP / DOWN button to select Store , and then press MENU but- ton to store the searched channel to the programme number you set . Press EXIT to exit from the menu. -
Page 31: Change Or Edit Names
ARD-- ----- ZDF-- ----- RTL-- ----- RTL2- ----- SAT1- ----- ----- ----- ----- ----- ----- ----- ----- ----- 10. ----- ----- Name Delete Insert HANGE OR EDIT AMES 1. Move to the programme number you want to rename or edit name by pressing P+ / P- / VOL- / VOL+ button . -
Page 32: Insert The Programme
3. Press GREEN button again to Store . Store NSERT THE PROGRAMME 1. Move to the programme to be inserted by pressing P+ / P- / VOL- / VOL+ button . The selected programme number will be shown by the Green colour . -
Page 33: Nicam/Igr Broadcast Selection
pears, your PIN has been memorized. Press the EXIT button to exit. Main Menu Screen Main Menu Screen Main Display Contrast/Brightness Colour/Sharpness Menu Setup Audio Programmes Child Lock Reset Exit Please Enter Pin Channel Lock On Change Pin Exit NICAM/IGR B ROADCAST ELECTION Depending on the particular programme being broadcast, you can... -
Page 34: Colour/Sharpness Settings
-A sends the primary broadcast language to the loudspeakers. -B sends the secondary broadcast language to the loudspea- kers. -A/B sends a seperate language to each loudspeaker. Monaural broadcast (For NICAM broadcasts) ● Each time you press SOUND, the mode changes between ”Ni- cam”... -
Page 35: Teletext
Main Display Contrast/Brightmess Colour/Sharpness Menu Setup Audio programmes Child Lock Reset Exit Colour/Sharpness Colour/Sharpness Colour Saturation Sharpness Exit Colour Saturation Colour Saturation Sharpness Sharpness 9.TELETEXT 9.TELETEXT Teletext is a free service broadcast by most TV stations which gi- ves up-to-the-minute information news, weather, television pro- grammes, share prices, subtitles, and many other topics . - Page 36 -Two page numbers, TV station name, date, and time are displayed on the screen headline. The first page number indicates your selection , while the second shows the current page displayed. * Press the TELETEXT button again to switch off teletext . The previous programme reappears.
- Page 37 UPDATE In the Teletext mode, pressing UPDATE button will switch the screen to the TV mode while waiting for the next text page. * Select required page number in Teletext mode. * Press UPDATE button to switch to TV mode while waiting for the text page.
-
Page 38: Pc Mode Adjustment
In TV mode , press this button to display the time . * While watching a TV programme with Teletext transmission press TIME button. The current time information will be displayed on the upper right corner of the screen . * The time information will disappear after pressing TIME button again . - Page 39 3. Press the MENU button to enter Image adjust. 4. Press the UP/DOWN button to the desired item (H. /V. Position, H. Phase, Fine Tune ). 5. Press the MENU button to set the desired item (H. /V. Position, H. Phase,Fine Tune ). 6.
-
Page 40: Colour Settings
V. Position V. Position Image Image H. /V. Position H. Phase Fine Tune Exit H. Phase H. Phase Image Image H. /V. Position H. Phase Fine Tune Fine Tune Fine Tune Exit OLOUR ETTINGS 1. Press the MENU button to display the main menu screen. 2. -
Page 41: Viewing Picture-In -Picture (Pip)
Main Menu Screen Main Menu Screen Main Display Sub Display Contrast/Brightness Auto Image Adjust Image Colour Menu Setup Audio PIP Setup Reset Exit Colour Colour Cool Neutral Warm User Colour Exit User Colour User Colour Green Blue Exit Green Green Blue Blue 11.V... - Page 42 2.Select a Signal Source for PIP: Press the PIP SOURCE UP/DOWN button repeatedly to cycle through all of the available signal sources : TV, SCART, Video, S-Video, Component (YPbPr/YCbCr). 3.Change the Position of the PIP Window: When you press the PIP POSITION button repeatedly, the PIP window moves from corner to corner on theTV screen.
-
Page 43: Av Mode Adjustment
Main Display Sub Display Contrast/Brightness Auto Image Adjust Image Colour Menu Setup White Audio Blue PIP Setup Yellow Reset PIP Setup PIP Setup Green Exit PIP Position Black PIP Border Width Brown PIP Border Colour Gray PIP H/V Ratio Orange Exit Exit PIP Position... -
Page 44: Other Functions
Altering the VIDEO Adjust Settings : 1. Press the MENU button to display the main menu screen. 2. Press the UP/DOWN button to move the cusor to the desired item. 3. Press the MENU button to enter and adjust it. 4. -
Page 45: Troubleshooting
-When you press “MENU“ to go into the sub control bar, then the le- vel can be adjusted by the “-VOL+“ buttons. 3. To use “-VOL+“ as Mute control buttons -When you press both “VOL+“ and “VOL-“ buttons on the upper con- trol panel simultaneously, the sound will be muted. - Page 46 There is no picture. There is no picture from AV. Make sure the Contrast/Brightness is properly adjusted. Make sure all external devices are connected properly. There is no sound. Make sure the volume is not set to minimum . ...
- Page 47 The reception may be weak. Make sure the aerial is not disconnected. The picture is doubled or tripled. Make sure the aerial is facing the right direction. There may be reflected electric waves from mountains or buildings. The picture is spotted.
-
Page 48: Dimensions
IMENSIONS IMENSIONS Unit : inch (mm) NGLISH NGLISH... -
Page 49: Pc Input Preset Timing Table
16.PC I 16.PC I NPUT RESET IMING ABLE NPUT RESET IMING ABLE Analog Input Mode Mode Name H.Freq.(KHZ) H. Polarity Pixel Resolution V.Freq.(HZ) V. Polarity (MHZ) VGA 70HZ 31.469 25.175 640*350 70.087 VGA 60HZ 31.469 25.175 640*480 59.941 VGA 72HZ 37.861 31.5 640*480... -
Page 50: Specifications
PECIFICATIONS PECIFICATIONS ITEMS SPECIFICATION Screen Size 27” TFT-LCD Panel Aspect Ratio 16 : 9 Resolution 1280 x 768 (WXGA) Display colors 16,777,216colors Display Contrast Ratio 500 : 1 (typical) Brightness 500 cd / m (typical) Viewing Angle (Hor.) / 170 ( Ver.) Response Time Tr = 15ms / Tf = 10ms...
