JE1911

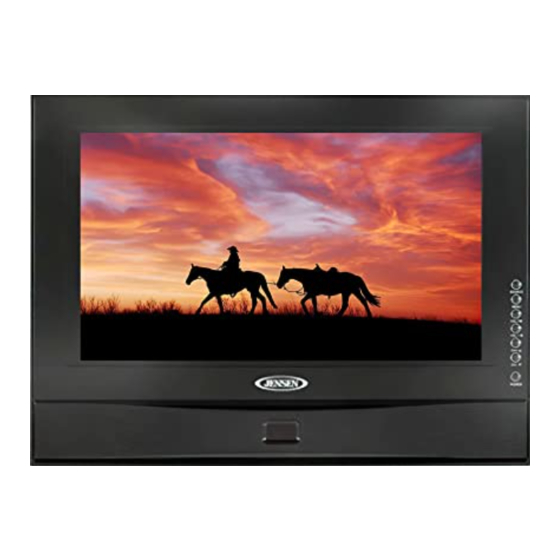

19"LCD TV User's Guide
Please observe all safety precautions when using this product.
Please read this manual careful
Guide de l'utilisateur du téléviseur LCD de 19''
Veuillez observer toutes les mesures de sécurité en utilisant ce produit.
Veuillez lire soigneusement ce manuel avant d'utiliser ce produit.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jensen JE1911
Summary of Contents for Jensen JE1911
- Page 1 JE1911 19”LCD TV User’s Guide Please observe all safety precautions when using this product. Please read this manual careful Guide de l’utilisateur du téléviseur LCD de 19’’ Veuillez observer toutes les mesures de sécurité en utilisant ce produit. Veuillez lire soigneusement ce manuel avant d’utiliser ce produit.
-
Page 2: Table Of Contents
DVD Connections / Playing the DVD ............... PC Connections / How to use as PC ............... Audio Amplifier and Monitor Connections / Earphone Connenction ................JENSEN DVD Connections for IR/SERVICE USB Connections Basic Use ................Selecting input source Application Menu Operating ................ -
Page 6: Names Of Each Part(Front View) / Accessories
Use Guidance Information Names of each part Accessories POWER RETURN MUTE MENU INFO ENTER SOURCE EXIT EJECT ANGLE PROG AS PS MTS SAP SCALE SLEEP ZOOM SUB T DISP C LIST F LIST SOUND PICTURE SETUP AUDIO TITLE Power Cable AV Cable... - Page 7 Use Guidance Information Names of each part SERVICE AV OUT SERVICE HEAD AV1 IN PHONE PC IN 12V DC IN IR OUT RF IN HDMI IN AV2 IN DC input HDMI jack S-VIDEO IR jack SERVICE USB AV1 IN (VIDEO and AUDIO) PC and AUDIO jack HEADPHONE AV OUT(VIDEO and AUDIO)
-
Page 8: Mounting On A Desktop / Installation Precautions
User Guidance Information Mounting on a Desktop SOURCE MENU VOL+ VOL- POWER ,using the optional stand.(P/N STD1911) Installation Precautions Wall Mounting ensure Using the Stand... -
Page 9: Power Input Connections/Installing An Antenna
User Guidance Information POWER input Connections Connecting to POWER INPUT +12V AV OUT SERVICE HEAD AV1 IN PHONE PC IN 12V DC IN IR OUT RF IN HDMI IN AV2 IN (+)12VDC (Included) 12V Power Cable (-)12VCC NOTE:Optional AC/DC adapter available.(P/N ACDC1911) Optional Cigarette adapter available.(P/N DCCIG09) Installing an Antenna AV OUT... -
Page 10: Remote Control
User Guidance Information Remote Control MODE LED The LED will fiash RED for TV mode, and BLUE for DVD mode. Activate TV Mode POWER POWER On / off for TV and DVD Activate DVD Mode RETURN Return to previously viewed channel MUTE Press once mutes audio,press again to CH+/CH-... - Page 11 C-LIST SETUP RIGHT RIGHT SETUP F LIST ENTER F-LIST AUDIO ENTER AUDIO SOURCE SOUND SOURCE SOURCE SOUND EXIT PICTURE EXIT PICTURE TITLE NOTE: DVD functions are intended for JENSEN DVD players only. See your JENSEN DVD manual for more information.
-
Page 12: Precautions / How To Use Remote Control
User Guidance Information Precautions are good . has DC Power. How to use remote control... -
Page 13: Connection
Connection VCR Connections Terminals vary by manufacturer AV OUT SERVICE HEAD AV1 IN PHONE PC IN 12V DC IN IR OUT RF IN HDMI IN AV2 IN (Included) Connect the LCD TV’S Composite In terminal to VCR’s Composite OUT terminal using the included Composite cable. AV OUT SERVICE HEAD... -
Page 14: Satellite/Cable Tv Set-Top Box Connections / Watching Cable Tv
Connection Satellite/Cable TV Set-TOP Box Connections Terminals vary by manufacturer AV OUT SERVICE HEAD AV1 IN PHONE PC IN 12V DC IN IR OUT RF IN HDMI IN AV2 IN Composite Cable (Included) AV OUT SERVICE HEAD AV1 IN PHONE PC IN 12V DC IN IR OUT RF IN... -
Page 15: Dvd Connections / Playing The Dvd
Connection DVD Connections Terminals vary by manufacturer AV OUT SERVICE HEAD AV1 IN PHONE PC IN 12V DC IN IR OUT RF IN HDMI IN AV2 IN (Not Included) (Not Included) Video 1.Connect LCD TV’s YPbPr terminal to DVD’s Video Out terminal . 2.Connect LCD TV’s Audio terminals in YPbPr to DVD’s Audio Out terminal. -
Page 16: Pc Connections / How To Use As Pc
Connection PC Connections Terminals vary by manufacturer. AV OUT SERVICE HEAD AV1 IN PHONE PC IN 12V DC IN IR OUT RF IN HDMI IN AV2 IN (Not Included) (Not Included) a VGA a 3.5mm (Headphone) audio cable. How to use as PC monitor SOURCE 3. -
Page 17: Audio Amplifier And Monitor Connections / Earphone Connenction
Connection Audio Amplifier and Monitor Connections Connecting to the Audio Amplifier and Monitor Terminals vary by manufacturer. <Monitor> (Not Included) Video Cable (Not Included) AV OUT SERVICE HEAD AV1 IN PHONE PC IN 12V DC IN IR OUT RF IN HDMI IN AV2 IN audio output level. -
Page 18: Jensen Dvd Connections For Ir/Service Usb Connections
All JENSEN Remote Control DVD Functions can be controlled Via the TV IR receiver. You do not need to point the remote conrol at the JENSEN DVD player when this option is used. NOTE: DVD IR control is intended for JENSEN DVD players only. -
Page 19: Basic Use
Basic Use Selecting Input Source INPUT SOURCE INPUT SOURCE S Video Component HDMI... -
Page 20: Application
Application Menu Operation Use the LEFT and RIGHT buttons to select your main menu option. Audio Allows you to customize the sound options and effects. Setup Audio Setup Picture Audio Timer Lock Channel Picture Timer Lock Channel Picture Mode Standard Sound Mode Standard Bass... -
Page 21: Customizing The Picture Settings
Application Customizing the PICTURE Settings or EXIT button to exit. Audio Setup Picture Timer Lock Channel Standard Picture Mode Contrast Brightness Color Tint Sharpness Normal Color Mode Select Move Exit MENU Picture Mode Cycles through picture display modes: Standard, Dynamic, Soft, Personal. Contrast Controls the difference between the brightest and darkest regions of the picture. -
Page 22: Customizing The Audio Settings
Application Customizing the Audio Settings Audio Audio or EXIT button to exit Setup Audio Picture Timer Lock Channel Standard Sound Mode Bass Treble Balance TV Speaker Audio Language English Select Move Exit MENU Sound Mode Cycles through sound modes: Standard, Music, Movie and Personal. Bass Controls the relative intensity of lower pitched sounds. -
Page 23: Customizing The Timer Settings
Application Customizing the TIMER Settings Select TV source for example. (Press SOURCE button to select TV mode) Press the POWER button to turn the LCD TV on. Press the MENU button on the remote control to display the Main menu, and use the UP and DOWN buttons to select the TIMER. -
Page 24: Customizing The Setup Settings
Application Customizing the SETUP Settings Select TV source for example. (Press SOURCE button to select TV mode) Press the POWER button to turn the LCD TV on. Press the MENU button on the remote control to display the Main menu, and use the LEFT or RIGHT button to select the SETUP. - Page 25 Application Customizing the SETUP Settings Close Caption Use Down button to highlight “Close Caption” , then press RIGHT button or ENTER to enter into the following menu. Setup Picture Audio Timer Lock Channel CC Mode Basic Selection Advanced Selection Service1 Option Move Select...
-
Page 26: Customizing The Lock Settings
Application Customizing the LOCK Settings Select TV source for example. (Press SOURCE button to select TV mode) Press the POWER button to turn the LCD TV on Press the MENU button on the remote control to display the Main menu, and use the LEFT and RIGHT buttons to select the LOCK Use the DOWN button to highlight “Enter Password”... - Page 27 Application Customizing the LOCK Settings Use Down button to highlight “US” , then press RIGHT or ENTER button to enter into the following menu. Setup Picture Audio Timer Lock Channel MPAA Move NEXT MENU Exit Use Down button to highlight “TV” , then press RIGHT or ENTER button to enter into the following menu.
- Page 28 Application Customizing the LOCK Settings Canada Use Down button to highlight “Canada” , then press RIGHTor ENTER button to enter into the following menu. Setup Picture Audio Timer Lock Channel Canada Eng Canada Fre Move Select Exit MENU Canada Eng Use LEFT and RIGHT buttons to select among: E, C, C8+, (English) G, PG, 14+ and 18+...
-
Page 29: Customizing The Channel Settings
Application Customizing the CHANNEL Settings Select TV source for example. (Press SOURCE button to select TV mode) Press the POWER button to turn the LCD TV on. Press the MENU button on the remote control to display the Main menu, and use the LEFT and RIGHT buttons to select the CHANNEL. - Page 30 Application Customizing the CHANNEL Settings If you select “Cable” as input signal in Antenna then you can select Cable Systems: Auto, STD, IRC and HRC. Use DOWN button to highlight “Start to Scan”, then press RIGHT or ENTER buttonto search the channels automatically. The receivable channels will be stored automatically.
-
Page 31: Maintenance And Service
Maintenance and Service Trouble shooting In case a problem occurs with your LCD TV, please take the following steps first. If you still have the problem, turn the power off and contact your dealer or an authorized service center. Problem Action Is the power plug connected? Insert the power plug. -
Page 32: Specifications
Maintenance and Service Specifications 19” TFT LCD LCD Panel Panel Size Brightness 1000:1 Contrast Ratio 170/160 Viewing Angle Max. Resolution 1440 x 900 VIDEO INPUT S-VIDEO YPbPr(Component) AUDIO (L/R) PC/AUDIO(L/R) HDMI OUTPUT VIDEO AUDIO (L/R) EARPHONE DC 9~30V Power Source Power Consumption 515W x 384H x 80D mm Dimension...
