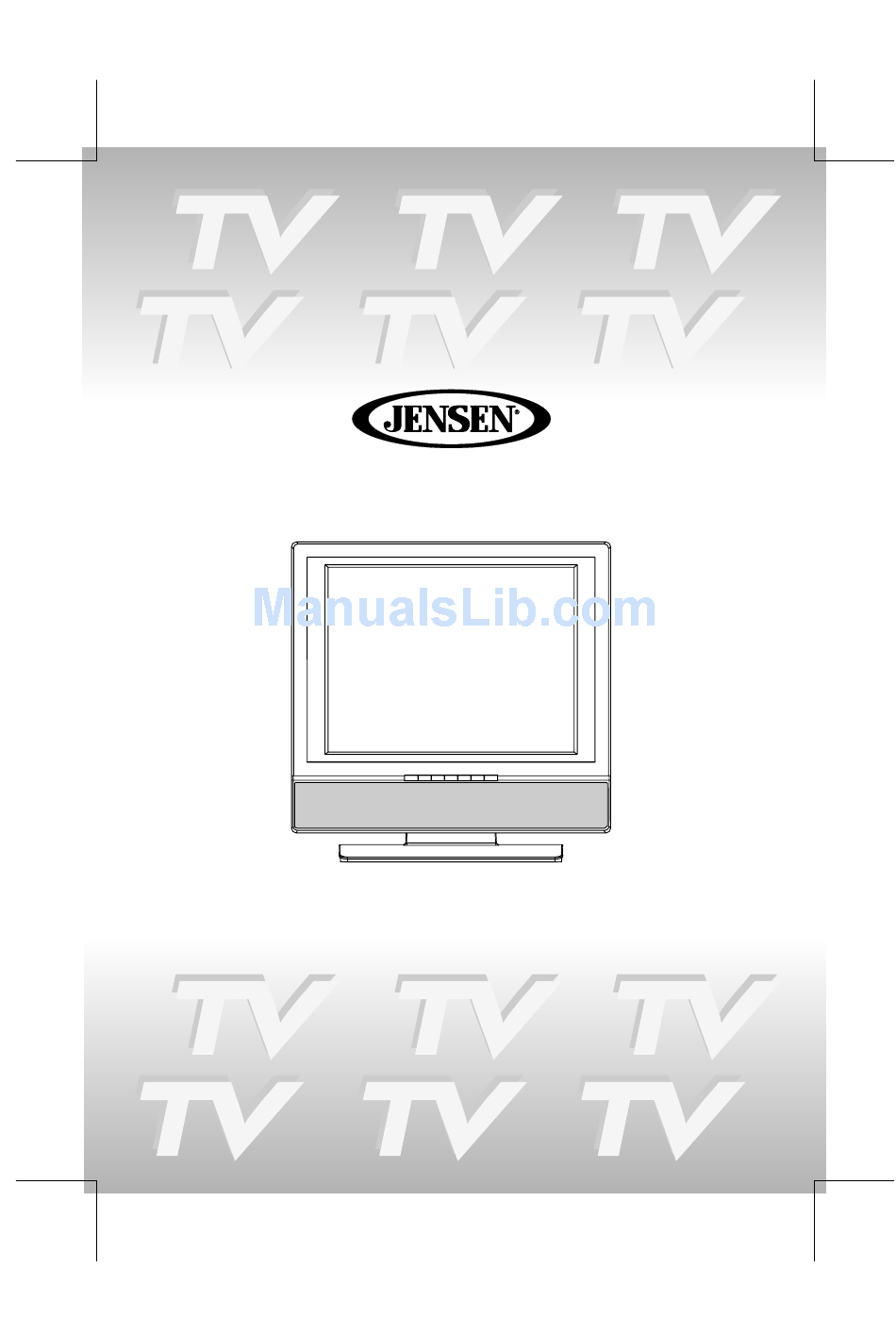

- Page 1 15” LCD TV OWNER'S MANUAL...
-
Page 2: Safety Precautions
Shielded cables must be used with this unit to ensure compliance with the Class FCC limits. WARNING: Should any problems occur, disconnect the AC cord and refer servicing to a qualified technician. PLV1615CS1- E2-23 JENSEN-DC.pmd WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). -
Page 3: Important Safety Instructions
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. PLV1615CS1- E2-23 JENSEN-DC.pmd 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. -
Page 4: Table Of Contents
Setup Menu ... 18 – 20 Time Setup Setting ... 19 Caption Setting ... 20 Restore Setting ... 20 Parental Menu ... 20 – 21 Password ... 20 Parental Control Setting ... 21 TROUBLE SHOOTING GUIDE ... 22 PLV1615CS1- E2-23 JENSEN-DC.pmd 06/08/2007, 17:56... -
Page 5: Remote Control
AC adapter ... x 1 Car power adapter ... x 1 Audio/Video cable ... x 1 Mounting screw ... x 4 Specifications and appearance are subject to change without notice. PLV1615CS1- E2-23 JENSEN-DC-R1.pmd 2. Insert two “AAA” batteries. 11/7/2007, 9:37 AM... -
Page 6: Remote Control Reference Guide
TV channel number and entering a parental control password. LAST CH Button Press to switch repeatedly between the last two channels displayed. PLV1615CS1- E2-23 JENSEN-DC.pmd PICTURE Button Press to select from preset screen display settings to match the type of show you are watching (Standard, Dynamic, Personal, Soft &... -
Page 7: Unit Reference Guide
Indicates whether the unit is ON or in STANDBY (OFF) mode. Light On: The unit is in STANDBY. Light Off: The unit is turned ON. PLV1615CS1- E2-23 JENSEN-DC.pmd 10 11 12 1314 15 16 4) Removable Base Stand 5) DC IN 12V... -
Page 8: Connections
If you want to hear the sound from the amplifier only, press the VOL – button on the TV to decrease the volume or press the MUTE button on the remote control to turn off the sound. PLV1615CS1- E2-23 JENSEN-DC.pmd 06/08/2007, 17:57... -
Page 9: Connecting To A/V Devices (Vcr, Pvr, Camcorder, Game System, Etc.)
S-VIDEO input on this unit (S-VIDEO cable not included). Make sure you connect both audio and video from the same camcorder to the same input (AV IN). Note: Please refer to the user manual for the camcorder for more information. PLV1615CS1- E2-23 JENSEN-DC.pmd 06/08/2007, 17:57... - Page 10 Make sure you connect both audio and video from the same camcorder to the same input (AV IN). Note: Please refer to the user manual for the camcorder for more information. PLV1615CS1- E2-23 JENSEN-DC-R1.pmd AUDIO/VIDEO CABLE [included] AUDIO/VIDEO CABLE [included] AUDIO/VIDEO CABLE [included] AUDIO/VIDEO CABLE [included]...
- Page 11 Note: • After connection, please operate in TV/AV mode. • For the reason of copyright protection, the result copy may has bad picture and/or sound. PLV1615CS1- E2-23 JENSEN-DC-R1.pmd AUDIO/VIDEO CABLE [included] AUDIO/VIDEO CABLE [included] AUDIO/VIDEO CABLE [included] AUDIO/VIDEO CABLE [included]...
-
Page 12: Connecting A High-Definition (Hd) Source
(not included). Connect a stereo audio cable (not included) to the PC AUDIO IN jack on this unit, and the other end to the AUDIO OUT jack on your computer’s sound card. PLV1615CS1- E2-23 JENSEN-DC.pmd 06/08/2007, 17:57... -
Page 13: Connecting An Audio Amplifier
• To prevent electrical shock, match wide blade of plug to wide slot of wall outlet, then fully insert. • When you are not going to use the unit for a long period of time, disconnect the power cord. PLV1615CS1- E2-23 JENSEN-DC.pmd 06/08/2007, 17:57... -
Page 14: Installation
(75mm x 75mm) mounting kit designed for flat-panel TVs (sold separately). Mount this unit according to the directions included with the mounting kit. Note: You must remove the base stand before mounting the unit on the wall. Four mounting holes (mounting screw x4 included) PLV1615CS1- E2-23 JENSEN-DC-R1.pmd 11/2/2007, 5:27 PM... -
Page 15: Using Headphones
Note: When the unit is not going to be used for a long time, disconnect the AC power cord from AC power outlet. PLV1615CS1- E2-23 JENSEN-DC.pmd button to the next step. button. The system will automatically start to scan and... -
Page 16: Tv Setup
: Adjust the sharpness level to improve detail in the picture. • Color Temperature : Adjust the three color temperature of the picture. Choose from Standard (balanced), Warm (red white), or Cool (blue white) modes. PLV1615CS1- E2-23 JENSEN-DC.pmd button to go into the detailed AV / YUV MODE... -
Page 17: Vga Settings In Pc Mode
• Audio Mode : Select from preset sound settings (Personal, Theater, Music, Voice, Standard) to match the type of show you are watching. (Select Personal mode to recall your customed settings on bass and treble.) PLV1615CS1- E2-23 JENSEN-DC.pmd button. The screen will change to your desired setting. Video Auto Adjust H. -
Page 18: Tv Menu
4. Press the EXIT button to return to the previous menu. 5. Repeat steps 3 and 4 to adjust other options. 6. To exit the MAIN MENU and return to the normal screen, press the EXIT button repeatedly. PLV1615CS1- E2-23 JENSEN-DC.pmd Video Tuner Mode... -
Page 19: Time Setup Setting
: Select On to activate automatically power on/off. • Power On Time : Press the buttons to input power on time. • Power Off Time : Press the buttons to input power off time. PLV1615CS1- E2-23 JENSEN-DC.pmd AV / YUV MODE Video English OSD Language... -
Page 20: Caption Setting
You can edit the parental control level or change the password. See Parental Control Settings on the next page. TV MODE Video Password Audio Setup Parental Parental enter " 8888 " to unlock parental control. PLV1615CS1- E2-23 JENSEN-DC.pmd Video Caption Style Font Size Audio Font Style Font Color Font Opacity Setup Background Color... -
Page 21: Parental Control Setting
16 ans+ : Not suitable for children under the age of 16. 16 ans+ : Not suitable for children under the age of 16. 18 ans+ : Adult Programming. 18 ans+ : Adult Programming. PLV1615CS1- E2-23 JENSEN-DC.pmd Video Rating Enable U.S.TV Ratings Audio U.S. -
Page 22: Trouble Shooting Guide
No picture or sound. Colored patches of picture. PLV1615CS1- E2-23 JENSEN-DC.pmd CAUSE (AND REMEDY) • Check that the AC adapter/car plug is connected. • Turn on the unit. • Remove any obstacles between the remote and the unit. - Page 23 Unit : INCH 3 ½ 15 5/8 6 5/8 7 1/2 10 1/2 PLV1615CS1- E2-23 JENSEN-DC.pmd 06/08/2007, 17:57...
